Wood screw thread rolling machine
Short Description:
Basic Info
Warranty:12 Months
Delivery Time:30 Days
After Service:Engineers Available To Service Machinery Overseas
Voltage:380V/3Phase/50Hz Or At Your Request
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Control System:PLC
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Thread Rolling Machine Model Z28-63
This model mainly is used for various types of precision outer thread rolling, including the common thread, trapezoidal thread and modulus thread, workpiece to circular shape, straightening, rolling wrinkles, light and rolling work, Adapt rolling of material: elongation and tensile strength than 10% less than 1000N/mm² of various carbon steel, alloy steel and non-ferrous metal.
Technical parameters:
| Pressure of Roller max. | 630KN |
Dip Angle of Main Shaft |
±10° |
| Working Dia | 120mm |
Rotary speed of Main shaft |
8,14,21,33(r/min) |
|
OD of Roller |
260mmThread Length(no limits)
Roller Dia max
220mmRolling Power15kw
BD of Roller
100mm
Hydraulic Power7.5kw
Roller Width max
200mmWeight3000kgCenter Distance of Main shaft210-380mmSize
2100×2270×2330mm

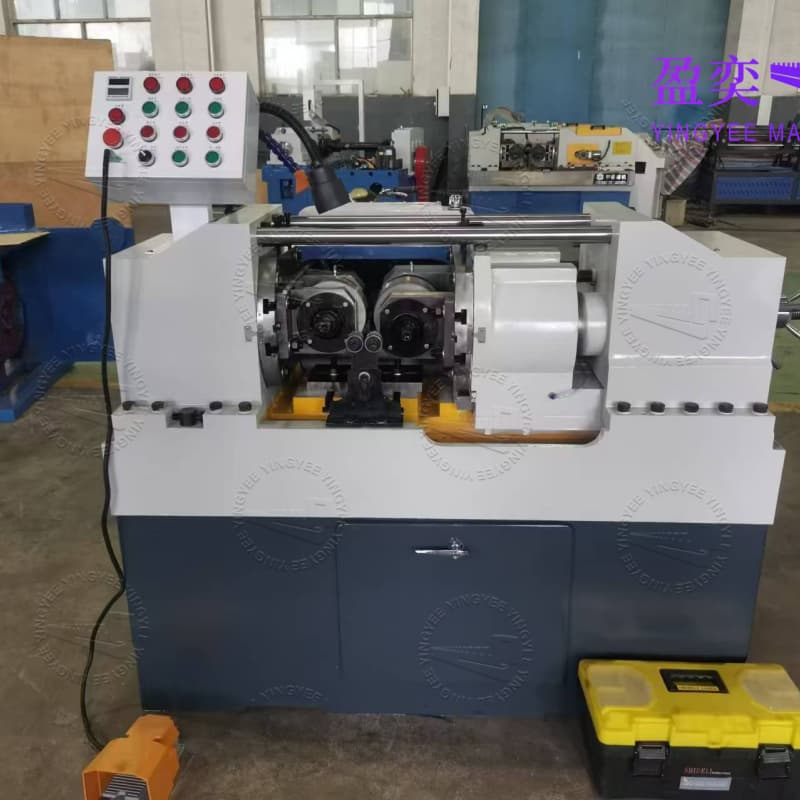

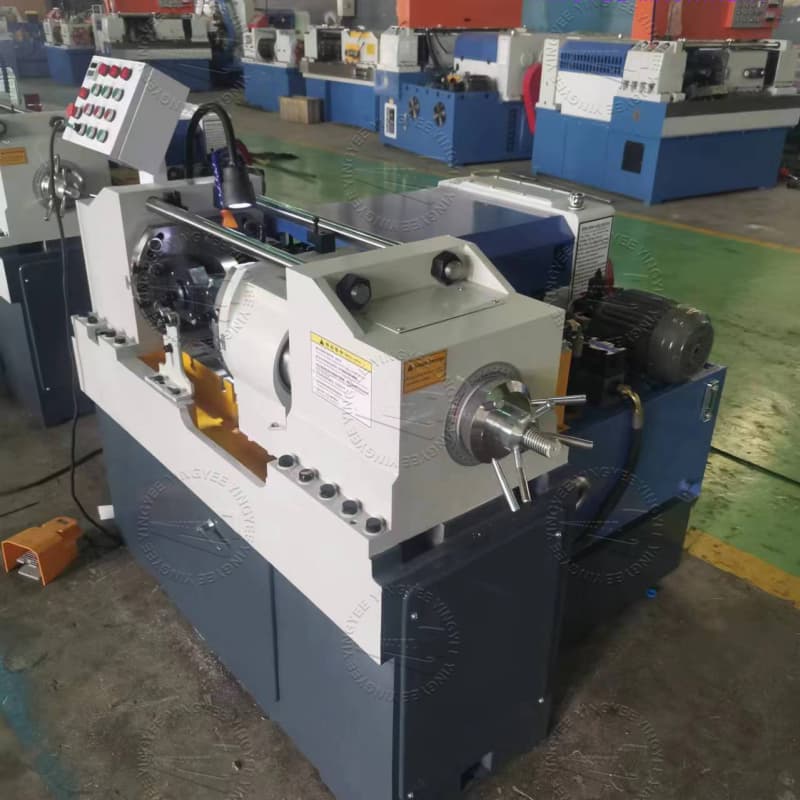

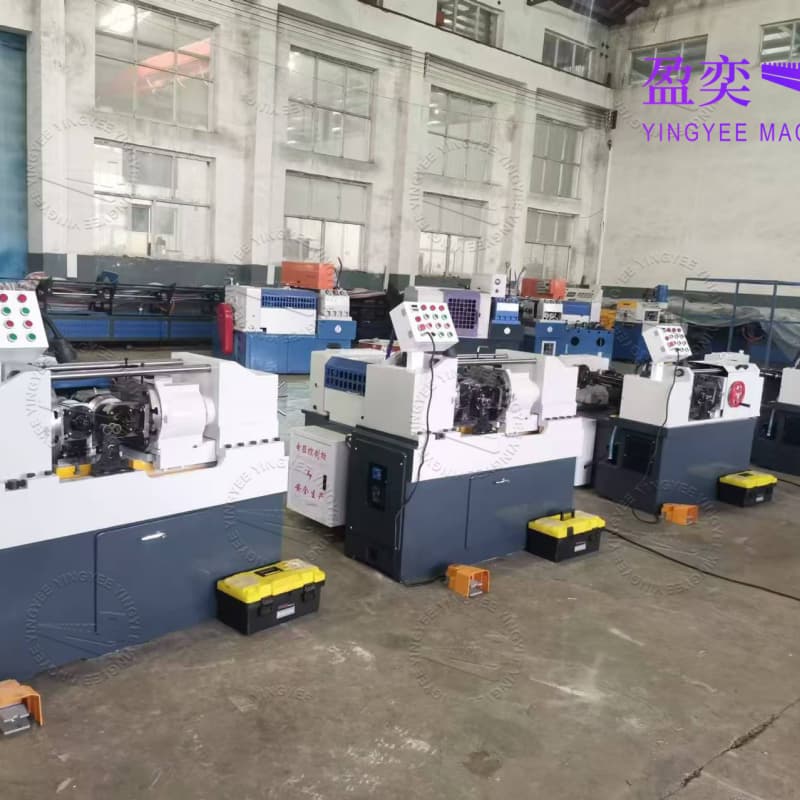

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal Wood Screw Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Hollow Parts Thread Rolling Machine are quality guaranteed. We are China Origin Factory of Hydraulic Automatic Thread Rolling Machine. If you have any question, please feel free to contact us.
Product Categories : Thread Rolling Machine
