Warehouse High Capacity Storage Racks

Short Description:


Product Detail

FAQ

Product Tags

Information:

No.                      Main parameter of  storage rack roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate As customer need
3 Thickness of the plate 1.5-2.5mm
4 De-coiler Manual one, can load 5 tons raw material
5 Rollers for forming 20 rows
6 Diameter of the roller Φ70mm
7 Rolling material  Steel 45# with chormed
8 Main motor power 11kw*2
9 Productivity 12-15m/min
10 Cutting method Hydraulic mould cutting
11 Material of the cutting blade Cr12
12 Hydraulic cutting power 5.5 kw
13 Processing precision Within 1.00mm
14 Control system Delta PLC control
15 Side panel of machine 14mm
16 Main structure of the machine torrist stands
17 Weight About 3.5T
18 Dimensions 7.5*1.0*1.5m
19 Voltage 380V 50Hz 3phases(changeable as n

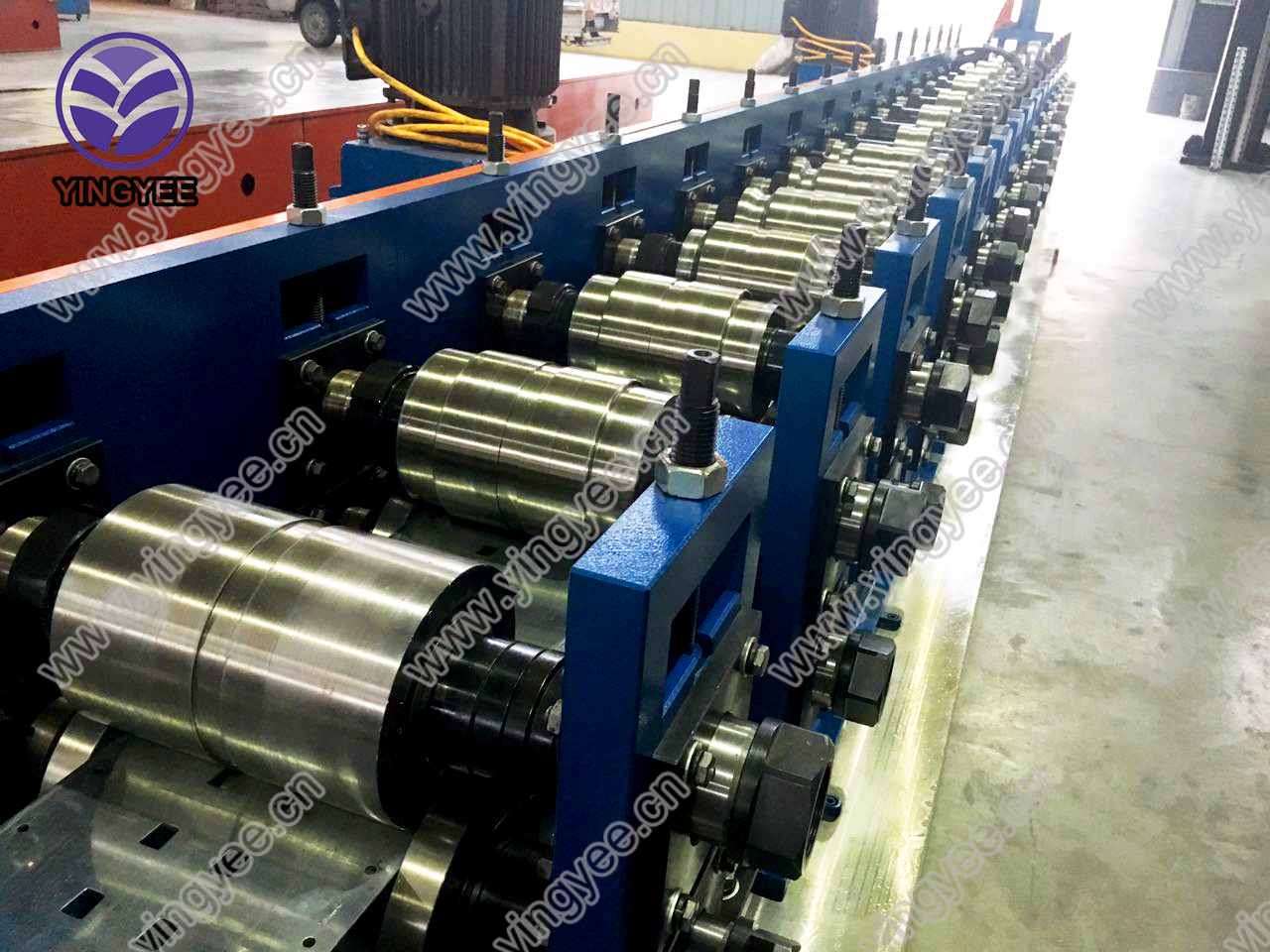

货架立柱成型机细节(出料效果)  货架立柱成型机细节(成型辊轴成型效果)  货架立柱成型机细节(出料效果) 货架立柱成型机细节(牌坊和成型辊轴部分) 货架立柱成型机细节(切断出料部分 带出料)
