Tube Mill line Tube welding line
Short Description:
Basic Info
Model No.:YY–TML—001
Condition:New
Customized:Customized
Theory:Other
Application:Industry
Type:High Frequency Weld Pipe Mill Line
Round Pipe Size Range:Φ8–Φ630 Mm
Round Pipe Thickness Range:0.5-20.0 Mm
Square Pipe Size Range:10*10–500*500 Mm
Squre Pipe Thickness Range:0.5-20.0 Mm
Forming Speed:60-70M/min
Daily Production:6000 Tubes
Additional Info
Packaging:Naked
Productivity:100 SETS/YEAR
Brand:YINGYEE
Transportation:Ocean
Place of Origin:CHINA
Supply Ability:100 SET/YEAR
Certificate:ISO9001
HS Code:84552210
Port:Tianjin
Product Description
Composition
1. Decoiling |
Unrolling the winded skelp. |
2. Butt welding |
Connecting the both ends of skelp for the continuous production. |
3. Accumulator |
Stacking the connected skelp to decrease the material preparation time. |
| 4. Forming | Passing skelp through the roll forming tool. |
| 5. Welding | Welding process by electric resistance. |
| 6. Cooling | Air and water cooling to uniformalize the heated organization after high frequency heat treatment process. |
| 7. Sizing | To accurate the out diameter of pipe. |
| 8. Cut-Off | Cutting to ordered dimension. |
| 9. Straightening | Passing through the correction gap for the straightness. |
| 10. End facing | Chamfering & beveling the cut side according customer`s order. |
| 11. Hydrostatic testing | Checking the water leak and crack. |
| 12. Packing | Packing by ordered. |
MODELS
| MODEL | Round pipe diameter range (mm) | Round pipe thickness range (mm) | Square pipe diameter range (mm) | Square pipe thickness range (mm) | Forming speed (m/min) |
| YY20 | Φ8–Φ20 | 0.5-1.2 | 10*10–20*20 | 0.5-1.0 | 20-100 |
| YY32 | Φ12–Φ32 | 0.6-2.0 | 10*10–25*25 | 0.6-1.8 | 20-100 |
| YY50 | Φ15–Φ50 | 0.8-3.0 | 15*15–40*40 | 0.8-2.5 | 20-80/120 |
| YY63 | Φ21–Φ63 | 0.8-3.5 | 15*15–50*50 | 0.8-3.0 | 20-80/120 |
| YY76 | Φ21–Φ76 | 1.0-4.0 | 20*20–60*60 | 1.0-3.5 | 20-80/120 |
| YY89 | Φ32–Φ89 | 1.5-4.5 | 25*25–70*70 | 1.5-4.0 | 20-70 |
| YY114 | Φ48–Φ114 | 1.5-5.0 | 40*40–90*90 | 1.5-4.5 | 20-60 |
| YY140 | Φ48–Φ140 | 1.5-5.5 | 40*40–110*110 | 1.5-5.0 | 20-60 |
| YY165 | Φ60–Φ165 | 2.0-6.0 | 50*50–130*130 | 2.0-5.5 | 10-45 |
| YY219 | Φ89–Φ219 | 3.0-8.0 | 70*70–180*180 | 3.0-7.0 | 10-35 |
| YY273 | Φ114–Φ273 | 5.0-10.0 | 100*100–200*200 | 4.0-8.0 | 10-35 |
| YY325 | Φ165–Φ325 | 6.0-12.0 | 120*120–250*250 | 6.0-10.0 | 10-30 |
| YY426 | Φ219–Φ426 | 8.0-14.0 | 150*150–300*300 | 8.0-12.0 | 10-30 |
| YY508 | Φ273–Φ508 | 10.0-16.0 | 200*200–400*400 | 10.0-16.0 | 10-20 |
| YY630 | Φ325–Φ630 | 12.0-20.0 | 250*250–500*500 | 12.0-20.0 | 10-20 |

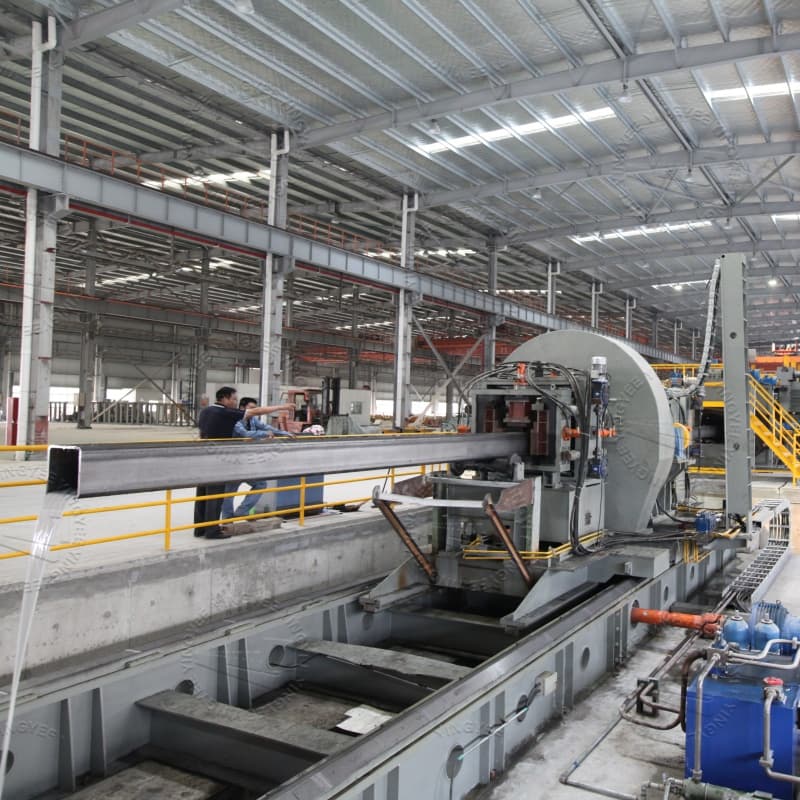

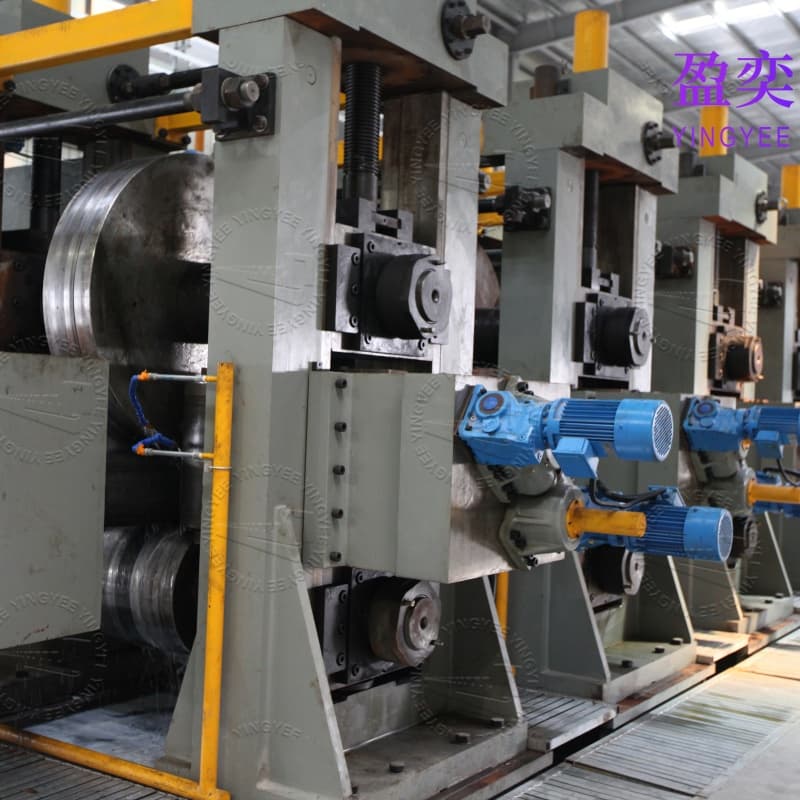

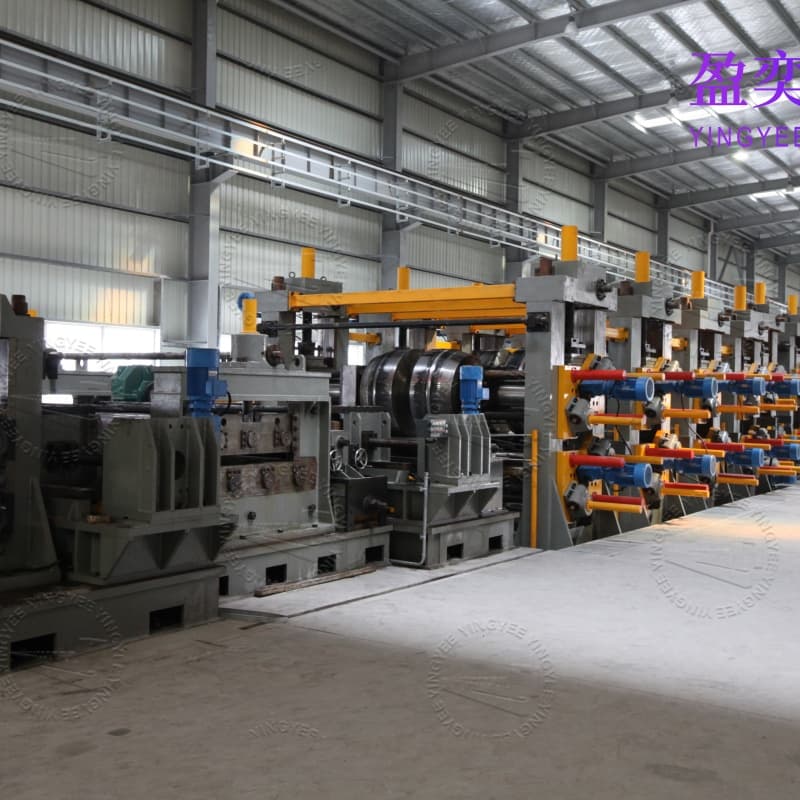

Machine Picture
Looking for ideal High Speed Tube Mill Line Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the High Quality Tube Mill Welding Line are quality guaranteed. We are China Origin Factory of Low Price Tube Mill Line. If you have any question, please feel free to contact us.
