Trapezoid Roof sheet forming machine PPGI Coils Color for Roofing

Short Description:

Trapezoid Roof sheet forming machine PPGI Coils Color for Roofing

For making roof sheets.

Material thickness:0.3-0.8mm

Feeding material: GI, GL, PPGI, PPGL,Aluminum coils.

The forming step is one step by one step, it can make sure the forming shape more elaborate.

Shaft material is #45 steel, Rollers material is #45 with chromed, driven is chain and gear.

The cutter is hydraulic cutting,material is Cr12.


Product Detail

FAQ

Product Tags

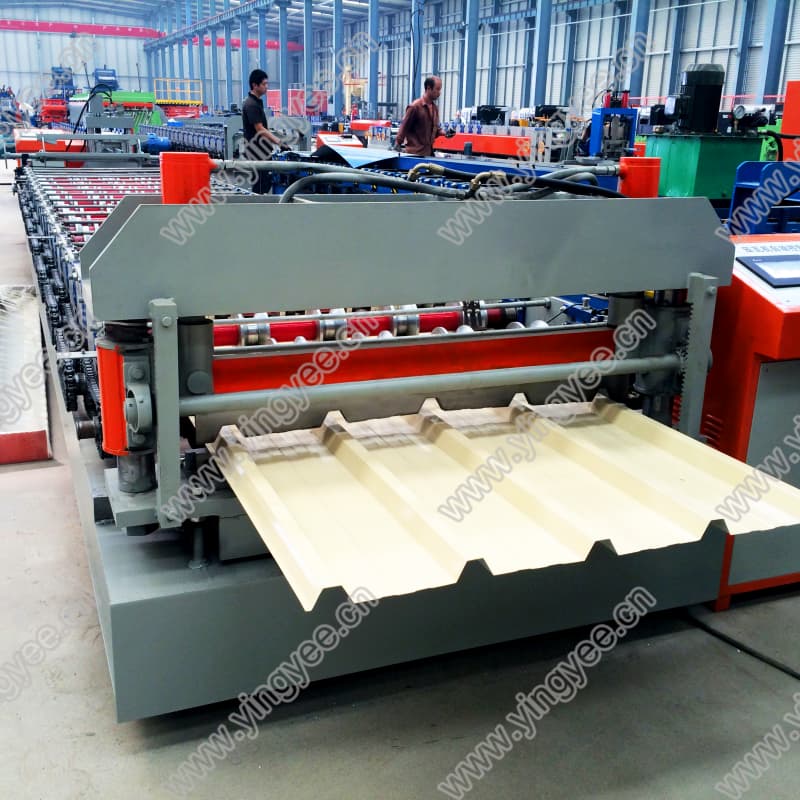

T型瓦成型机细节(切刀带出料部分)

This machine is for trapezoid roof sheet, it can be used in roof sheet.

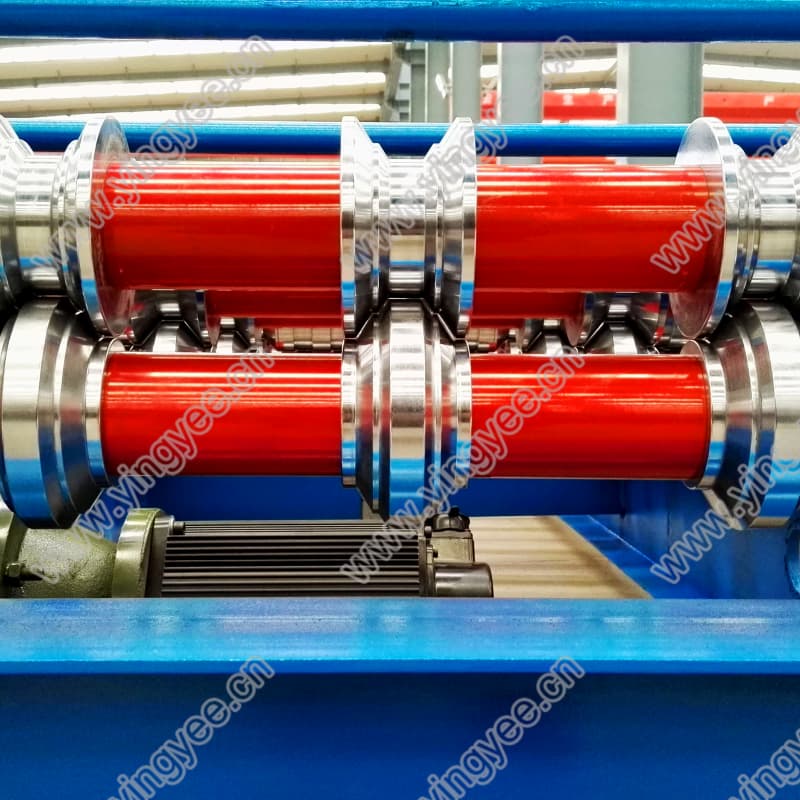

T型瓦成型机细节(辊轴和成型效果带编码器)

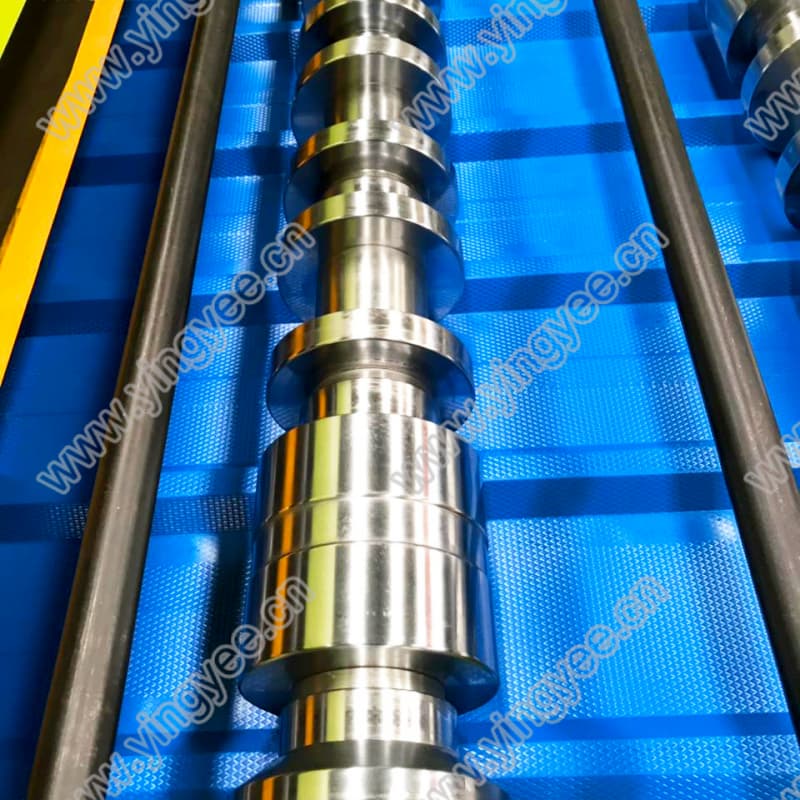

The roller material is #45 with chromed,shaft material is #45 steel,common diameter is 75mm.

The encoder can count the produce lenghth. normal forming speed is 15m/min,the faster machine can reach 30m/min.

T型瓦成型机细节(PLC)



Control system is PLC,  it has a touch screen and bottons ,you can set the machine on/off、produce length、speed、quantity and so on.

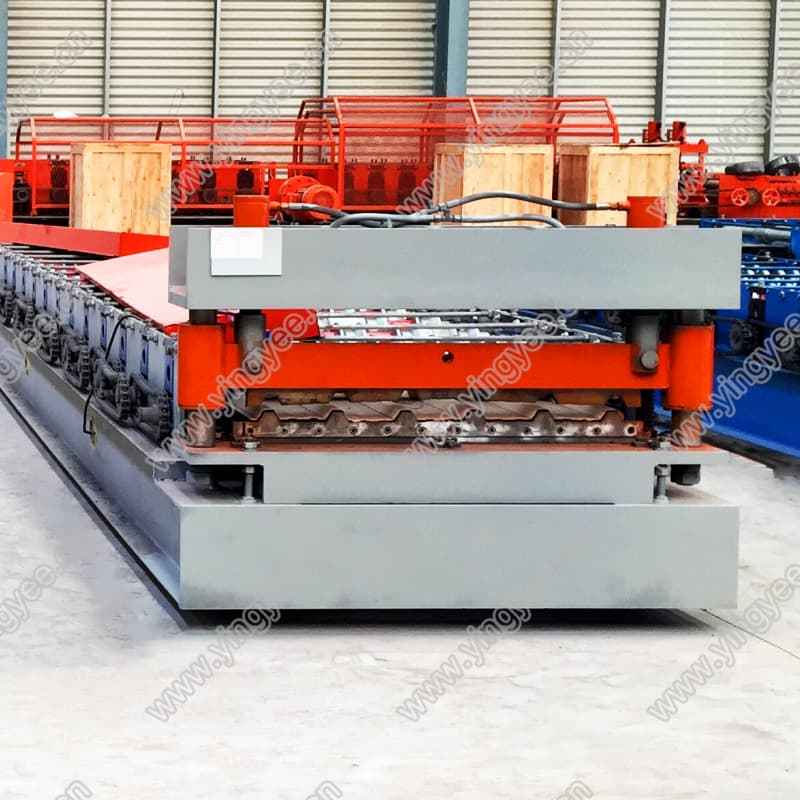

T型瓦成型机细节(前面切刀部分)

This is the hydraulic cutter,common hydraulic power is 3.5kw.
