Top Quality Steel Deck Cold Bending Machine - metal IBR roof sheet roll forming machine – Yingyee Detail:

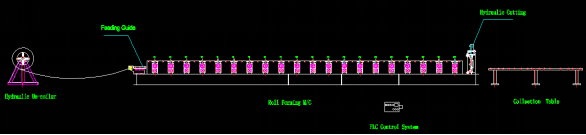

Working Process:





 Component:

Manual - coiler                                  x1set l

Adjustable input equipment                         x1set l

Main roll forming machine with chromed plate        x1set

Hydraulic cutting system                           x1set l

Hydraulic station                                 x1set l

PLC Control system                               x1set l

Run-outtable                                    x1set









Technical parameters

Manual Decoiler

1: Max width of raw material :1300mm2: Capacity: 5000kgs3: Inner diameter of coil: 450-600mm

Roll forming machine

1.Matching material:PPGI/GI/Aluminium2.Material thickness:0.2-1mm3.Power:7.5kw4.Forming speed:0-30m/min5.The width of the plates:according to the drawings6.input leveling equipment:adjustable as photos.7.Roll stations:228.Shaft Material and diameter:materialis45#steel ¢80mm, 9.Tolerance:10m±1.5mm 10.Way of drive:chain with the motor

11.Controlling system:PLC

12.Voltage,Frequency,Phase:depend on customer request

13.Material of forming rollers:45#steel heat treatment and chromed 14Materialofcutterblade:Cr12mouldsteelwith quenched treatmentHRC58-62

15. Side plate:steel plate with Chromed.

Cutting

(hydraulic guide)

1. Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.2.Material of blade: Cr12 mould steel with quenchedtreatment58-623.Length : Automatic length measuring4.Tolerance of length: 10+/- 1.5mm


metal IBR roof sheet roll forming machine metal IBR roof sheet roll forming machine metal IBR roof sheet roll forming machine metal IBR roof sheet roll forming machine metal IBR roof sheet roll forming machine metal IBR roof sheet roll forming machine metal IBR roof sheet roll forming machine metal IBR roof sheet roll forming machine
