Storage rack beam machine
Short Description:
Basic Info
Type:Steel Frame & Purlin Machine
Warranty:12 Months
Delivery Time:30 Days
Material:GI, PPGI, Aluminum Doils
Speed:25-30m/min(excluding Punching And Cutting Time)
Control System:PLC
Way Of Driven:Chain Transmission
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
After Service:Engineers Available To Service Machinery Overseas
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
Storage rack beam machine
With the production advantage of the Rack Beam roll forming machine, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | Colored steel, Galvanized steel |
| Material thickness range | 1.5-3.0mm |
| Rollers | 18-24 rows(according to drawings and size) |
| Material of rollers | 45# steel with chromed |
| Shaft diameter and material | 80mm, material is 40Cr |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Forming speed | 15-20m/min(excluding cutting time) |
| Way of driven | Chain transmission or Gear box |
| Controlling system | Siemens PLC |
| Total power | 8KW |
| Voltage | 380V/3Phase/50Hz or at buyer’s request |

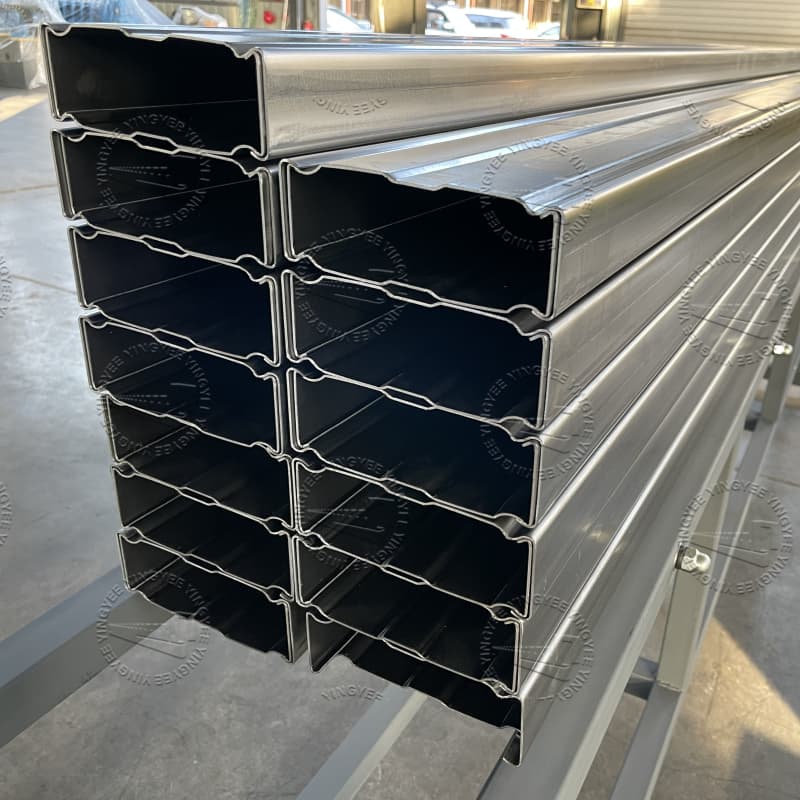

Pictures of machine:
