Steel Long span Roof Roll Forming Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Model No.:YY–LS–001

Tile Type:Colored Steel

Certification:CE, ISO

Condition:New

Customized:Customized

Usage:Roof, Wall

Transmission Method:Machinery

Products:Big Span Roll Forming Machine

Material:Pre-printed Steel Coil,galvanized Coil,Aluminum Co

Material Of The Cutting Blade:CR12

Speed:10-25m/min

Cutting Mode:Hydraulic

Control Mode:PLC

Voltage:As Customers Request

Additional Info

Packaging:NUDE

Productivity:CHINA

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200sets/years

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin

Product Description

Steel Long span Roof Roll Forming Machine

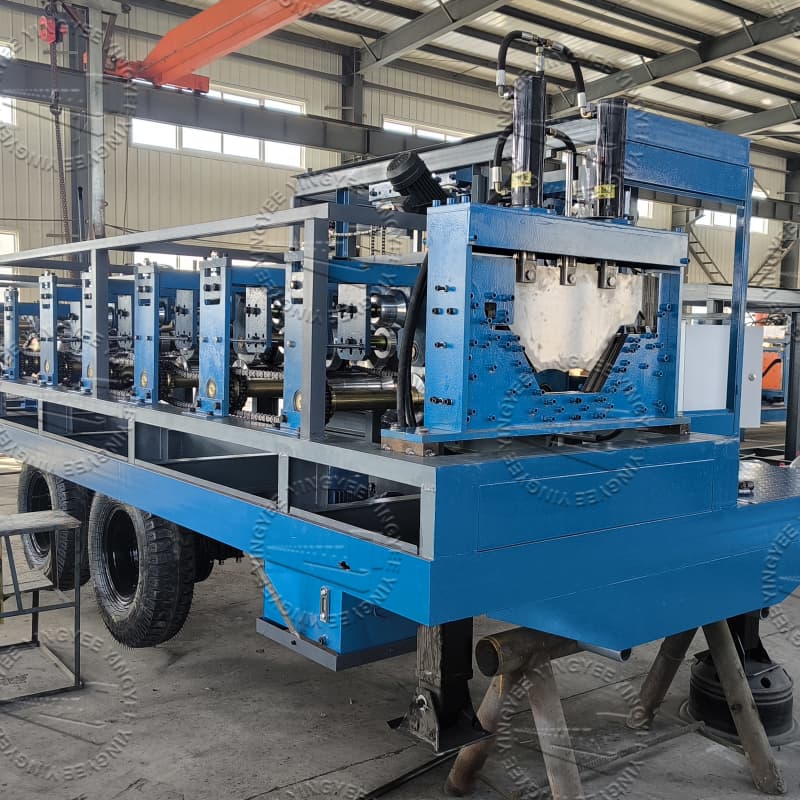

Steel Long span Roof Roll Forming Machine is comprised of decoiler, forming unit, hydraulic mould cutting device, electric control system, hydraulic system and unloading rack. All parts are mounted on a mobile pedestal. So it is suitable for site working.

Product Description

Specification:

1) Main machine dimension: 9.65m*2.23m*2.4m

2) Bending machine dimension; 3.8m*2.23m*2.4m

3) Suitable material: galvanized steel, colored steel, etc

4) Coil thickness: 0.6 –1.5mm

5) Roller stands:16

6) Roller diameter:80mm

7) Totally power:18.5kw

8) Main Power:7.5kw; Hydraulic power:4.0kw; side bending power:1.5kw*2

Curving power:4.0kw

9) Roller material: 40Cr

10) Shaft material: high grade #45 steel

11) Cutting Blade material:Cr12 steel

12) Machine speed: forming speed 13m/min, Seaming speed:6m/min

13) Span : ≤38m

14) Power supply: AC380V±10%, 50Hz, or as per your requirement

color span machine



big span machine

color span

span machine

k SPAN

Packaging & Shipping

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine



Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Guardrail Roll Forming Machine
  • Storage roll forming machine
  • Cable Tray Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • slitting machine

Installation and training:


1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.
Certification and after service
1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.

Our advantage:

1. Short delivery period.

2. Effective communication

3. Interface customized.

Looking for ideal Color Span Roofing Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Metal Long Span Making Machine are quality guaranteed. We are China Origin Factory of Automatic Larger Span Roll Forming Machine. If you have any question, please feel free to contact us.
