Steel downpipe roll former making machine
Short Description:
Basic Info
Model No.:YY–DPM—001
Delivery Time:30 Days
Warranty:12 Months
After Service:Engineers Available To Service Machinery Overseas
Type:Pipe Production Line
Cutting Mode:Flying Saw Cutting Or Mould Cutting
Material:GI, PPGI, Aluminum Coils
Material Of Cutting Blade:Cr12
Forming Speed:25-30m/min
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Steel downpipe roll former making machine
The Steel downpipe roll former making machine are divided into two categories: Square Tube Seamless Steel Pipe Roll Forming Machine and Welded Steel Pipe Roll Forming Machine.
According to the cross-sectional shape can be divided into Square Tube Roll Forming Machine and Roll Forming Machine, which are widely used in circular steel pipe, but there are some semi-circular, hexagonal, equilateral triangle, octagonal shaped steel pipe.
Working Flow: Decoiler – Feeding guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
Raw material
PPGI or GI
Material thickness range
0.2-0.8mm
Rollers
18 rows
Material of forming rollers
45# steel with chromed
Shaft diameter and mateiral
76mm, material is 40Cr
Material of cutting blade
Cr12 mould steel with quenched treatment
Forming speed
12-15m/min(excluding cutting stoping time)
Main motor power
4 KW
Hydraulic station power
3KW
Mode of cutting
Hydraulic cutting or flying saw cutting or mould cutting
Control system
PLC Frequency Control System with touch screen

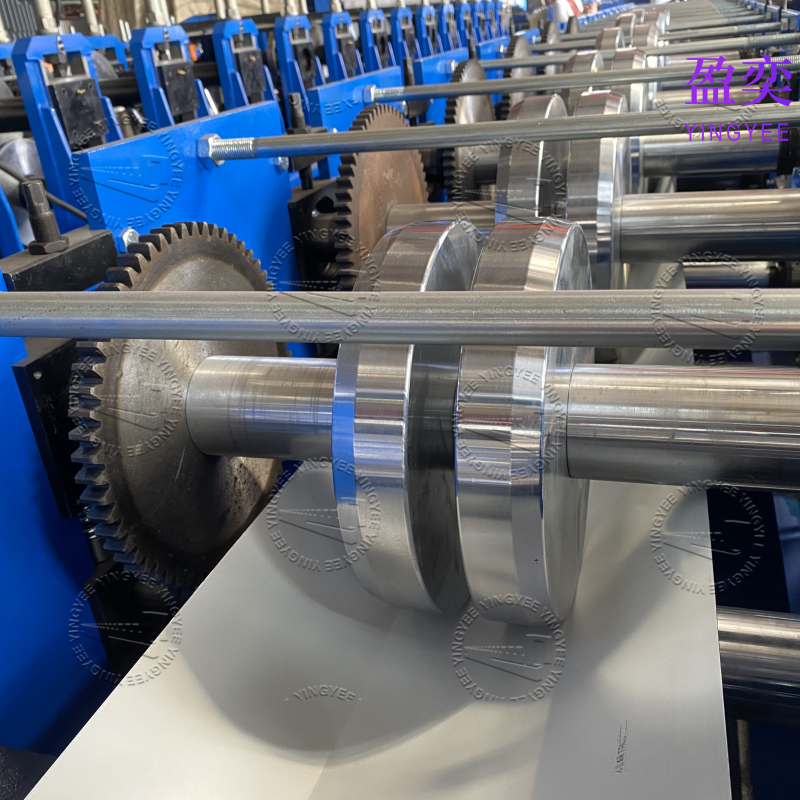

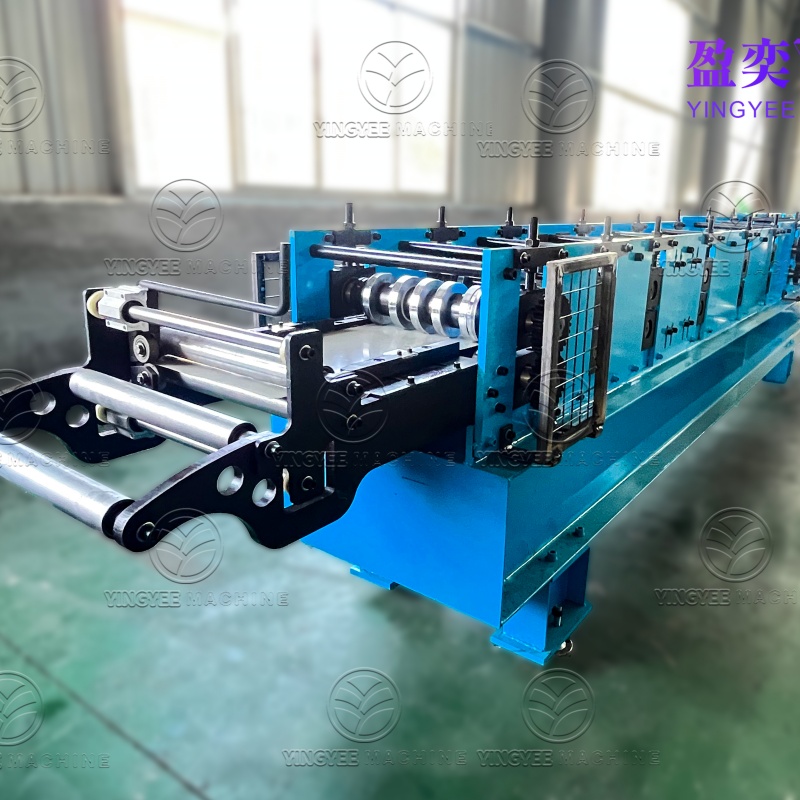

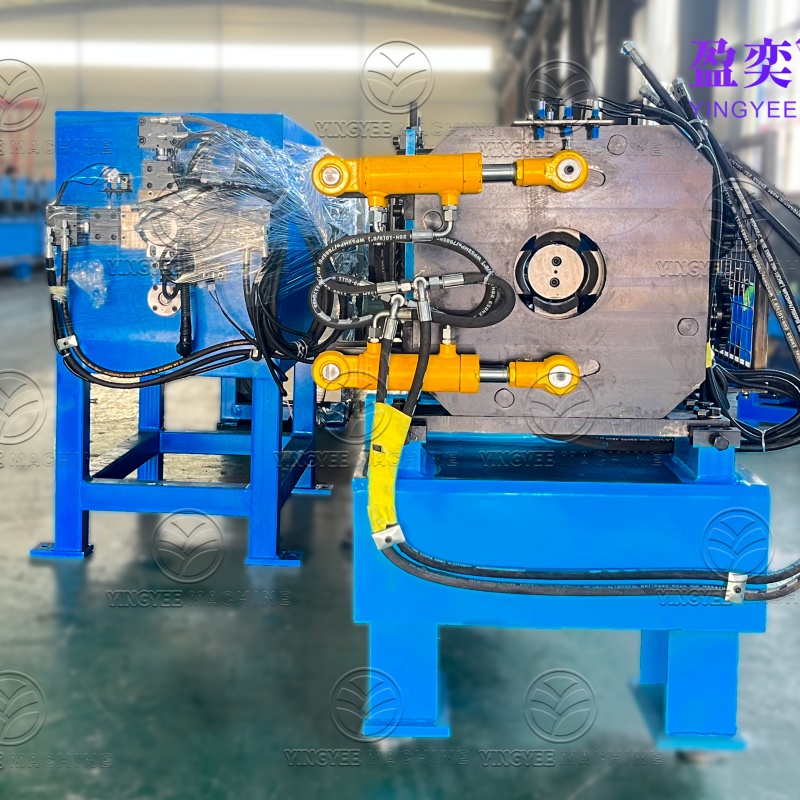

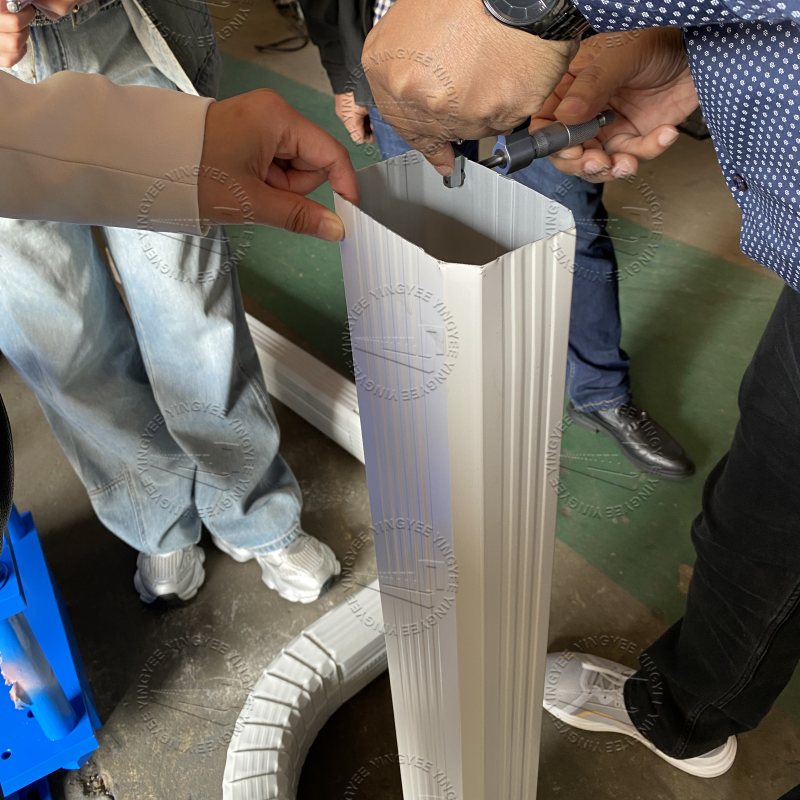

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
