steel crash barrier roll forming machine
Short Description:
Basic Info
Model No.:YINGYEE013
Warranty:12 Months
Delivery Time:30 Days
After Service:Engineers Available To Service Machinery Overseas
Type:Steel Frame & Purlin Machine
Material:GI, PPGI, Aluminum Coils
Cutting Mode:Hydraulic
Forming Speed:5-10m/min(excluding Punching)
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Material Of Cutting Blade:Cr12, DC53
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean,Land,Air
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tainjin,Xiamen,Qingdao
Product Description
Steel crash barrier roll forming machine

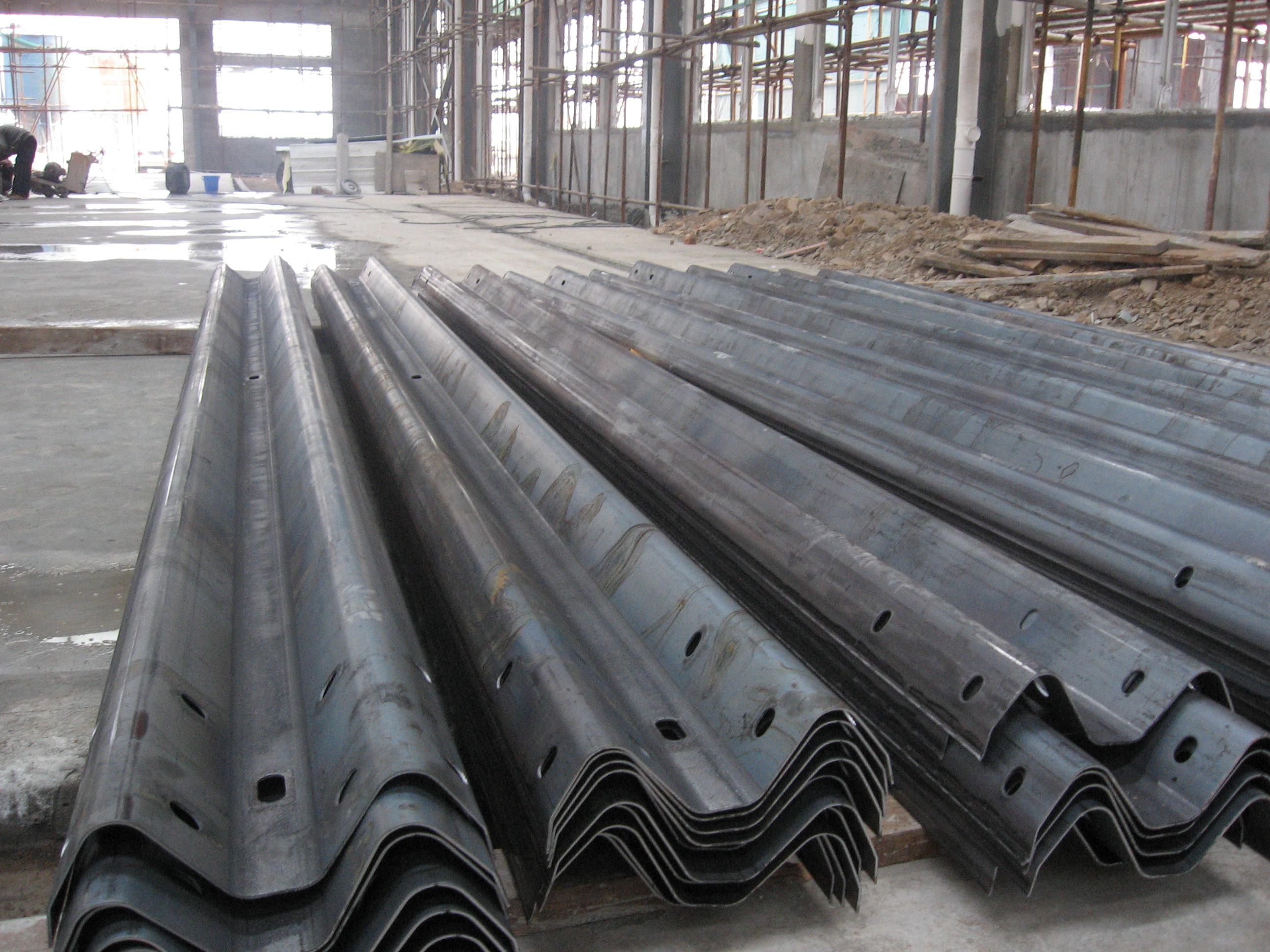

Steel crash barrier roll forming machine, also known as Steel W Beam Roll Forming Machine, is commonly used for producing crash barrier and W shaped guardrail. In order to improve road safety, the Steel crash barrier roll forming machine is designed to prevent vehicles from leaving the roadway.
Steel Crash Barrier Forming Machine is mainly composed of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.
Working Flow: Decoiler – Leveling machine – Servo feeding system – Hydraulic punching – Feeding guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Matching material | Galvanized, PPGI, Aluminum |
| Material thickness range | 2-4mm |
| Main motor power | 18.5KW |
| Hydraulic motor power | 15KW |
| Forming speed | 5-10m/min(include punching) |
| Rollers | about 18 rows |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 106mm, material is 45# forged steel |
| Way of driven | Chain transmission or Gear box |
| Material of cutter blade | Cr 12 mould steel with quenched treatment 58-62℃ |
| Controlling system | Siemens PLC |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 8 tons |
| Size of the machine | L*W*H 12m*1.5m*1.2m |
Pictures of machine:
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal Steel Crash Barrier Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Crash Barrier Machine are quality guaranteed. We are China Origin Factory of Crash Barrier Forming Machine. If you have any question, please feel free to contact us.
Product Categories : Guardrail (Highway) Roll Forming Machine
