Rolling slats shutter door forming machine
Short Description:
Basic Info
Type:Steel Frame & Purlin Machine
Control System:PLC
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Cutting Mode:Hydraulic
After Service:Engineers Available To Service Machinery Overseas
Forming Speed:25-30m/min(excluding Punching)
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Roller shutter roll forming roll-up forming machine
Rolling Slats Door Making Machine is aluminum alloy, blocking the door malicious attacks, security is more effective. Appearance using electrostatic powder coating process, weather resistance, anti-aging, anti-rain, anti-corrosion, long working life
Working Flow:
Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | Pre-painted coils, Galvanized coils, Aluminum coils |
| Material thickness range | 0.3-1.0mm |
| Rollers | 10+5 groups |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 40mm, material is 40Cr |
| Forming speed | 10-15m/min |
| Main motor power | 5.5KW |
| Hydraulic power | 3.0KW |
| Cutting type | Hydraulic flying saw |
| Controlling system | PLC |
| Voltage | 380V/3Phase/50Hz |
| Way of driven | 1.0 inch single chain transmission |
| Total weight | 2 tons |
| Size of the machine | L*W*H 6*0.8*1m |

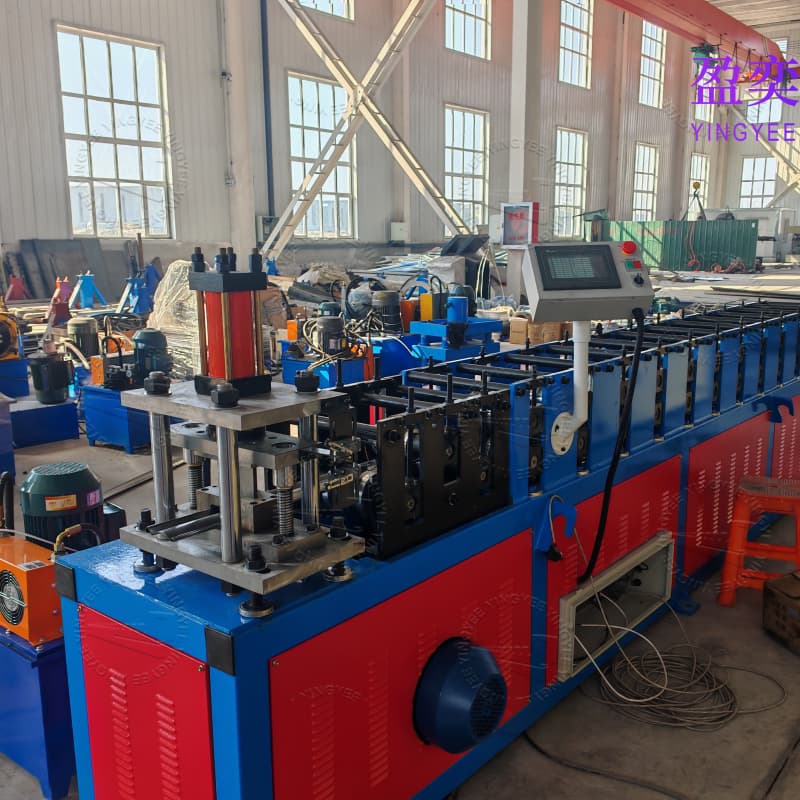

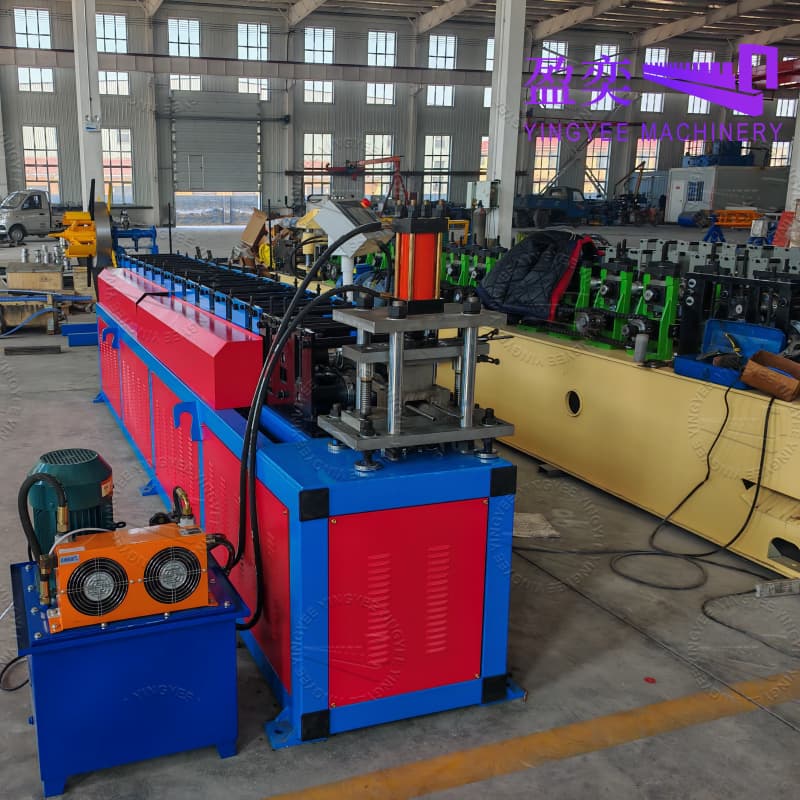

Pictures of machine:
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Looking for ideal Shutter Door Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Rolling Slats Door Making Machine are quality guaranteed. We are China Origin Factory of Steel Door Forming Machine. If you have any question, please feel free to contact us.
