Roller Shutter Door Making Machine
Short Description:
Basic Info
Type:Steel Frame & Purlin Machine
Control System:PLC
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Cutting Mode:Hydraulic
After Service:Engineers Available To Service Machinery Overseas
Forming Speed:25-30m/min(excluding Punching)
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Roller Shutter Door Making Machine

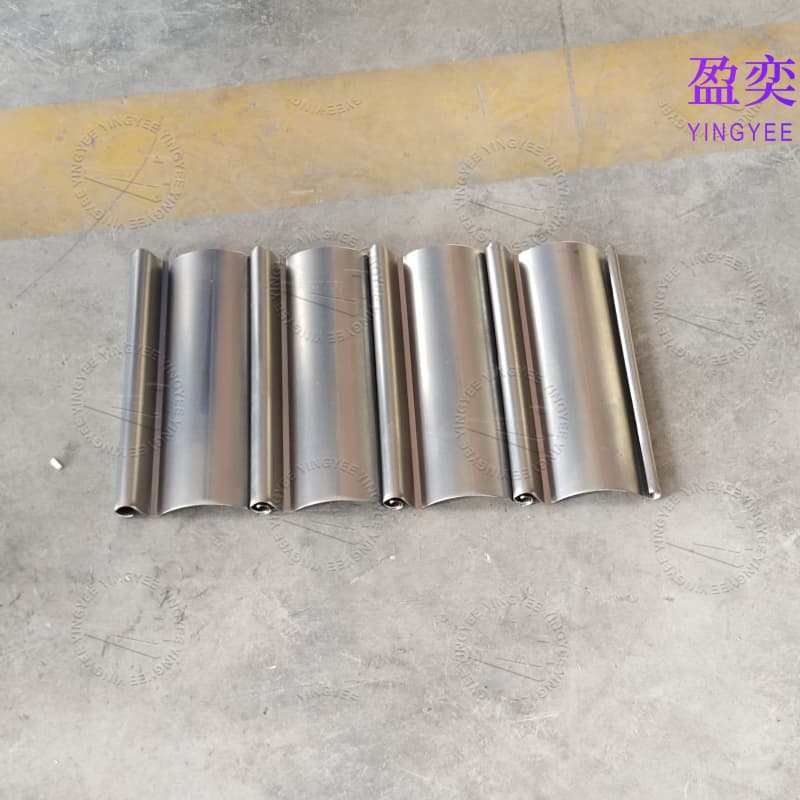

The shutter slat roll forming machine is fully automatic and it is easy to operate to form shutter slats. The shutter door roll forming machine consists of one decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system and control system.
Working Flow:
Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
Raw material
Pre-painted coils, Galvanized coils, Aluminum coils
Material thickness range
0.3-1.0mm
Rollers
10+5 groups
Material of rollers
45# steel with chromed
Shaft material and diameter
40mm, material is 40Cr
Forming speed
10-15m/min
Main motor power
5.5KW
Hydraulic power
3.0KW
Cutting type
Hydraulic flying saw
Controlling system
PLC
Voltage
380V/3Phase/50Hz
Way of driven
1.0 inch single chain transmission
Total weight
2 tons
Size of the machine
L*W*H 6*0.8*1m

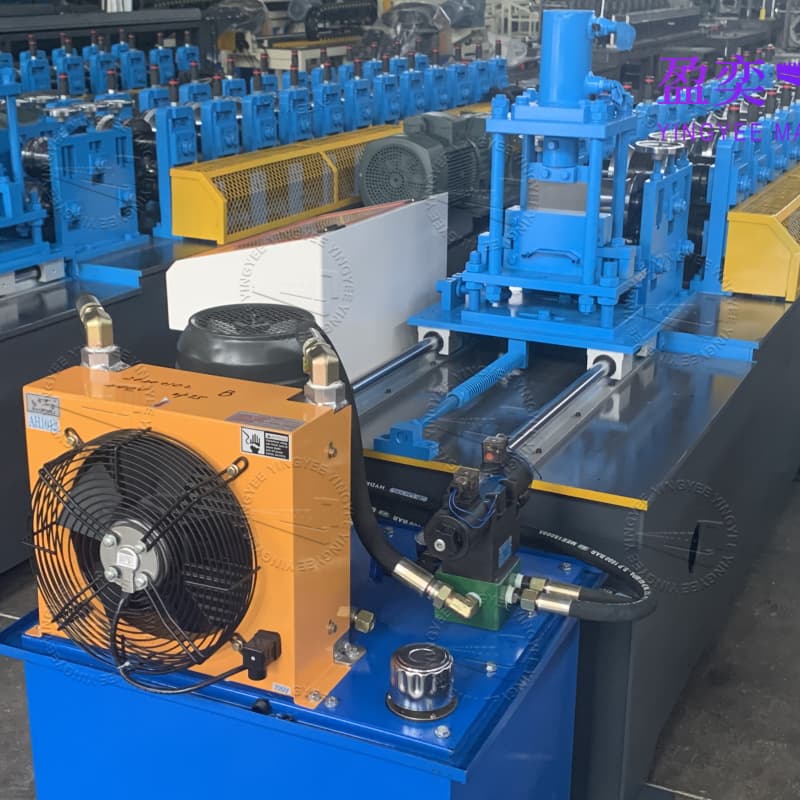

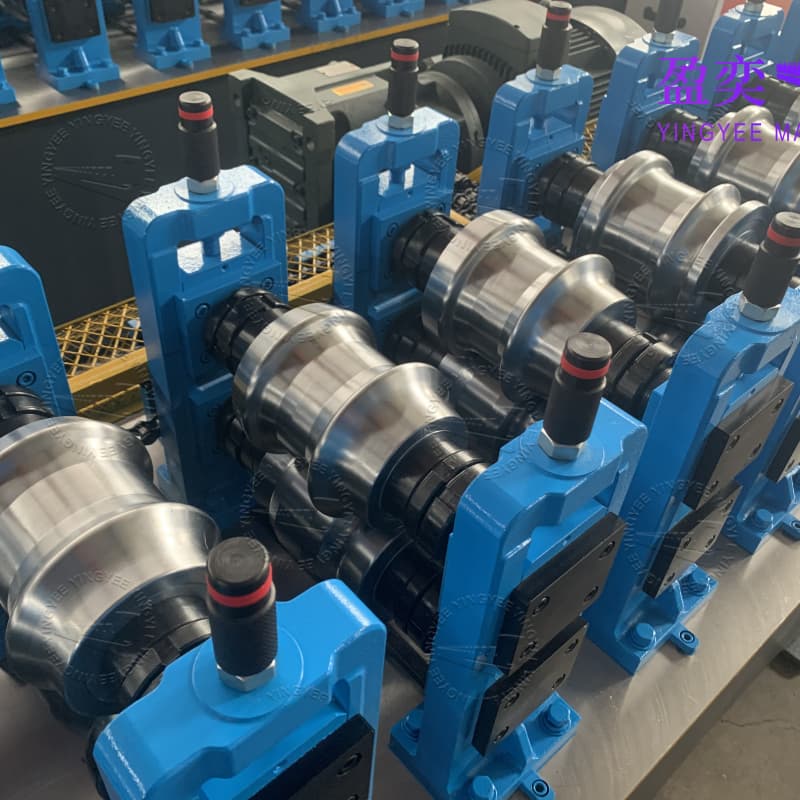

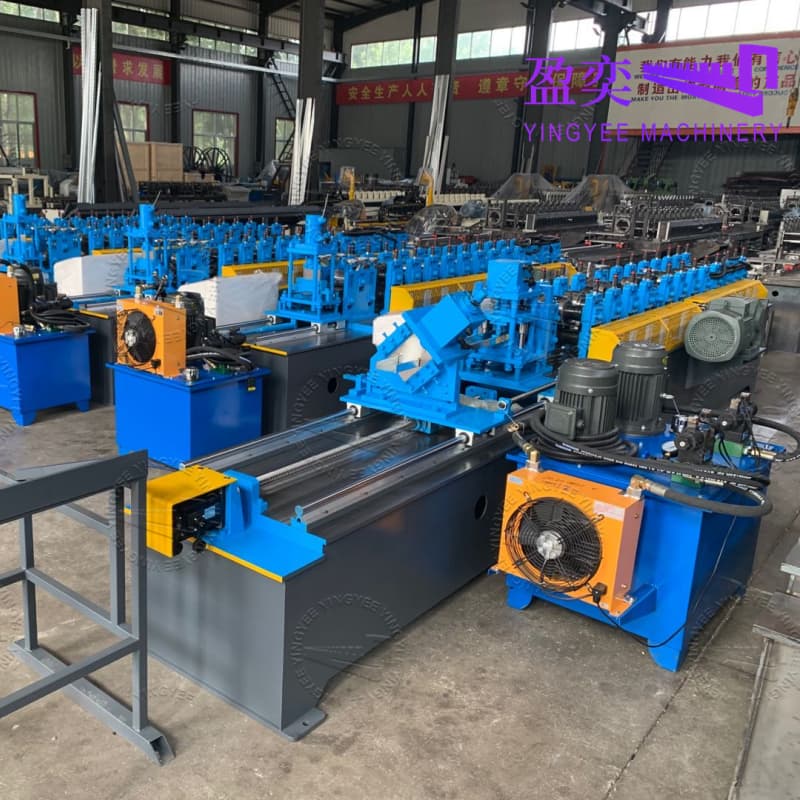

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Looking for ideal Shutter Door Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the High Precision Roller Shutters Price are quality guaranteed. We are China Origin Factory of Roller Shutter Garage Doors Prices. If you have any question, please feel free to contact us.
Product Categories : Roller Shutter Roll Forming Machine
