Rebar thread rolling machine threaded rods making machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Model No.:yingyee009

Warranty:12 Months

Delivery Time:30 Days

After Service:Engineers Available To Service Machinery Overseas

Voltage:380V/3Phase/50Hz Or At Your Request

Cutting Mode:Hydraulic

Material Of Cutting Blade:Cr12

Control System:PLC

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean,Land,Air

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin,Shanghai,Qingdao

Product Description



Rebar Thread Rolling Machine threaded rods making machine

Hydraulic Rebar Thread Rolling Machine offered structure is specially designed using high quality steel material to ensure its durability while using as capsule lift during erection. Owing to its reliable performance, it is widely used by various construction sites for lifting goods in effective manner.

The Rebar Threading Machine is use to cut the external threads with the help of Tangential chaser. Rebar Chaser is use as a cutter in machine. The Rebar remain still, Die-head rotates and different type of threads can be cut parallel and taper such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF Threads. When one thinks of a Rebar threading machines, the thought automatically goes to the wide range of machines that one can avail in the domain. However, each manufacturing unit or organization will have the need for one particular type of Rebar Threading Machine. If you choose to purchase a rebar thread cutting machine, it would be a good idea to choose a sales unit that has immense market experience. YINGYEE would be a good choice, as they not only offer a vast range, but also the assurance that every machine that is sent out of their unit is a piece of excellence.




1. Used for making thread on bolts, screws, fasteners, threaded rods, etc.


2. Used widely in construction, motorcycle, car industry.


3. Work for products : Max.diameter is 48 mm, and Max. Length is 3 m.

4. Can be designed with automatic feeding devices. Easy to constructSafe carrying operationHigh tensile strength

Technical parameters:

Pressure of Roller max. 150KN Rotary Speed of Main Shaft 36,47,60,78(r/min)
Working Dia 4-48mm Feed Speed of Movable shaft 5mm/s
OD of Roller 120-170mm Thread Length (no limits)
BD of Roller 54mm Main Power 4kw
Roller Width max 100mm Hydraulic Power 2.2kw
Dip Angle of Main Shaft ±5° Weight 1700kg
Center Distance of Main shaft 120-240mm Size 1480×1330×1440mm

Pictures of machine:

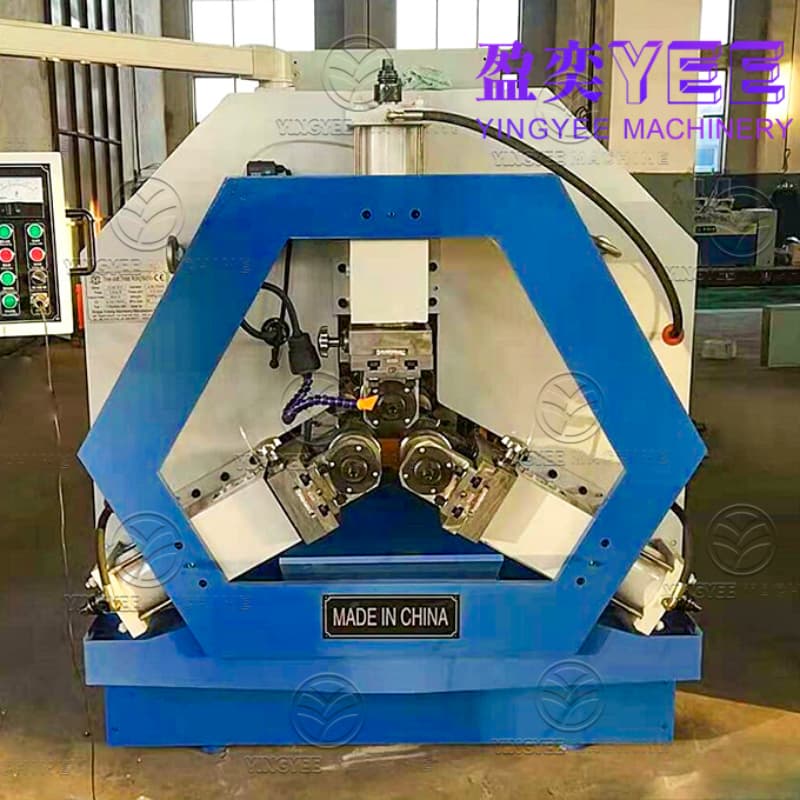

Thread rolling machine

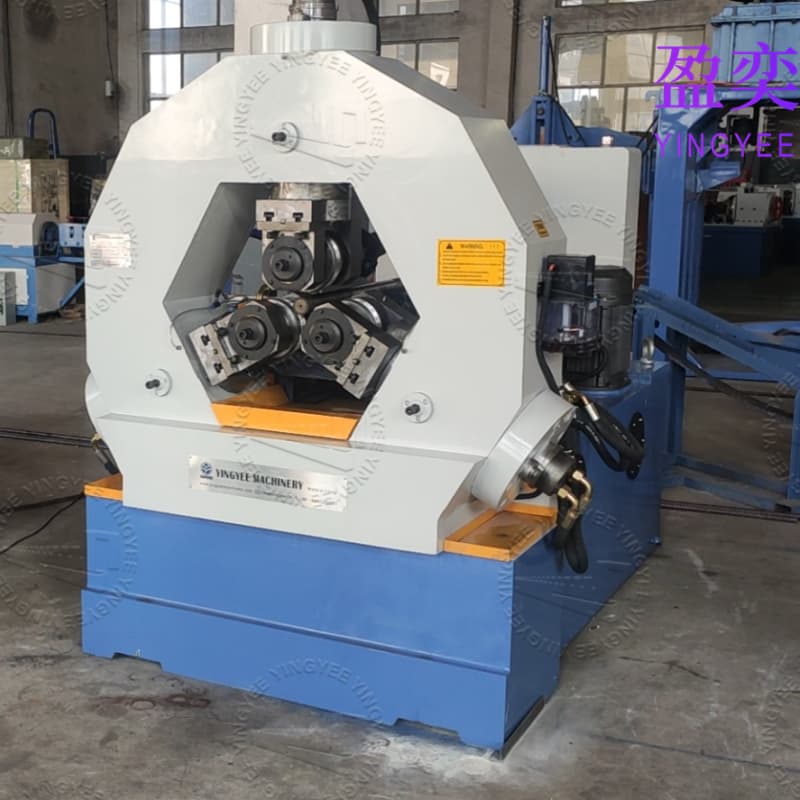

Thread rolling machine

Thread rolling machine

Thread rolling machine

Thread rolling machine

Thread rolling machine

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine





FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period

2. Effective communication

3. Interface customized.

Looking for ideal Thread Rolling Machine Z28-80 Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Rod Thread Rolling Machine are quality guaranteed. We are China Origin Factory of Automatic Thread Rolling Machine. If you have any question, please feel free to contact us.
