PV Solar Panel Making Machine
Short Description:
Basic Info
Warranty:12 Months
Delivery Time:30 Days
Type:Steel Frame & Purlin Machine
Material:GI, PPGI, Aluminum Coils
Way Of Driven:Chain Or Gear Box
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Forming Speed:25-30m/min(excluding Punching)
Voltage:380V/3Phase/50Hz Or At Your Request
After Service:Engineers Available To Service Machinery Overseas
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
PV Solar Panel Making Machine
Metal Solar PV Panel Forming Machine has reasonable structure, beautiful appearance, with advantage of saving space, easy to operate and especially welcomed by the customers with limited area or site operation.
Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Matching material | Galvanized, PPGI, Aluminum |
| Material thickness range | 1.5-2.0mm |
| Feeding width | 300mm(can change according to buyer’s request) |
| Roller | 24 rollers |
| Material of roller | Gcr15 |
| Main motor power | 30KW |
| Forming speed | 8-15m/min |
| Shaft material and diameter | 80mm, 45# steel with chromed |
| Way of driven | Chain transmission or gear box |
| Material of blade | Cr12 mould steel with quenched treatment 58-62℃ |
| Voltage | 380V/3Phase/50Hz |
| Controlling system | PLC |

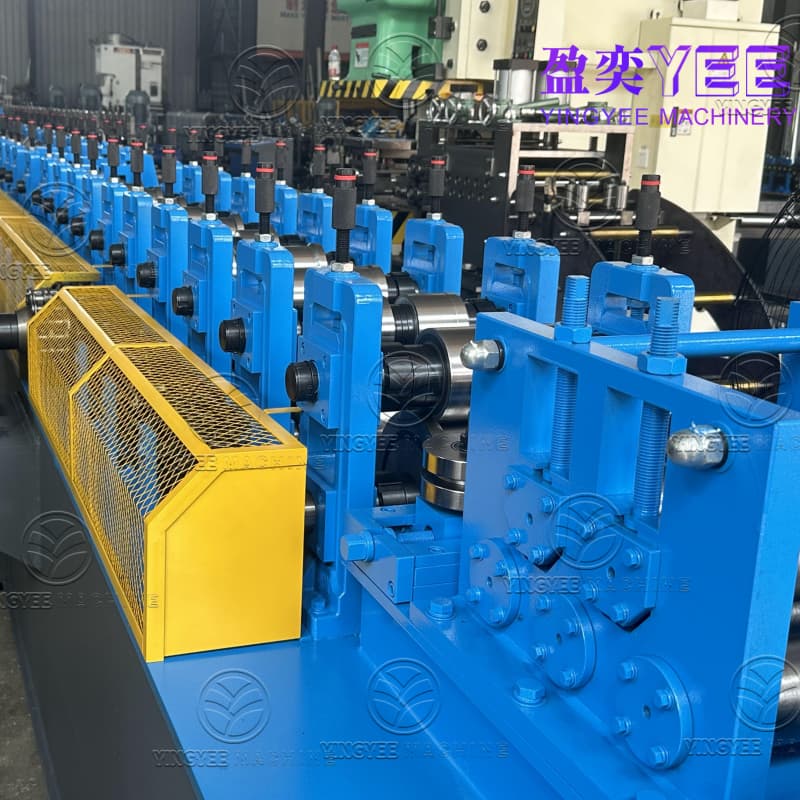

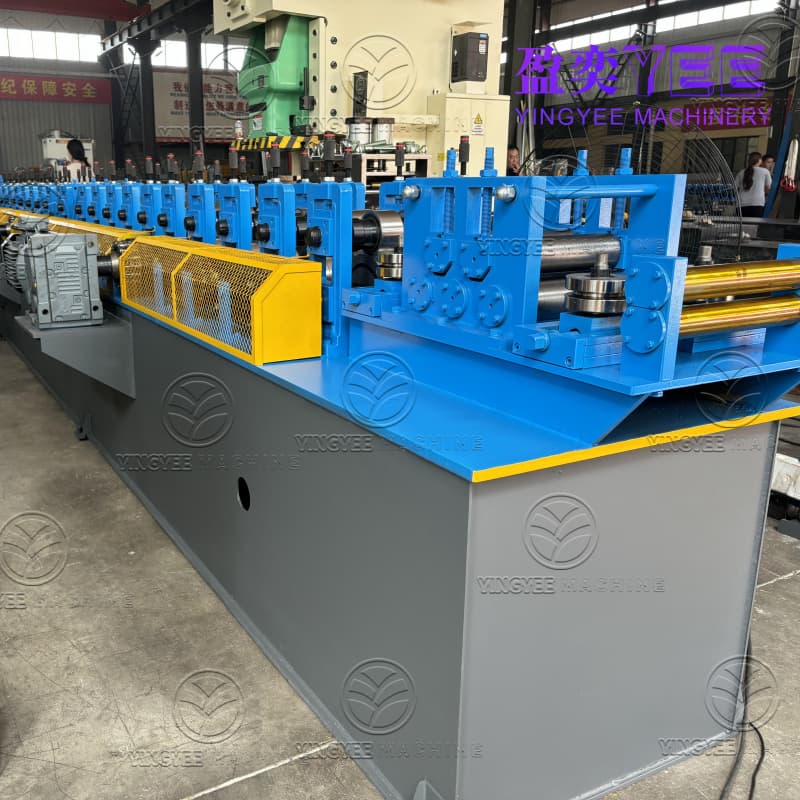

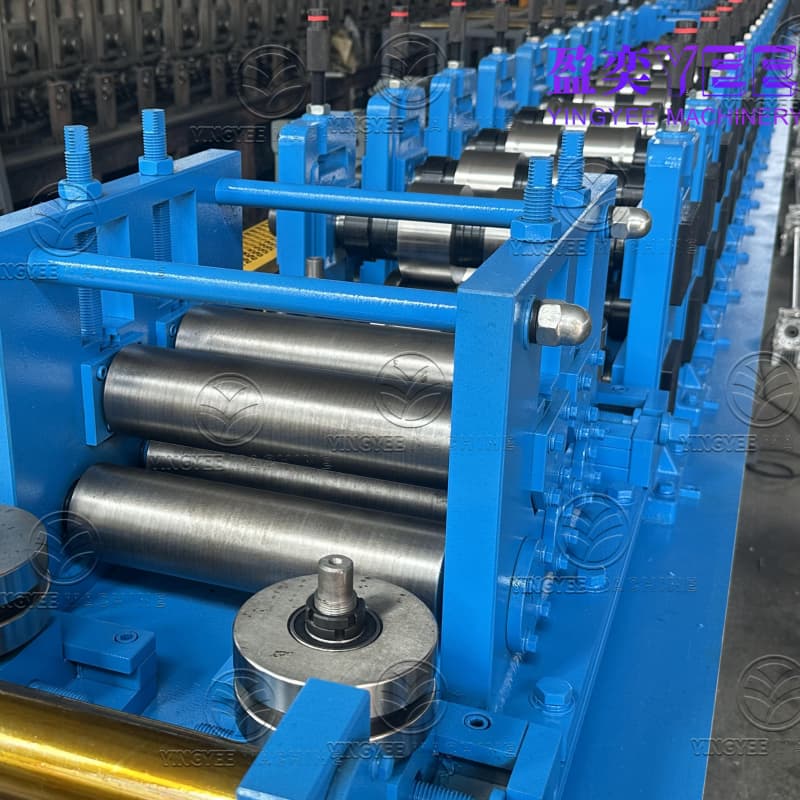

Pictures of machine:
Looking for ideal PV Solar Rolling Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the PV Solar Bracket Rolling Machine are quality guaranteed. We are China Origin Factory of PV Bracket Roll Forming Machine. If you have any question, please feel free to contact us.
