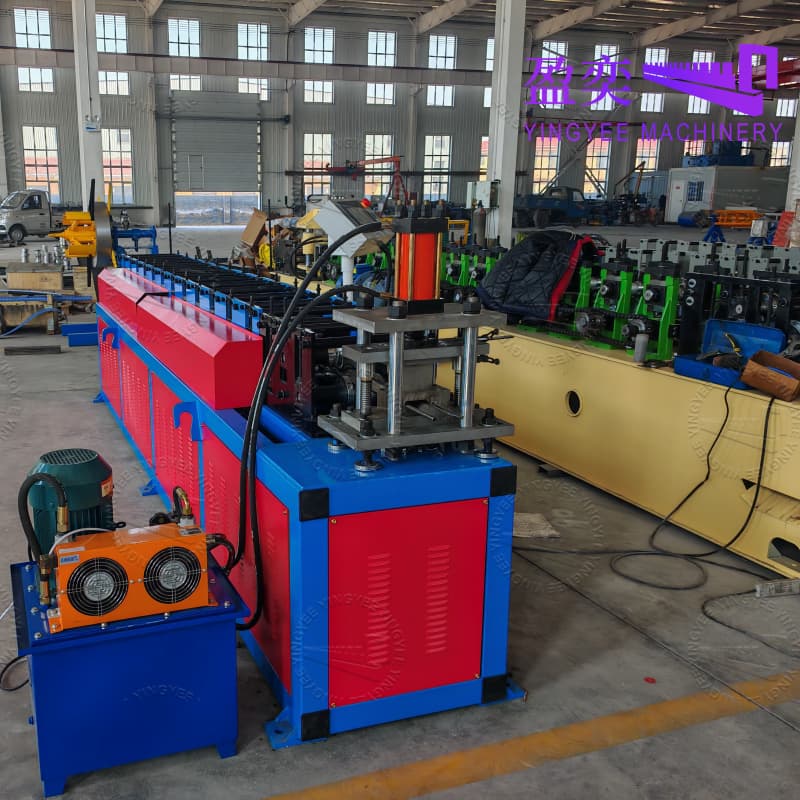

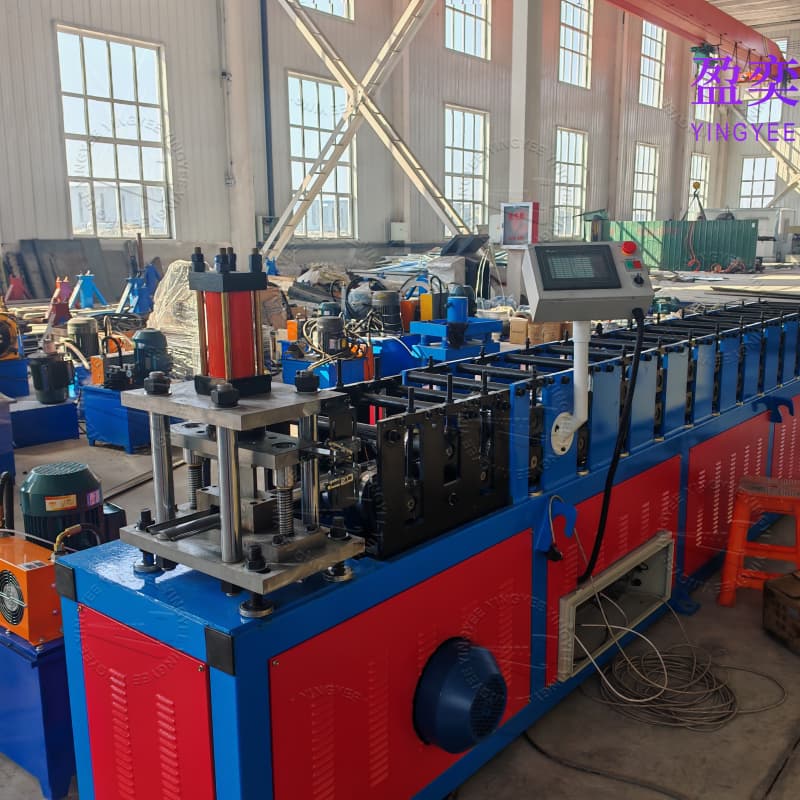

PU roller shutter door/window panel roll forming machine

Short Description:


Product Detail

FAQ

Product Tags

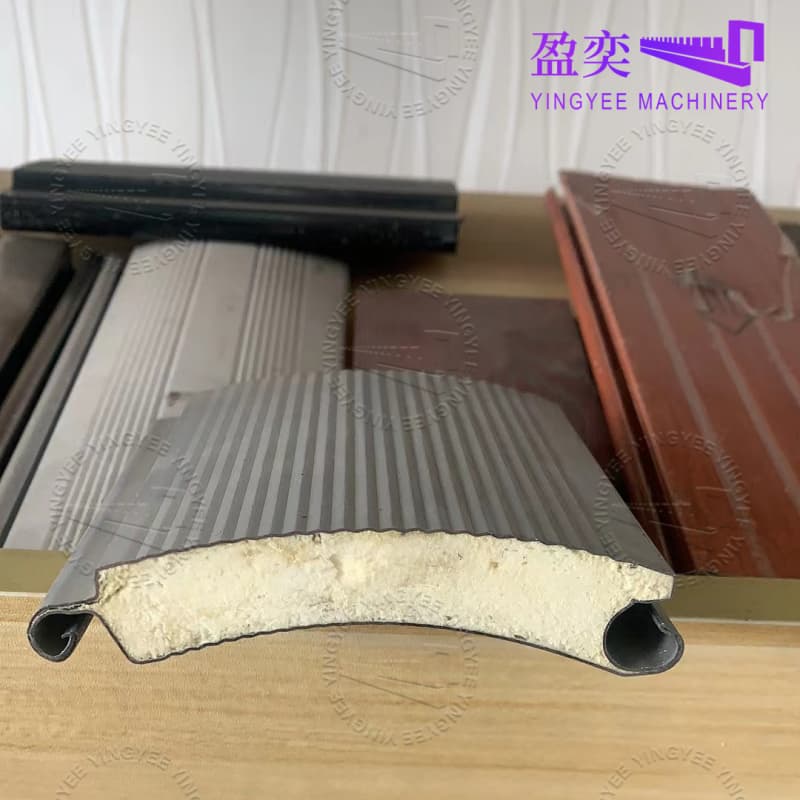

Raw materials: aluminum coil, color aluminum coil and polyurethane foam (PU FOAM) (the thickness is:0.2-0.3mm or even thinner)

The product sample is divided into flat and curved surfaces.

Its speed have two type: 10-12m/min and 30-40m/min.



1. Working flow:

Decoiler — Feeding device — Main forming — PU injection —Straighten

Device — Punching — Cutting — Run out table









Machine component:

1

Decoiler

1 set

2

Guide Feeding device

1 set

3

Main forming machine

1 set

4

Foaming machine (just foamed one owned)

1 set

5

Straighten device

1 set

6

Punching device

1 set

7

Flying saw cutting machine

1 set

8

Finished products table

1 set

9

PLC control system

1 set

10

Spare Parts And Tools

1 set
