PPGI Aluminum C Purlin Roll Forming Machine

Short Description:

Our high-efficiency purlin roll-forming machine produces C, U, and Z purlins. Equipped with a fast and easy automatic changing system this system eliminates the need for multiple lines or manual adjustments, easy to operate.


Product Detail

FAQ

Product Tags

Basic Info

Delivery Time:30 Days

Warranty:12 Months

Material Of Cutting Blade:Cr12

Type:Roof Sheet Roll Forming Machine

Cutting Mode:Hydraulic

Voltage:At Customer's Request

Way Of Driven:Chain Transmission

Material:Steel Coil, Galvanized, PPGI, Aluminum

Speed:6-8m/min(including Punching And Cutting Time)

Control System:Panasonic/Mitsubishi PLC

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

Product Description

C/Z/U Purlin Roll Forming Machine

Working Flow: Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Punching- Hydraulic Cutting - Output Table

Working process

Technical parameters:

Matching material Steel coil, Galvanized, PPGI, Aluminum
Material thickness range According to drawings
Main motor power 15KW
Forming speed 6-8m/min (include punching and cutting time)
Hydraulic power 5.5KW
Quantity of rollers About 18
Shaft diameter and material 70mm, material is 40Cr
Material of rollers 45# steel with chromed
Way of driven chain transmission
Controlling system PLC
Voltage 380V/30Phase/50Hz
Total weight About 10 tons
Size of the machine L*W*H 10m*1.2m*1.6m

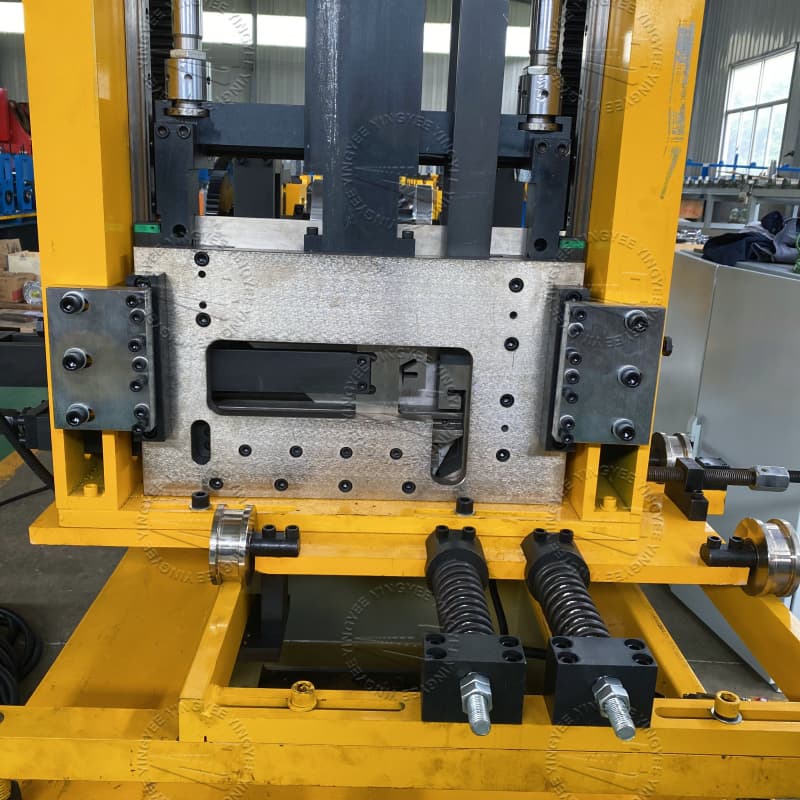

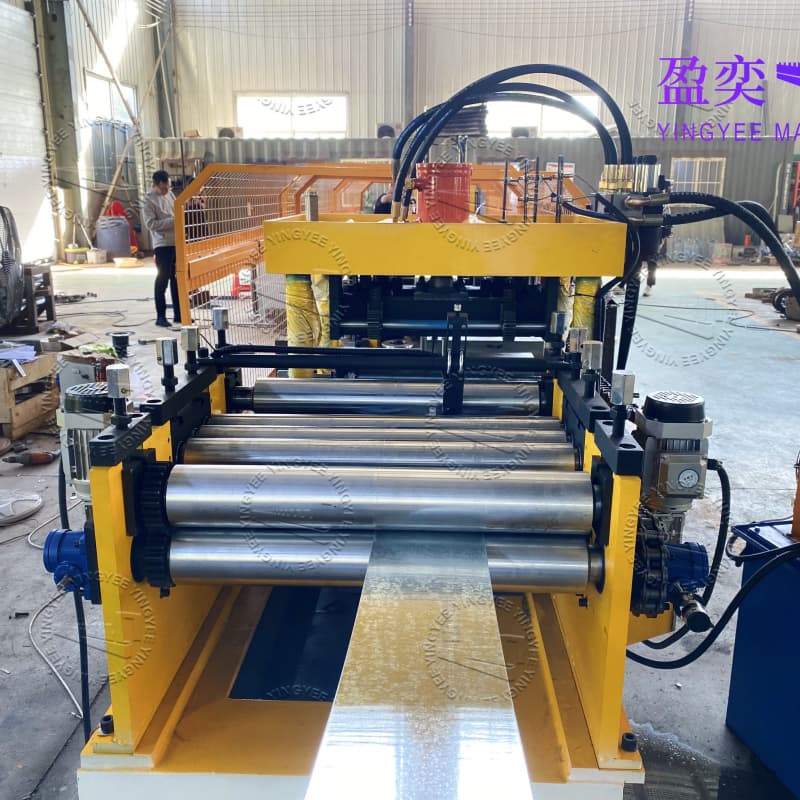

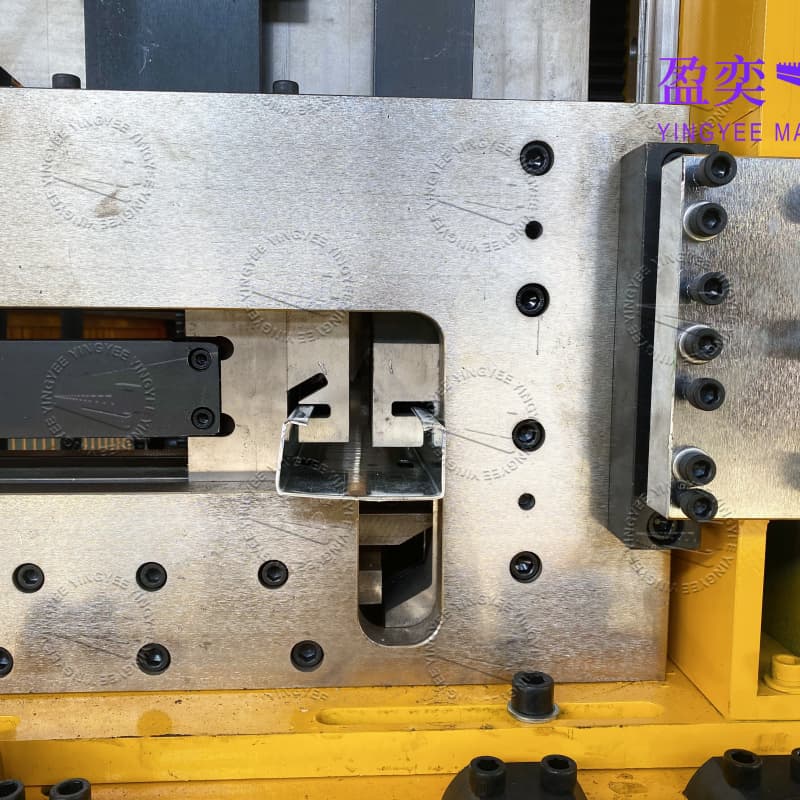

Pictures of the Machine:

Steel Frame CZ Purlin Roll Forming Machine
Steel Frame CZ Purlin Roll Forming Machine
Steel Frame CZ Purlin Roll Forming Machine
Steel Frame CZ Purlin Roll Forming Machine
Steel Frame CZ Purlin Roll Forming Machine
Steel Frame CZ Purlin Roll Forming Machine
C Purlin Dimension Table
Z Purlin dimensions table

Company Information

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO., LTD

YINGYEE is a manufacturer specializing in various cold-forming machinery and automatic production lines. We have a wonderful team with high technology and excellent sales, which offer professional products and related services. We paid attention to quantity and after-service, got great feedback and honored the clients. We have a great team for after-service. We have sent several patches after the service team to overseas to finish the product installation and adjustment. Our products have been sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine



FAQ:

Training and Installation :
1. We offer installation service locally at paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using the guide is optional if no visiting and no installation.


Certification and after-service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized.

Looking for an ideal PPGI C Shape Purlin Forming Machine Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Aluminum C/Z Purlin Roll Forming Machine are quality guaranteed. We are China Origin Factory of Hydraulic Punching C/Z Purlin Making Machine. If you have any questions, please feel free to contact us.
