Perforated Roller Shutter Door Machine
Short Description:
Basic Info
Type:Steel Frame & Purlin Machine
Control System:PLC
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Cutting Mode:Hydraulic
After Service:Engineers Available To Service Machinery Overseas
Forming Speed:25-30m/min(excluding Punching)
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Product Description
Perforated Roller Shutter Door Machine
ThePerforated Roller Shutter Door Machine can manufacture the Galvanized roller shutter door slat. Produced products are in fashionable design and are widely used. Perforated Roller Shutter Door Machine with the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles. Roller shutter garage doors are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.
Working Flow:
Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | Pre-painted coils, Galvanized coils, Aluminum coils |
| Material thickness range | 0.3-1.0mm |
| Rollers | 10+5 groups |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 40mm, material is 40Cr |
| Forming speed | 10-15m/min |
| Main motor power | 5.5KW |
| Hydraulic power | 3.0KW |
| Cutting type | Hydraulic flying saw |
| Controlling system | PLC |
| Voltage | 380V/3Phase/50Hz |
| Way of driven | 1.0 inch single chain transmission |
| Total weight | 2 tons |
| Size of the machine | L*W*H 6*0.8*1m |

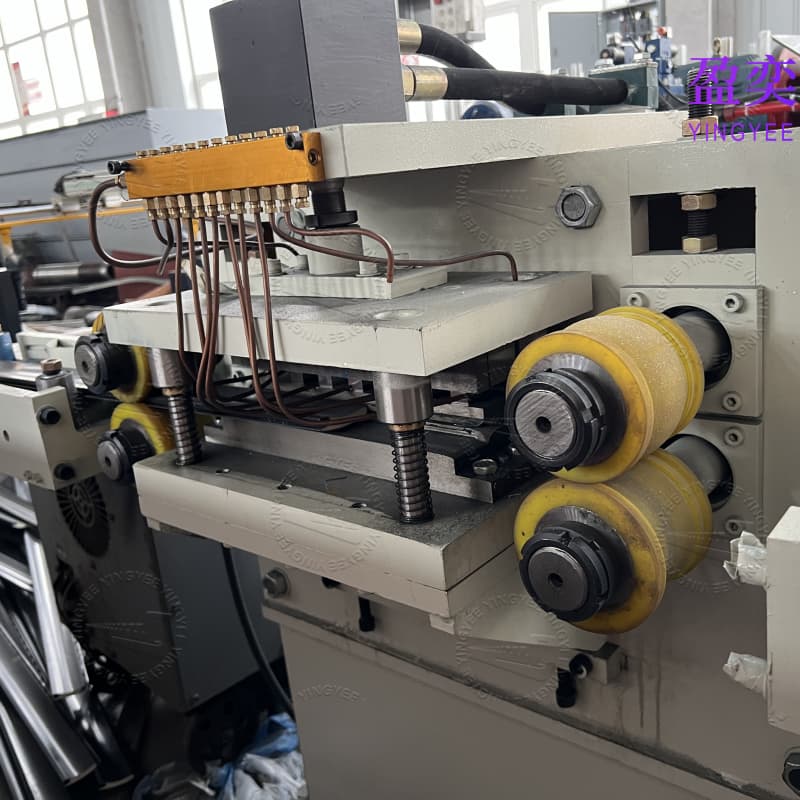

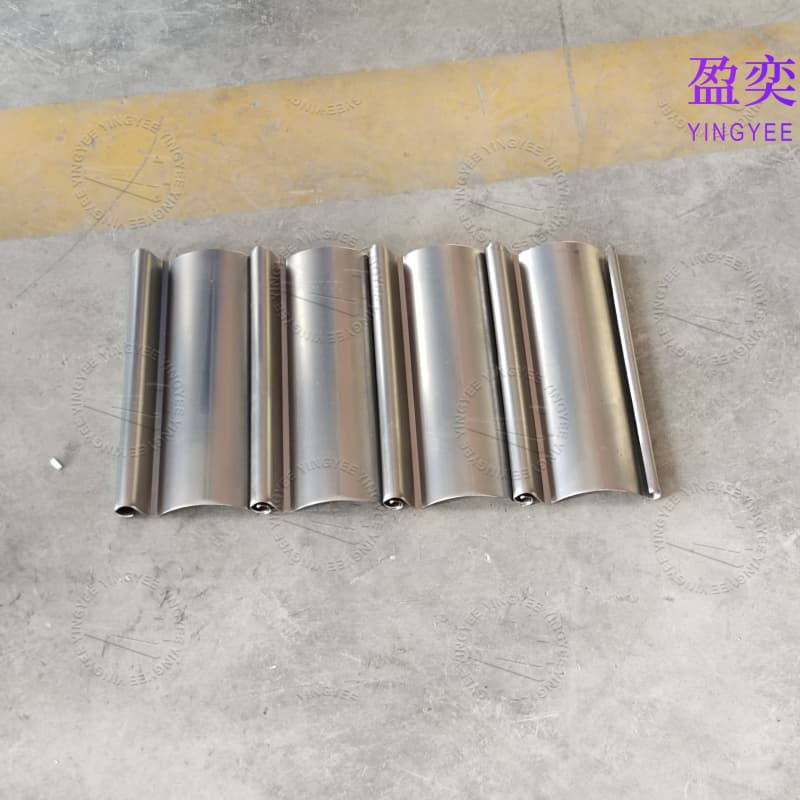

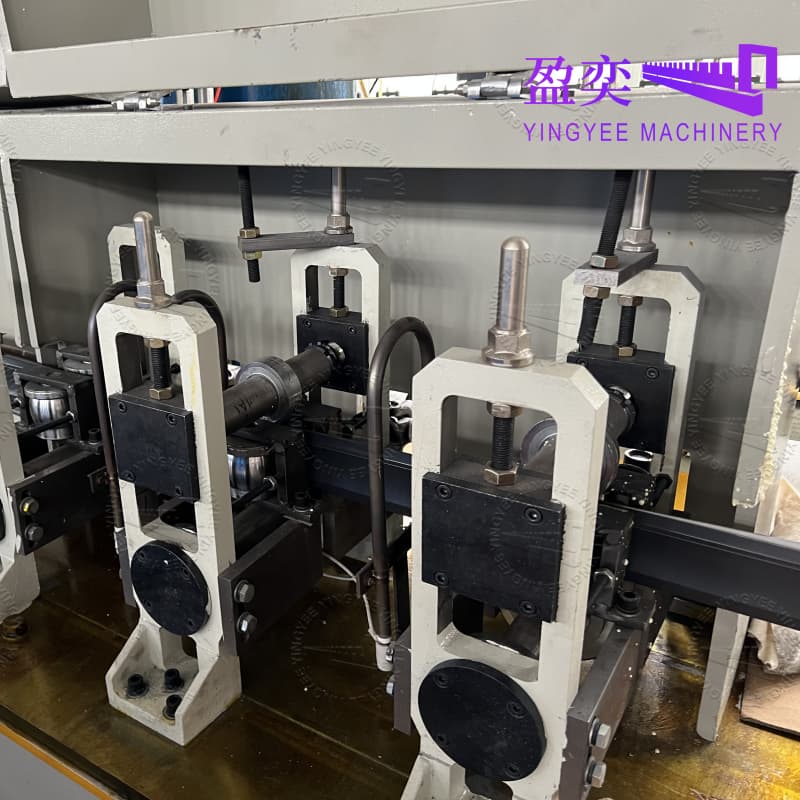

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Looking for ideal Perforated Shutter Door Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roller Shutters with Embossing Flower are quality guaranteed. We are China Origin Factory of Roller Shutter Door Roll Former. If you have any question, please feel free to contact us.
