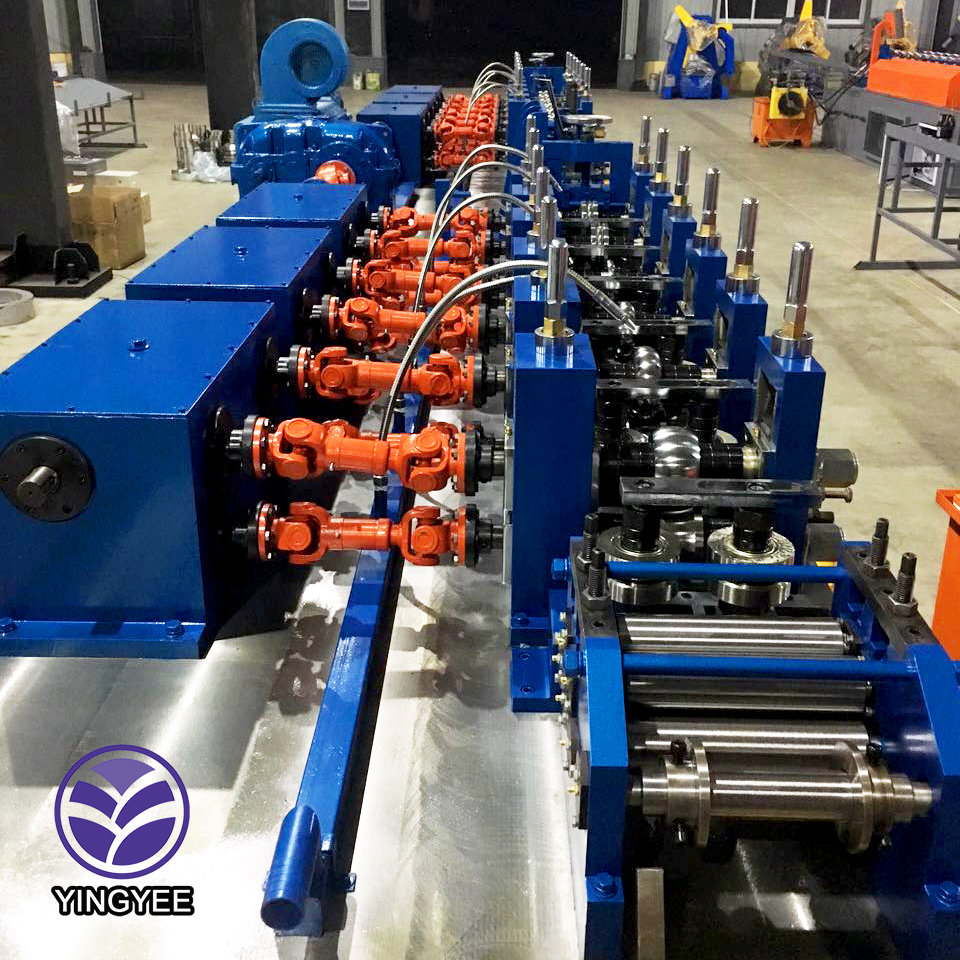

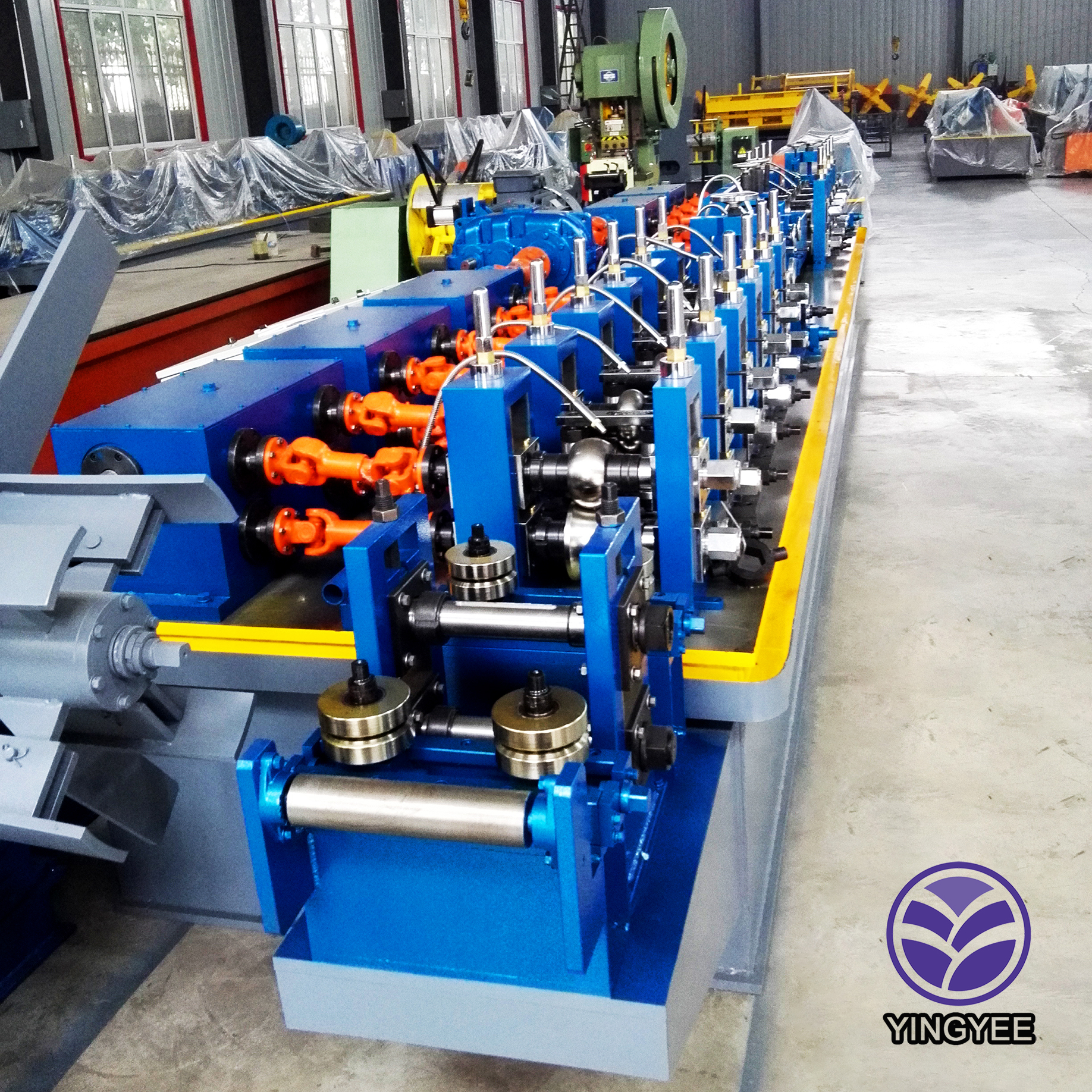

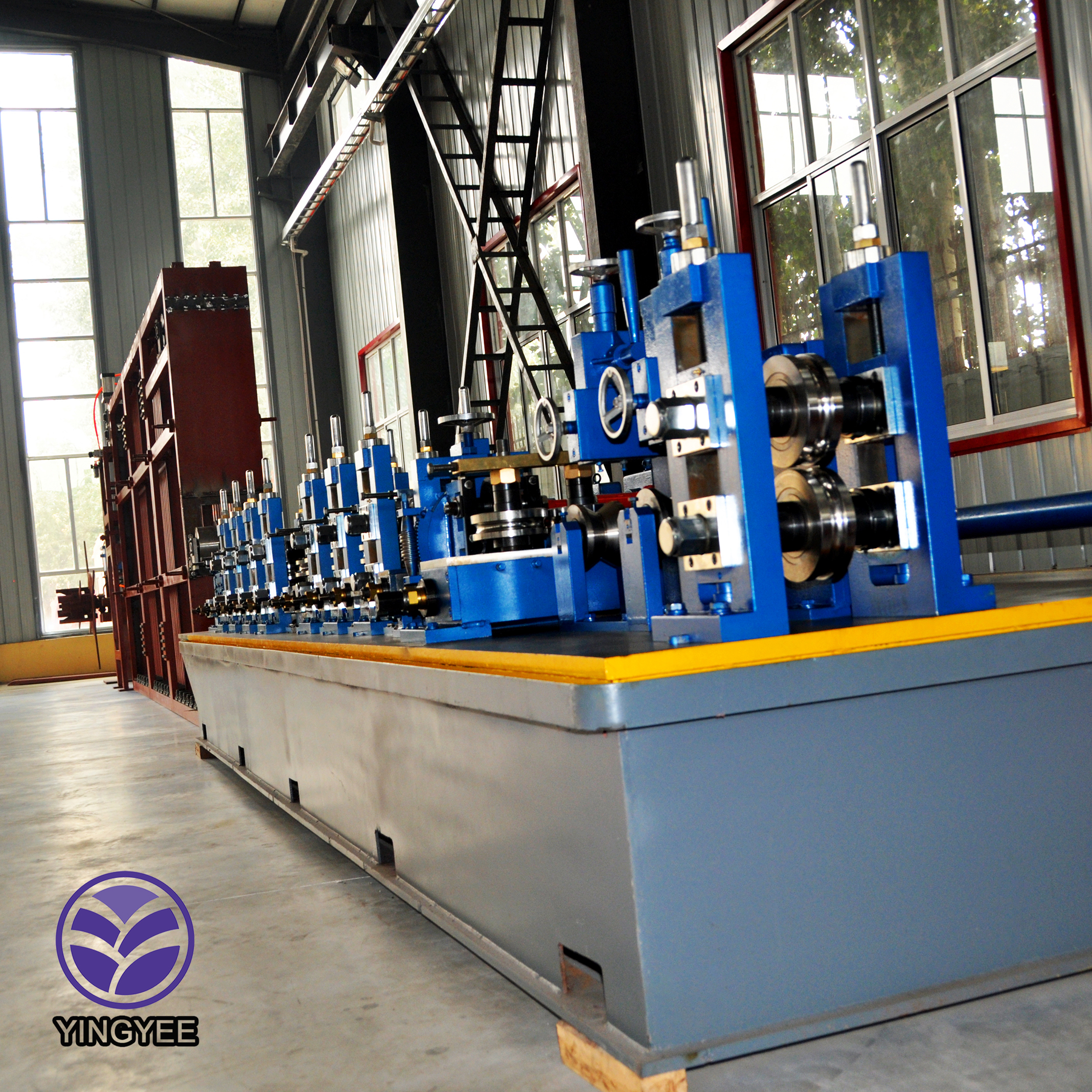

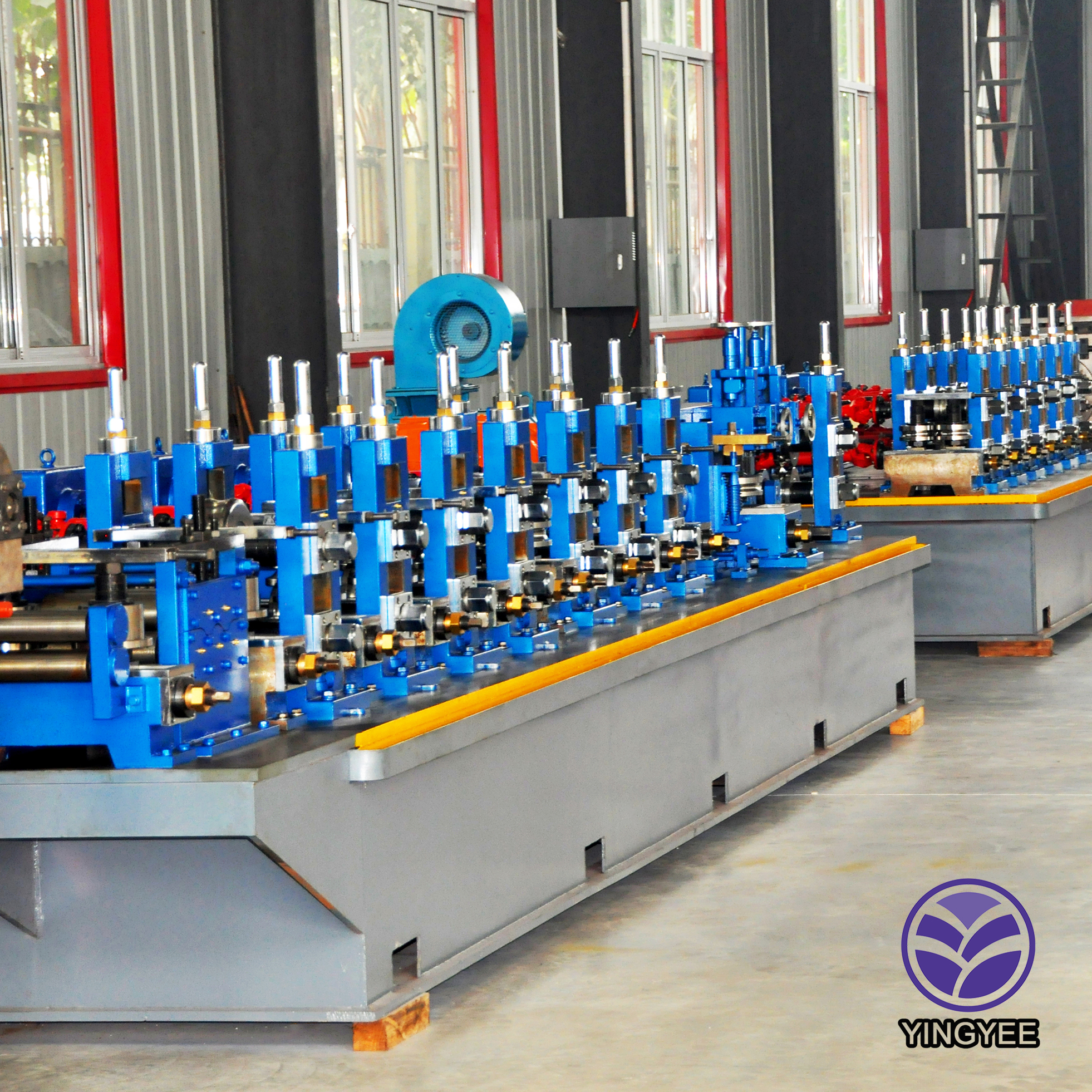

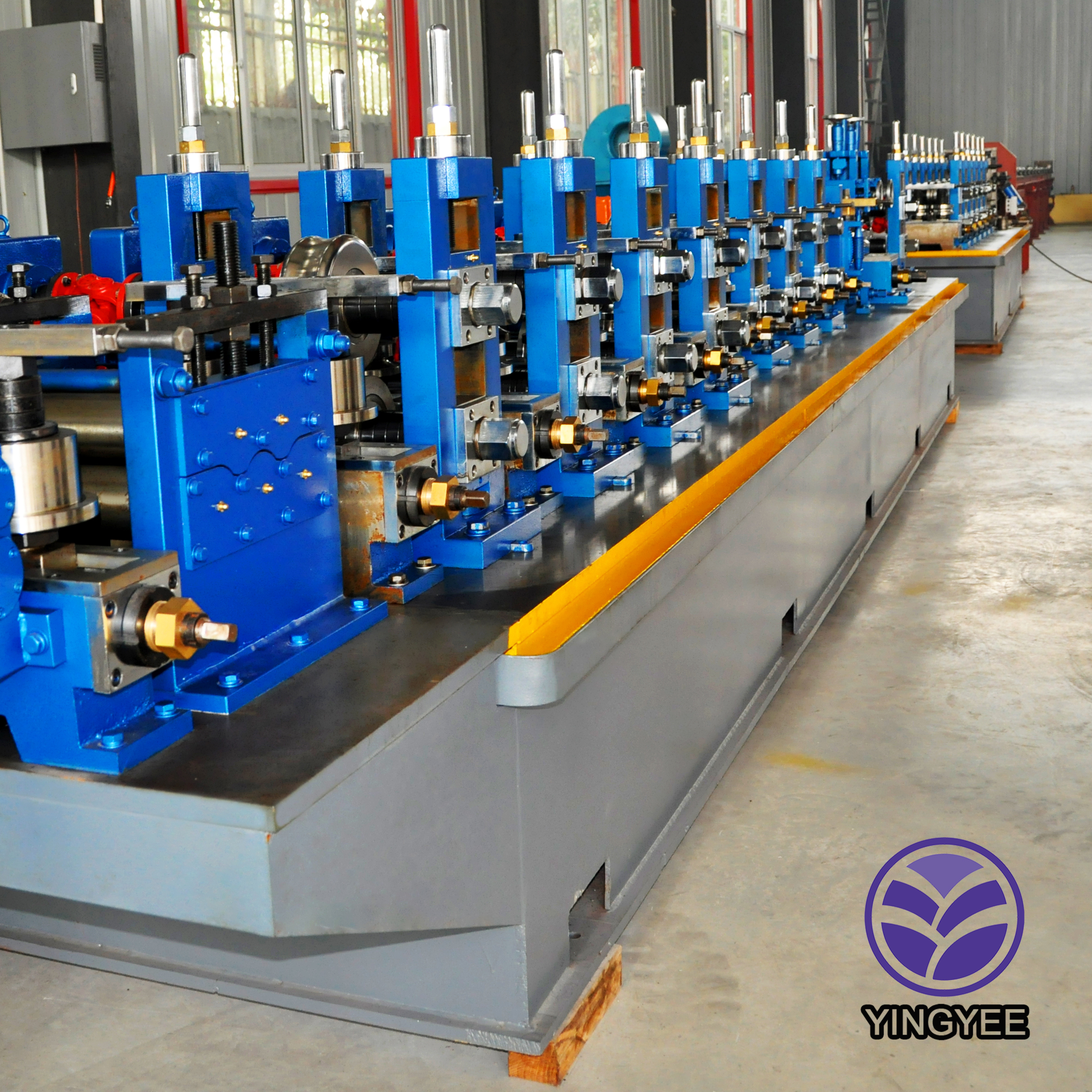

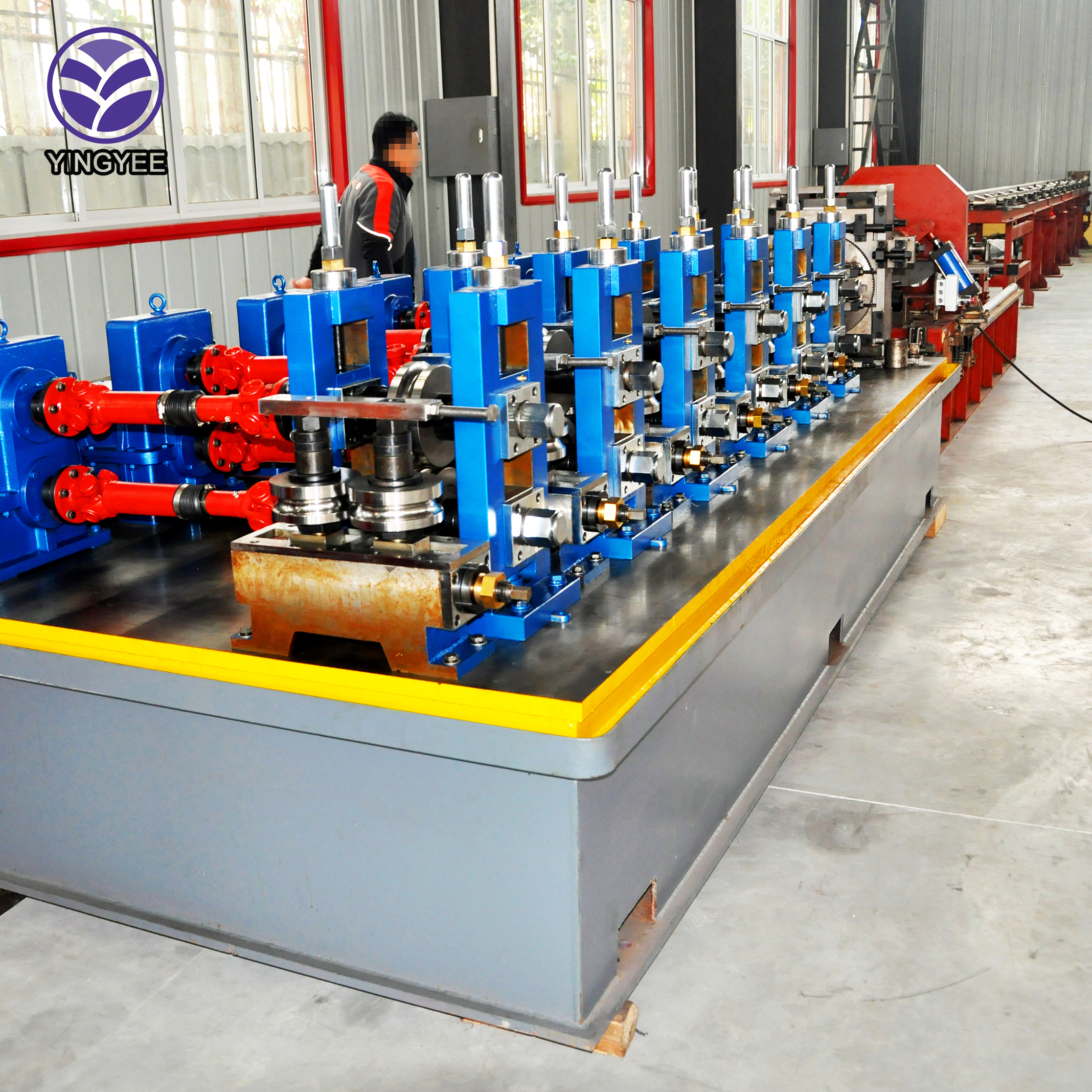

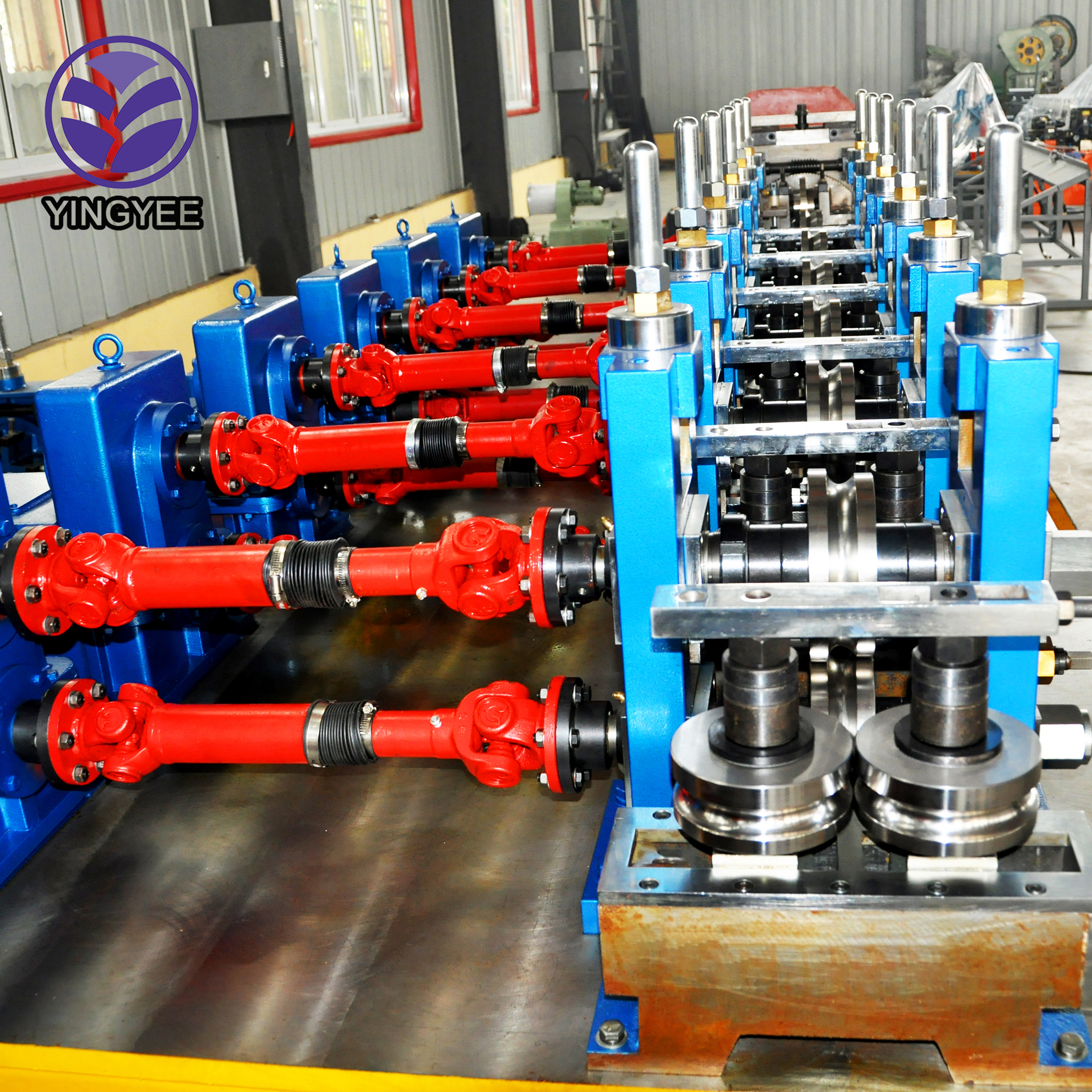

Tube mill production line

Model and Manufacturable Range

Model Drive Shaft Diameter(mm) Out Diameter(mm) Thickness(mm) TIG/ERW
WELDING TYPE
(STANDARD)
KU-10 25.0 Φ 6.0〜10.0 0.4〜0.8 TIGのみ
KU-16 30.0 Φ 8.0〜16.0 0.5〜1.2 TIGのみ
KU-20 35.0 Φ 8.0〜20.0 0.5〜1.5 TIGのみ
KU-25 35.0 Φ 10.0〜25.0 0.8〜1.5 ERW. TIG
1KU 40.0 Φ 12.7〜34.0 0.8〜2.0 ERW. TIG
1-1/2KU 45.0 Φ 16.0〜48.6 0.8〜2.5 ERW. TIG =>MovieViewing
2KU 50.8 Φ 19.0〜60.5 1.2〜3.0 ERW. TIG
2-1/2 KU 60.0 Φ 25.0〜76.3 1.5〜4.0 ERW. TIG
3KU 65.0 Φ 34.0〜89.1 2.0〜4.0 ERW. TIG
3-1/2 KU 70.0 Φ 50.8〜101.6 2.0〜4.0 ERW. TIG
4KU 80.0 Φ 73.0〜114.3 2.0〜5.0 ERW. TIG
6KU 100.0 Φ 89.1〜165.2 2.0〜6.6 ERW. TIG



tube mill tube mill tube mill tube mill tube mill tube mill tube mill tube mill
