High speed slitting line cut to length line cutting machinery stainless steel cut to length machine

Main Technical datas for high speed slitting line cut to length line cutting machinery stainless steel cut to length machine:

1.

application

Stainless steel,Aluminium,Hot rolled,Cold Rolled

2.

Thickness of coiled plate

1-5mm

3.

Width of coiled plate

1500mm

4.

Line speed

0-40m/min

5.

Loading capacity

25T

6.

Coil I.D

510/610mm

7.

Coil O.D

≤2000mm

8.

Diameter of leveling roller

100

10.

Number of leveling rollers

 15

11.

Length accuracy

 ±0.5mm/m

12.

Levelling accuracy

 ±1.2mm/ m2

13.

Direction of feed material

from Right to Left or Left to Right(customized

14.

Power Supply

customized



LIST OF EQUIPMENTS UNDER SCOPE OF SUPPLY for high speed slitting line cut to length line cutting machinery stainless steel cut to length machine:

1.    Hydraulic Coil car

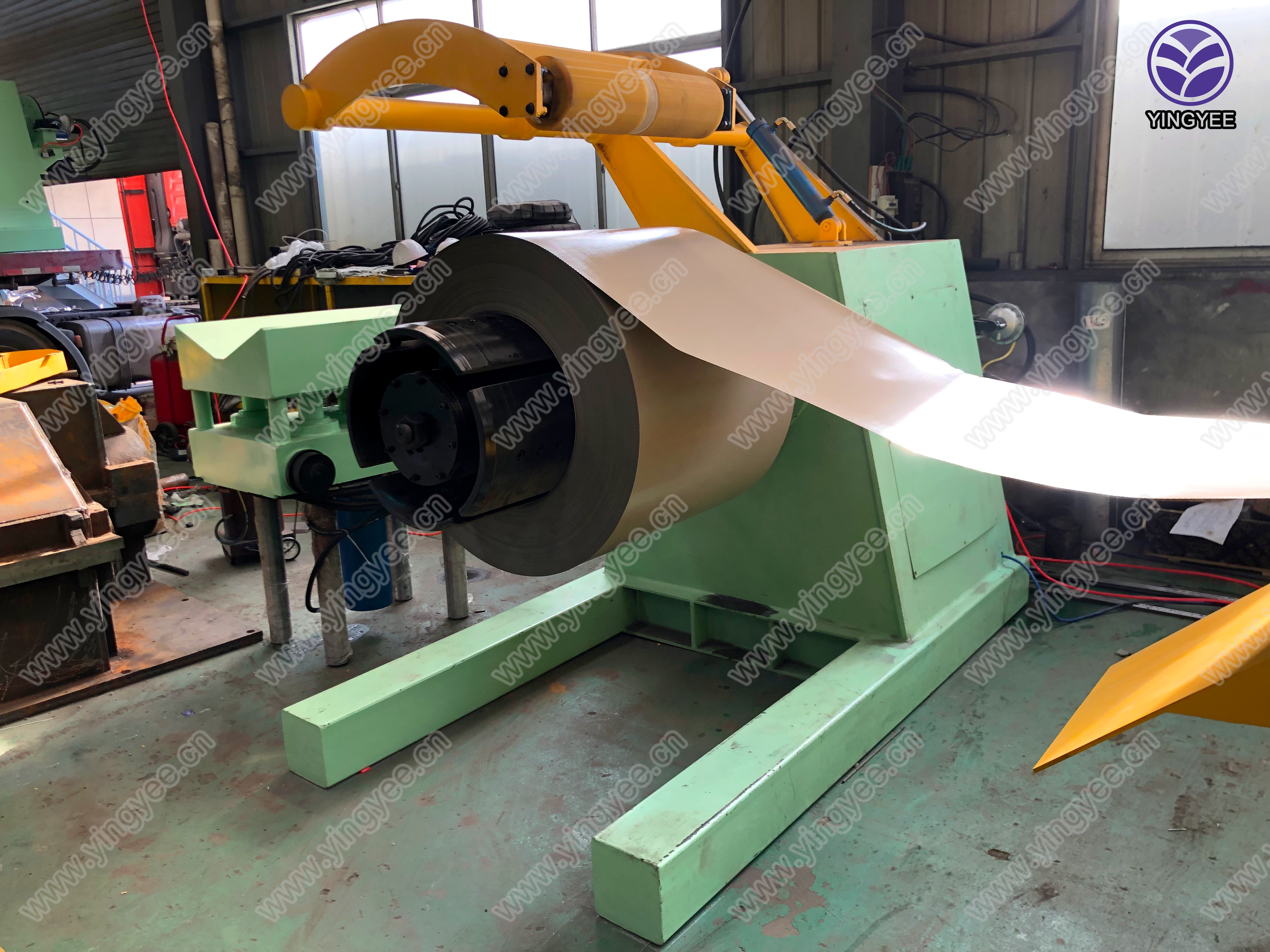

2.    Hydraulic Decoiler

3.    Hydraulic entry guide

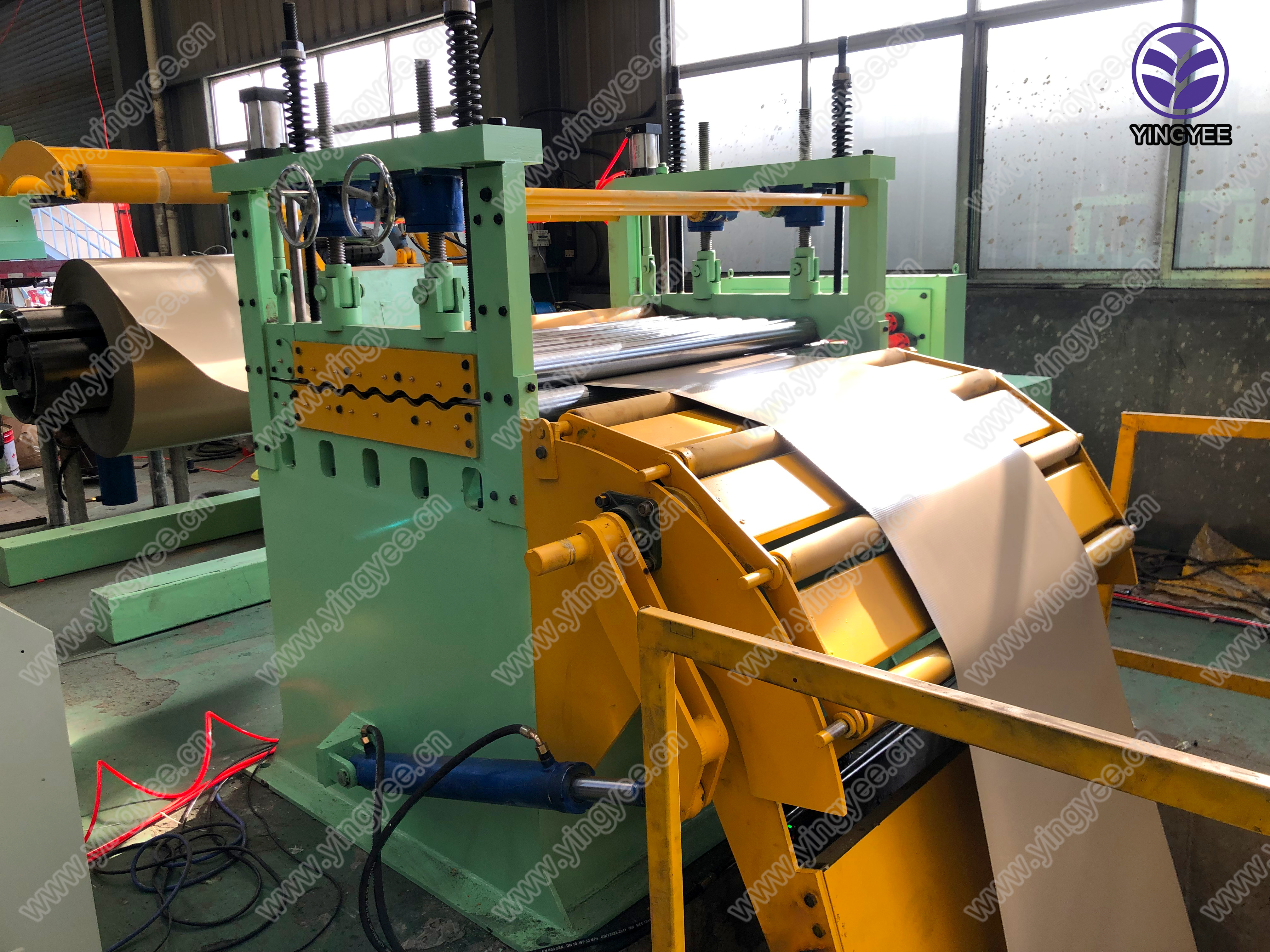

4.    Four/Six hi leveler

5.    Loop bridge

6.    Side guide roller

7.    NC servo feeder leveler

8.    Measure system

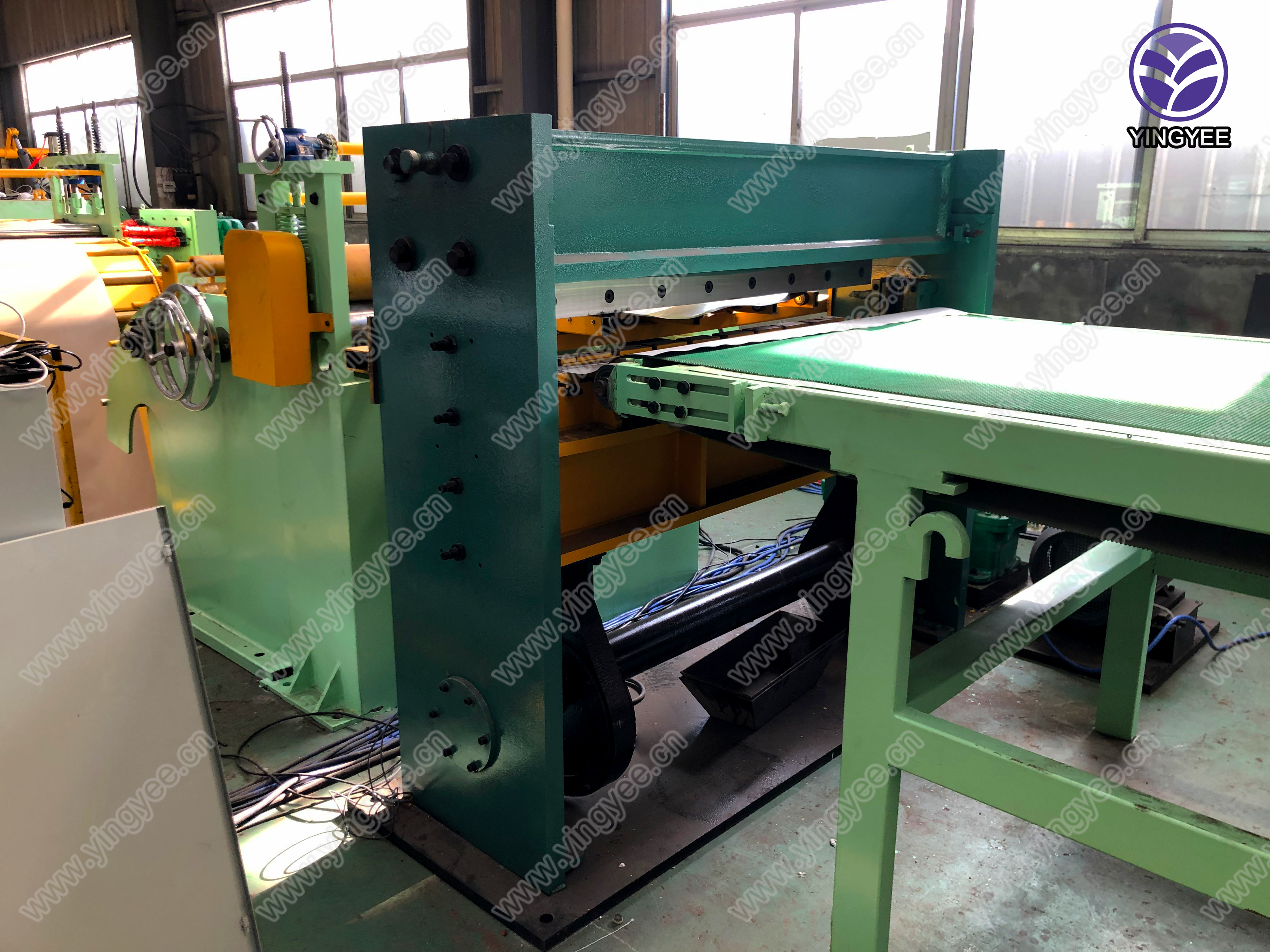

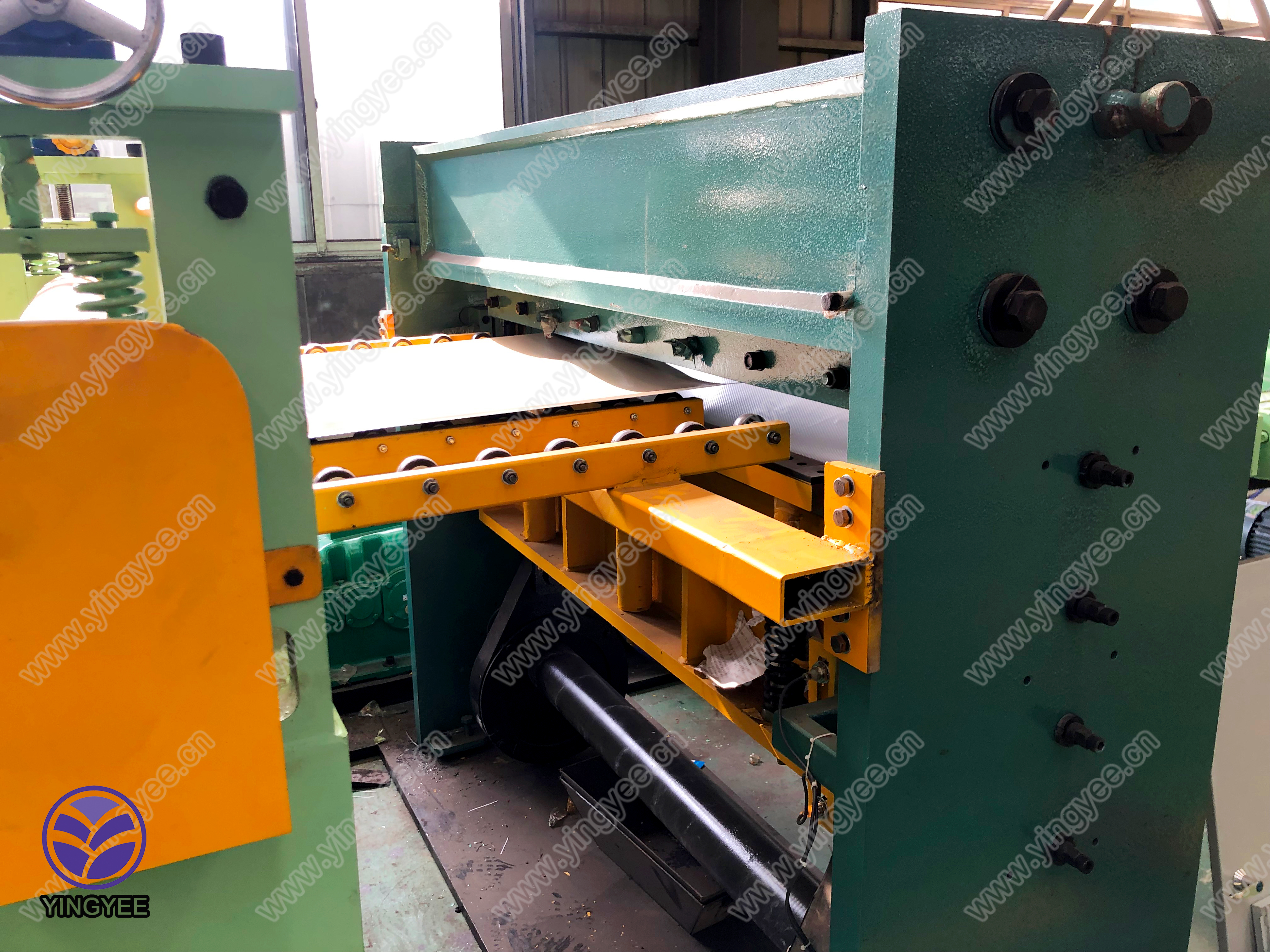

9.    Shearing Machine

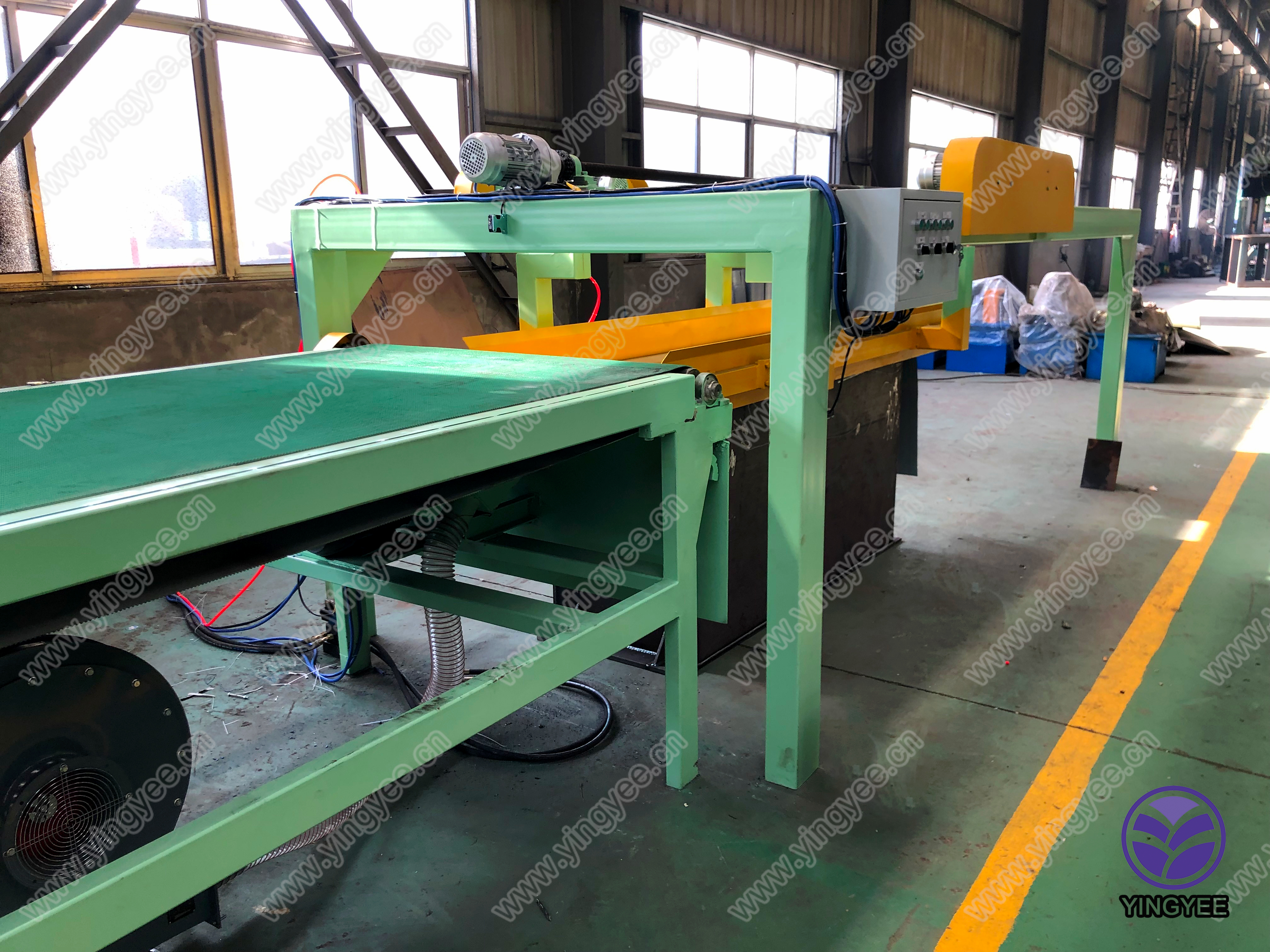

10.  Conveyor table

11.  Pneumatic discharge device

12.  Hydraulic lifting table

13.  Unloading stacking car

14.  Hydraulic Systems

15.  Pneumatic Systems

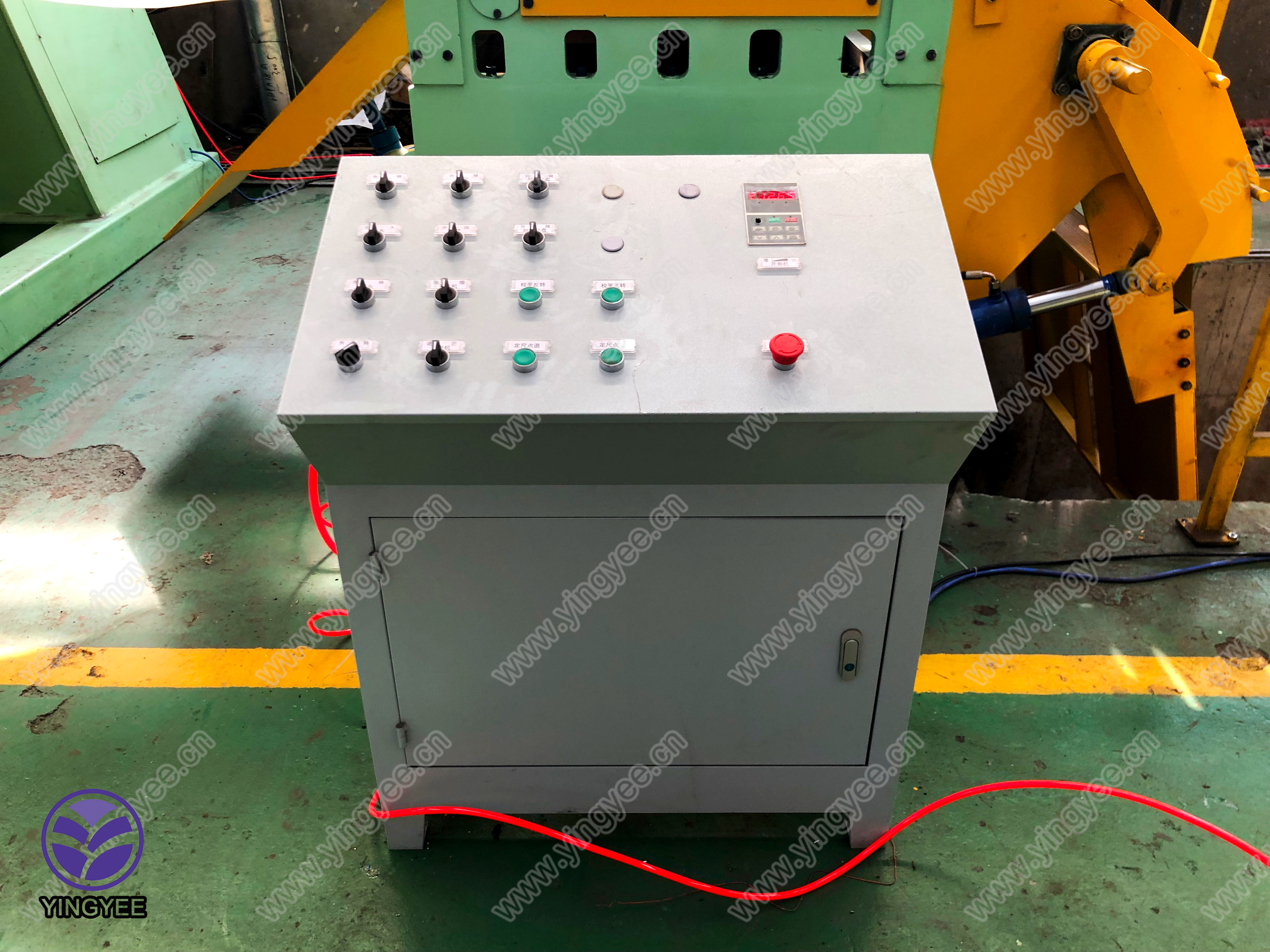

16.  Electrical System PLC Control

Description &Function

a.What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for
uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for
processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils
etc into different width according to the user’s production demands and cut as well
b.Function This equipment through the
procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly
composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device,
transition, and conveyor, etc.
c.Category According to the metal materials there are stainless steel cut to length
machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic
control mode there are pneumatic cut to length line,NC cut to length line and etc.
