High Speed Aluminum with PU Foamed Section Spiral Roller Shutter Door

High Speed Aluminum with PU Foamed Section Spiral Roller Shutter Door

Product Paramenter

Equipment component:

3ton manual decoiler                    x1 set

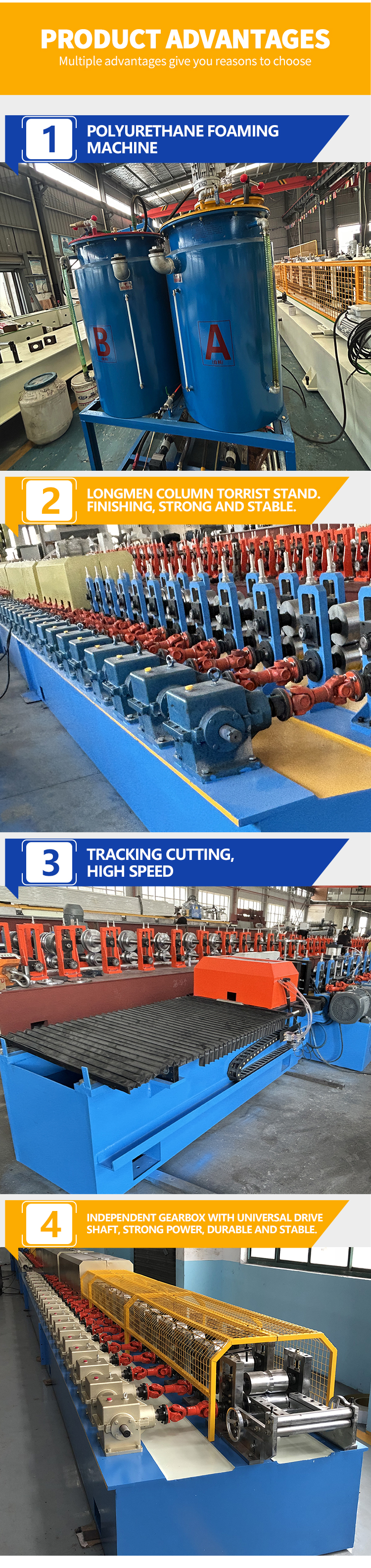

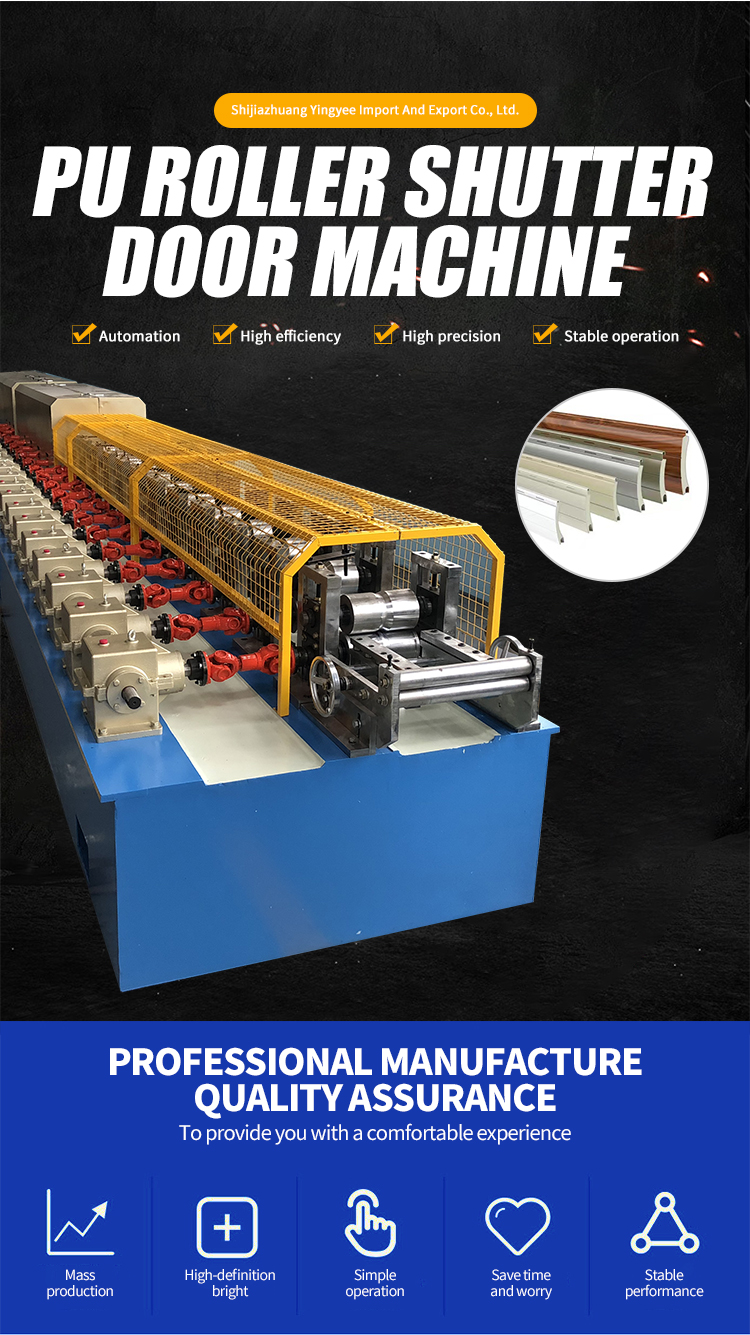

Main roll forming machine           x1 set

Warm Box                                    x1 set

Foam injection machine               x1 set

Hydraulic punching machine         x1 set

Flying saw tracking cutting          x1 set

PLC Control system                     x1 set

Receiving table                             x1 set



Technical specification

1. Decoiler:3 tons manual decoiler

2. Guiding: For feeding the material into the machine

3. Main roll forming machine:

Roller material: 45# steel, precision-machined, high frequency quenching HRC55-58, high strength, high hardness, high precision, long service life

Speed: 0-60m/min, 0-40m/min with punching holes

     Forming stations: 37 stations

     Driven: Gear box

     Main power: 7.5kw

4.  Warm box:An incubator is installed before and after foaming to heat the material to facilitate foaming

5. Flying saw cutting:Fying saw cutting, tracking cutting

6. PLC control

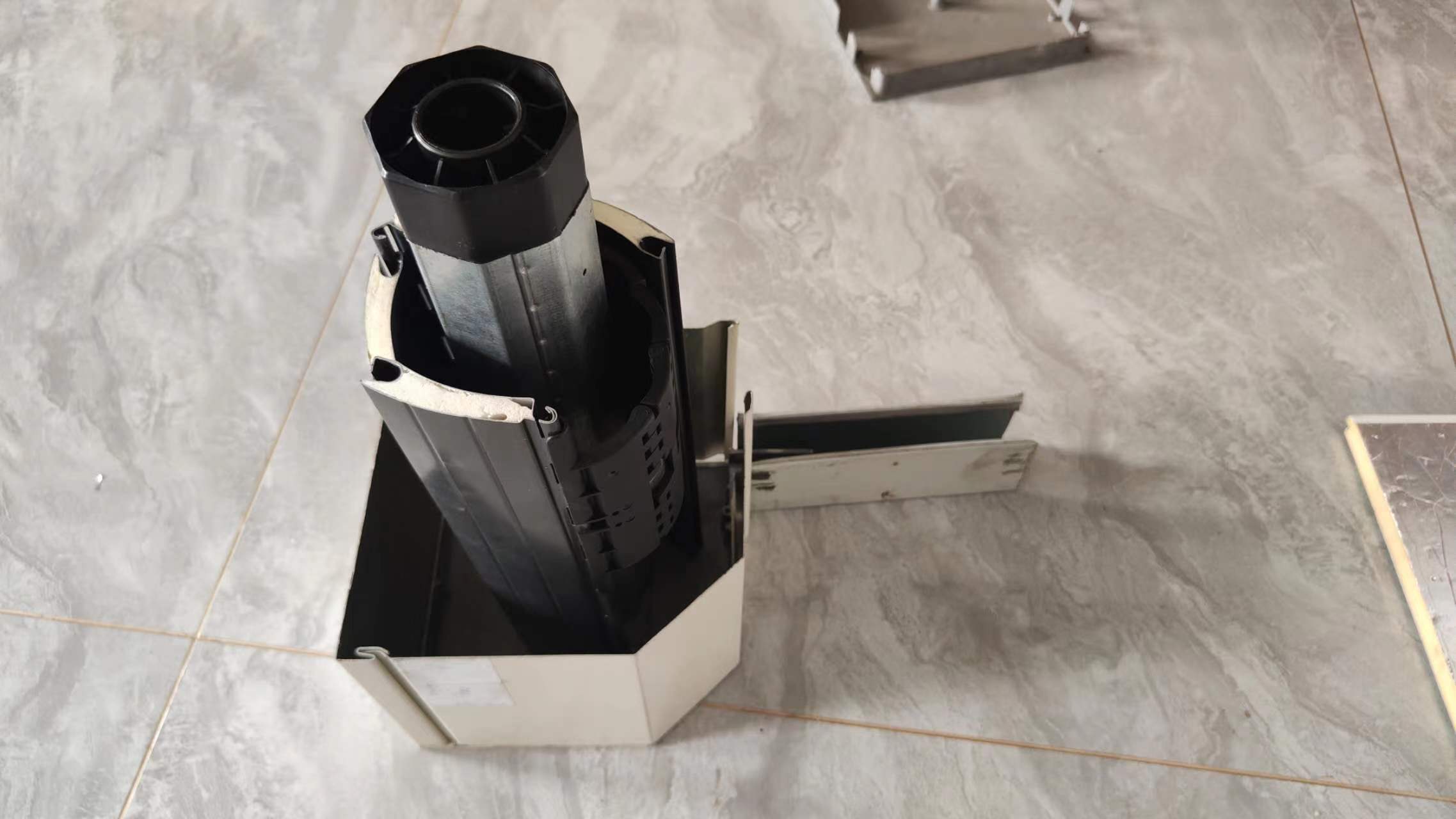

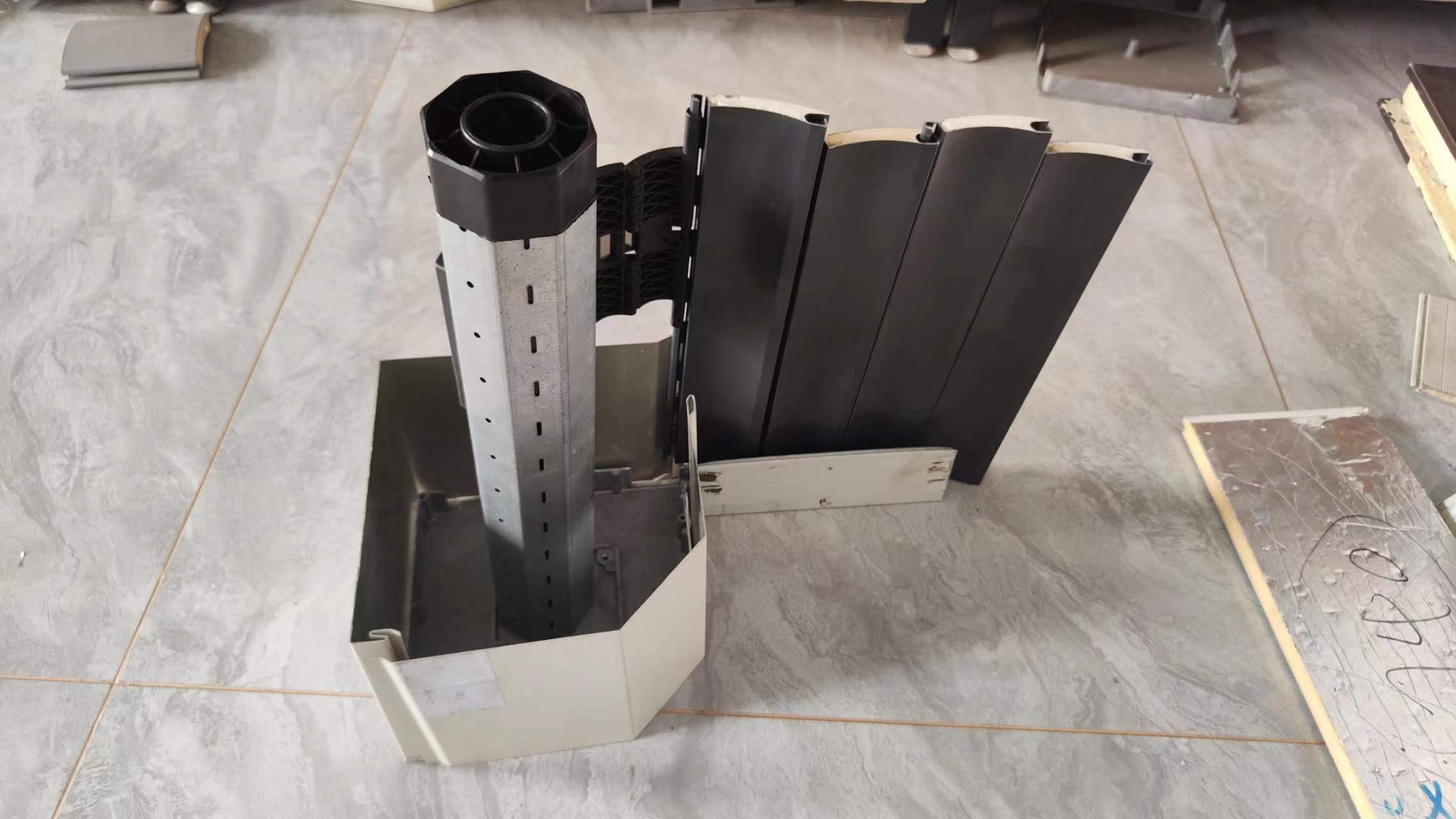

 pu windows panelpu windows panelpu windows panelpu roller sutter door machinepu roller shutter door machine

certificate exhibition
