Automatic Thread rolling machine

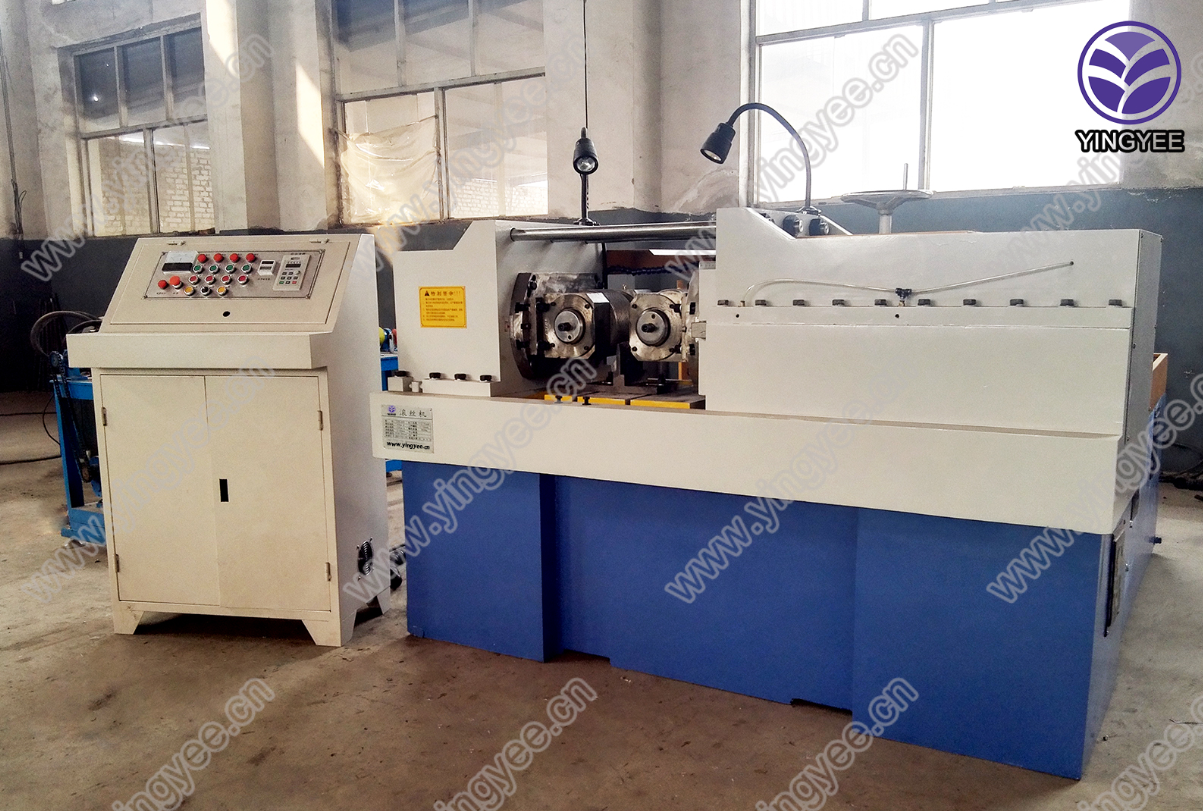

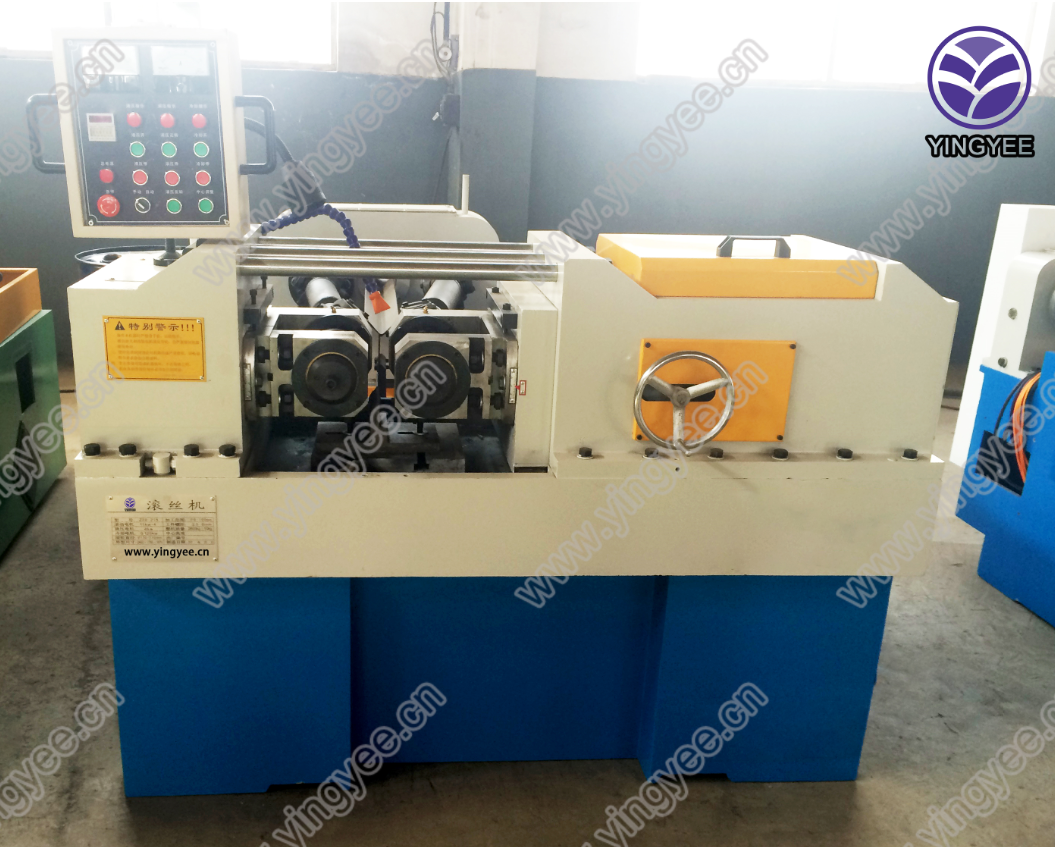

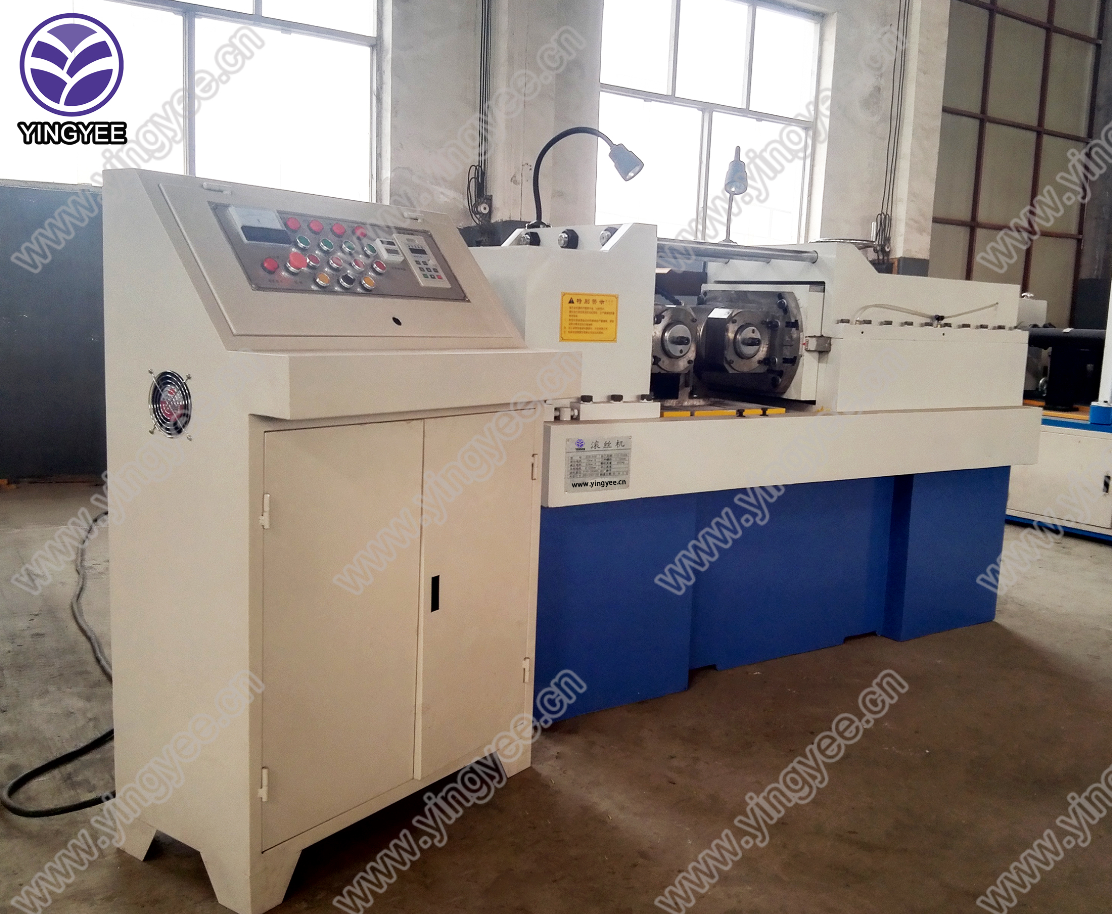

Thread Rolling Machine Model YY-630

This model mainly is used for various types of precision outer thread rolling, including the common thread, trapezoidal thread and modulus thread, workpiece to circular shape, straightening, rolling wrinkles, light and rolling work, Adapt rolling of material: elongation and tensile strength than 10% less than 1000N/mm² of various carbon steel, alloy steel and non-ferrous metal.



Technical Parameters

Pressure of Roller max.

630KN

Dip Angle of Main Shaft

±10°

Working Dia

120mm

Rotary speed of Main shaft

8,14,21,33(r/min)

OD of Roller

260mm

Rolling Power

15kw

Roller Dia max

220mm

Hydraulic Power

7.5kw

BD of Roller

100mm

Cooling Power

0.25kw

Roller Width max

200mm

Weight

3000kg

Center Distance of Main shaft

210-380mm

Size

2100*2270*2330mm
