Automatic slitting line for making coils into steel strips

Simple slitting line

1Introduction

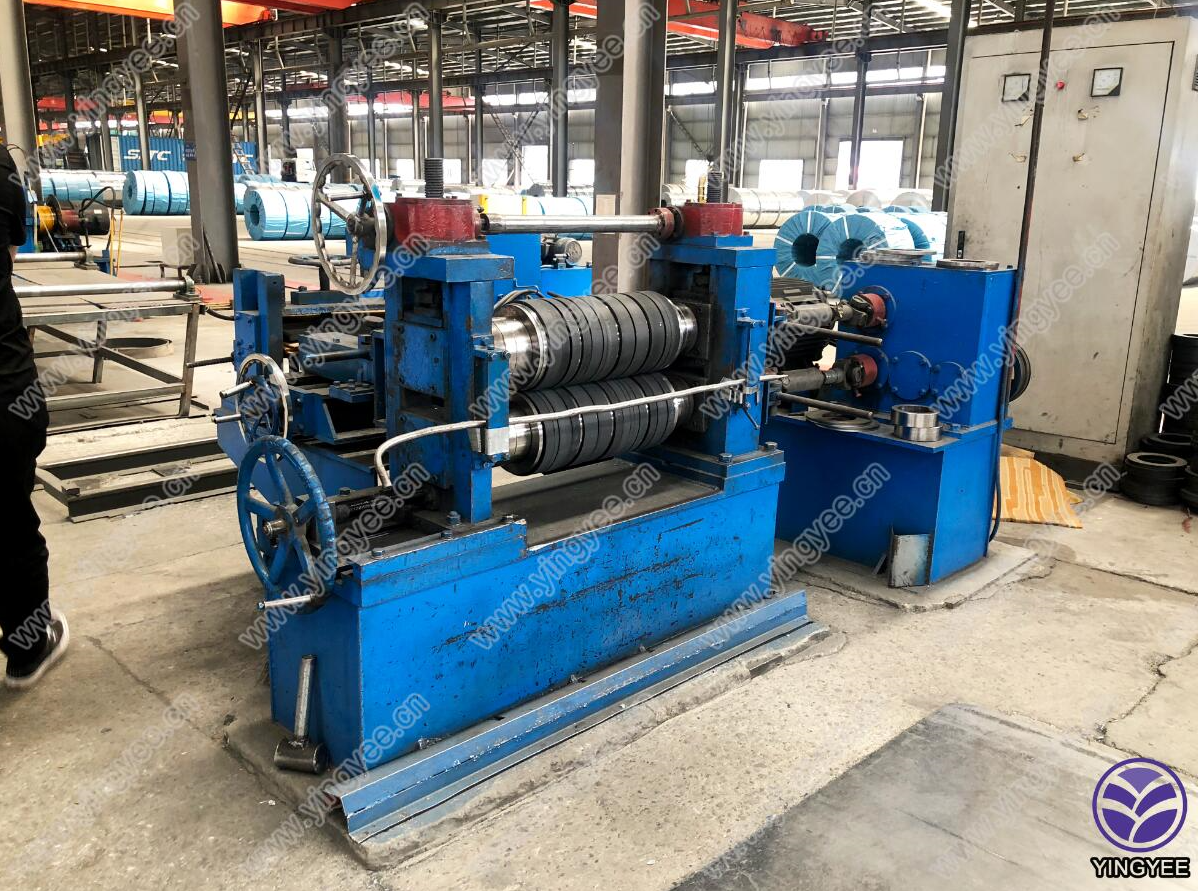

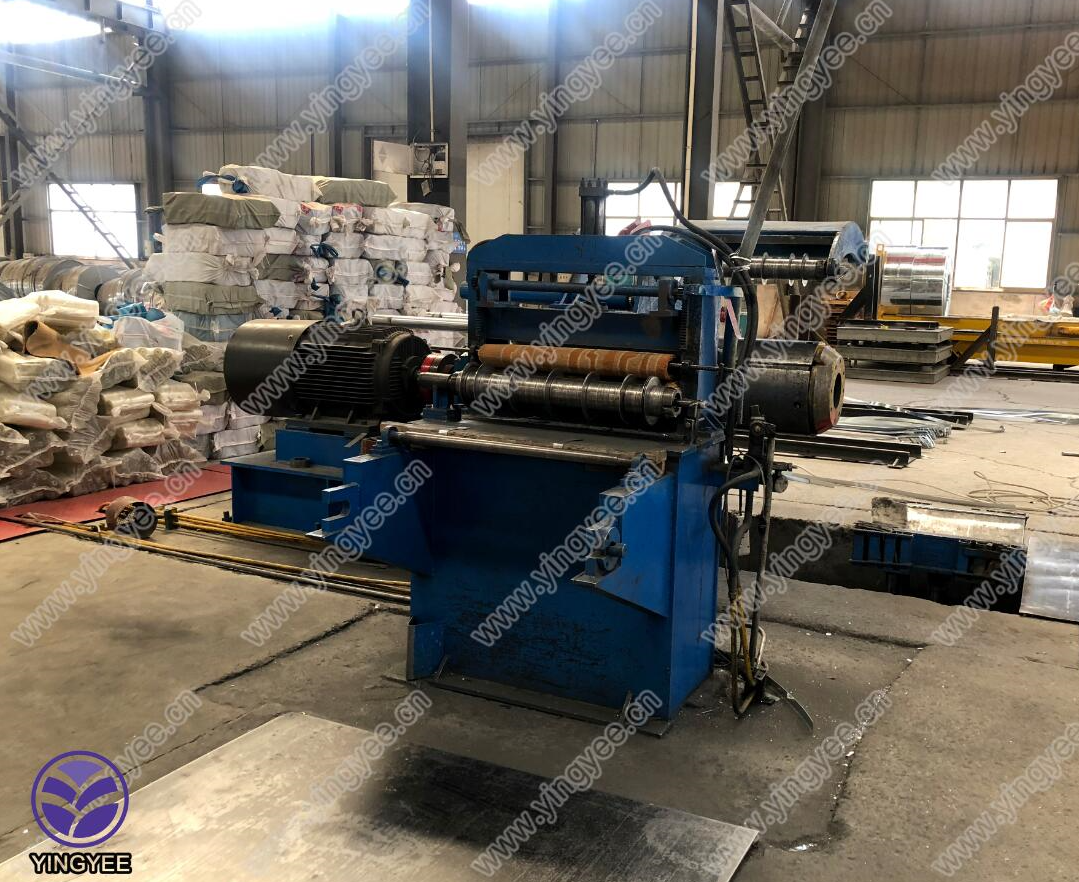

This unit is specially for round steel coil, which is divided into several strips by disc blade, and then rolled into required strip by equipment. The mechanical equipment, shearing process, operating system and accessories are described below.



2Shear material description



1. Cold rolled sheet, galvanized sheet.

2. The thickness :0.5mm-2.0mm, max width: 630mm

3. The number of blade:2-10 pcs, and the available length of shear shaft is 750mm

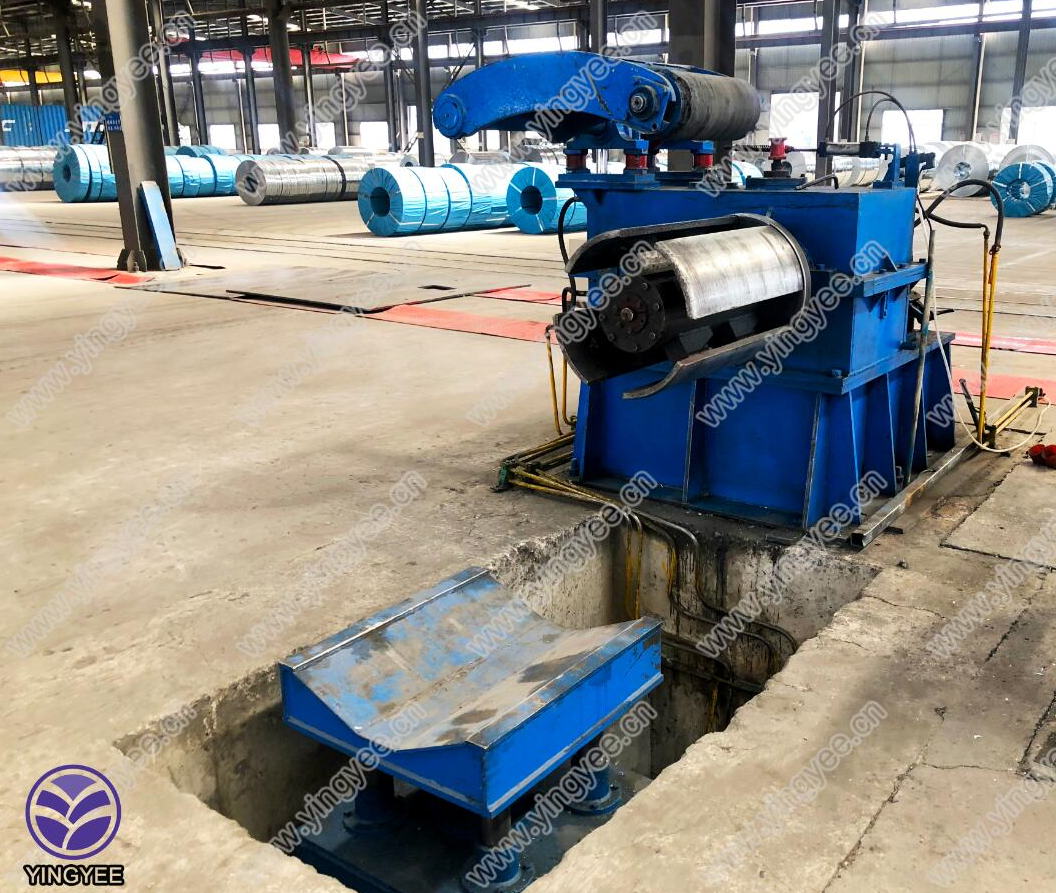

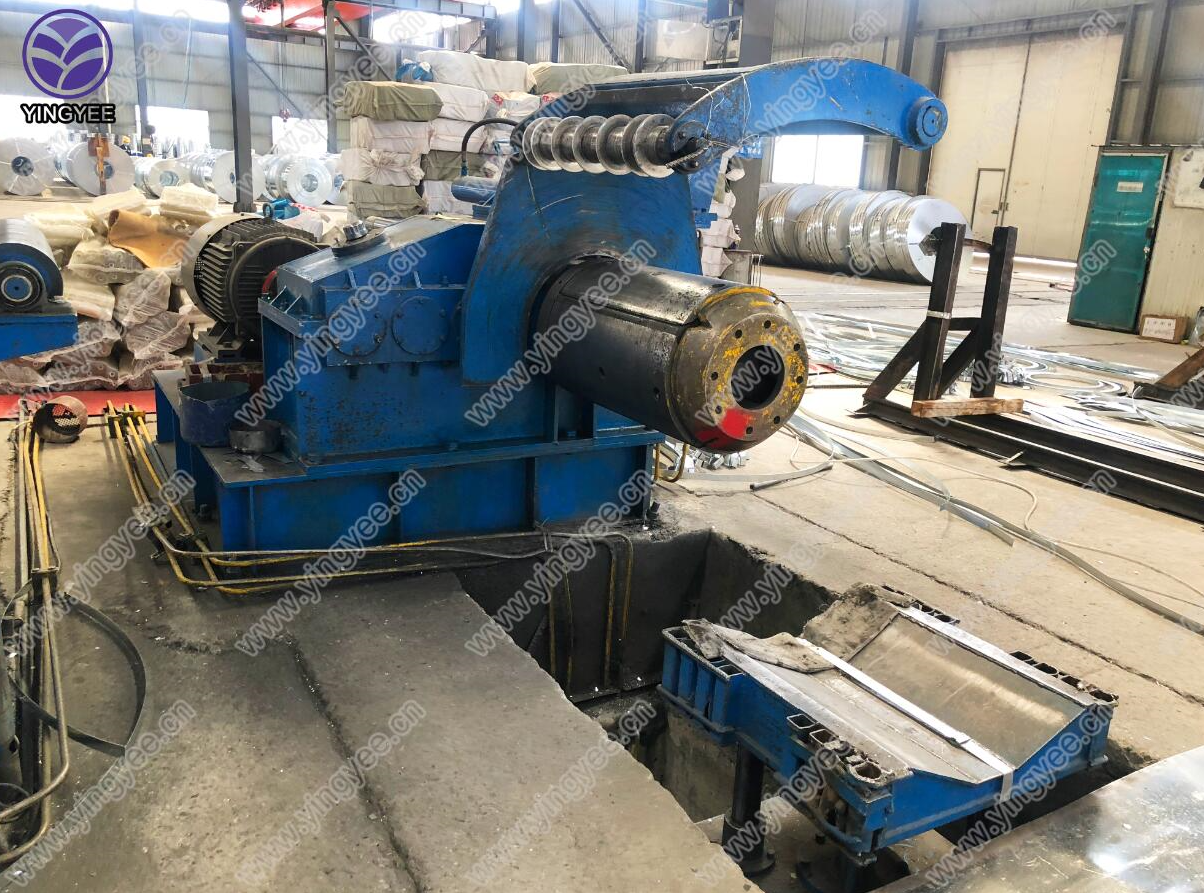

4. OD of decoiler : 2000m

5. ID of decoiler 508mm

6. capacity of decoiler: 10Ton


Post time: Aug-05-2021
