Automatic slitting line for making coils into steel strips

Simple slitting line

1Introduction



This unit is specially for round steel coil, which is divided into several strips by disc blade, and then rolled into required strip by equipment. The mechanical equipment, shearing process, operating system and accessories are described below.



2Shear material description



1. Cold rolled sheet, galvanized sheet.

2. The thickness :0.5mm-2.0mm, max width: 630mm

3. The number of blade:2-10 pcs, and the available length of shear shaft is 750mm

4. OD of decoiler : 2000m

5. ID of decoiler 508mm

6. capacity of decoiler: 10Ton



3Performance and parameters



1. Shear form; tension shear

2. The center height of the unit is 1100 mm

3. The total power consumption capacity of the unit is about 110 kW

4. The unit speed is above 120m / min

5. The direction of feeding is determined by the demander



4. Operation procedure:

Feeding trolley - uncoiling, vertical roller centering guide device - shearing - fixed separation and hydraulic expansion device - blanking curling - blanking trolley - finished product warehouse.



5Equipment composition details

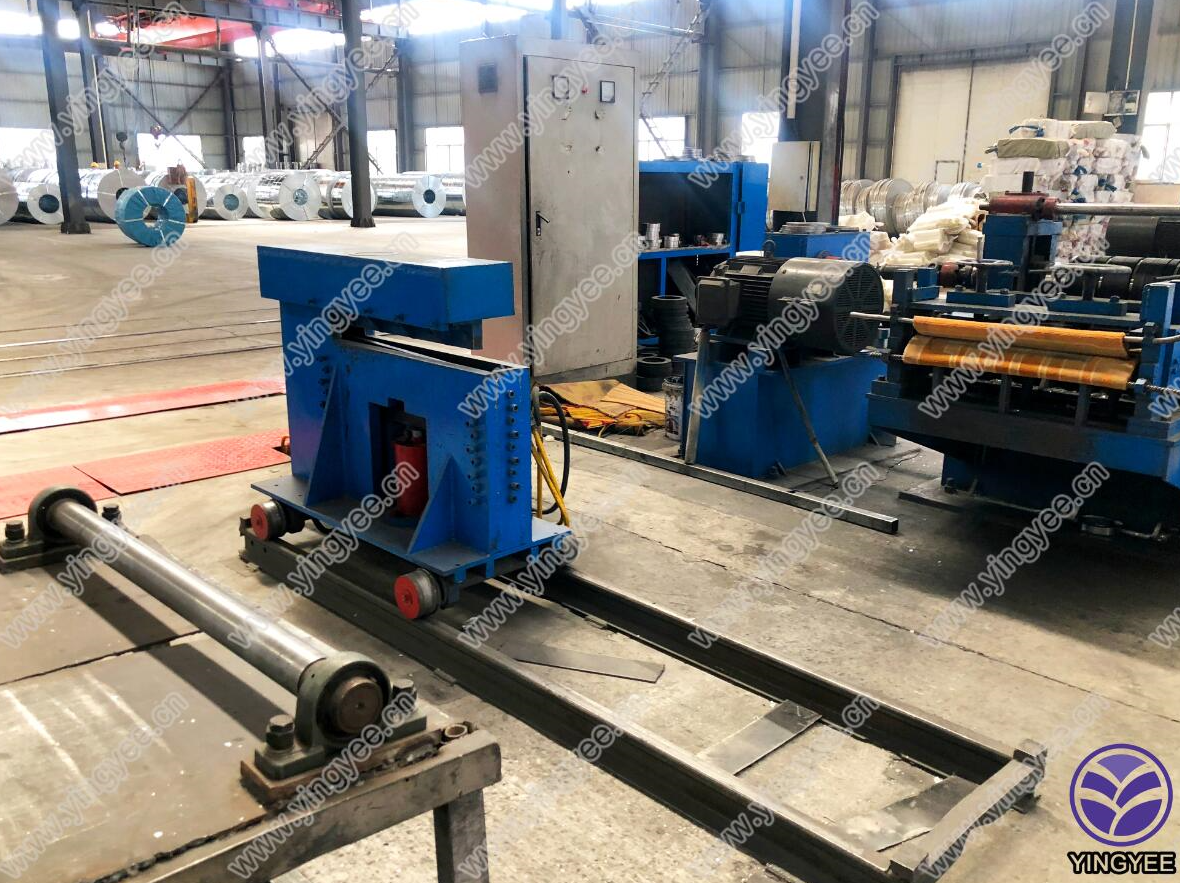

1 feeding trolley                                       1 set

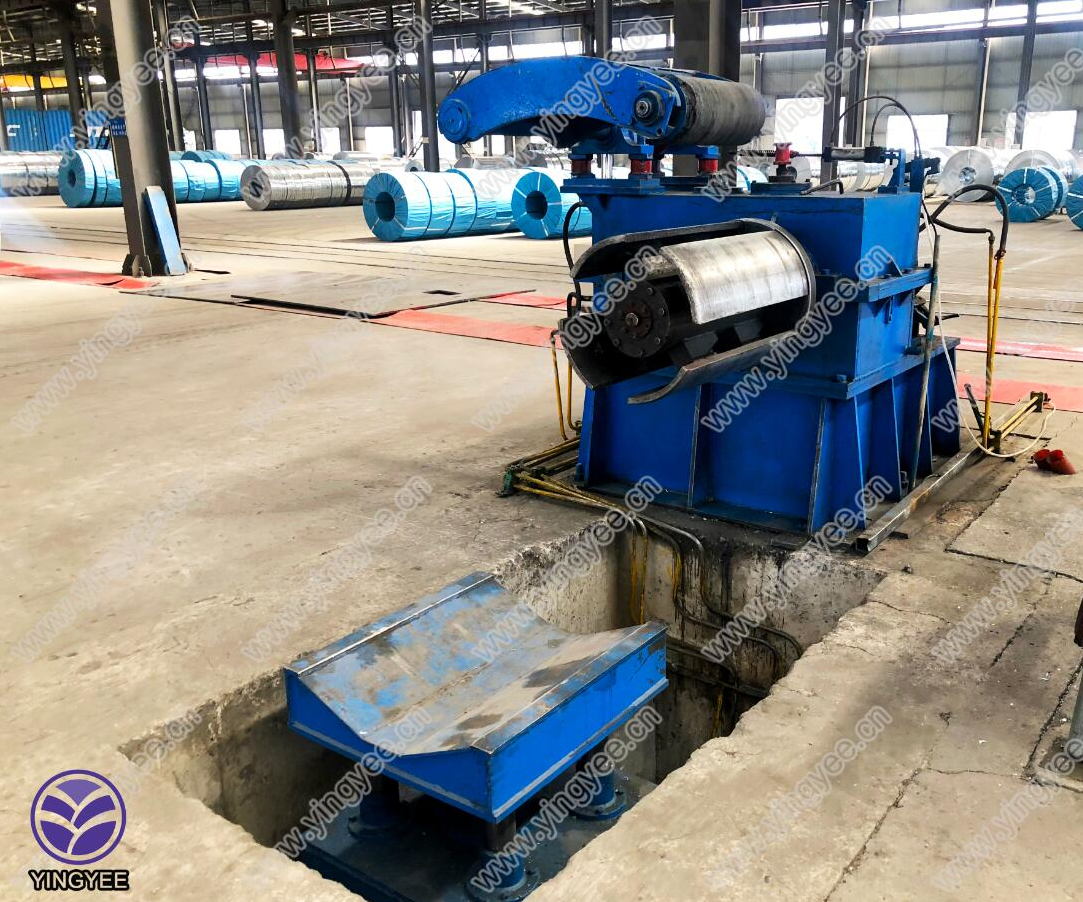

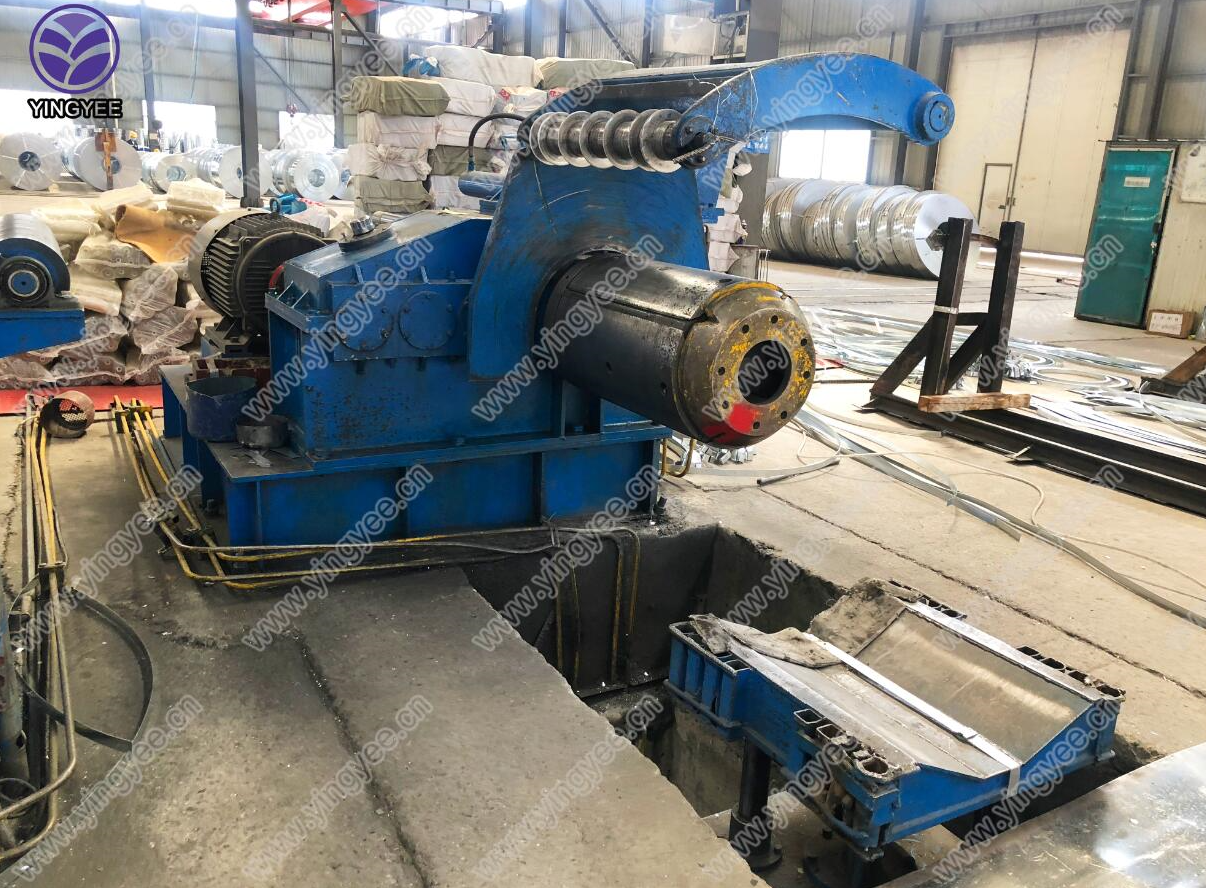

2 hydraulic decoiler                                    1 set

3 pinch conveyor                                      1 set

4.Guide assembly of vertical roller 1 set of cutting machine    1 set

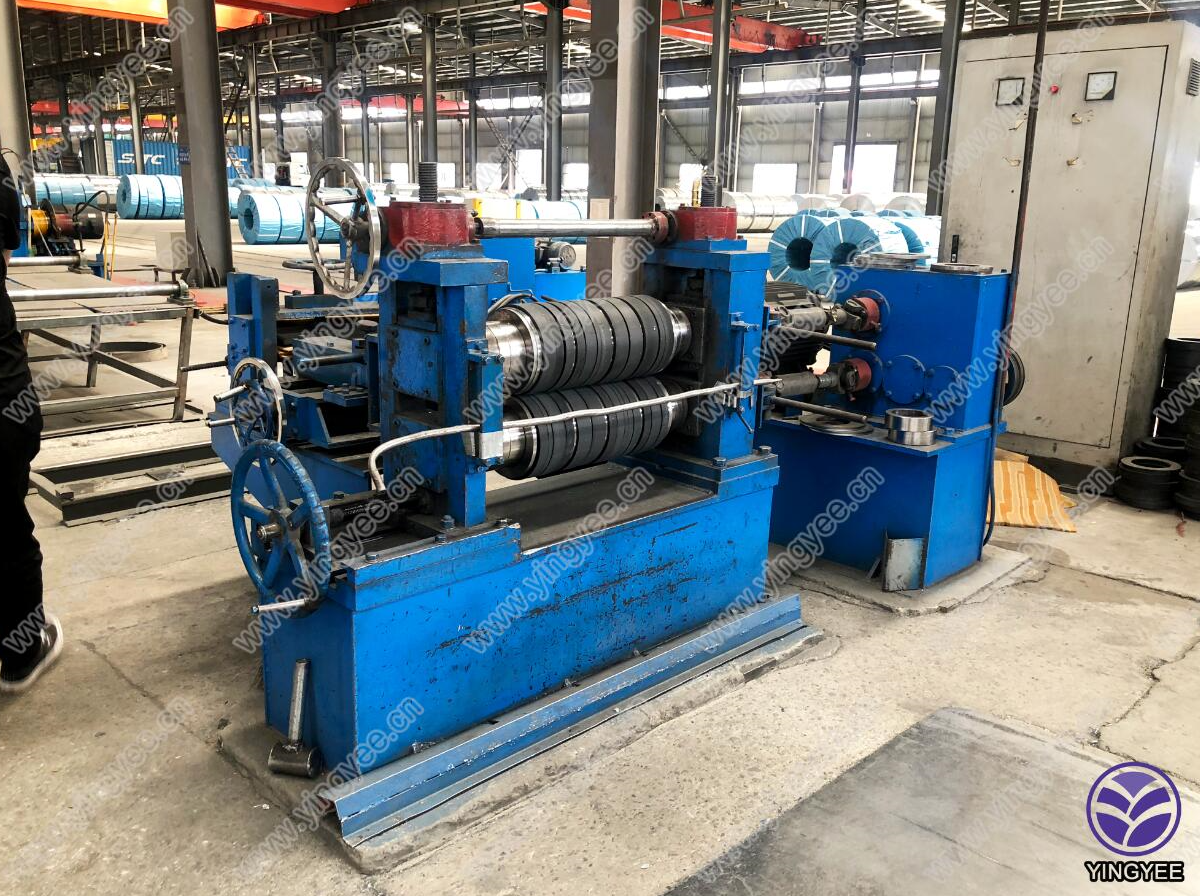

5. Cutting machine                                     1 set

6. Hydraulic expander                                   1 set

7. One hydraulic blanking coiler and movable separator       1 set

  1. Blanking trolley                                     1 set
  2. hydraulic control station                              1 set
  3. 1 set of electric control system                        1 set
