2020 Newest Design High Speed Automatic Adjusting Width Light Keel Forming Machine

This Machine is Automatically Adjusting Width for making different sizes light keel, stud and track, Drywall, C channel, U channel, wall angle.

Machine is driven by self made Gear Box which is with higher accuracy and without any noises.

Motor afford power to move the wall panel to adjust different sizes.

Main technical parameters

1. Hydraulic decoiler

capacity: 3Tons Hydraulic

2. Automatic change Feeding guide system

Input width adjustable

3. Automatic change size Mainly forming system

Main power: 7.5kw

Structure: Guide Pillar

Frame:All steel plate for machine body

Forming speed: no stop cutting, all speed is 0-30m/min

Shaft material and diameters: #45 steel and 60mm (Made the steel for cementation)

Roller material:: Cr12 with well heat treatment ,58-62

Forming Steps: 12-14 steps for forming

Driven: Gear with channel

Motor for auto-change

4. Hydraulic Punching system(H hole)

5. electronic part

Inverter:Delta (Taiwan)

Encoder: Japan Omron(Japan)

Servo motor: shanghai Zoncn,1.5kw

low-voltage apparatus CHNT (China)

Voltage: 380V 50Hz 3 phase

6. Logo punch LOGO

Logo punch on line without speed slow.

7. Cutting servo motor control without stop

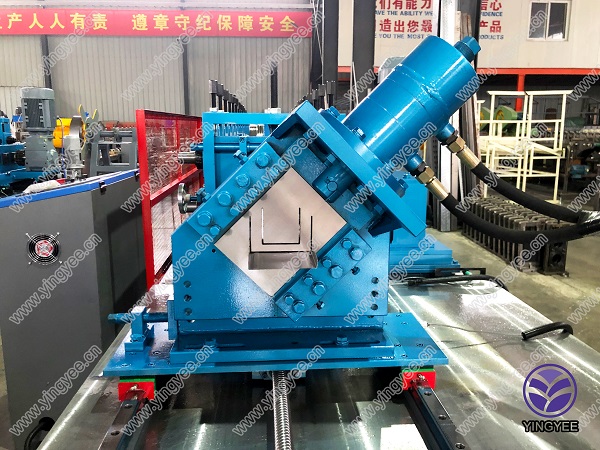

Hydraulic cutting system

Material: Gcr12

Cutting Power: 2.2kw

As drawing,need change 10 cutting blade for the 20 profiles.

8. PLC(zoncn) control and touching screen . PLC(zoncn)

9. Automatic Receiving table.
