metal roller shutter door roll forming machines
Short Description:
Basic Info
Model No.:YY–RSS—002
Thickness:0.3-1.0mm
Main Power:5.5 KW
Hydraulic Power:3 Kw
Cutting System:Hydraulic Cut
Roll Forming Step:10-12 Step
Control System:PLC
Drive Type:Chain
Additional Info
Packaging:Naked
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:China
Supply Ability:200 sets/year
Certificate:ISO9001
HS Code:84552210
Port:TIANJIN PORT
Product Description
Roller Shutter Roll Forming Machine
fully automatic metal roller sheet making roll forming
The color steel sheet is widely used in villa , holiday village , gardening industrial building , storage , scenic tourist area , pavilions , hotel , exhibition hall and so on . And we are emphasis on the detail and the technical update constantly.
2.fully automatic Galvanized Steel Roller Shutter Door
Components:
Uncoiler, Coil sheet guiding device, Main roll forming system,Post cutting device,Hydraulic station, PLC control system and Support table.
3.fully automatic competitive price hydraulic cutting cold forming roll shutter door machine
Working Flow
ecoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | Pre-painted coils, Galvanized coils, Aluminum coils |
| Material thickness range | 0.3-1.0mm |
| Rollers | 10+5 groups |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 40mm, material is 40Cr |
| Forming speed | 10-15m/min |
| Main motor power | 5.5KW |
| Hydraulic power | 3.0KW |
| Cutting type | Hydraulic flying saw |
| Controlling system | PLC |
| Voltage | 380V/3Phase/50Hz |
| Way of driven | 1.0 inch single chain transmission |
| Total weight | 2 tons |
| Size of the machine | L*W*H 6*0.8*1m |

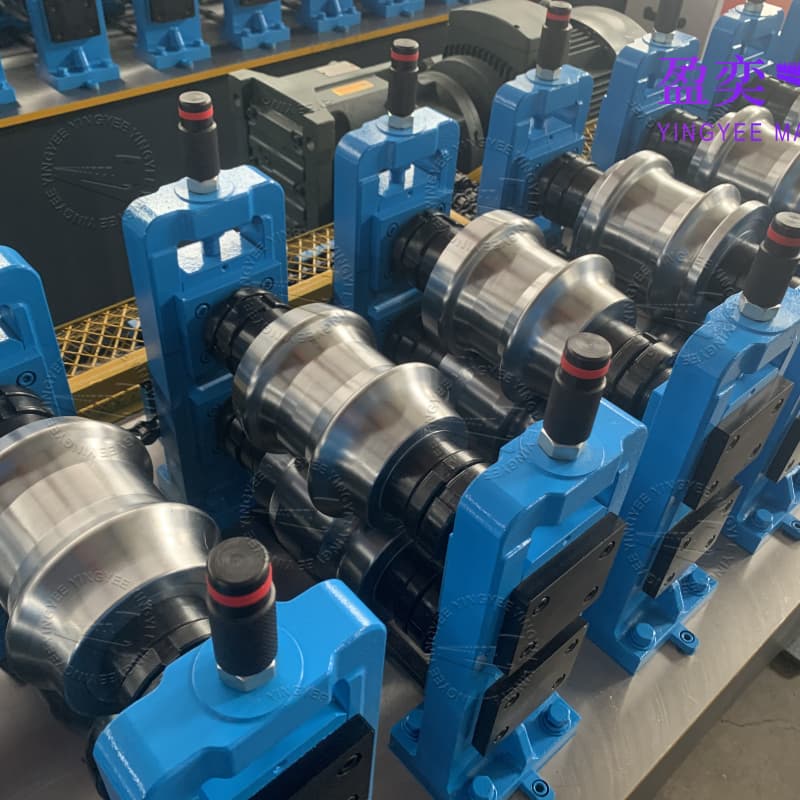

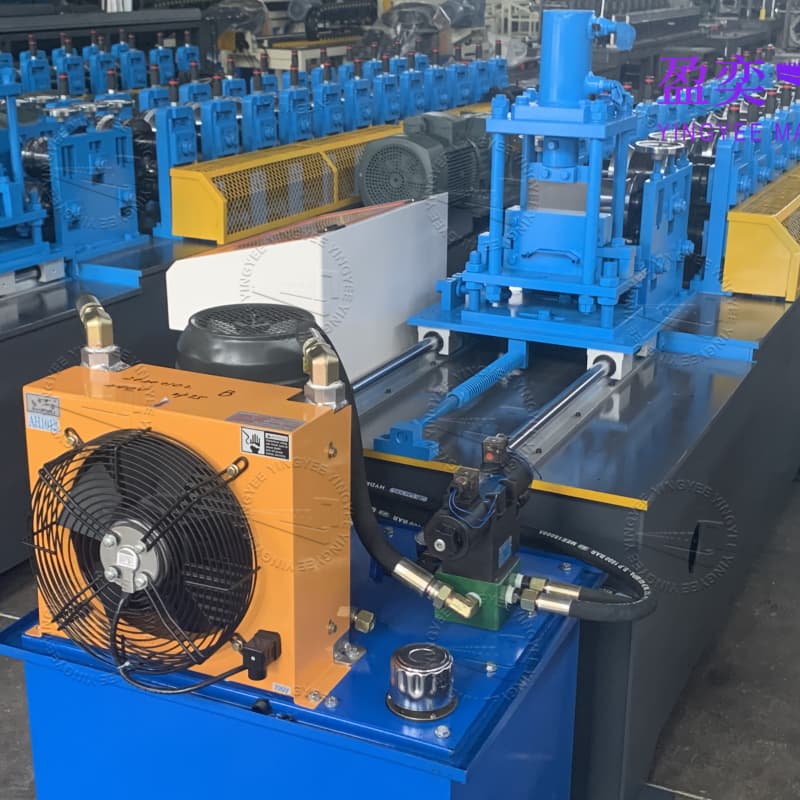

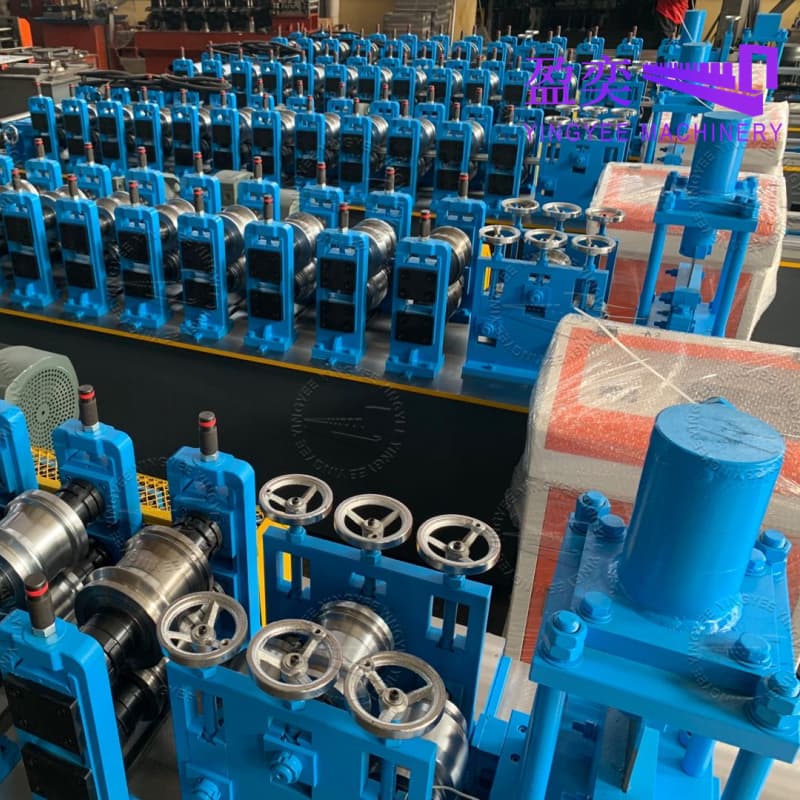

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Roller shutter roll forming machine have a good sale . The color steel sheet is widely used in villa , holiday village , gardening industrial building , storage , scenic tourist area , pavilions , hotel , exhibition hall and so on . And we are emphasis on the detail and the technical update constantly.
The components of fully automatic Galvanized Steel Roller Shutter Door have Uncoiler, Coil sheet guiding device, Main roll forming system,Post cutting device,Hydraulic station, PLC control system and Support table.
The Working flow of Hydraulic cutting galvanized steel metal roller shutter door roll forming machines:Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Looking for ideal Competitive Price Hydraulic Cutting Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Galvanized Steel Roller Shutter Door are quality guaranteed. We are China Origin Factory of Metal Roller Sheet Making Roll Forming. If you have any question, please feel free to contact us.
Product Categories : Roller Shutter Roll Forming Machine
