Metal Corrugated Roof Sheet Forming Machine
Short Description:
Basic Info
Control System:PLC
Speed:10-25m/min
Delivery Time:30 Days
Warranty:12 Months
Cutting Mode:Hydraulic Cutting
Production Time:30 Days
Products:Roof Sheet Roll Forming Machine
Using:Roof
Voltage:As Customer’s Requirement
Material:Pre-printed Coil,galvanized Coil,Aluminum Co
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
Metal Corrugated Roof Sheet Forming Machine
Steel Tile Roll Forming Machine adopts new station to increase the solidity of the machine; products are widely used in modern architecture roofing, the product increased the housing aesthetics.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
Raw material
GI, PPGI, Aluminum coils
Material thickness range
0.3-0.8mm
Rollers
18 rows
Material of rollers
45# steel with chromed
Forming speed
25-30m/min(excluding cutting time)
Shaft material and diameter
76mm, material is 40Cr
Material of cutting blade
Cr12 mould steel with quenched treatment
Controlling system
Delta PLC computer control system with Chrizi inverter to ensure precision Program is made by English, working mode: automatic and manual
Way of driven
1” chain transmission
Voltage
380V/3Phase/50Hz or at your request
Main motor power
3KW
Hydraulic station power
3KW

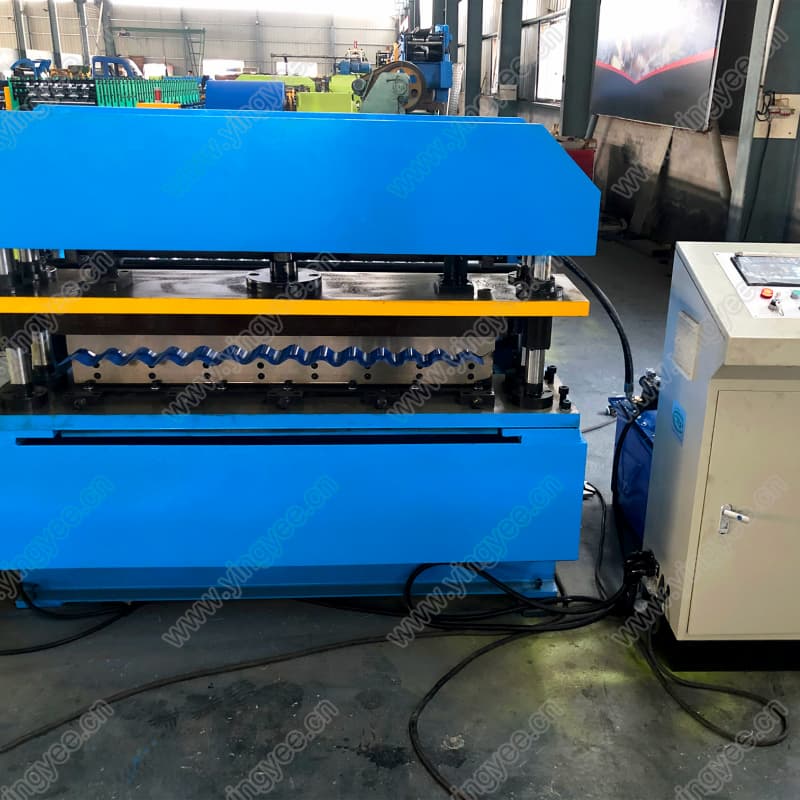

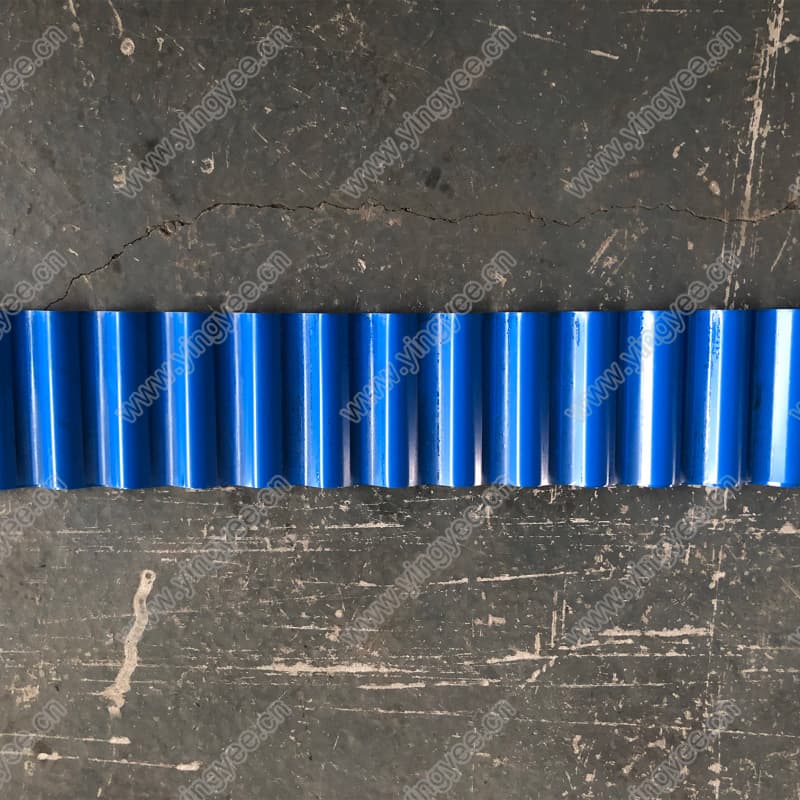

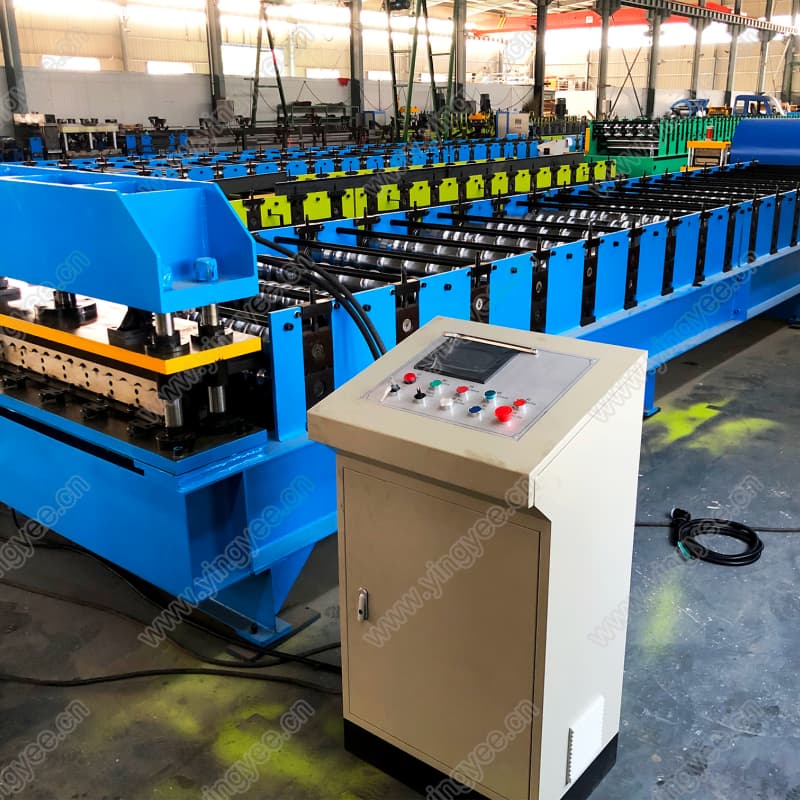

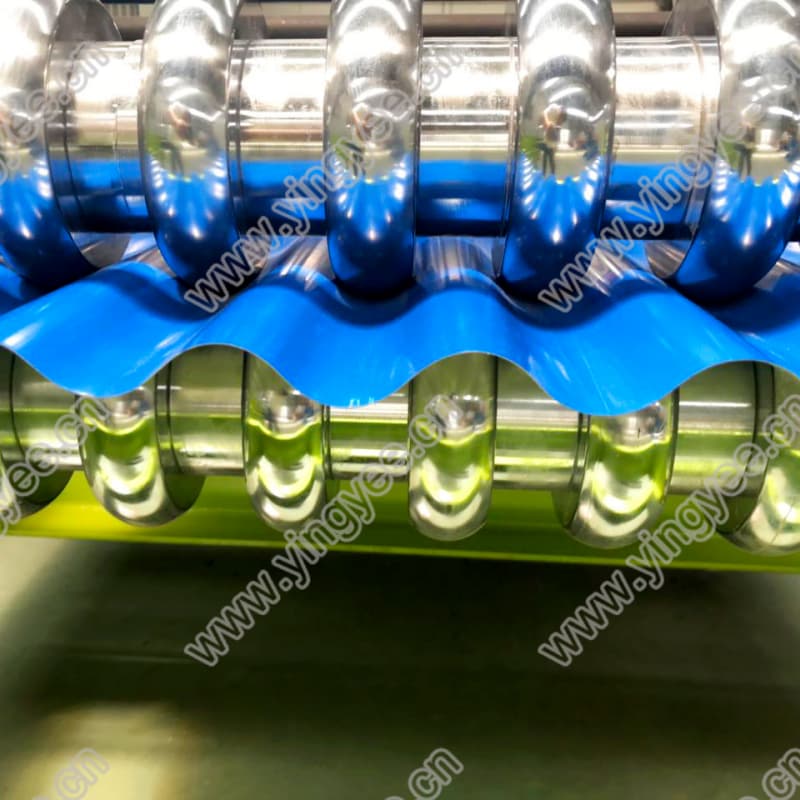

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Looking for ideal Corrugated Roofing Sheet Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Heavy Duty Corrugated Roof Sheet Machine are quality guaranteed. We are China Origin Factory of Corrugated Roof Sheet Machine. If you have any question, please feel free to contact us.
Product Categories : Roof Sheet Roll Forming Machine > Corrugated Roof Sheet Roll Forming Machine
