Large-Span Roll Forming Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Tile Type:Colored Steel

Certification:CE, ISO

Condition:New

Customized:Customized

Usage:Roof, Wall

Transmission Method:Machinery

Products:Big Span Roll Forming Machine

Material:Pre-printed Steel Coil,galvanized Coil,Aluminum Co

Material Of The Cutting Blade:CR12

Speed:10-25m/min

Cutting Mode:Hydraulic

Control Mode:PLC

Voltage:As Customers Request

Additional Info

Packaging:NUDE

Productivity:CHINA

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200sets/years

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin

Product Description

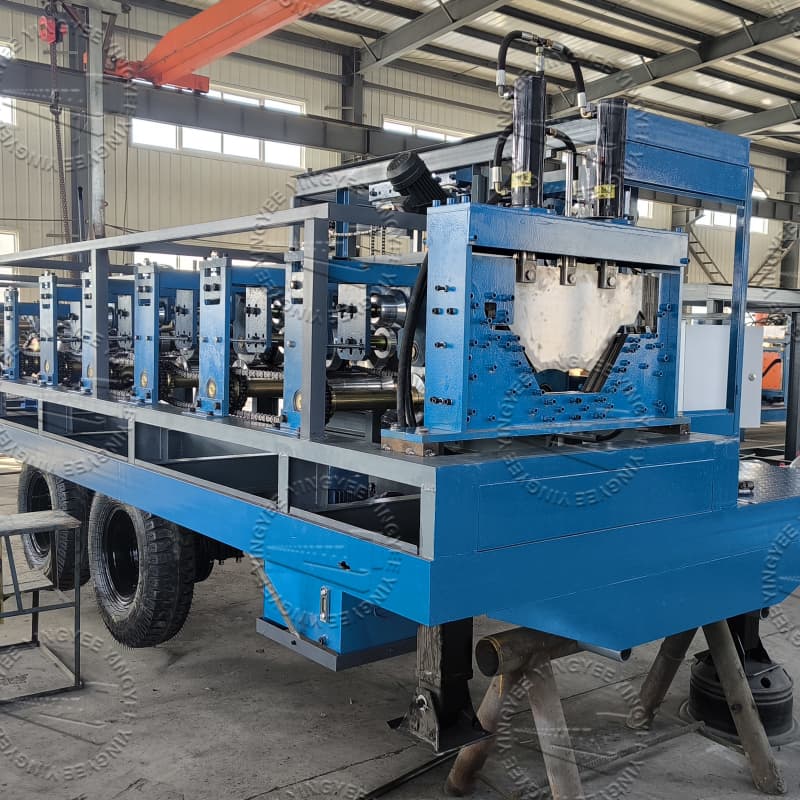

Large-Span Roll Forming Machine

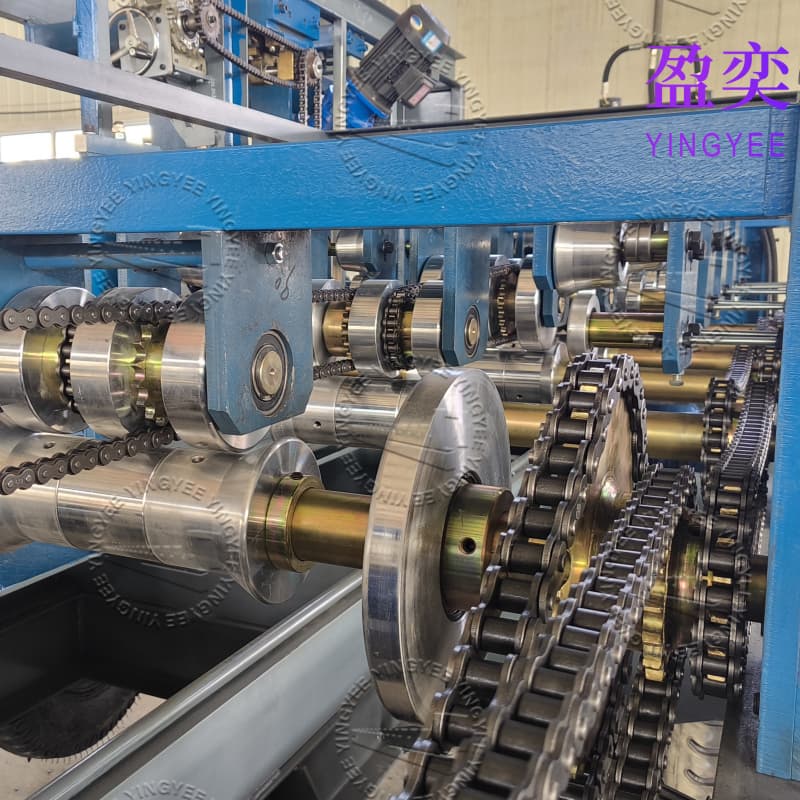

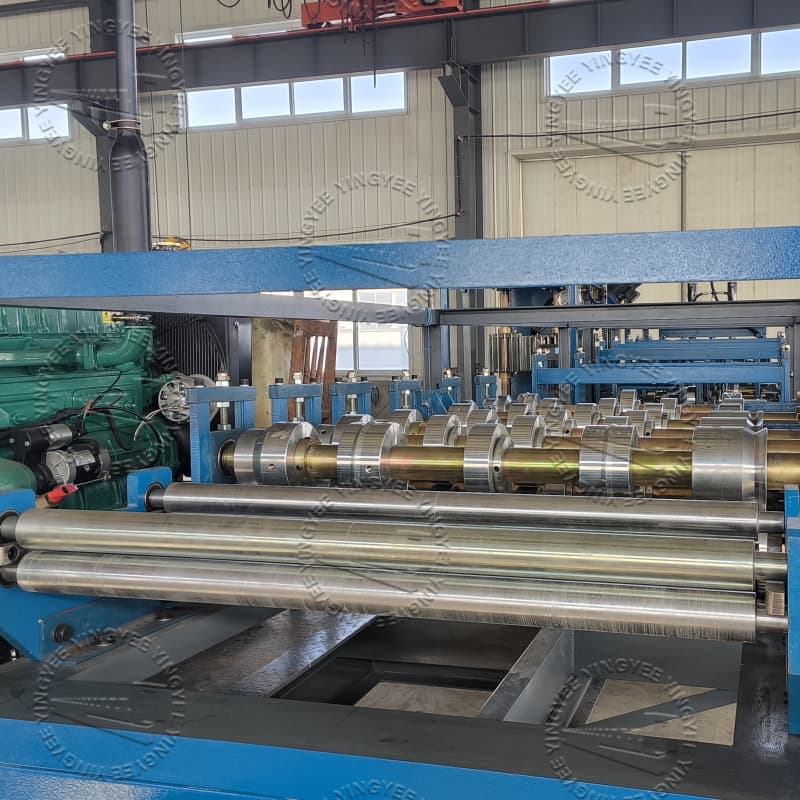

Advantages of Long Span Curving Roof Building Machinery : 1.There is a brake system on our uncoiler, if the machine stops suddenly, the uncoiler can be stopped accordingly. 2.14-steps to form, including the first step–Rubber shaft, it fixes steel sheet tightly from the beginning. Also there is one row Rubber Roller in the middle of each shaft, coordinating different thickness of steel sheets tightly when roll forming.

Product Description

Specification:

1) Main machine dimension: 9.65m*2.23m*2.4m

2) Bending machine dimension; 3.8m*2.23m*2.4m

3) Suitable material: galvanized steel, colored steel, etc

4) Coil thickness: 0.6 –1.5mm

5) Roller stands:16

6) Roller diameter:80mm

7) Totally power:18.5kw

8) Main Power:7.5kw; Hydraulic power:4.0kw; side bending power:1.5kw*2

Curving power:4.0kw

9) Roller material: 40Cr

10) Shaft material: high grade #45 steel

11) Cutting Blade material:Cr12 steel

12) Machine speed: forming speed 13m/min, Seaming speed:6m/min

13) Span : ≤38m

14) Power supply: AC380V±10%, 50Hz, or as per your requirement

long span machine

kspan

big span

roof span

Packaging & Shipping

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine





Looking for ideal Hot Sale Kspan Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Long Span Roll Forming Machine are quality guaranteed. We are China Origin Factory of Metal Span Color Machine Hot Sale. If you have any question, please feel free to contact us.

Product Categories : Long Span Roll Forming Machine
