K STEEL TYPE SPAN STEEL ROOFING MACHINE
Short Description:
Basic Info
Tile Type:Colored Steel
Certification:CE, ISO
Condition:New
Customized:Customized
Usage:Roof, Wall
Transmission Method:Machinery
Products:Big Span Roll Forming Machine
Material:Pre-printed Steel Coil,galvanized Coil,Aluminum Co
Material Of The Cutting Blade:CR12
Speed:10-25m/min
Cutting Mode:Hydraulic
Control Mode:PLC
Voltage:As Customers Request
Additional Info
Packaging:NUDE
Productivity:CHINA
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200sets/years
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin
Product Description

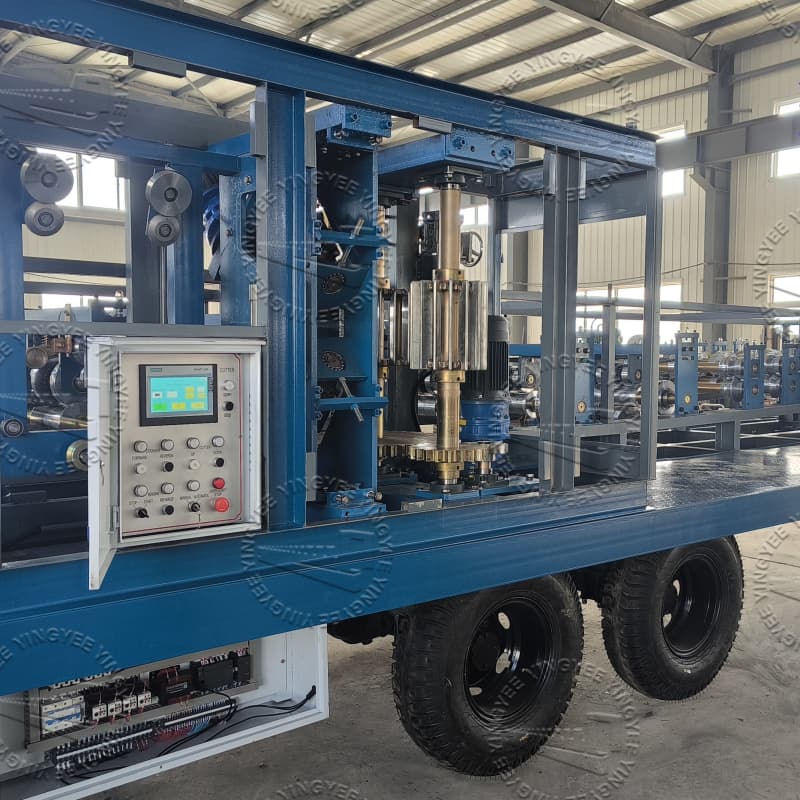

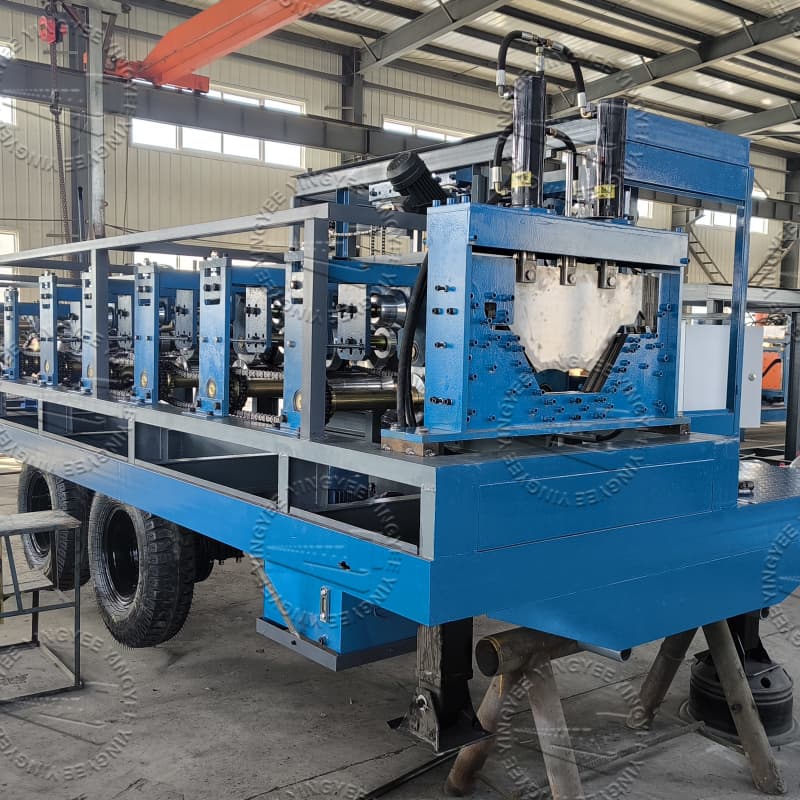

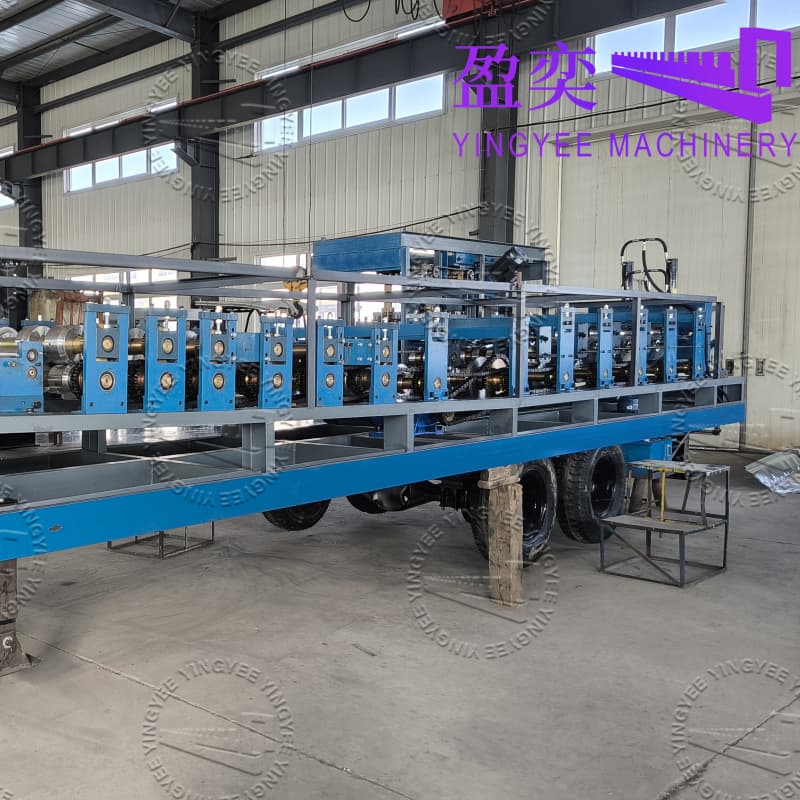

Long Span Roofing Sheet Production Line
Roof Cold big span roll forming machine
Long Span Roofing Sheet Production Line expansion of decoiler, face plate Forming unit, hydraulic die cutting device, curved panel forming unit, control system,Hydraulic system, run the straight and curved plate and all other accessories. All the parts Be installed in a mobile car. Therefore, it is suitable for field work.
Specification:
1) Main machine dimension: 9.65m*2.23m*2.4m
2) Bending machine dimension; 3.8m*2.23m*2.4m
3) Suitable material: galvanized steel, colored steel, etc
4) Coil thickness: 0.6 –1.5mm
5) Roller stands:16
6) Roller diameter:80mm
7) Totally power:18.5kw
8) Main Power:7.5kw; Hydraulic power:4.0kw; side bending power:1.5kw*2
Curving power:4.0kw
9) Roller material: 40Cr
10) Shaft material: high grade #45 steel
11) Cutting Blade material:Cr12 steel
12) Machine speed: forming speed 13m/min, Seaming speed:6m/min
13) Span : ≤38m
14) Power supply: AC380V±10%, 50Hz, or as per your requirement
Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Guardrail Roll Forming Machine
- Storage roll forming machine
- Cable Tray Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- slitting machine
Installation and training:
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation. Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Looking for ideal Kspan Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Long Span Roofing Machine are quality guaranteed. We are China Origin Factory of Big Span Roll Forming Machine. If you have any question, please feel free to contact us.
Product Categories : Long Span Roll Forming Machine
