IBR Profiles Double Layer Roofing Forming Machine
Short Description:
In traditional production, one machine can only produce one product. With the improvement of technology and the great effort of our engineers, we have this roofing sheets and roof tile double layer roll forming machine come out. This double-layer machine produces roofing sheets and roof tiles on one machine, which can save a lot of space occupied by customers. Also, this double-layer roll forming machine effectively improves the utilization of the uncoiler, motor, hydraulic station control system, etc. All the electric parts of this machine are from famous brands so this equipment has features of stable performance and long service life.
Basic Info
Type:Roof Sheet Roll Forming Machine
Waranty:12 Months
Delivery Time:30 Days
Material:Color Coated Steel, Galvanized Steel, Aluminum St
Forming Speed:25-30m/min(excluding Cutting Time)
Cutting Mode:Hydraulic
Way Of Driven:Chain Transmission
Control System:PLC
Voltage:As Customer's Request
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Working Flow:
Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table
Technical parameters:
| Raw material | Color-coated steel, Galvanized steel, Aluminum steel |
| Material thickness range | 0.3-1mm |
| Rolles | 11-18 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Forming speed | 25-30m/min |
| Shaft material and diameter | 75mm, the material is 40Cr |
| Main motor power | 5.5KW-7.5KW |
| Hydraulic station power | 5.5KW |
| Material of cutting blade | Cr12 mold steel with quenched treatment |
| Uncoiler's loading capacity Max. Capacity | 5tons(can be increased to be 10 tons) |
| Controlling system | Mitsubishi PLC & converter |
| Voltage | 380V/3Phase/50Hz(or at buyer's requirements) |

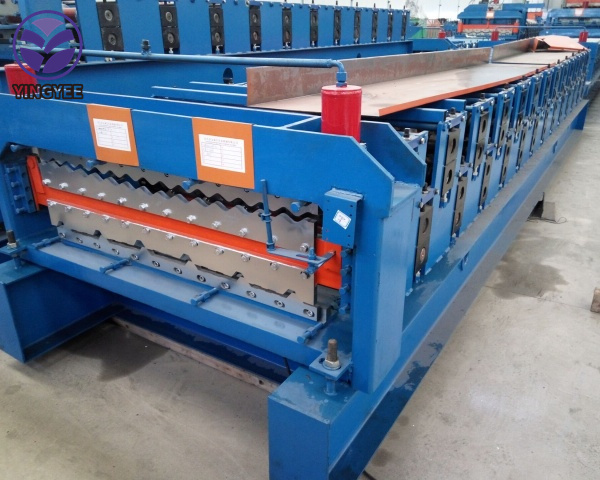

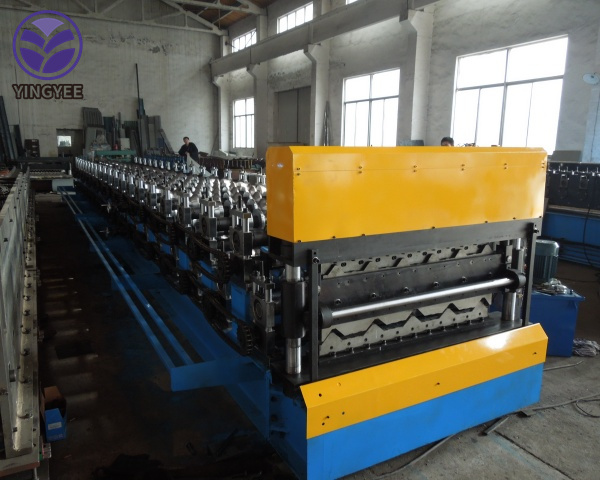

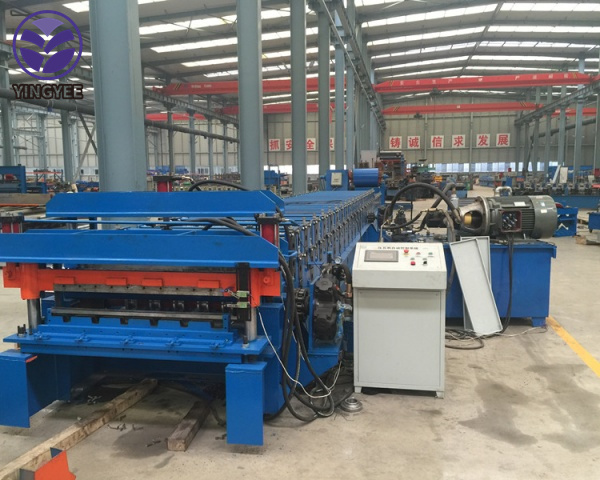

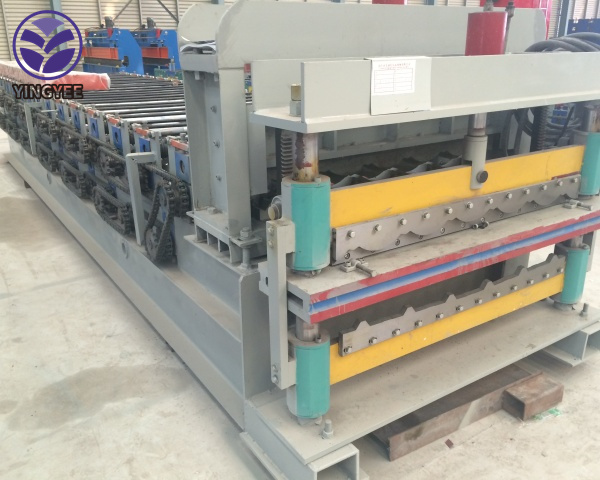

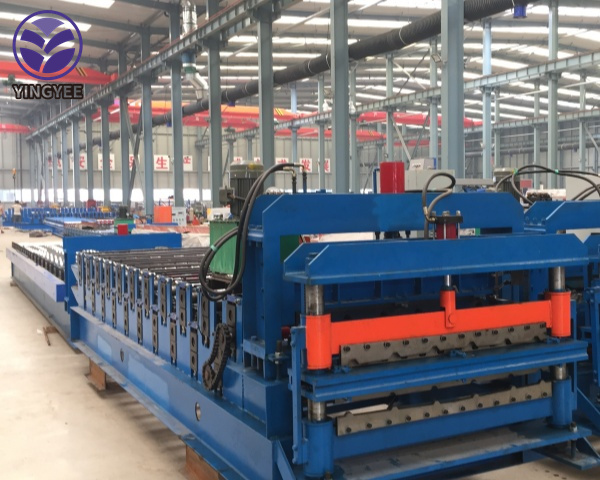

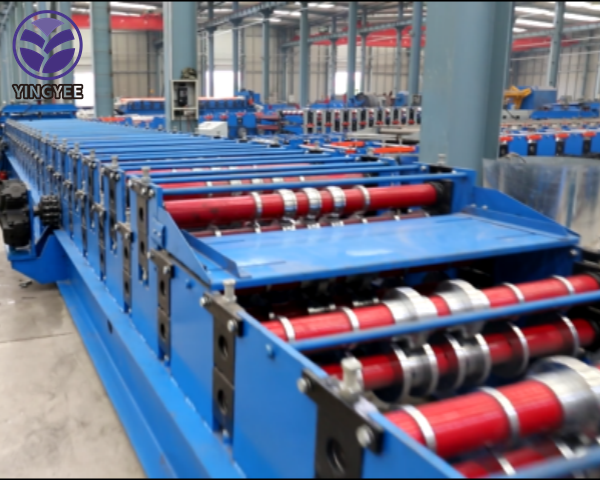

Pictures of the Machine:
Company Information
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO., LTD
YINGYEE is a manufacturer specializing in various cold-forming machinery and automatic production lines. We have a wonderful team with high technology and excellent sales, which offer professional products and related services. We paid attention to quantity and after-service, got great feedback, and honored the clients. We have a great team for after-service. We have sent several patches after the service team to overseas to finish the product installation and adjustment. Our products have been sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service locally at a paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using the guide is optional if no visiting and no installation.
Certification and after-service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for an ideal Double Layer Roofing Forming Machine Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Standard Double Layer Roll Forming Machines are quality guaranteed. We are a China Origin Factory of Corrugated and IBR Double Layer Machine. If you have any questions, please feel free to contact us.
Product Categories: Roof Sheet Roll Forming Machine > Double Layer Roll Forming Machine
