Hydraulic Z28-150 Thread Screw Rolling Machine
Short Description:
Basic Info
Warranty:12 Months
Delivery Time:30 Days
After Service:Engineers Available To Service Machinery Overseas
Voltage:380V/3Phase/50Hz Or At Your Request
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Control System:PLC
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Hydraulic Z28-150 Thread Screw Rolling Machine
This machine is primarily used for manufacture various types of precision external roll thread , high strength standard parts , the large Anchor bolts,T-screw roll thread and so on.
Technical parameters:
| Pressure of Roller max. | 150KN | Rotary Speed of Main Shaft | 36,47,60,78(r/min) |
| Working Dia | 4-48mm | Feed Speed of Movable shaft | 5mm/s |
| OD of Roller | 120-170mm | Thread Length | (no limits) |
| BD of Roller | 54mm | Main Power | 4kw |
| Roller Width max | 100mm | Hydraulic Power | 2.2kw |
| Dip Angle of Main Shaft | ±5° | Weight | 1700kg |
| Center Distance of Main shaft | 120-240mm | Size | 1480×1330×1440mm |

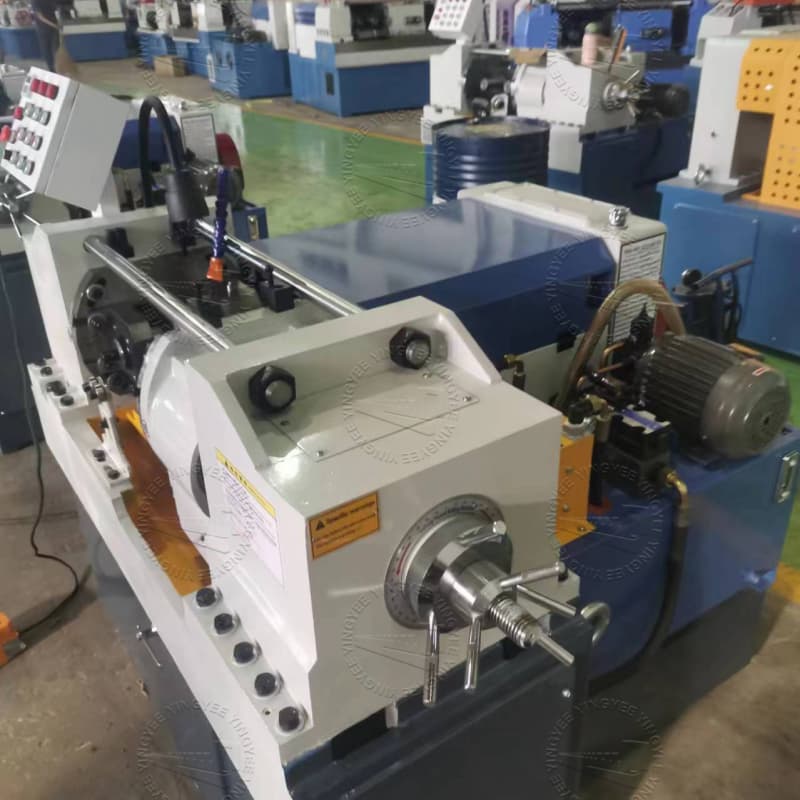

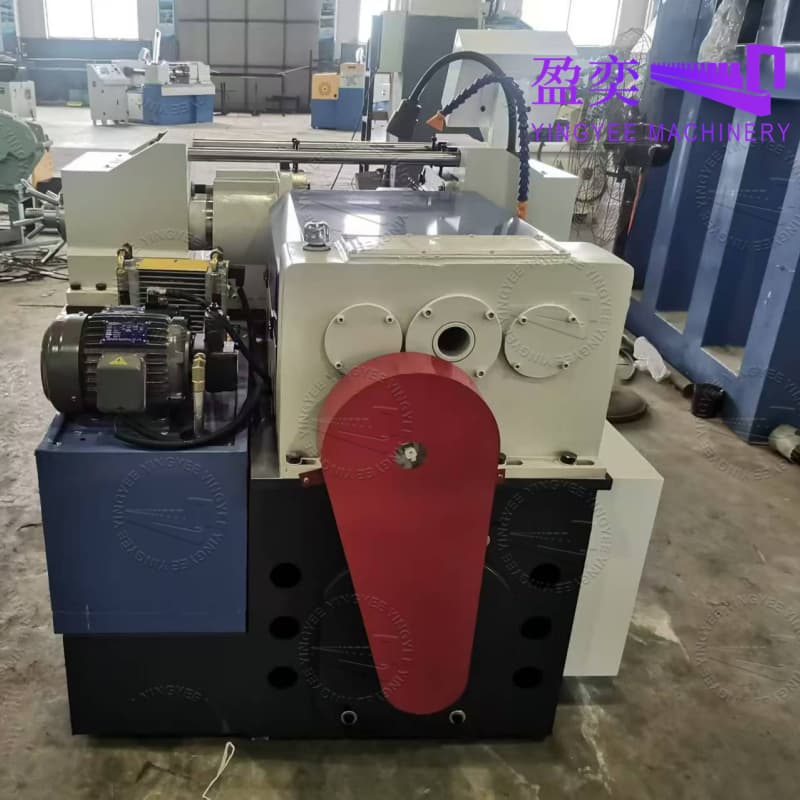

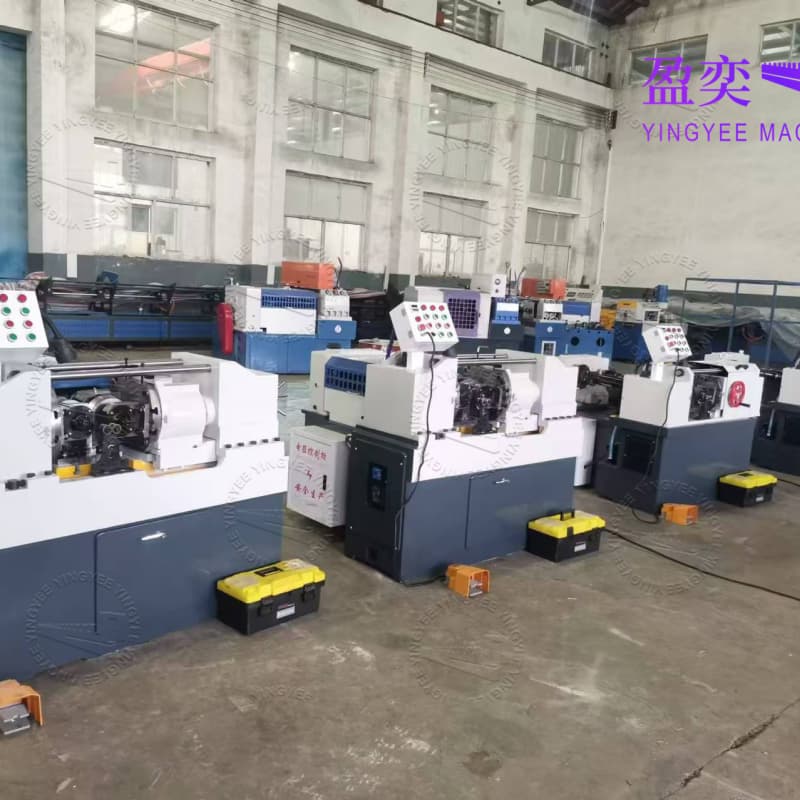

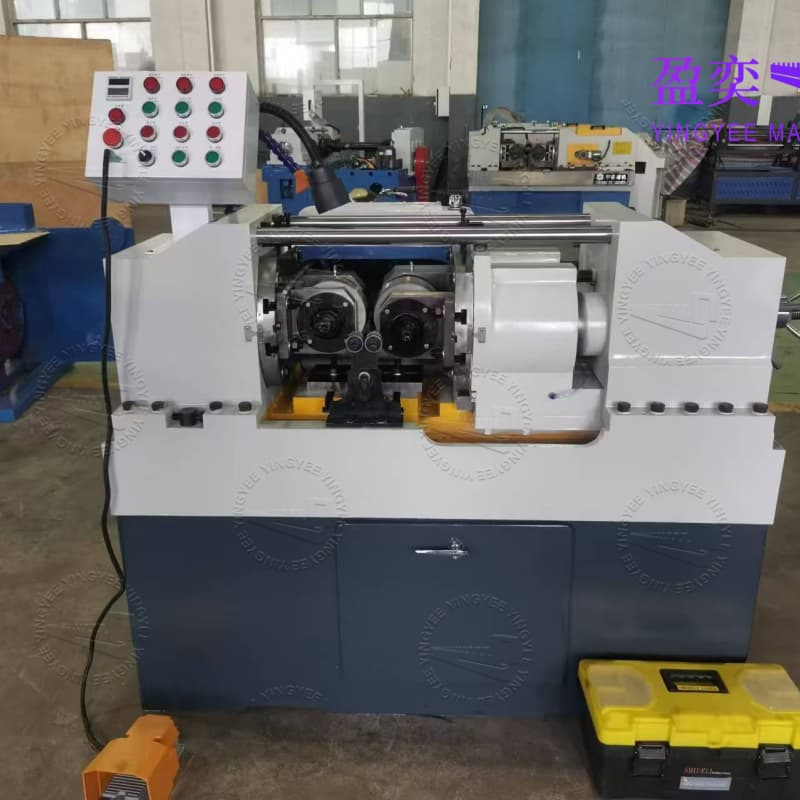

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal Thread Rolling Dies Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Electric Rolling Machine are quality guaranteed. We are China Origin Factory of Flat Thread Rolling Dies. If you have any question, please feel free to contact us.
Product Categories : Thread Rolling Machine
