High speed galvanized Storage beam roll forming machine
Short Description:
Basic Info
Model No.:YY–SBM—001
Type:Steel Frame & Purlin Machine
Warranty:12 Months
Delivery Time:30 Days
Material:GI, PPGI, Aluminum Doils
Speed:25-30m/min(excluding Punching And Cutting Time)
Control System:PLC
Way Of Driven:Chain Transmission
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
After Service:Engineers Available To Service Machinery Overseas
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
Storage Beam Roll Forming Machine
Storage beam roll forming machine is used for shelves, supermarkets, warehouses, etc. Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | Colored steel, Galvanized steel |
| Material thickness range | 1.5-3.0mm |
| Rollers | 14 rows(according to drawings and size) |
| Material of rollers | 45# steel with chromed |
| Shaft diameter and material | 80mm, material is 40Cr |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Forming speed | 15-20m/min(excluding cutting time) |
| Way of driven | Chain transmission or Gear box |
| Controlling system | Siemens PLC |
| Total power | 7.5KW |
| Voltage | 380V/3Phase/50Hz or at buyer’s request |

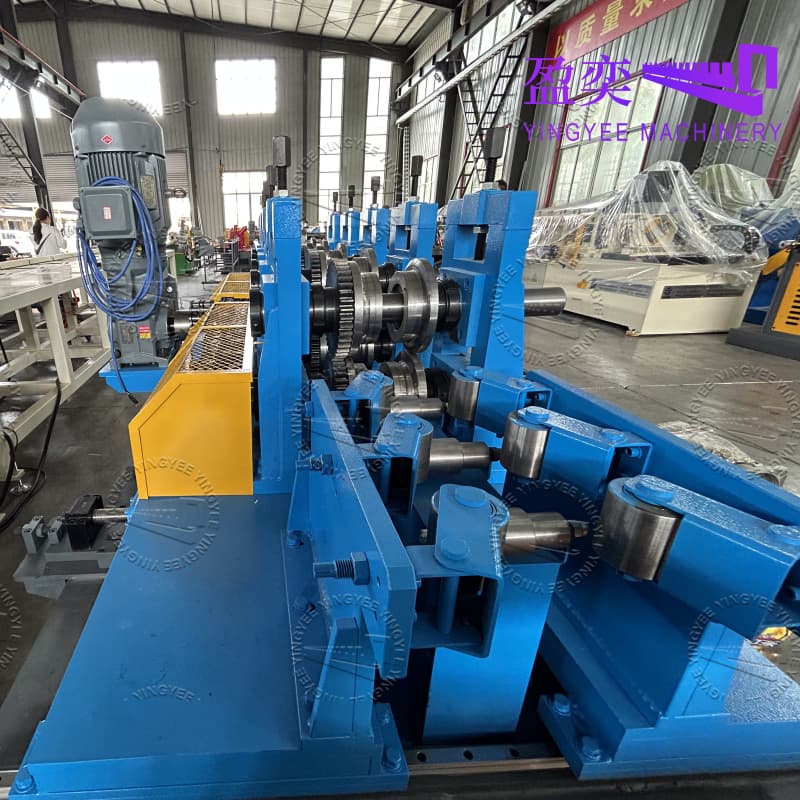

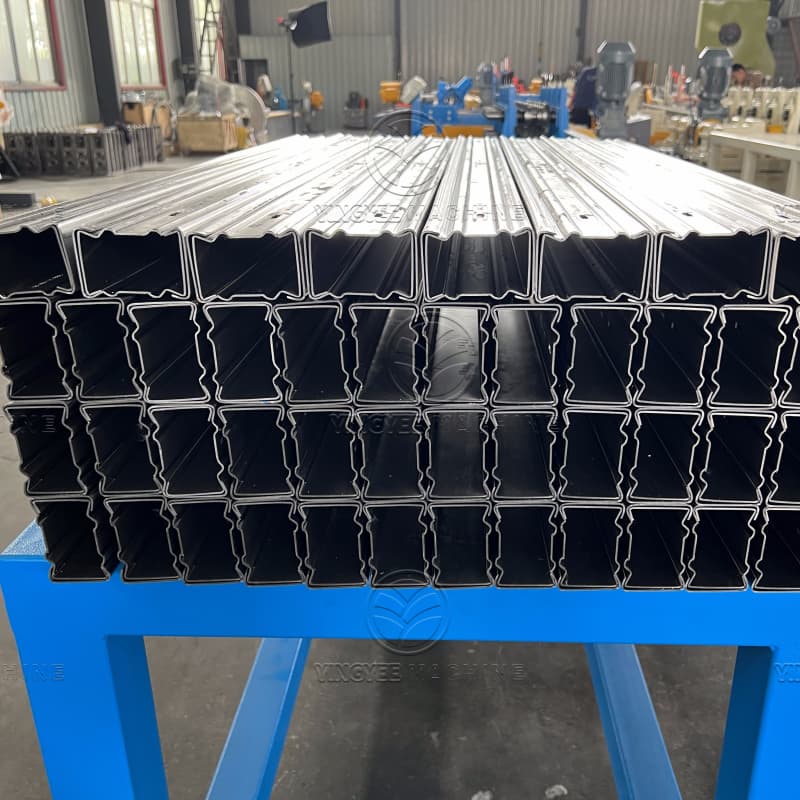

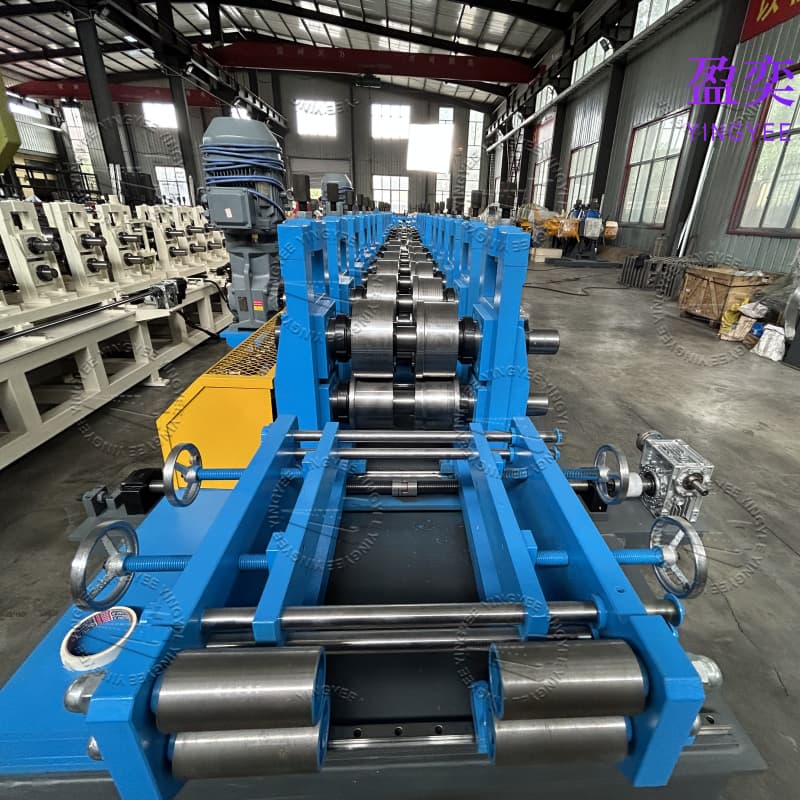

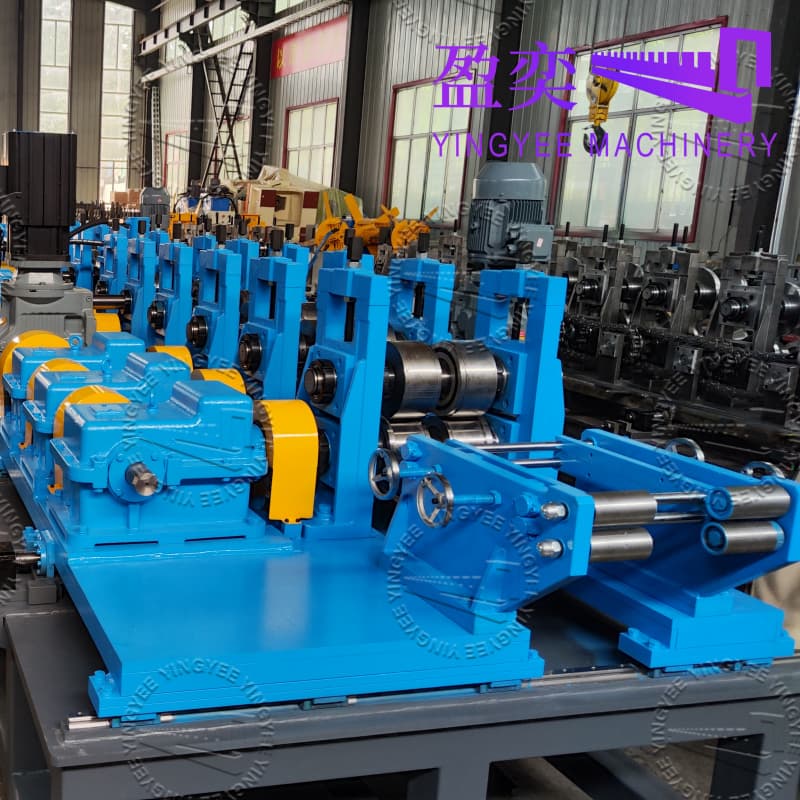

Pictures of machine:
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal Storage Beam Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the High Speed Storage Beam Machine are quality guaranteed. We are China Origin Factory of Galvanized Beam Roll Forming Machine. If you have any question, please feel free to contact us.
