High Precision Z-Purlin Roll Forming Machine
Short Description:
High Precision C/Z Purlin Roll Forming Machine, as a hanging ceiling, light steel truss has the features of light weight, strong strength, and sound insulation, and is waterproof, shockproof, dustproof, and warm-keeping, among others. Light steel truss adopts high-quality hot galvanized steel strip as the raw material, and by cold rolling to form a kind of metal skeleton for construction. It is usually used for plasterboard construct decoration of no-bearing wallboard and new type ceiling.
Basic Info
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Type:Roof Sheet Roll Forming Machine
Cutting Mode:Hydraulic
Voltage:At Customer's Request
Way Of Driven:Chain Transmission
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:6-8m/min(including Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
Working Flow:
Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Punching- Hydraulic Cutting - Output Table
Technical parameters:
| Matching material | Steel coil, Galvanized, PPGI, Aluminum |
| Material thickness range | According to drawings |
| Main motor power | 15KW |
| Forming speed | 6-8m/min (include punching and cutting time) |
| Hydraulic power | 5.5KW |
| Quantity of rollers | About 18 |
| Shaft diameter and material | 70mm, material is 40Cr |
| Material of rollers | 45# steel with chromed |
| Way of driven | chain transmission |
| Controlling system | PLC |
| Voltage | 380V/30Phase/50Hz |
| Total weight | About 10 tons |
| Size of the machine | L*W*H 10m*1.2m*1.6m |

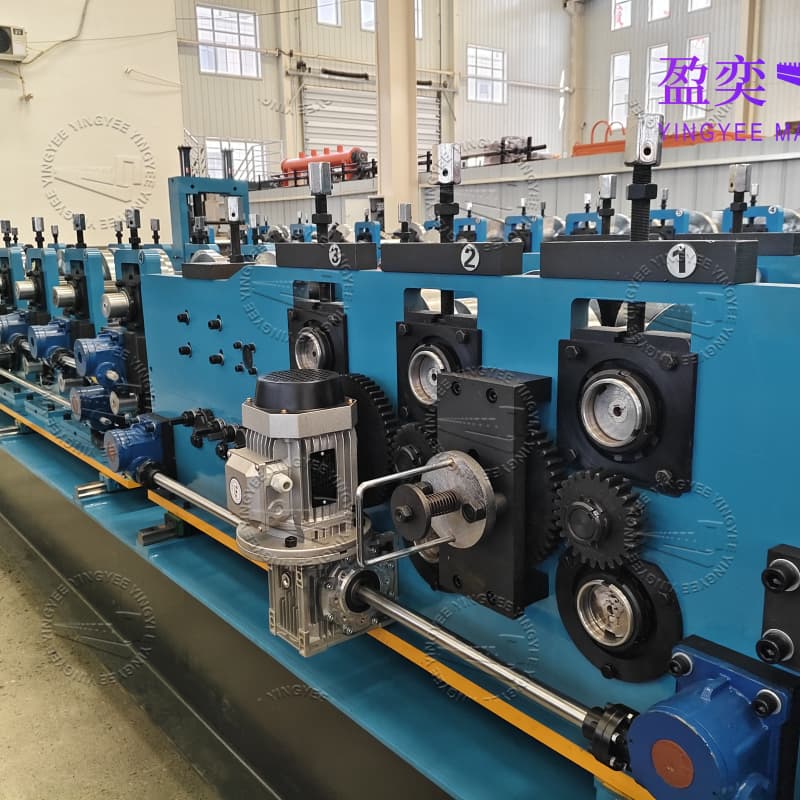

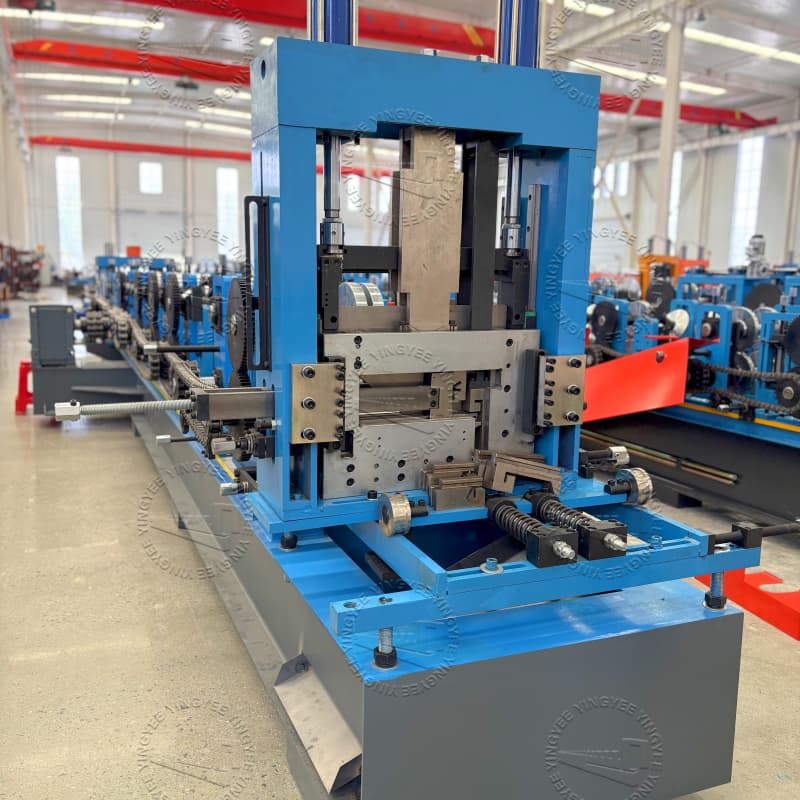

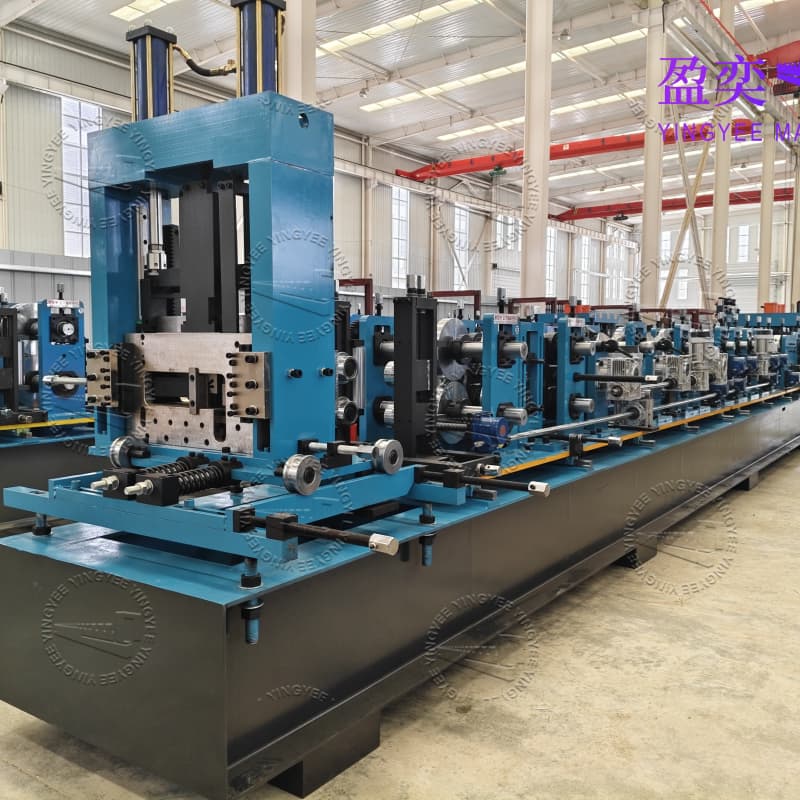

Pictures of the Machine:
Basic Info
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO., LTD
YINGYEE is a manufacturer specializing in various cold-forming machinery and automatic production lines. We have a wonderful team with high technology and excellent sales, which offer professional products and related services. We paid attention to quantity and after-service, got great feedback, and honored the clients. We have a great team for after-service. We have sent several patches after the service team oversea to finish the installation and adjustment of the product. Our products have been sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service locally at paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using the guide is optional if no visiting and no installation.
Certification and after-service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for an ideal Z Purlin Roll Forming Machine Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the High Precision C/Z Purlin Forming Machines are quality guaranteed. We are a China Origin Factory of Cold Roll Purlin Making Machine. If you have any questions, please feel free to contact us.
Product Categories: C/Z/U Purlin Changeable Roll Forming Machine
