Galvanized Steel Downpipe Roll Former
Short Description:
Basic Info
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Forming Speed:25-30m/min
Material:GI, PPGI, Aluminum Coils
After Service:Engineers Available To Service Machinery Overseas
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Type:Pipe Production Line
Cutting Mode:Flying Saw Cutting Or Mould Cutting
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
Square Downpipe Roll Forming Machine downspout gutter forming machine
To produce the best aluminum downpipe roll forming machine, YingYee Machinery is taking European quality standard, choose the best material and components, YINGYEE MACHINERY achieves that the machine capacity is double of the competitors, the machine working speed can be 25m/min, and only 1 worker to operate.
Working Flow: Decoiler – Feeding guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | PPGI, GI, Aluminum steel |
| Material thickness range | 0.2-0.8mm |
| Rollers | 18 rows |
| Material of forming rollers | 45# steel with chromed |
| Shaft diameter and mateiral | 76mm, material is 40Cr |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Forming speed | 12-15m/min(excluding cutting stoping time) |
| Main motor power | 4 KW |
| Hydraulic station power | 3KW |
| Mode of cutting | Hydraulic cutting or flying saw cutting or mould cutting |
| Control system | PLC Frequency Control System with touch screen |

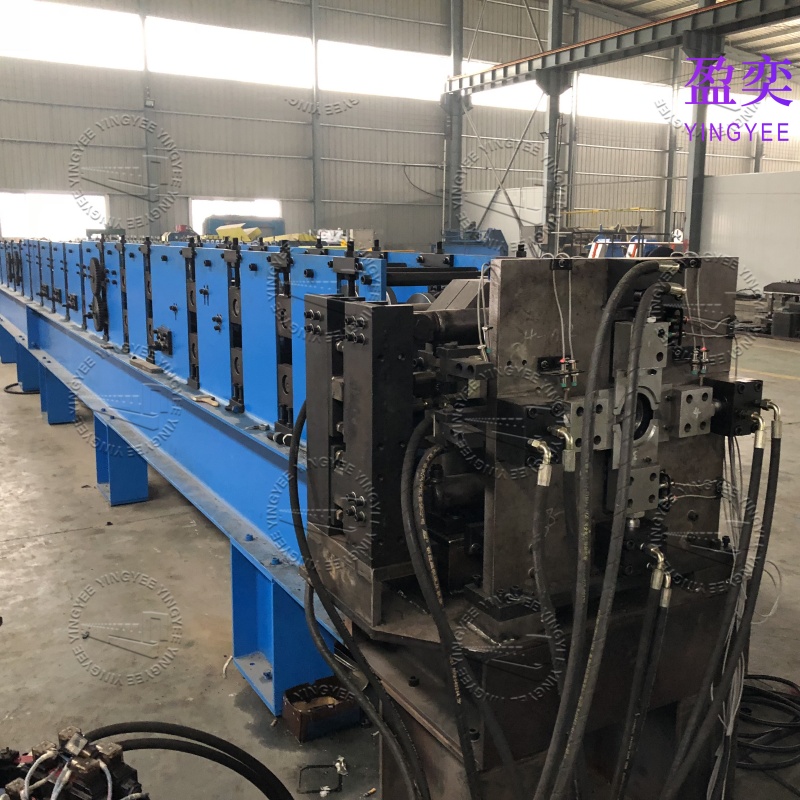

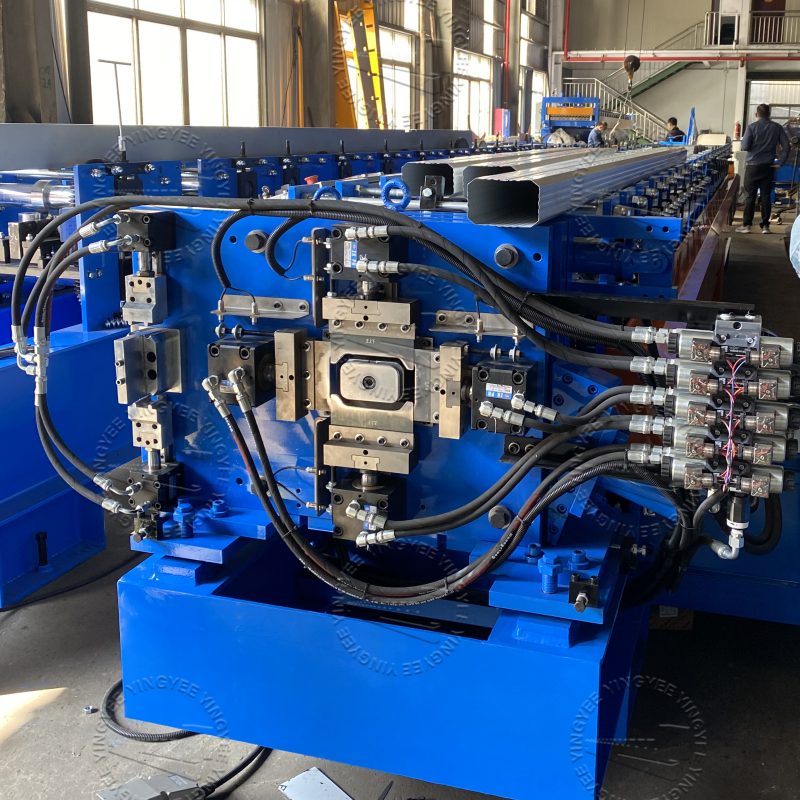

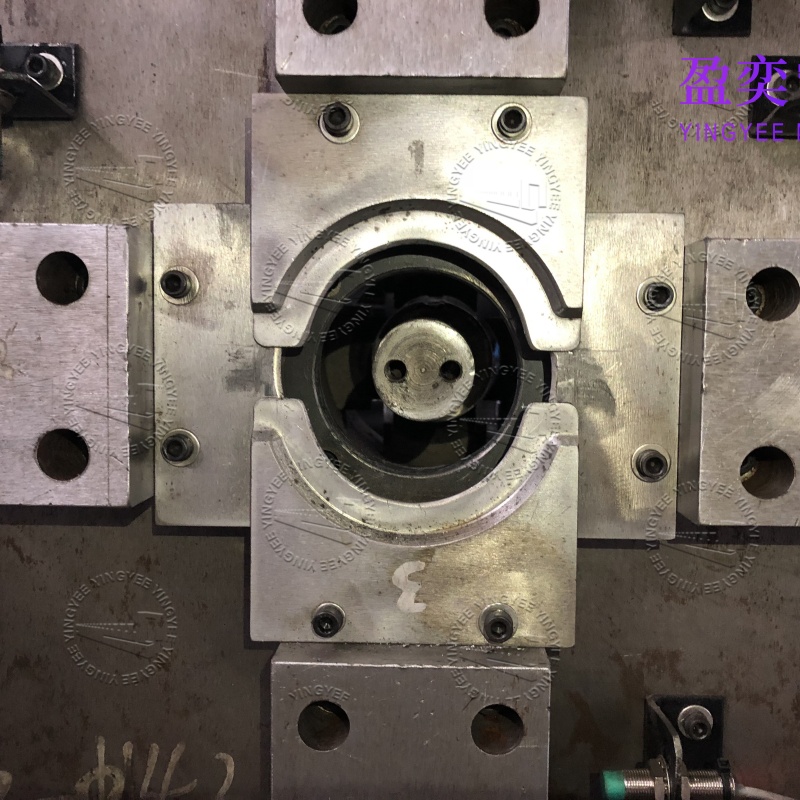

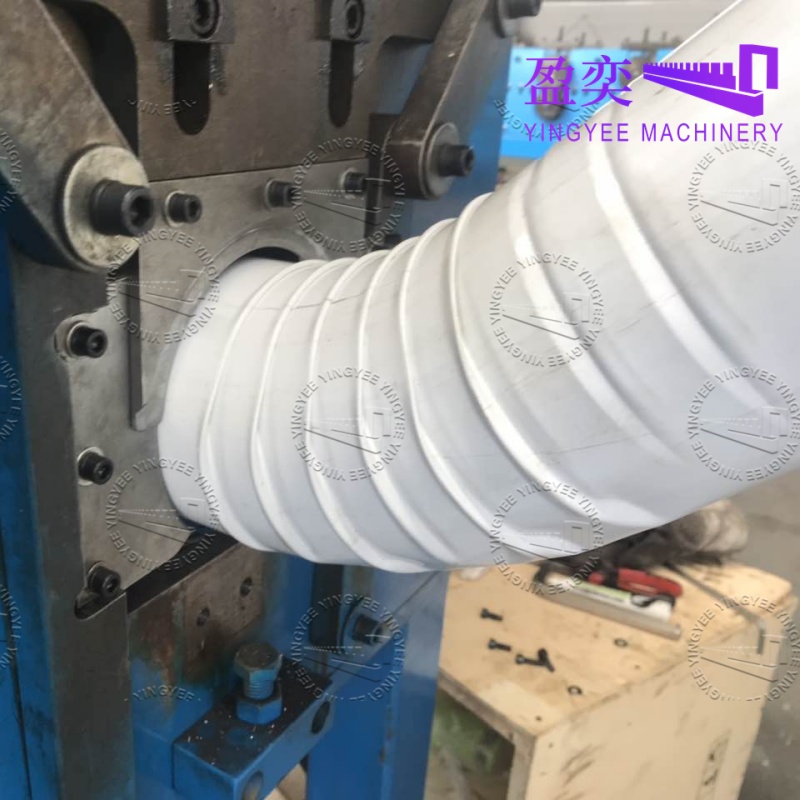

Pictures of machine:
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal Steel Downspout Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Galvanized Downspout Roll Forming Machine are quality guaranteed. We are China Origin Factory of Downspout Roll Former. If you have any question, please feel free to contact us.
Product Categories : Downpipe Roll Forming Machine > Square Downspipe Roll Forming Machine
