Fully Automatic roller shutter doors suppliers
Short Description:
Basic Info
Type:Steel Frame & Purlin Machine
Control System:PLC
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Cutting Mode:Hydraulic
After Service:Engineers Available To Service Machinery Overseas
Forming Speed:25-30m/min(excluding Punching)
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Product Description
Roller shutter roll forming roll-up forming machine
Shutter door roller shutter garage door roll forming machine can produce shutter door Smooth.
This machine can production all kinds production,such as rolling fire door, rolling steel door,rolling garage door and so on.

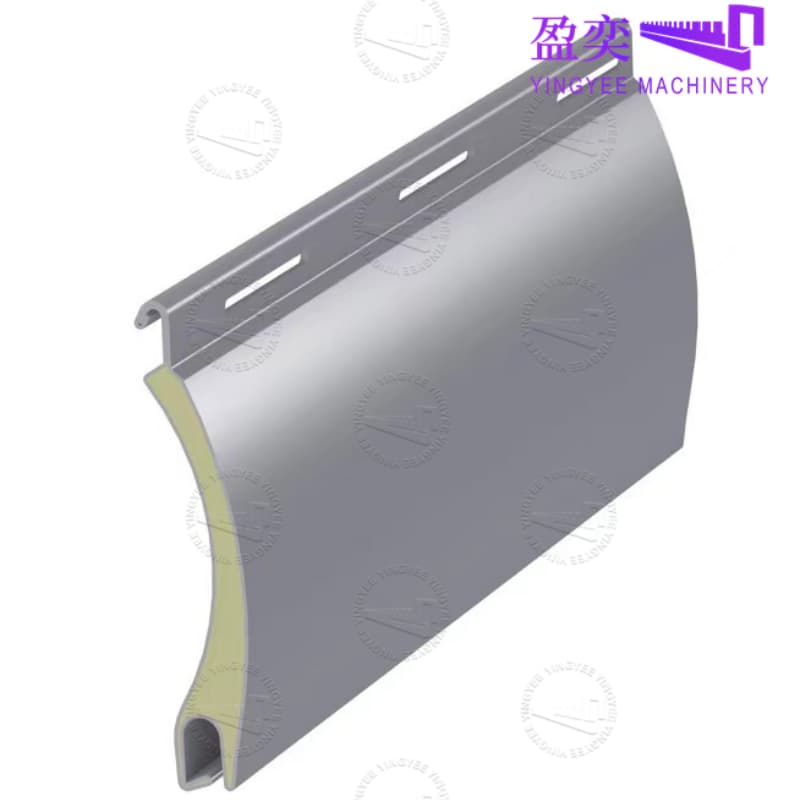

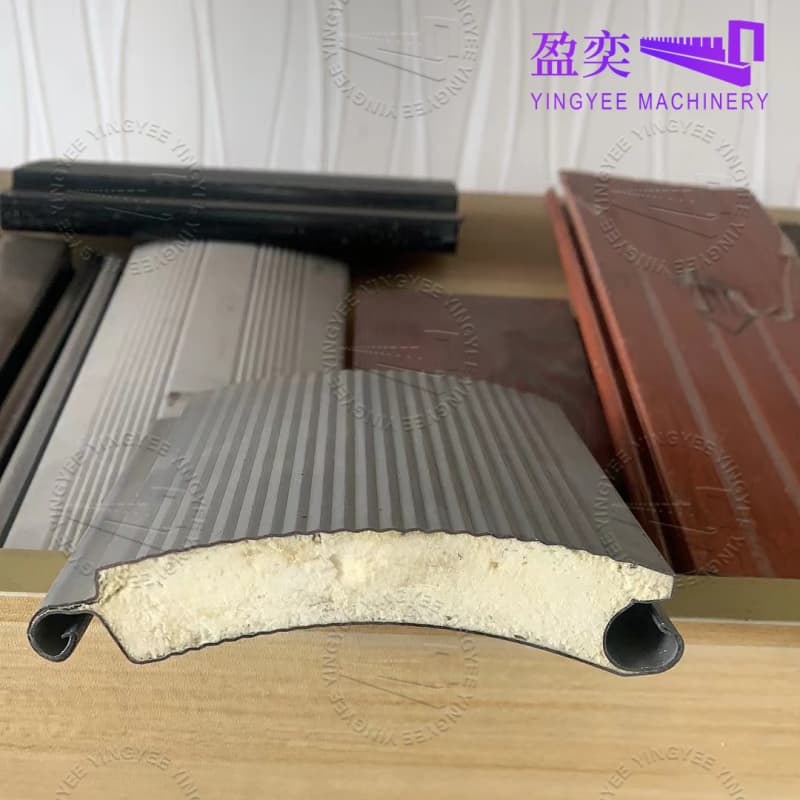

Shutter door roller shutter garage door roll forming machine can produce two types, shutter slats and Australia shutter door.About the shutter door slats,it can be produce with double and poured into PU.It has a good function to stop the warm.
Working Flow:
Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | Pre-painted coils, Galvanized coils, Aluminum coils |
| Material thickness range | 0.3-1.0mm |
| Rollers | 10+5 groups |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 40mm, material is 40Cr |
| Forming speed | 10-15m/min |
| Main motor power | 5.5KW |
| Hydraulic power | 3.0KW |
| Cutting type | Hydraulic flying saw |
| Controlling system | PLC |
| Voltage | 380V/3Phase/50Hz |
| Way of driven | 1.0 inch single chain transmission |
| Total weight | 2 tons |
| Size of the machine | L*W*H 6*0.8*1m |

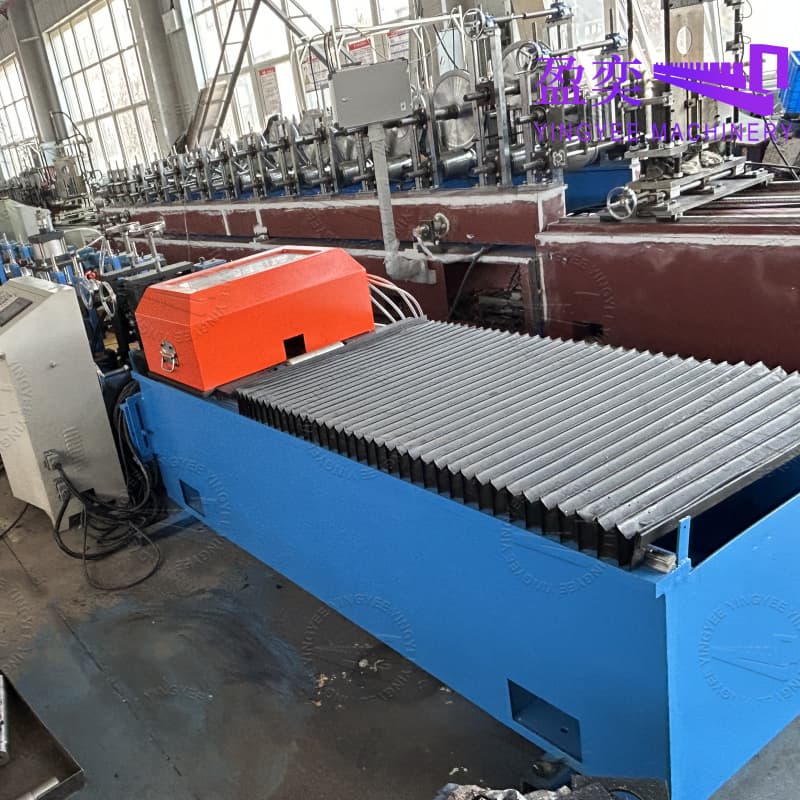

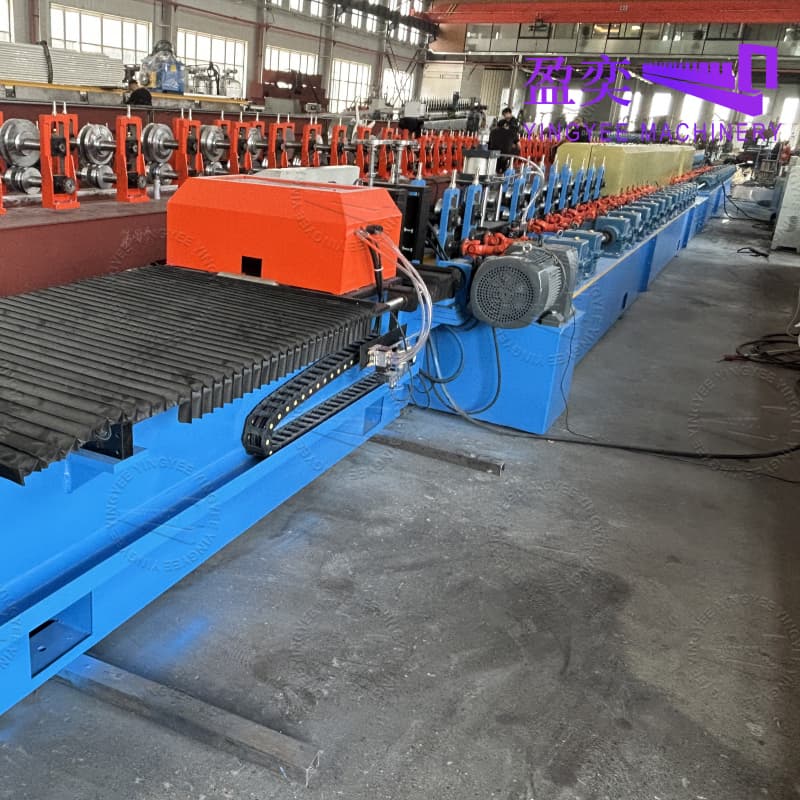

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Looking for ideal Roller Shutter Doors Prices Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Door Frame Prices are quality guaranteed. We are China Origin Factory of Steel Shutter Door Machine. If you have any question, please feel free to contact us.
Product Categories : Roller Shutter Roll Forming Machine
