Fully automatic metal roof trapezoidal making machine
Short Description:
Basic Info
Control System:PLC
Warranty:12 Months
Thickness:0.3-1mm
Using:Roof
Type:Roof Sheet Roll Forming Machine
Forming Speed:25-30m/min
Voltage:38oV/3Phase/50Hz Or At Customer’s Request
Material:GI, PPGI, Aluminum Coils
Cutting Mode:Hydraulic
Delivery:30 Days
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
IBR trapezoid Roof Sheet Roll Forming Machine
IBR Colorul Steel Plate Forming Machine with Short Delivery Time, products are widely used in atadiums, holiday villages, sanatoriums, and different kinds of greenhouses
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw materials | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Forming speed | 10-15m/min |
| Rollers | 15 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of body | 400H steel |
| Wall panel | 20mm Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Main power | 5.5KW |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 4 tons |

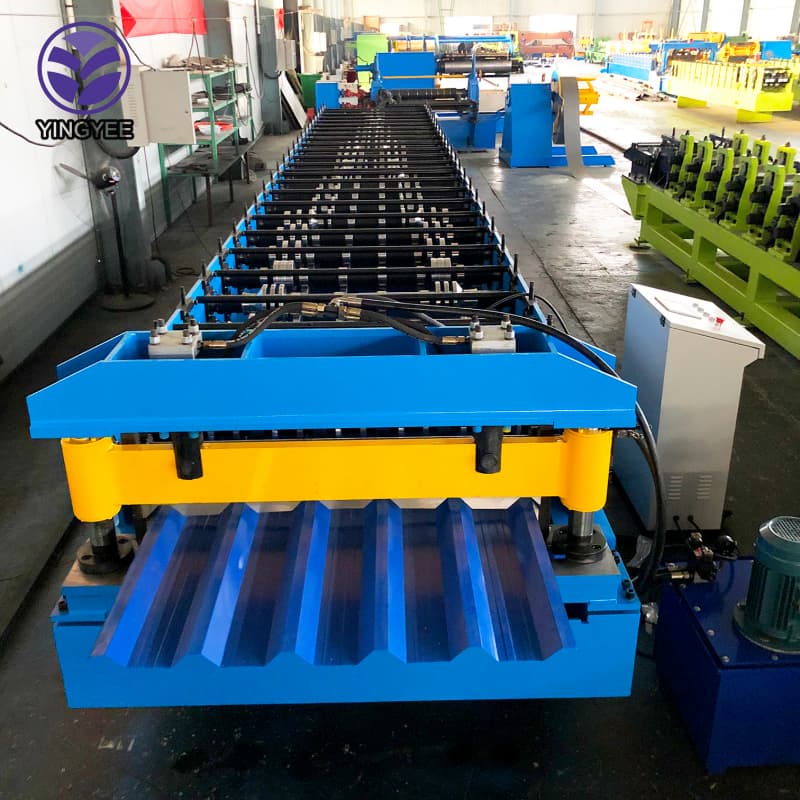

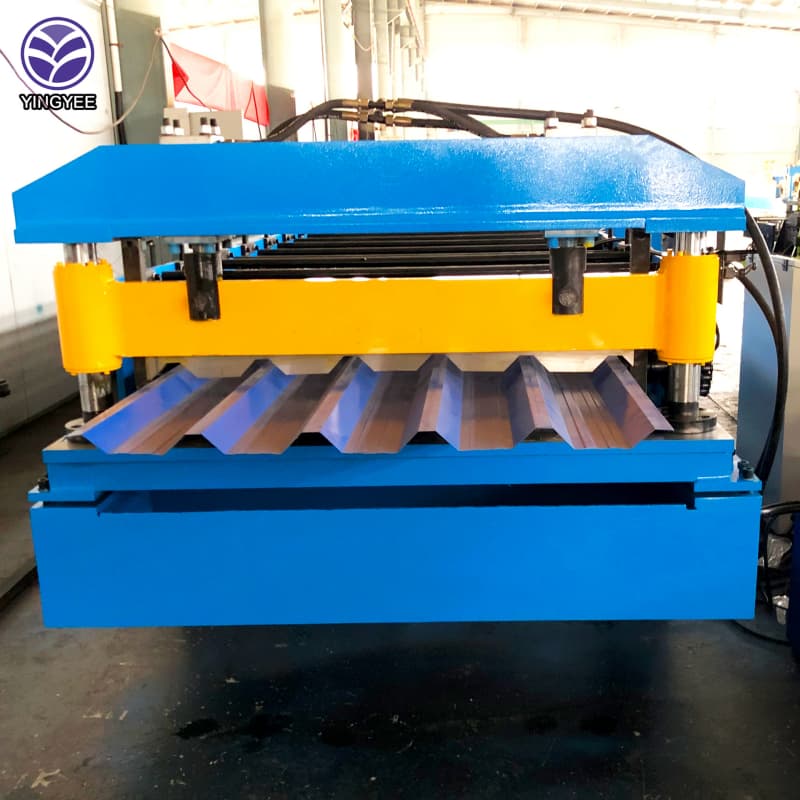

Pictures of machine:
