Double Out Metal Stud C Purlin Furring Channel Gypsum Stud Forming Machine
Short Description:
One Machine Double out Metal Keel Forming Machine, one PLC control, fast speed. Customers decide the profile of products. Saving time and cost owing to high speed running with hydraulic system.
Basic Info
Control System: PLC
Delivery Time: 30 Days
Warranty: 12 Months
Material Of Cutting Blade: Cr12
Type: Steel Frame & Purlin Machine
After Service: Engineers Available To Service Machinery Overseas
Voltage: 380V/3Phase/50Hz Or At Your Request
Way Of Driven: Chain Or Gear Box
Forming Speed: 30-40m/min (excluding Punching)
Cutting Mode: Servo Tracking Cutting
Additional Info
Packaging: NUDE
Productivity: 200 sets/year
Brand: YY
Transportation: Ocean
Place of Origin: Hebei
Supply Ability: 200 sets/year
Certificate: CE/ISO9001
HS Code: 84552210
Port: Tianjin Xingang
Product Description
work process

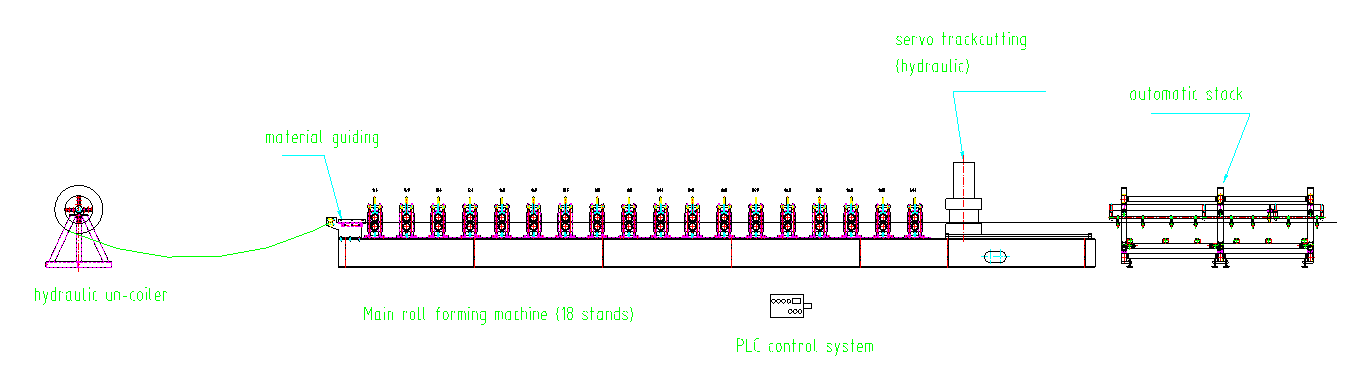

Decoiler - Feeding guide - Straighteing - Main roll forming machine - PLC control system - Servo tracking cutting - Receiving table
Technical parameters:
| Raw material | PPGI, GI, Aluminum coils |
| Material thickness range | 0.3-1mm |
| Forming speed | 30-40m/min(without punching) |
| Rollers | 12 rows |
| Material of forming rollers | 45# steel with chromed |
| Shaft diameter and material | 40mm, material is 40Cr |
| Controlling system | PLC |
| Cutting mode | Servo tracking cutting |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz or at your requirement |
| Main motor power | 4KW |
| Hydraulic station power | 3KW |
| Way of driven | Gear box |

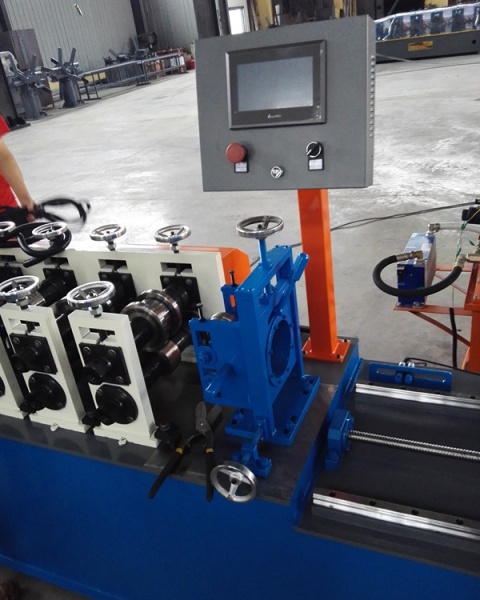

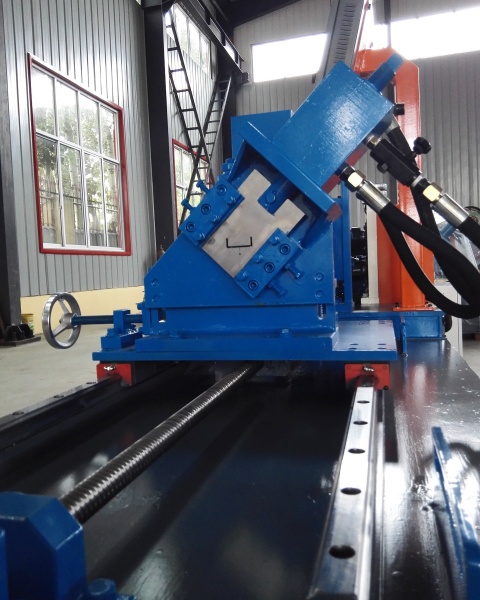

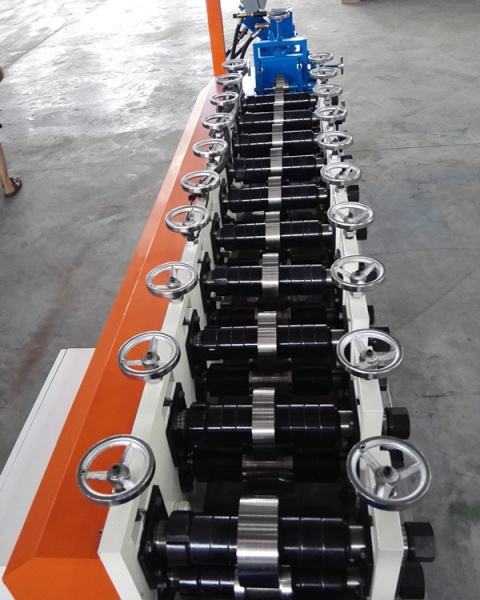

Product Picture
