Double Out C Purlin Roll Forming Machine

Short Description:

The double-out C purlin roll-forming machine can roll form different sizes of C or Z purlin without changing any rollers. The thickness, width, and height are adjustable and fully controlled by the computer automatically. All you need is just to key in sizes press the control button and then double out the C purlin roll forming machine will automatically adjust the rollers according to your requirements. The time during adjusting rollers is around 2 ~ 3 minutes without changing rollers. After the roll is formed by this roll-forming machine, the surface will be very smooth and beautiful without any scratches on the surface.


Product Detail

FAQ

Product Tags

Basic Info

Model No.:yingyee004

Type:Roof Sheet Roll Forming Machine

Warranty:12 Months

Delivery Time:30 Days

Material:Steel Coil, Galvanized, PPGI, Aluminum

Speed:6-8m/min(including Punching And Cutting Time)

Control System:Panasonic/Mitsubishi PLC

Way Of Driven:Chain Transmission

Cutting Mode:Hydraulic

Material Of Cutting Blade:Cr12

Voltage:At Customer's Request

Additional Info

Packaging:PLASTIC FILM, WOODEN CASE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean,Land,Air

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:TIANJIN,XIAMEN,SHANGHAI

Product Description

 Working Flow: Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Punching- Hydraulic Cutting - Output Table

Working process

Technical parameters:



Matching material Steel coil, Galvanized, PPGI, Aluminum
Material thickness range According to drawings
Main motor power 15KW
Forming speed 6-8m/min (include punching and cutting time)
Hydraulic power 5.5KW
Quantity of rollers About 18
Shaft diameter and material 70mm, material is 40Cr
Material of rollers 45# steel with chromed
Way of driven chain transmission
Controlling system PLC
Voltage 380V/30Phase/50Hz
Total weight About 10 tons
Size of the machine L*W*H 10m*1.2m*1.6m

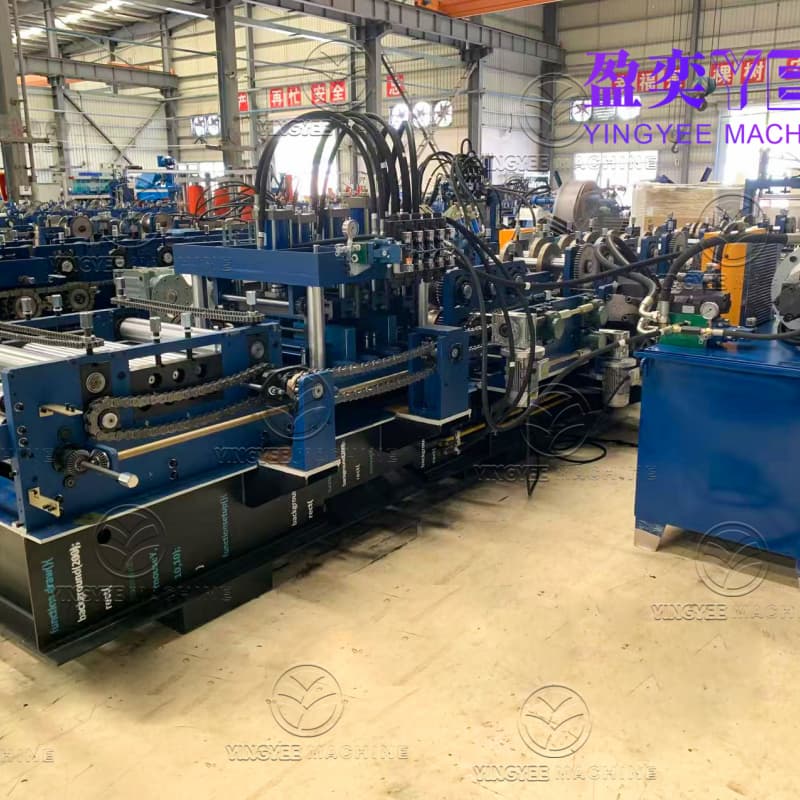

Pictures of the Machine:

Hydraulic automatic CZ purlin touch screen forming machine
Hydraulic automatic CZ purlin touch screen forming machine
Hydraulic automatic CZ purlin touch screen forming machine
Hydraulic automatic CZ purlin touch screen forming machine
Hydraulic automatic CZ purlin touch screen forming machine
Hydraulic automatic CZ purlin touch screen forming machine 5_副本
C Purlin Dimension Table
Z Purlin dimensions table

Company Information

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO., LTD

YINGYEE is a manufacturer specializing in various cold-forming machinery and automatic production lines. We have a wonderful team with high technology and excellent sales, which offer professional products and related services. We paid attention to quantity and after-service, got great feedback, and honored the clients. We have a great team for after-service. We have sent several patches after the service team to overseas to finish the installation and adjustment of the product. Our products have been sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using the guide is optional if no visiting and no installation.


Certification and after-service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized.

Looking for ideal Double out C Purlin Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the C Purlin Roll Forming Machine are quality guaranteed. We are China Origin Factory of Double out Roll Forming Machine. If you have any question, please feel free to contact us.
