Discount wholesale Slitting Line Machine - Fully automatic CZU purlin roll forming machine – Yingyee Detail:

Drawings and Sizes

C Purlin machine:

a: 80-300mmb: 35-80mm c: 10-25mm T: 1.5-3mm

Z Purlin machine:

a: 120-300mm b: 35-80mm c:10-25mm T: 1.5-3mm

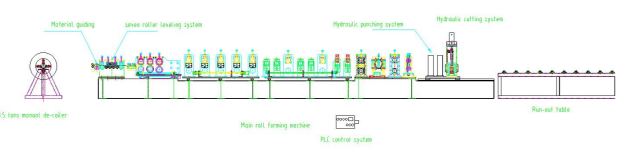

Working Process:

5 tons manual decoiler
Straighten device
Hydraulic Holes device
Hydraulic Pre-cut device
Main forming system
All-size-in-one cut system
Collecting table
Control system PLC

NAME	DESCRIPTION
5 tons manual de-coiler	Inner dia: Ø440mm– Ø560mmMax input feeding: 600mm Capacity: 5Tons coil outer diameter max 1500 mm
Straighten device	11 rollers for straighten 5 up and 6 down.
Hydraulic Holes device	Standard holes: 2 double holes and 1 single holeEach punching cylinder control each 2 holes for sides or single hole in the middle Distance flexible: a channel for the holes, the distance can operate by manual Hole size flexible: to change the punching dies to change the size. The width distance between holes adjustable manual .it can’t control by PLC. The length distance between holes ,it can adjust by PLC.
Hydraulic Pre-cut device	Hydraulic Power, driven with gear
Main forming system	Main power: 22kw6 electronic motors auto adjust size. Frame： 500mm H frame steel Forming speed: 18-20m/min Shaft material and diameters: #45 steel and fit side 65mm. Flexible side: 85mm Roller material: Gcr15. the hardness is HRC 52-55 Steps: 15-18 steps for forming All size change by PLC. All parameter set from the PLC control system C/Z change, by manual change the rollers discretion Machine size: LWH 11.5m1.6m1.4m (approx size. correct size will be known when machine ready) Machine weight about 12Tons Voltage: 380V/ 3phase/ 50 Hz(as customer require ) Driven way:Chain
All-size-in-one cut system	Hydraulic cutting systemMaterial: Gcr12mov. All size in one blade
Control system PLC	Control the quality&punching length &cutting length automaticallyIn English language The machine will be stopped while it is punching and cutting PLC must be able to keep in memory which profiles are inside machine even after the machine stopped Automatic length measures and quantity counting. Program batches with different profile lengths with no waste Size of PLC about 700(L)1000(H)300(W) Encode: OMRON PLC : KAUTO (now auto adjust size only this brand) Solenoid valve: YUKEN (TAIWAN) Frequency converter: DELTA Touch screen :WEINVIEW (TAIWAN) All connections to the machine and to PLC control Board are strong
