CZ Section Purlin Brackets Forming Machine
Short Description:
Chinese leading supplier for the C Z purlin changeable roll forming line in this metal processing machinery industry. C & Z automatic changeable purline roll forming machine is used to roll form C purlin and Z Purlin of metal buildings. CZ Purlin with Punching machine does not need to change any parts spacers on the roll form line for production of C purlin to Z purlin, only need to rotate side roll forming tooling to change the C and Z purlin profile. The profile width can be adjusted by hand wheel or power control. It is optional.
Basic Info
Type:Roof Sheet Roll Forming Machine
Warranty:12 Months
Delivery Time:30 Days
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:6-8m/min(including Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Way Of Driven:Chain Transmission
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Additional Info
Packaging:PLASTIC FILM, WOODEN CASE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean,Land,Air
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:TIANJIN,XIAMEN,SHANGHAI
Product Description
Working Flow:
Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Punching- Hydraulic Cutting - Output Table
Technical parameters:
Matching material | Steel coil, Galvanized, PPGI, Aluminum |
Material thickness range | According to drawings |
Main motor power | 30W |
Forming speed | 10-18min (not include punching and cutting time) |
Hydraulic power | 7.5KW |
Quantity of rollers | About 18 |
Shaft diameter and material | 70mm, material is 45#steel |
Material of rollers | Gcr15 or Cr12 with chromed |
Way of driven | chain transmission |
Controlling system | PLC |
Voltage | 380V/30Phase/50Hz (as customer require) |
Total weight | About 12 tons |
Size of the machine | L*W*H 10m*1.2m*1.6m |

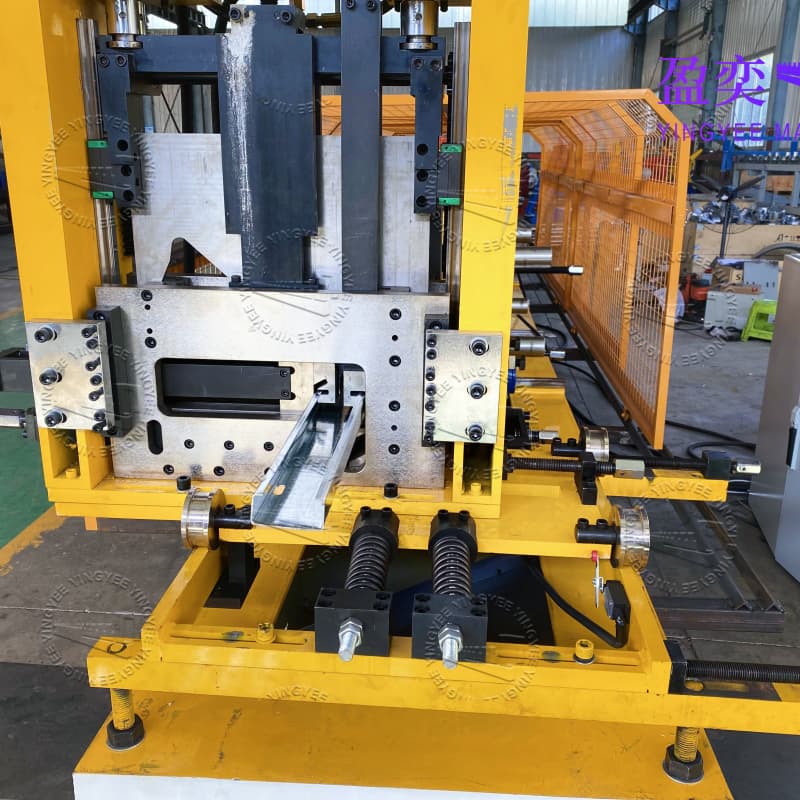

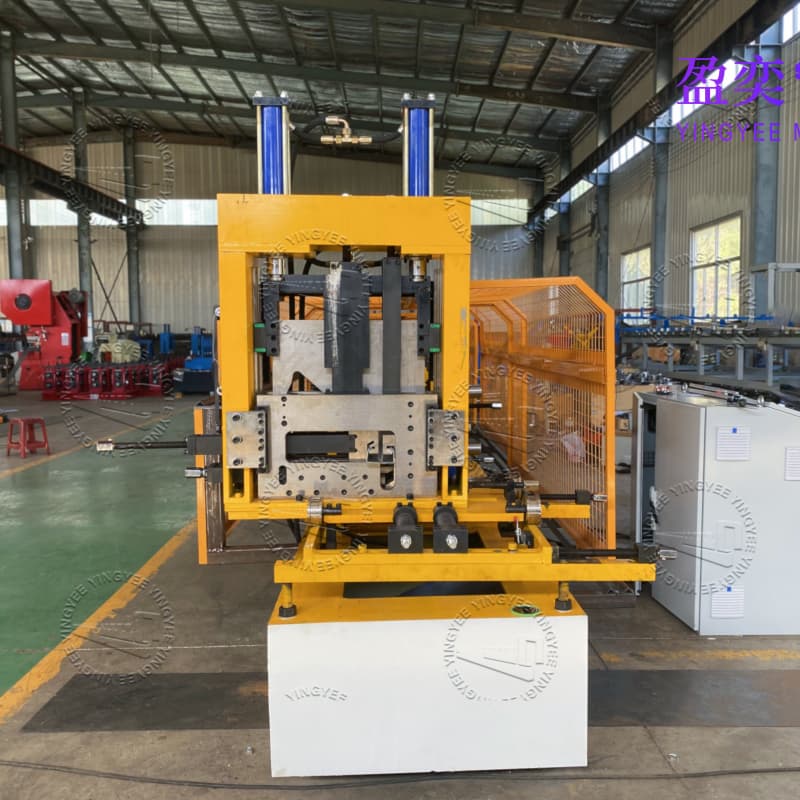

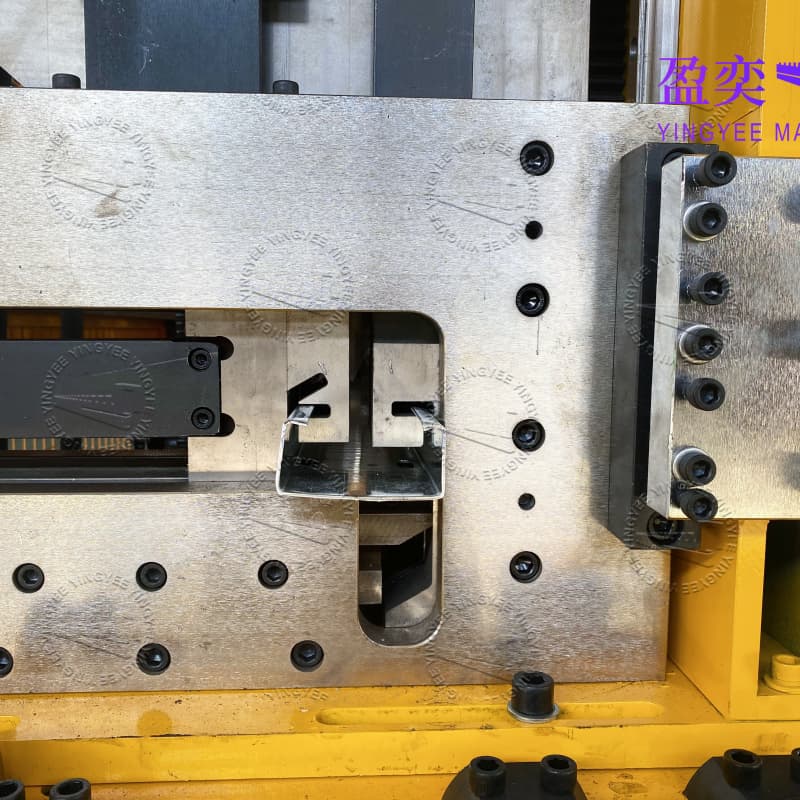

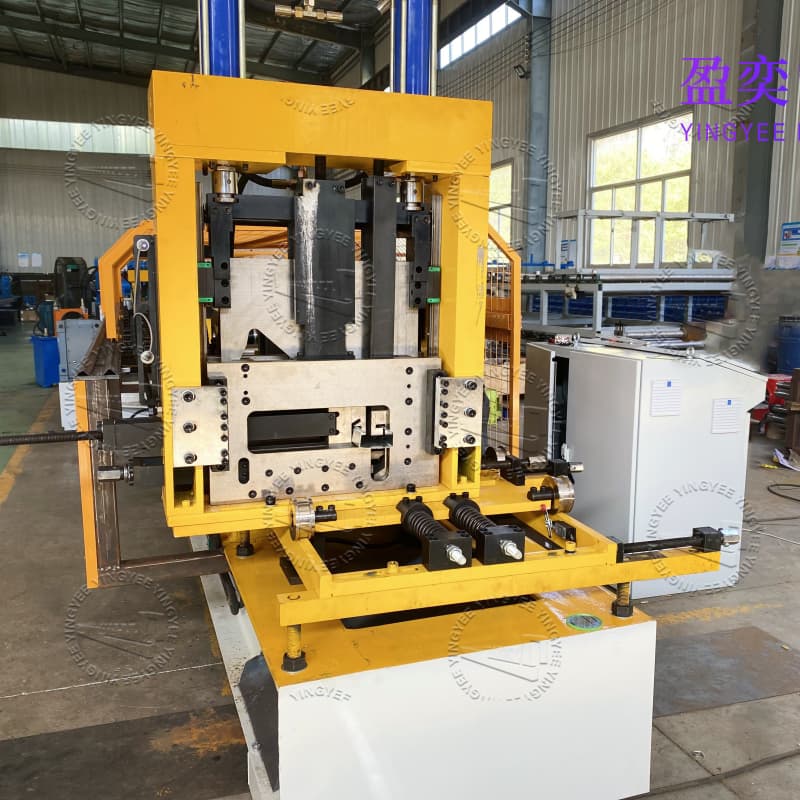

Pictures of the Machine:
Company Information
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO., LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal Pre-cut CZ Section Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Post-sut CZ Section are quality guaranteed. We are China Origin Factory of CZ Purlin with Punching. If you have any question, please feel free to contact us.
Product Categories : C/Z/U Purlin Changeable Roll Forming Machine
