C/Z Purlin Cold Making Machine
Short Description:
Basic Info
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Type:Roof Sheet Roll Forming Machine
Cutting Mode:Hydraulic
Voltage:At Customer’s Request
Way Of Driven:Chain Transmission
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:6-8m/min(including Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
C/Z/U Purlin Roll Forming Machine
We are professinonal making the steel c/z/u channel roll forming machine, the usages of the channel T bar angle stud struss furring is a material for the support the the ceiling decorating, light weight, heavy duty
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table
Technical parameters:
| Matching material | Steel coil, Galvanized, PPGI, Aluminum |
| Material thickness range | According to drawings |
| Main motor power | 15KW |
| Forming speed | 6-8m/min (include punching and cutting time) |
| Hydraulic power | 5.5KW |
| Quantity of rollers | About 18 |
| Shaft diameter and material | 70mm, material is 40Cr |
| Material of rollers | 45# steel with chromed |
| Way of driven | chain transmission |
| Controlling system | PLC |
| Voltage | 380V/30Phase/50Hz |
| Total weight | About 10 tons |
| Size of the machine | L*W*H 10m*1.2m*1.6m |

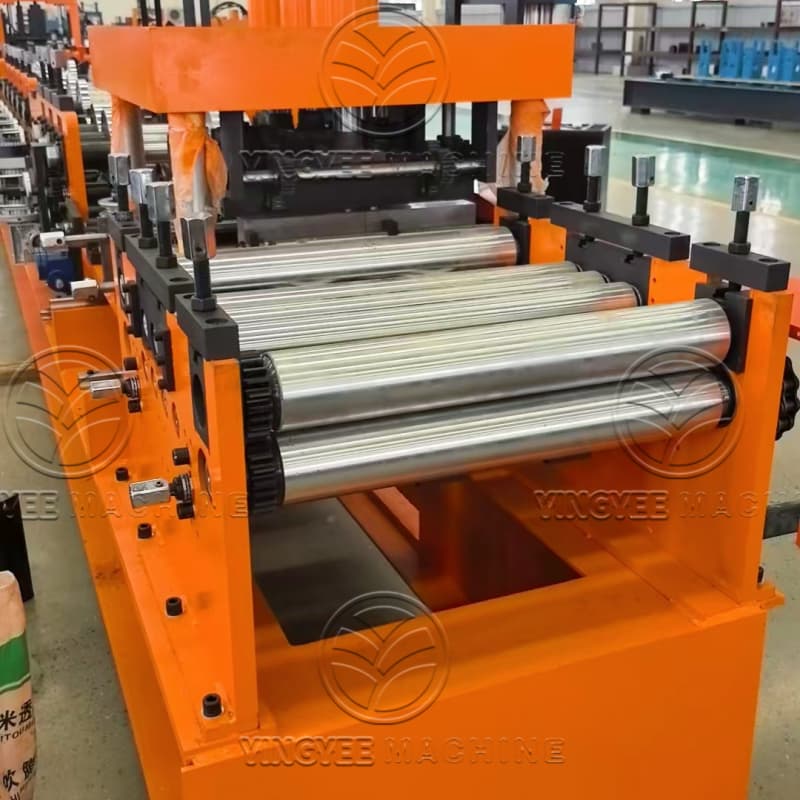

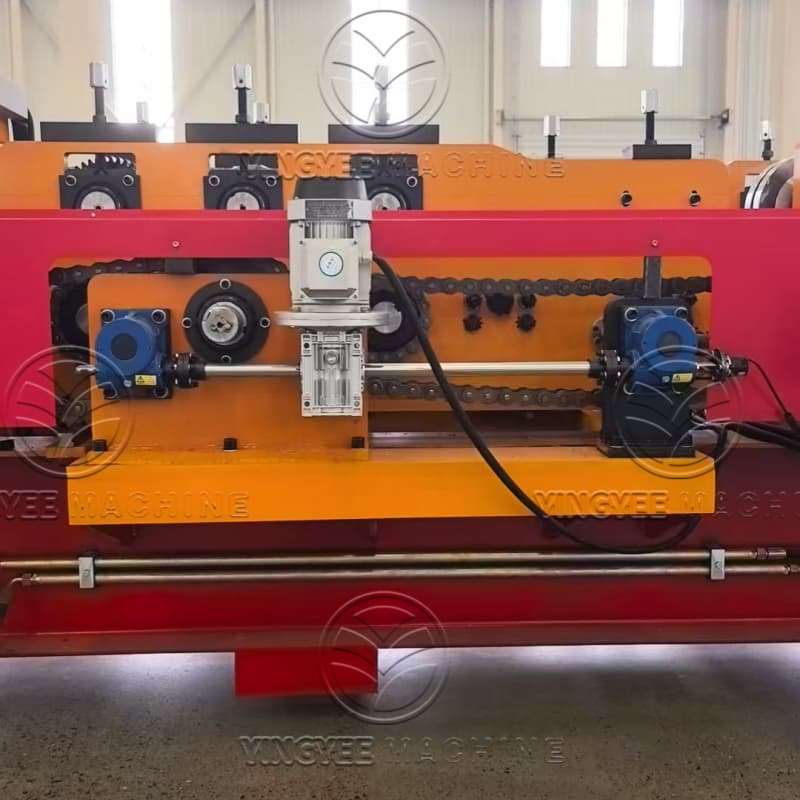

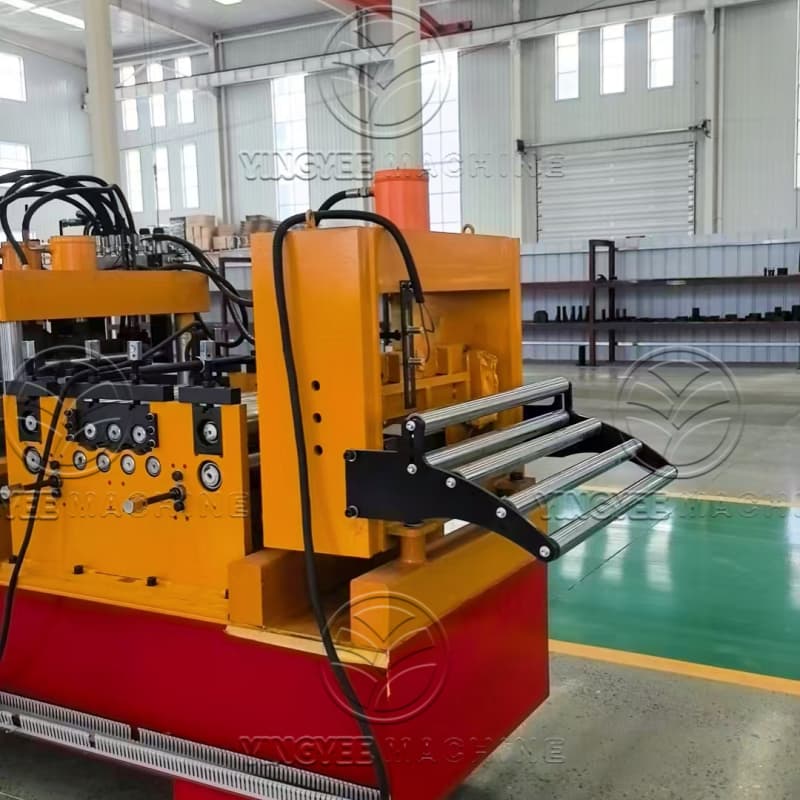

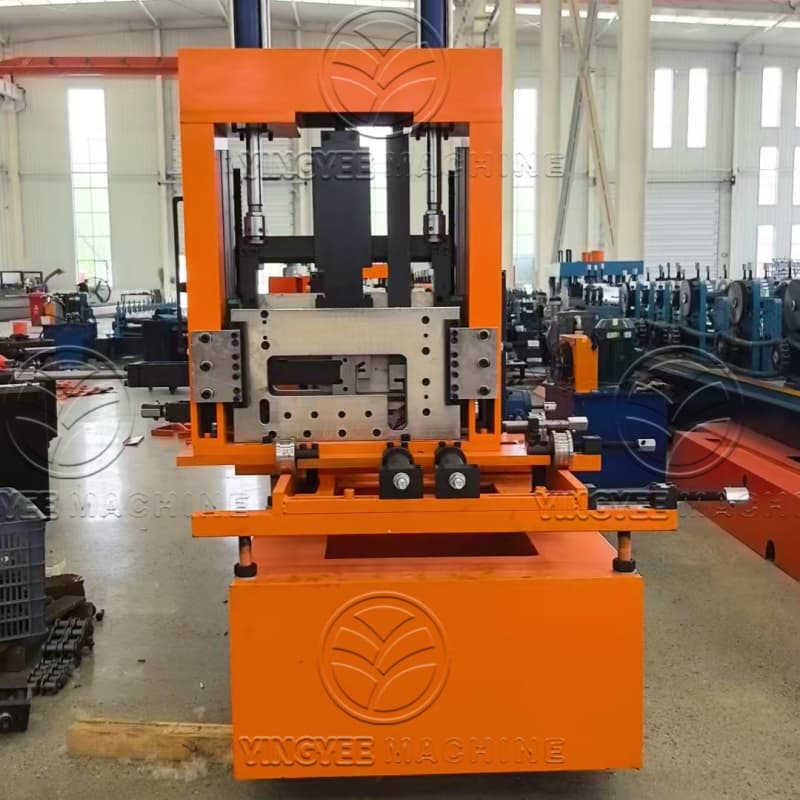

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal C/Z Shape Steel Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the C/Z/U Profile Purlin Roll Forming Machine are quality guaranteed. We are China Origin Factory of C/Z Purlin Making Machinery. If you have any question, please feel free to contact us.
Product Categories : C/Z/U Purlin Changeable Roll Forming Machine
