C/Z Purlin Automatic Line

Short Description:

The structural C and Z purlins are for industrial buildings, anywhere that strong reliable steel framing is required. Manufactured from quality galvanised steel, this is a fully integrated system allowing for flexible design options.
Our machine is the best choice in roll forming machines for the C-Channel, Lipped Channel, Z-shaped profiles.
The machine adjust size of c/z by PLC automatic type for C, U to Z change can be finished in two minute.


Product Detail

FAQ

Product Tags

Basic Info

Model No.: C/Z

Type: Roof Sheet Roll Forming Machine

Warranty: 12 Months

Material: Steel Coil, Galvanized, PPGI, Aluminum

Speed: 10-18m/min(not Include Punching And Cutting Time)

Control System: Panasonic/Mitsubishi PLC

Way Of Driven: Chain Transmission

Cutting Mode: Hydraulic

Material Of Cutting Blade: CR12 Mov

Voltage: At Customer's Request

Rollers Material: Gcr15 Or Cr12

Additional Info

Packaging: PLASTIC FILM, WOODEN CASE

Productivity: 200 sets/year

Brand: YY

Transportation: Ocean, Land, Air

Place of Origin: Hebei

Supply Ability: 200 sets/year

Certificate: CE/ISO9001

HS Code: 84552210

Port: TIANJIN, XIAMEN, SHANGHAI

Product Description

Working Flow:

 Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Punching- Hydraulic Cutting - Output Table

Working process

Technical parameters:

Matching material Steel coil, Galvanized, PPGI, Aluminum
Material thickness range According to drawings
Main motor power 30W
Forming speed 10-18min (not include punching and cutting time)
Hydraulic power 7.5KW
Quantity of rollers About 18
Shaft diameter and material 70mm, material is 45#steel
Material of rollers Gcr15 or Cr12 with chromed
Way of driven chain transmission
Controlling system PLC
Voltage 380V/30Phase/50Hz (as customer require)
Total weight About 12 tons
Size of the machine L*W*H 10m*1.2m*1.6m

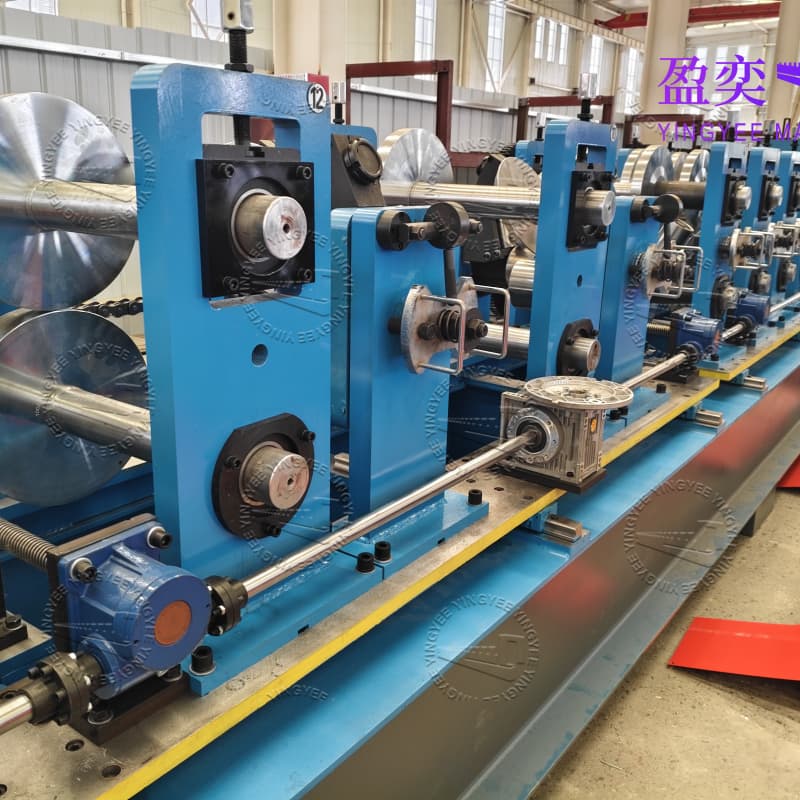

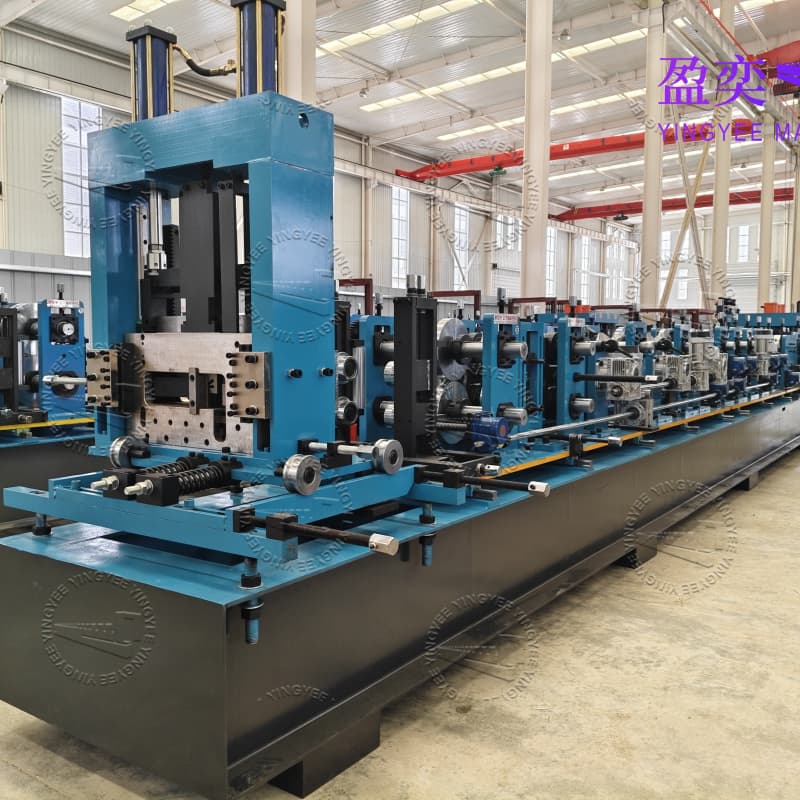

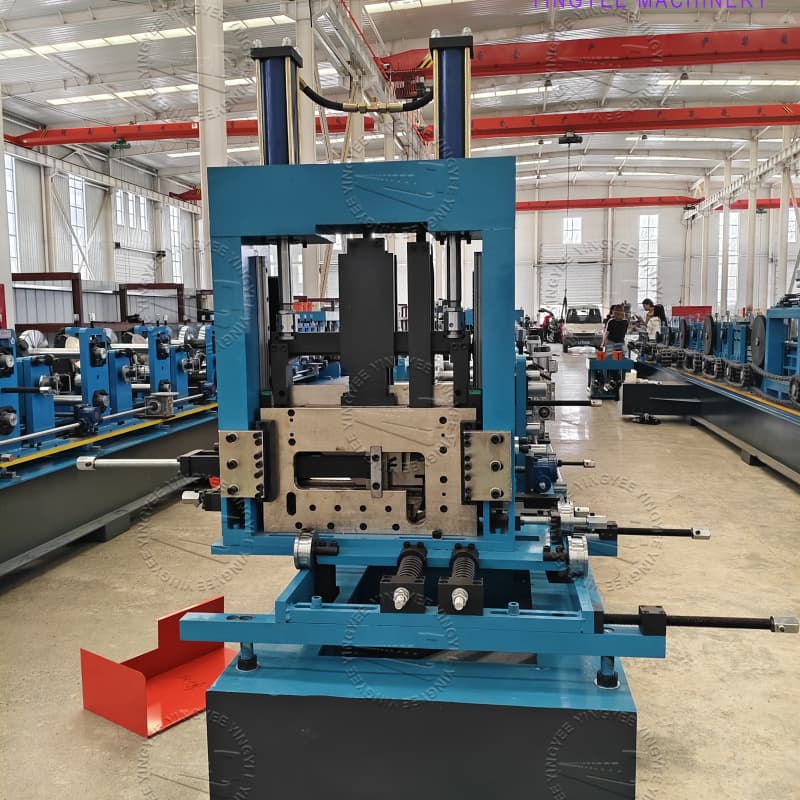

Pictures of Machine:

CZ purlin automatic line
CZ purlin automatic line
CZ purlin automatic line
CZ purlin automatic line
CZ purlin automatic line
CZ purlin automatic line 5
C Purlin Dimensions Table
Z Purlin dimensions table

Company Information

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof Roll Forming Machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin Roll Forming Machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic Decoiler
  • Bending Machine
  • Slitting Machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. On Board.


Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized

Looking for ideal C Purlinroll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Z Purlin Roll Forming Machine are quality guaranteed. We are China Origin Factory of C Z Automatic Roll Forming Machine. If you have any question, please feel free to contact us.
