Customized Angle Stud and Track/Drywall/C Channel/Main Channel/Wall Angle Roll Forming Machine
Short Description:
Customized best quality stud and track Angle Keel Roll Forming Machine, the wall thickness of the product out of the apparatus can be made very thin, but also greatly simplifies the production process, improve production efficiency.
Basic Info
Control System: PLC
Delivery Time: 30 Days
Warranty: 12 Months
Material Of Cutting Blade: Cr12
Type: Steel Frame & Purlin Machine
After Service: Engineers Available To Service Machinery Overseas
Voltage: 380V/3Phase/50Hz Or At Your Request
Way Of Driven: Chain Or Gear Box
Forming Speed: 30-40m/min (excluding Punching)
Cutting Mode: Servo Tracking Cutting
Additional Info
Packaging: NUDE
Productivity: 200 sets/year
Brand: YY
Transportation: Ocean
Place of Origin: Hebei
Supply Ability: 200 sets/year
Certificate: CE/ISO9001
Product Description

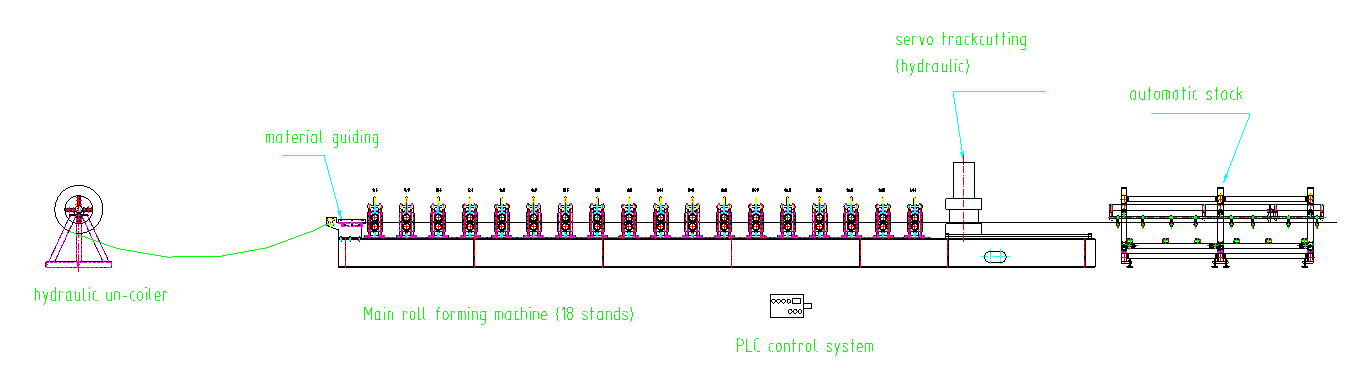

Working process:
Decoiler - Feeding guide - Straightening - Main roll forming machine - PLC control system - Servo tracking cutting - Receiving table
Technical parameters:
| Raw material | PPGI, GI, Aluminum coils |
| Material thickness range | 0.3-1mm |
| Forming speed | 30-40m/min(without punching) |
| Rollers | 12 rows |
| Material of forming rollers | 45# steel with chromed |
| Shaft diameter and material | 40mm, the material is 40Cr |
| Controlling system | PLC |
| Cutting mode | Servo tracking cutting |
| Material of cutting blade | Cr12 mold steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz or at your requirement |
| Main motor power | 4KW |
| Hydraulic station power | 3KW |
| Way of driven | Gearbox |
Pictures of product:
Company Information
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO., LTD
YINGYEE is a manufacturer specializing in various cold-forming machinery and automatic production lines. We have a wonderful team with high technology and excellent sales, which offer professional products and related services. We paid attention to quantity and after-service, got great feedback, and honored the clients. We have a great team for after-service. We have sent several patches after the service team to overseas to finish the product installation and adjustment. Our products have been sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light keel roll forming machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service locally in paid, reasonable charge.
2. QT test is welcome and professional.
3. Mnual and using a guide is optional if no visiting and no installation.
Certification and after-service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for an ideal Customized Light Keel Roll Forming Machine Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Best Quality Keel Forming Machines are quality guaranteed. We are China Origin Factory of High Precision Stud and Track. If you have any questions, please feel free to contact us.
Product Categories: Light Keel Roll Forming Machine > Stud And Track Light Keel Forming Machine
