Color Steel Rain Pipe Roll Forming Machine
Short Description:
Our round downspout roll forming machine mainly consists of uncoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system and out table. Round downpipe making machine can make curve for down pipe to meet the requirement of practical engineering projects.
Basic Info:
Delivery Time: 30 Days
Warranty: 12 Months
After Service: Engineers Available To Service Machinery Overseas
Type: Pipe Production Line
Cutting Mode: Flying Saw Cutting Or Mould Cutting
Material: GI, PPGI, Aluminum Coils
Material Of Cutting Blade: Cr12
Forming Speed: 25-30m/min
Voltage: 380V/3Phase/50Hz Or At Your Request
Way Of Driven: Chain Or Gear Box
Additional Info:
Packaging: NUDE
Productivity: 200 sets/year
Brand: YY
Transportation: Ocean
Place of Origin: Hebei
Supply Ability: 200 sets/year
Certificate: CE/ISO9001
Working Flow: Decoiler – Feeding guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | PPGI or GI |
| Material thickness range | 0.2-0.8mm |
| Rollers | 18 rows |
| Material of forming rollers | 45# steel with chromed |
| Shaft diameter and mateiral | 76mm, material is 40Cr |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Forming speed | 12-15m/min(excluding cutting stoping time) |
| Main motor power | 4 KW |
| Hydraulic station power | 3KW |
| Mode of cutting | Hydraulic cutting or flying saw cutting or mould cutting |
| Control system | PLC Frequency Control System with touch screen |

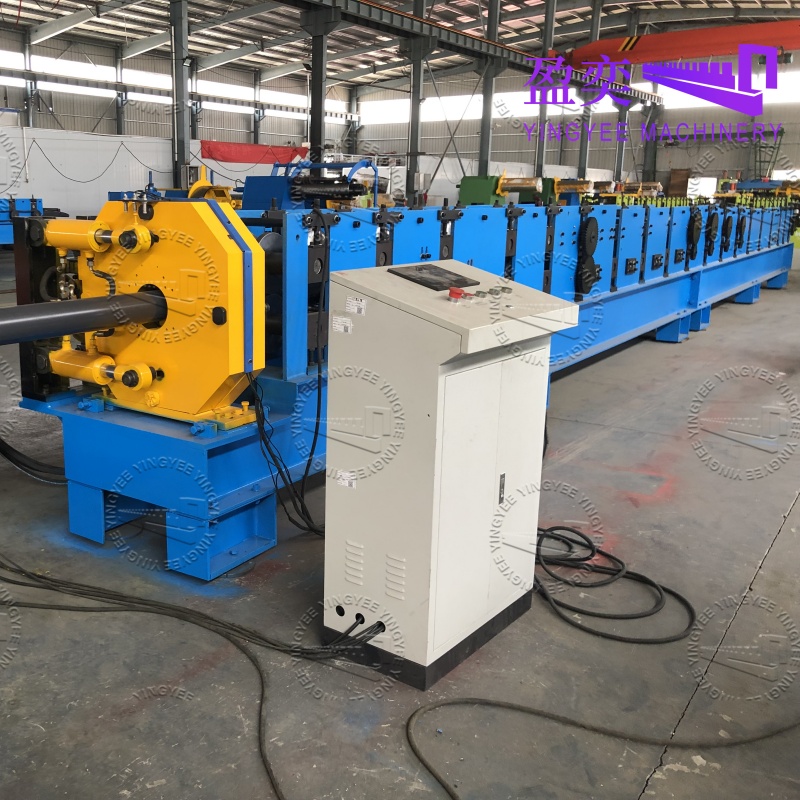

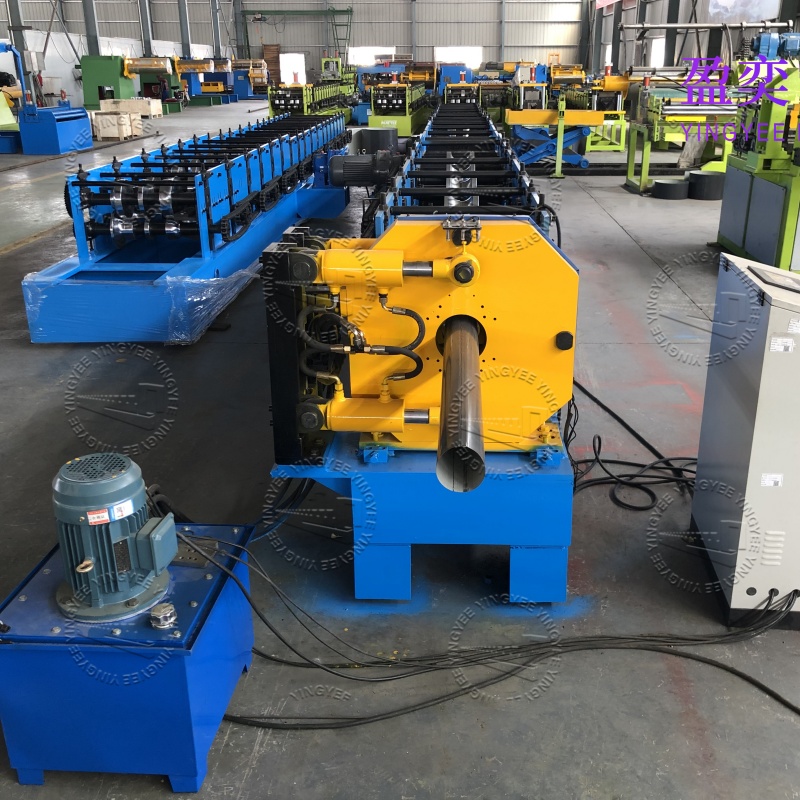

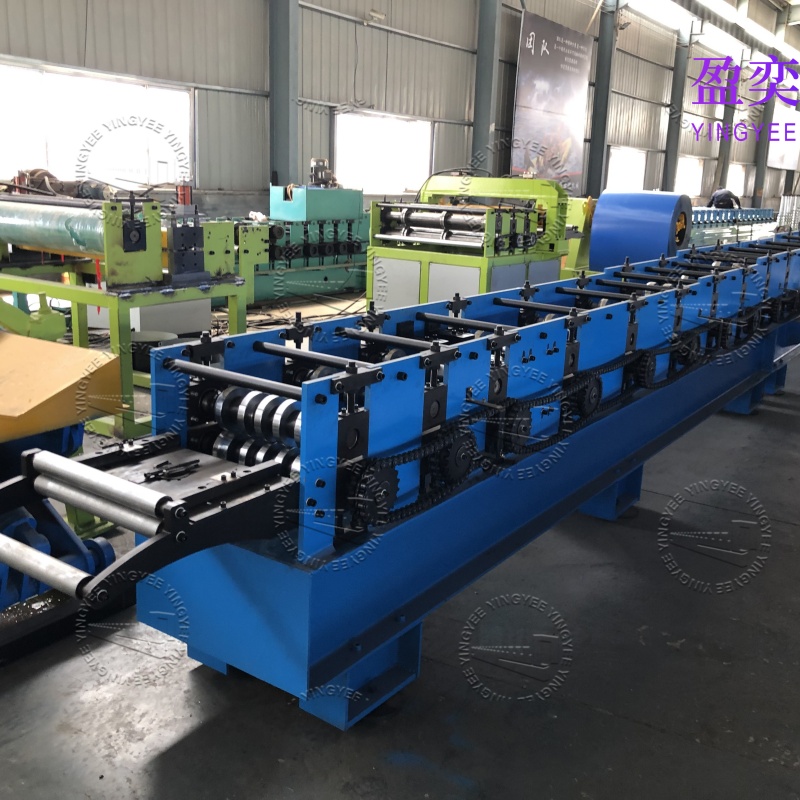

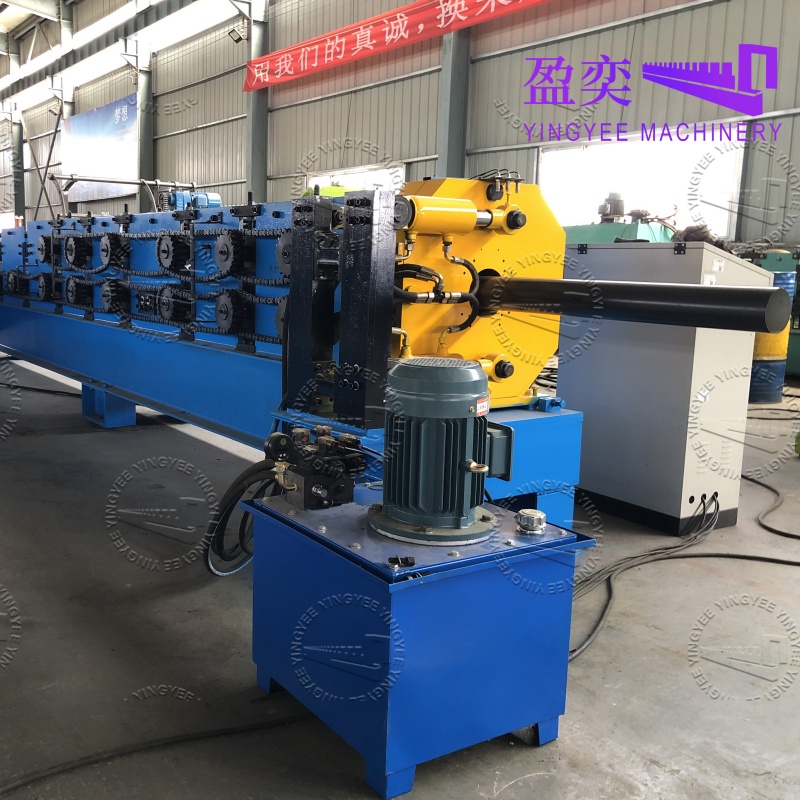

Pictures of machine:
FAQ:
Training and Installation:
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal Downspout Making Machinery Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Mould Cutting Downspout Machine are quality guaranteed. We are China Origin Factory of Roll Forming Machine Europe. If you have any question, please feel free to contact us.
