Color Metal Large Span high speed Making Machine
Short Description:
Basic Info
Model No.:YY—KSM—0004
Tile Type:Colored Steel
Certification:CE, ISO
Condition:New
Customized:Customized
Usage:Roof, Wall, Floor, Other
Transmission Method:Machinery
Products:Big Span Roll Forming Machine
Material:Pre-printed Steel Coil,galvanized Coil,Aluminum Co
Material Of The Cutting Blade:CR12
Speed:10-25m/min
Cutting Mode:Hydraulic
Control Mode:PLC
Voltage:As Customers Request
Additional Info
Packaging:NUDE
Productivity:CHINA
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200sets/years
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin,Dalian
Product Description

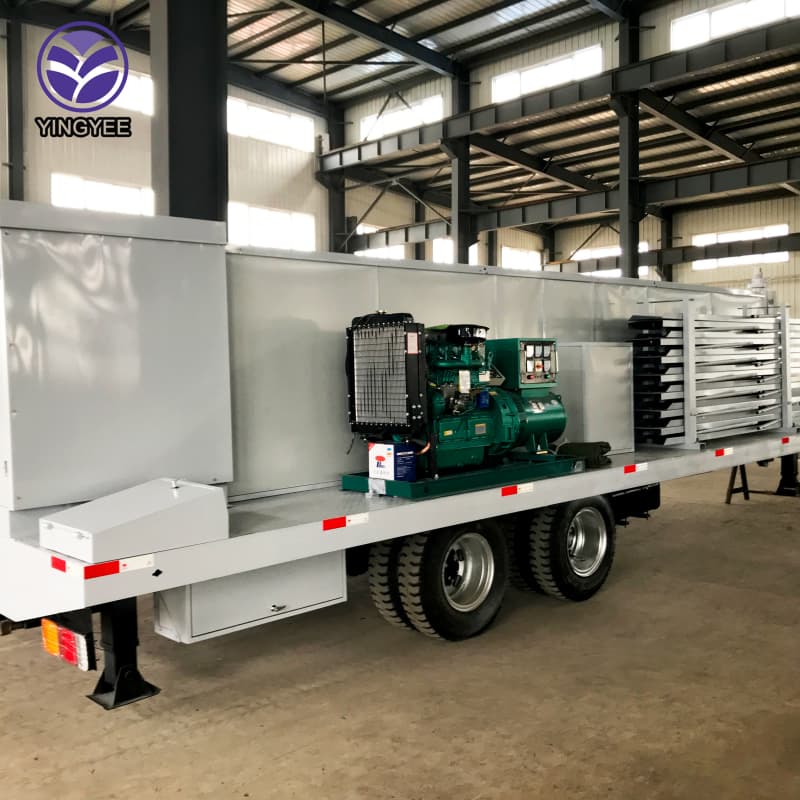

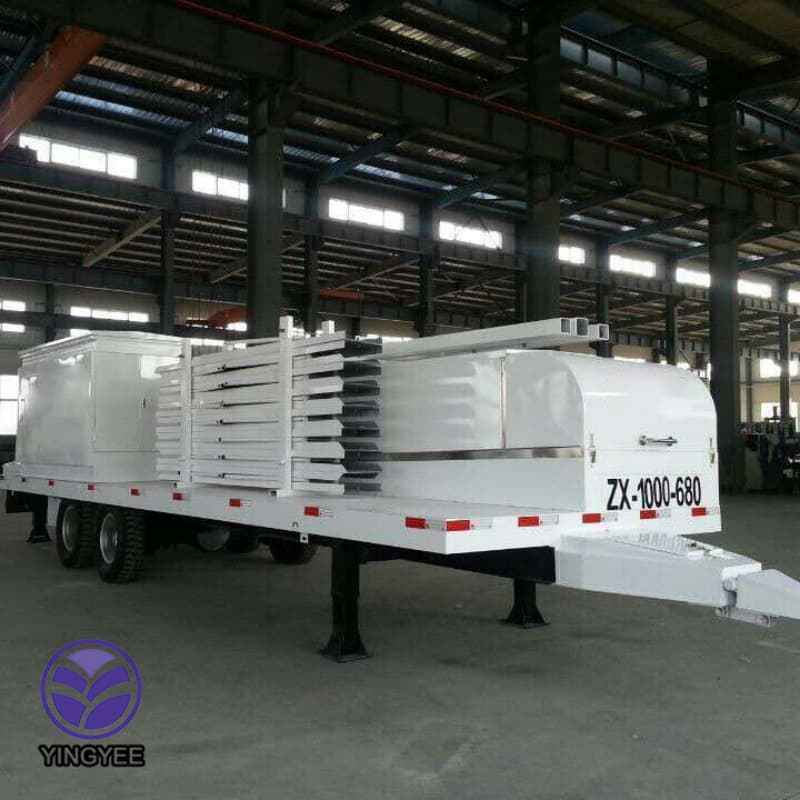

Color Metal Steel Large Span Making Machine

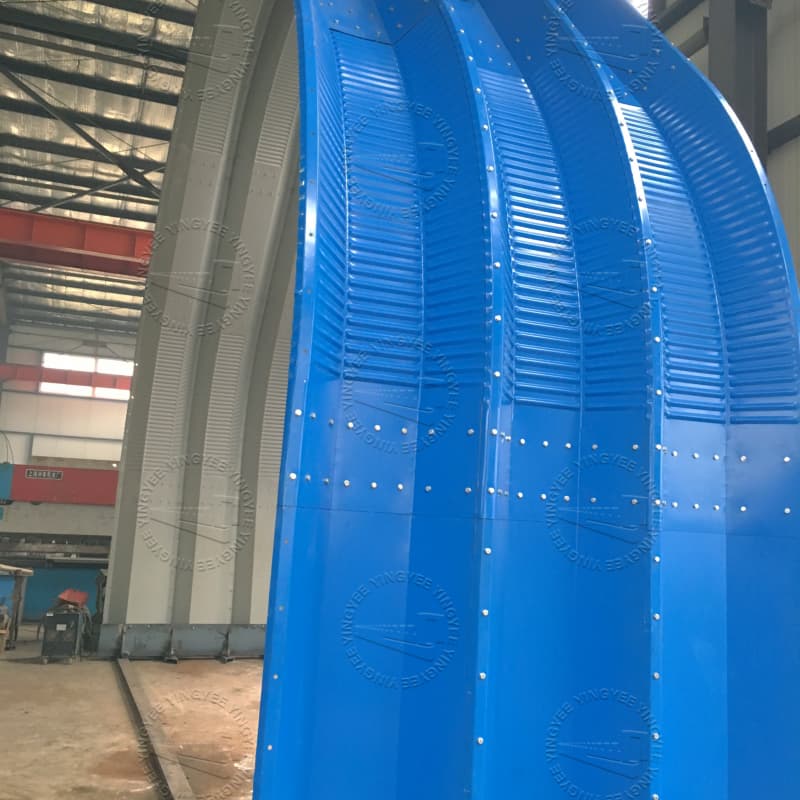

Advantages of Long Span Curving Roof Building Machinery : 1.Cutting material: Cr12 MoV- Best and sharpest cutting material 2.Deck of foundation: CHINA An Steel (it used to produce boat). 3.The thickness of side plate is 20mm. 4.There is one hand wheel with scale in the curving part, you can adjust the height of span as you need with it.
Specification:
1) Main machine dimension: 9.65m*2.23m*2.4m
2) Bending machine dimension; 3.8m*2.23m*2.4m
3) Suitable material: galvanized steel, colored steel, etc
4) Coil thickness: 0.6 –1.5mm
5) Roller stands:16
6) Roller diameter:80mm
7) Totally power:18.5kw
8) Main Power:7.5kw; Hydraulic power:4.0kw; side bending power:1.5kw*2
Curving power:4.0kw
9) Roller material: 40Cr
10) Shaft material: high grade #45 steel
11) Cutting Blade material:Cr12 steel
12) Machine speed: forming speed 13m/min, Seaming speed:6m/min
13) Span : ≤38m
14) Power supply: AC380V±10%, 50Hz, or as per your requirement
Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Guardrail Roll Forming Machine
- Storage roll forming machine
- Cable Tray Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- slitting machine
Installation and training:
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation. Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Businese Remarks:
1. Pre-sale support:
1. Drawing with material officially confirmed,
2. User manual,
3. Operation video service, 4. trouble shooting All these support will delivery before balance payment. All accept by Buyer, then machine ship.
2. After-sale service: installation service for first loading if needed. Buyer paid the cost of trip and 100$ per day per engineer.
3. Payment term: 30% deposit paid by TT, 70% balance before shipping paid by TT, 4. Delivery time: 60 days to finish the production since deposit received 5. Warranty : 12months since delivery
Looking for ideal Long Span Roof Tile Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Color Roof Sheet Roll Forming Machine are quality guaranteed. We are China Origin Factory of Metal Kspan Roll Forming Machine. If you have any question, please feel free to contact us.
Product Categories : Long Span Roll Forming Machine
