cantilever type cable tray roll forming machine
Short Description:
Basic Info
Warranty:12 Months
Delivery Time:30 Days
After Service:Engineers Available To Service Machinery Overseas
Forming Speed:25-30m/min(excluding Punching)
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Type:Steel Frame & Purlin Machine
Control System:PLC
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
cantilever type Cable Tray Roll Forming Machine
Cable tray roll forming machine uses cantilever type at the two sides, the punch press do the round ribs in bottom or different holes`stamping and cutting. The material is guided into main roll forming machine by guider. By electrical control, automatically improve and adjust different width and height.
Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
Matching material
Galvanized or PPGI, Aluminum coils
Material thickness range
0.8mm-2.0mm
Forming speed
20-30m/min(excluding punching and cutting time)
Hydraulic station power
22KW
Rollers
20(according to drawings and size)
Shaft material and diameter
80mm, material is 40Cr
Material of the body
400H steel
Wall panel
20mm, Q195 steel(all with electrostatic spraying)
Controlling system
PLC
Material of rollers
45# steel with chromed or Cr12(you can choose the material as your request)
Material of blade
Cr12 mould steel with quenched treatment 58-62℃
Total weight
About 5 tons

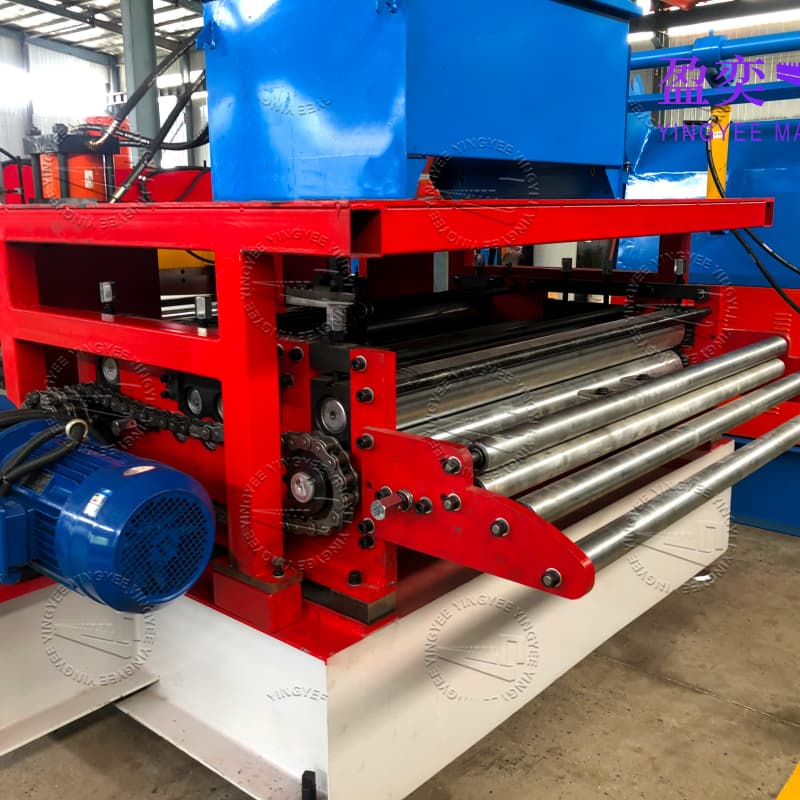

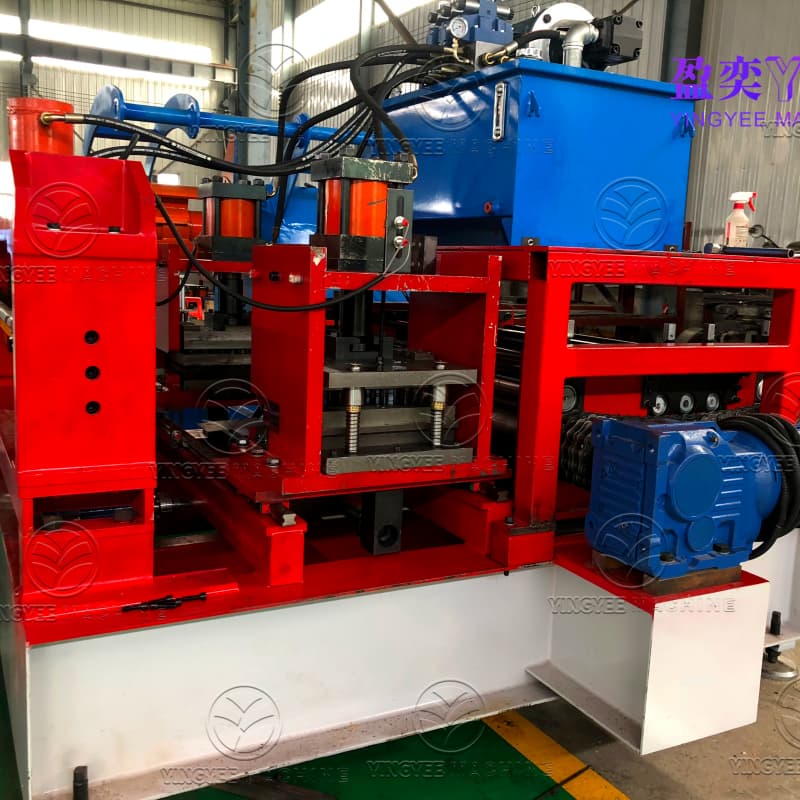

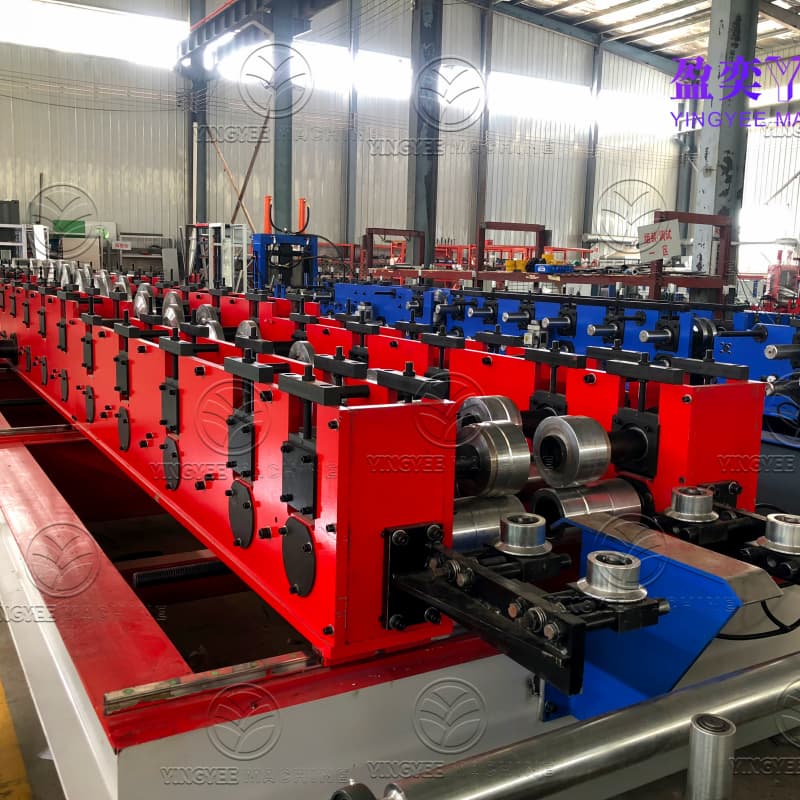

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
