C Purlin Roof Design Roll Forming Machine

Short Description:

YingYee Machinery Co., ltd is excellent for working on Cold Roll Forming Machine, This GI C Purlin Forming is a special design for light steel houses, it can save much more for preparing steel house machining list, our C/Z Purlin Machine with Quick Changeable can give out material list and arrange purlin producing task by the PLC automatically.


Product Detail

FAQ

Product Tags

Basic Info

Type:Roof Sheet Roll Forming Machine

Warranty:12 Months

Material:Steel Coil, Galvanized, PPGI, Aluminum

Speed:10-18m/min(not Include Punching And Cutting Time)

Control System:Panasonic/Mitsubishi PLC

Way Of Driven:Chain Transmission

Cutting Mode:Hydraulic

Material Of Cutting Blade:CR12 Mov

Voltage:At Customer's Request

Additional Info

Packaging:PLASTIC FILM, WOODEN CASE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:TIANJIN,XIAMEN,SHANGHAI

Product Description

Working Flow:

Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Punching- Hydraulic Cutting - Output Table

Working process

Technical parameters:

Matching material Steel coil, Galvanized, PPGI, Aluminum
Material thickness range According to drawings
Main motor power 30W
Forming speed 10-18min (not including punching and cutting time)
Hydraulic power 7.5KW
Quantity of rollers About 18
Shaft diameter and material 70mm, material is 45#steel
Material of rollers Gcr15 or Cr12 with chromed
Way of driven chain transmission
Controlling system PLC
Voltage 380V/30Phase/50Hz (as customer requires)
Total weight About 12 tons
Size of the machine L*W*H 10m*1.2m*1.6m

Pictures of the Machine:

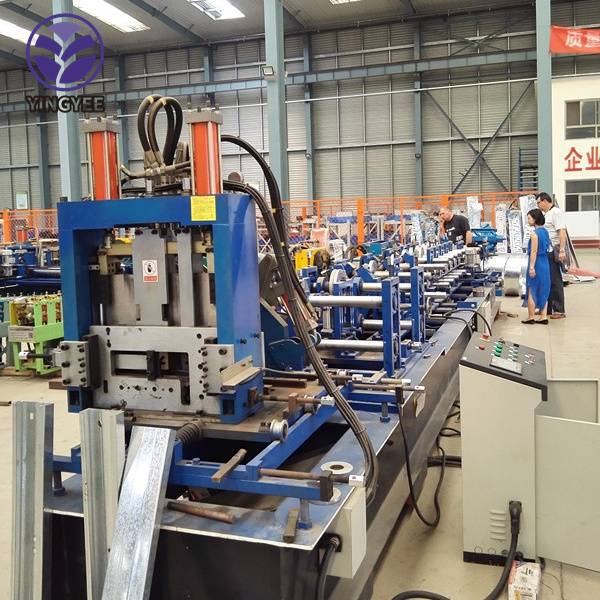

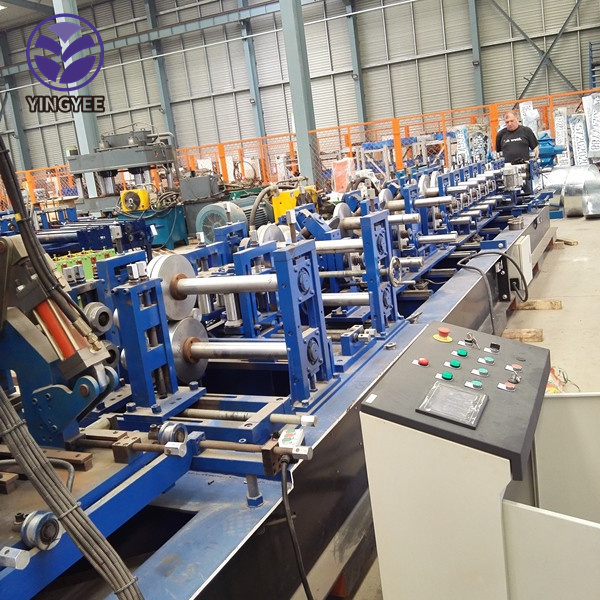

Hydraulic automatic CZ purlin touch screen forming machine

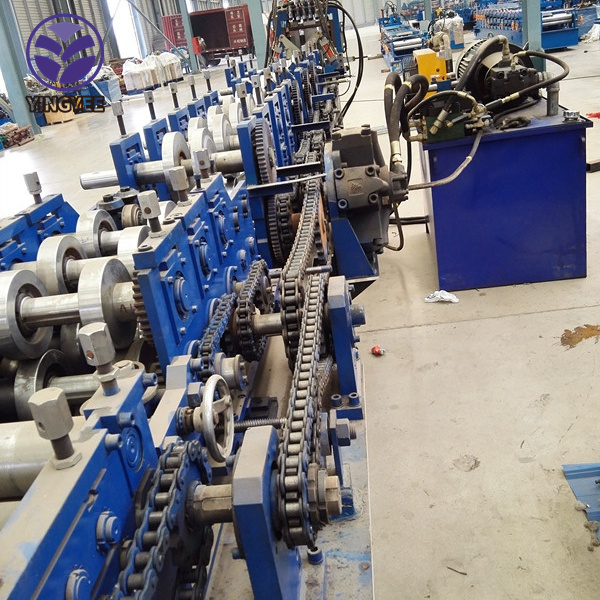

Hydraulic automatic CZ purlin touch screen forming machine
Hydraulic automatic CZ purlin touch screen forming machine

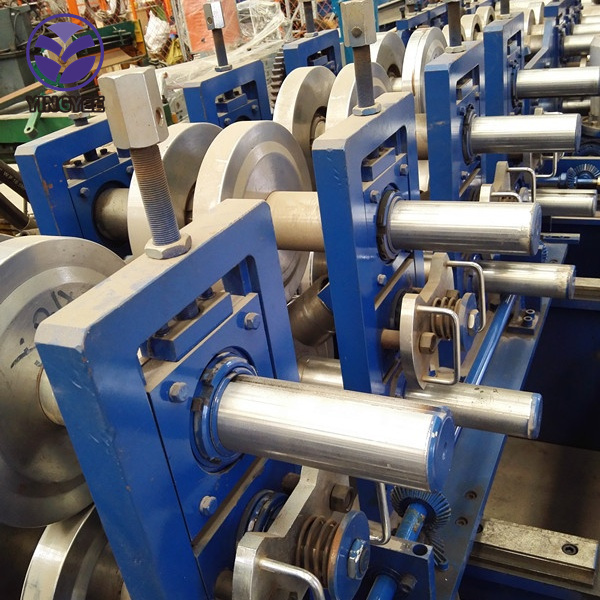

Hydraulic automatic CZ purlin touch screen forming machine

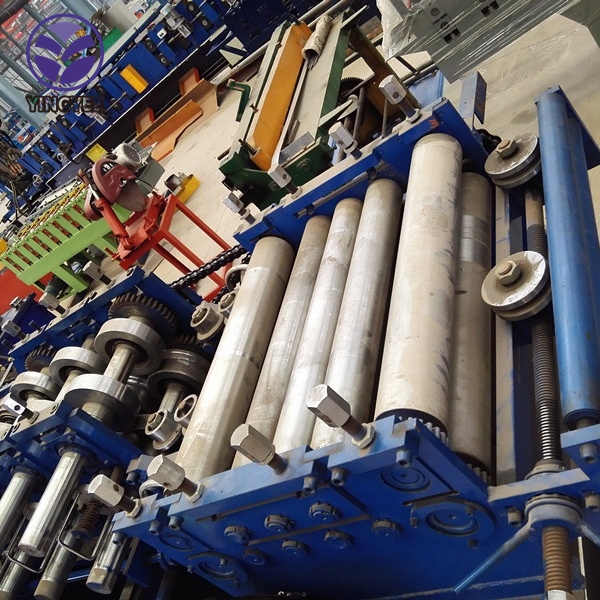

Hydraulic automatic CZ purlin touch screen forming machine

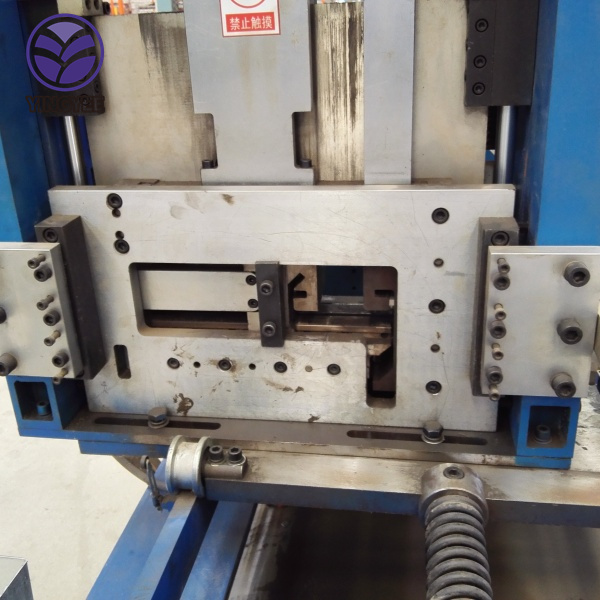

Hydraulic automatic CZ purlin touch screen forming machine 5_副本
C Purlin Dimension Table
Z Purlin dimensions table

Basic Info

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO., LTD

YINGYEE is a manufacturer specializing in various cold-forming machinery and automatic production lines. We have a wonderful team with high technology and excellent sales, which offer professional products and related services. We paid attention to quantity and after-service, got great feedback and honored formal the clients. We have a great team for after-service. We have sent several patches after the service team to oversea to finish the installation and adjustment of the product. Our products have been sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service locally at a paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using the guide is optional if no visiting and no installation.


Certification and after-service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized.

Looking for an ideal C Purlin Roof Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Gi C Purlin Forming are quality guaranteed. We are China Origin Factory of C Purlin Profile. If you have any questions, please feel free to contact us.
