Building Material Full Polished Glazed Porcelain Floor Tile

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Type:Glazed Tile Roof Sheet Roll Forming Machine

Using:Roof

Material:PPGI, GI, Aluminum Coils

Forming Speed:3-4m/min

Cutting Mode:Hydraulic

Material Of Cutting Blade: Cr12 Mould Steel With Quenched Treatment

Control System:PLC

Voltage:380V/3Phase/50Hz Or At Customer’s Request

Warranty:12 Months

Delivery Time:30 Days

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

Product Description

Glazed tile steel roofing machine corrugated sheet machine

Elegant appearance Glazed tile Roof Sheet Roll Forming Machine with high precision

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

Working Flow: Decoiler – Feeding Guide – Straightening – Main Roll Forming Machine – PLC Contol System – Press – Hydraulic Cutting – Output Table

Glazed tile roof sheet roll forming machine



Technical parameters:



Raw material Colored steel, Galvanized steel, Aluminum steel
Material thickness range 0.3-0.8mm
Rollers 13 rows(according to drawings)
Material of roller 45# steel with chromed
Forming speed 3-4m/min
Shaft material and diameter 75mm, material is 40Cr
Type of forming machine single station with chain transmission
Controlling system PLC & Transducer(Mitsubishi )
Type of cutitng Hydraulic cutting
Material of cutting blade Cr12Mov with quench HRC58-62°
Voltage 415V/3Phase/50Hz(or at buyer’s requirements)
Main motor power 7.5KW
Hydraulic station power 3KW





Pictures:

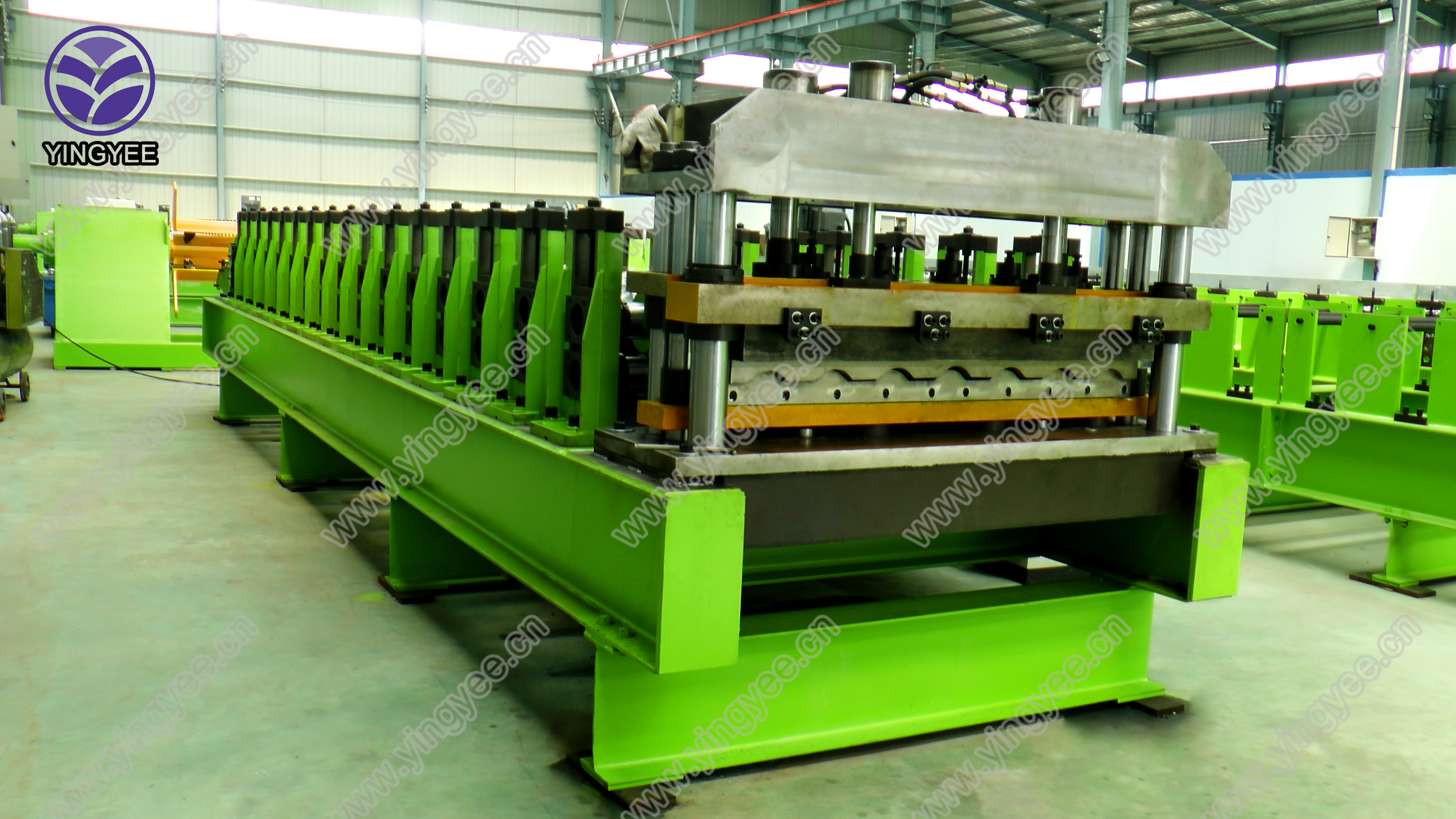

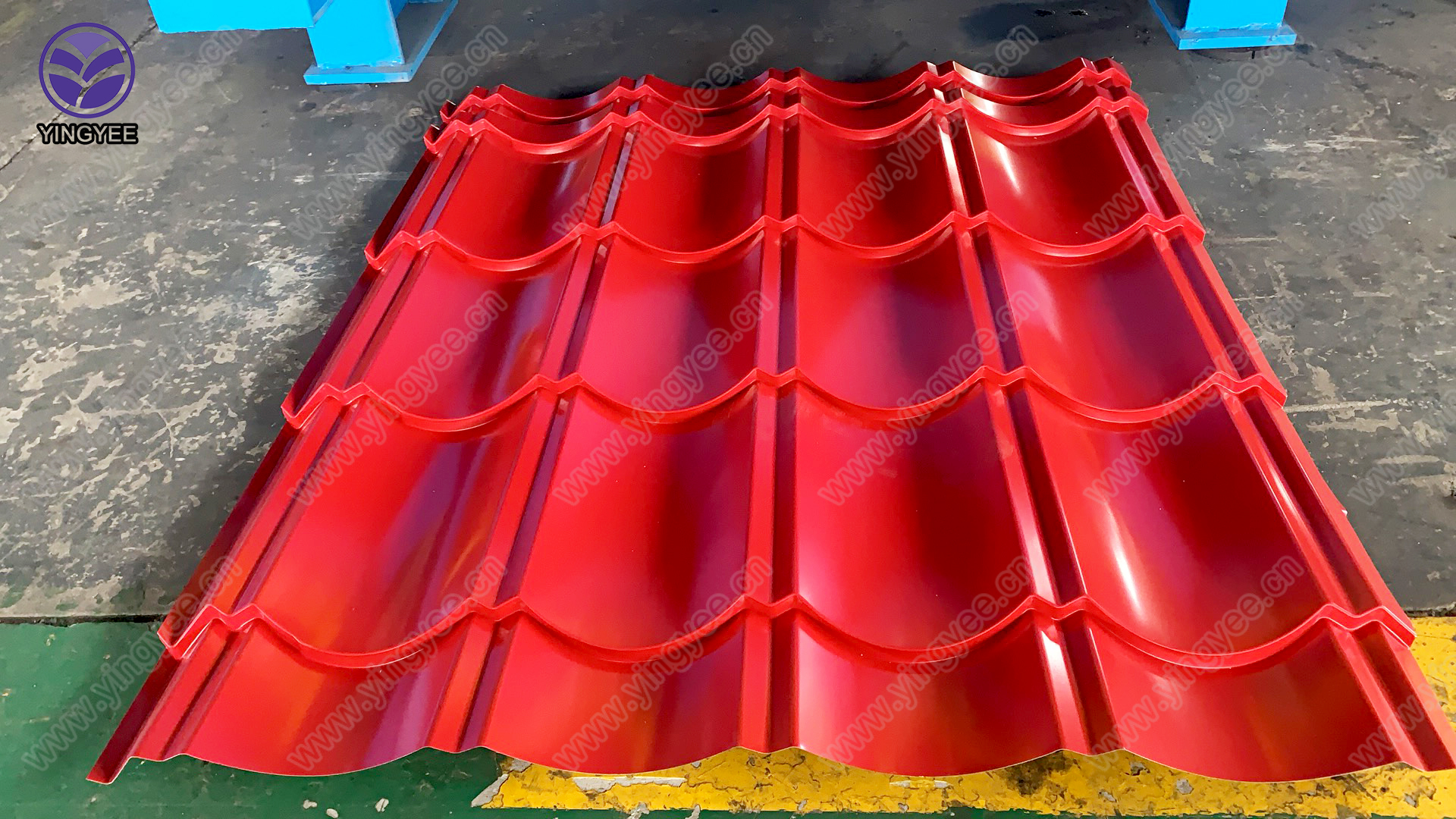

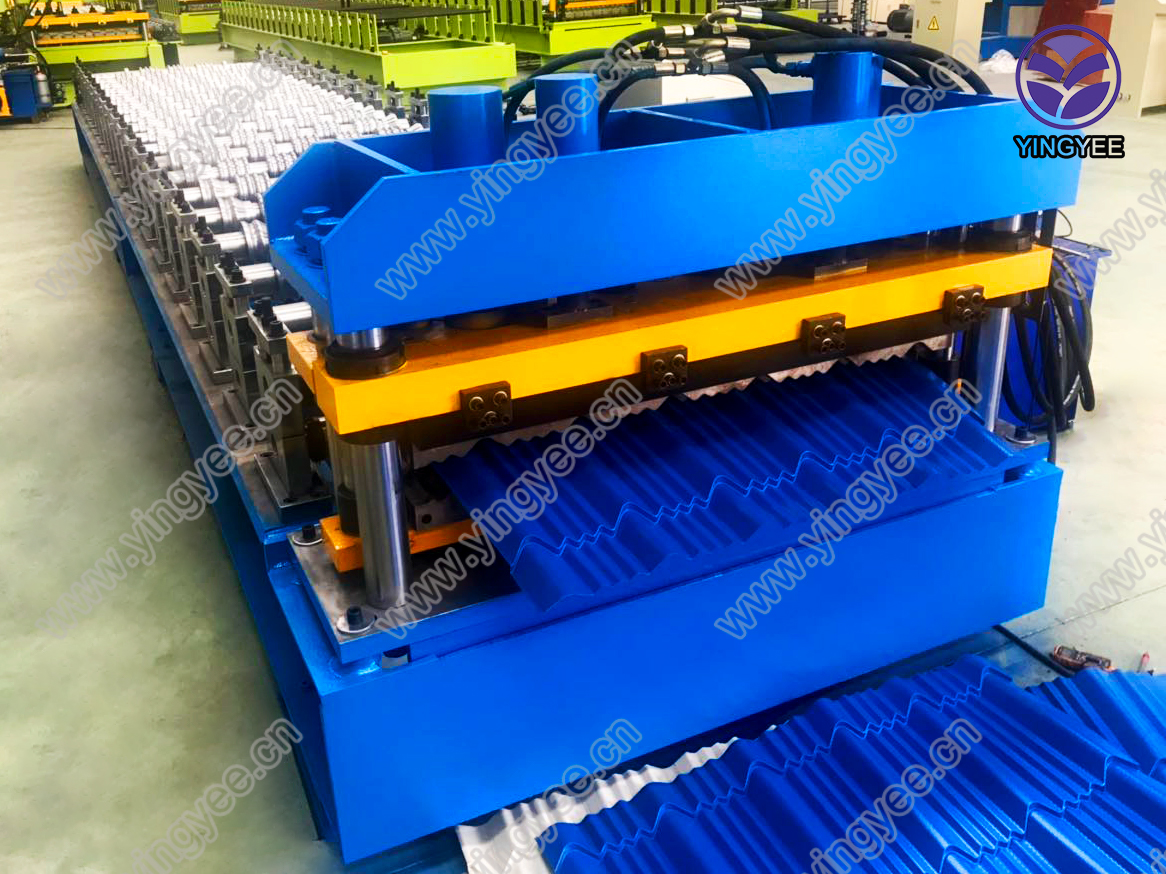

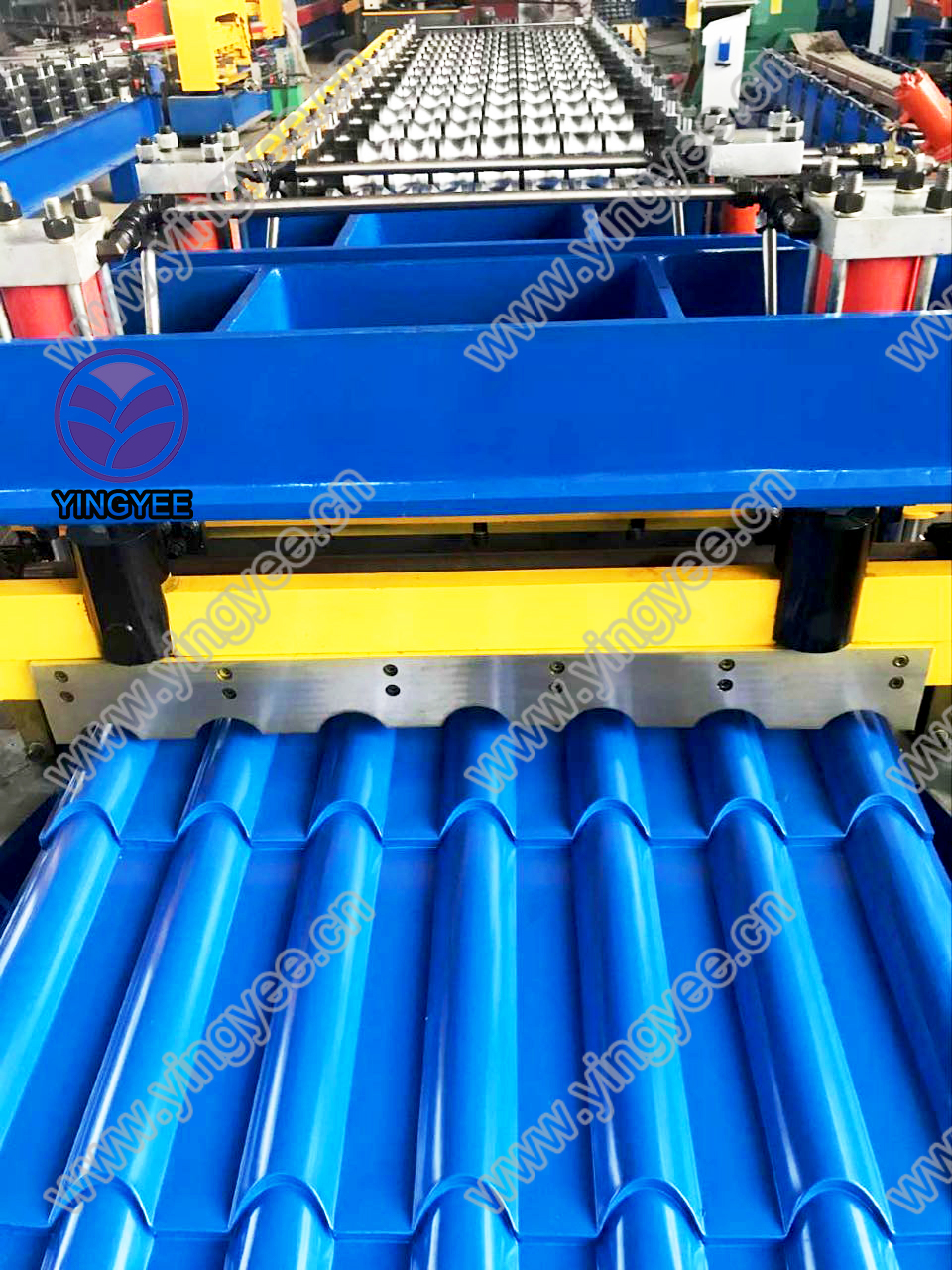

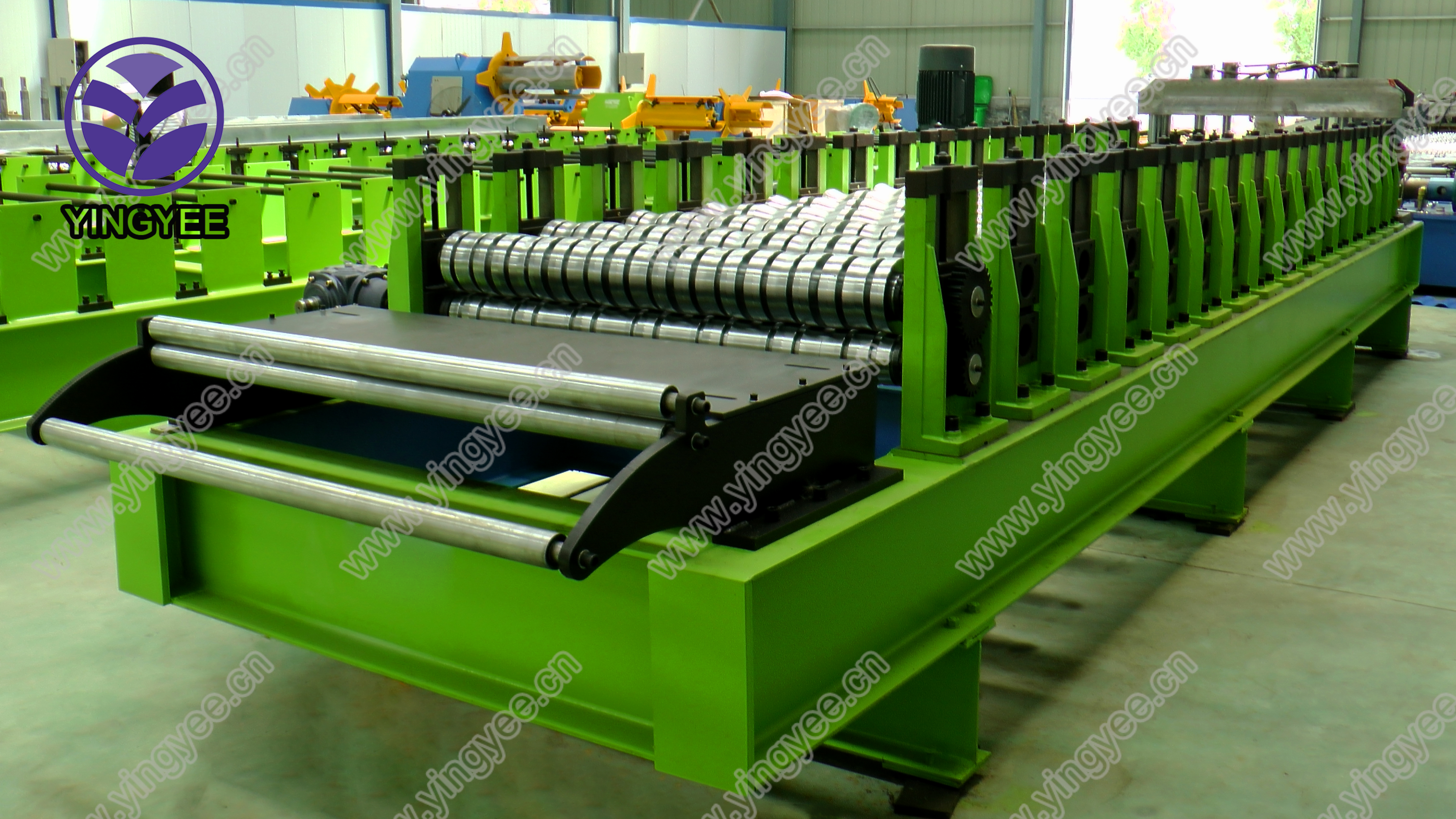

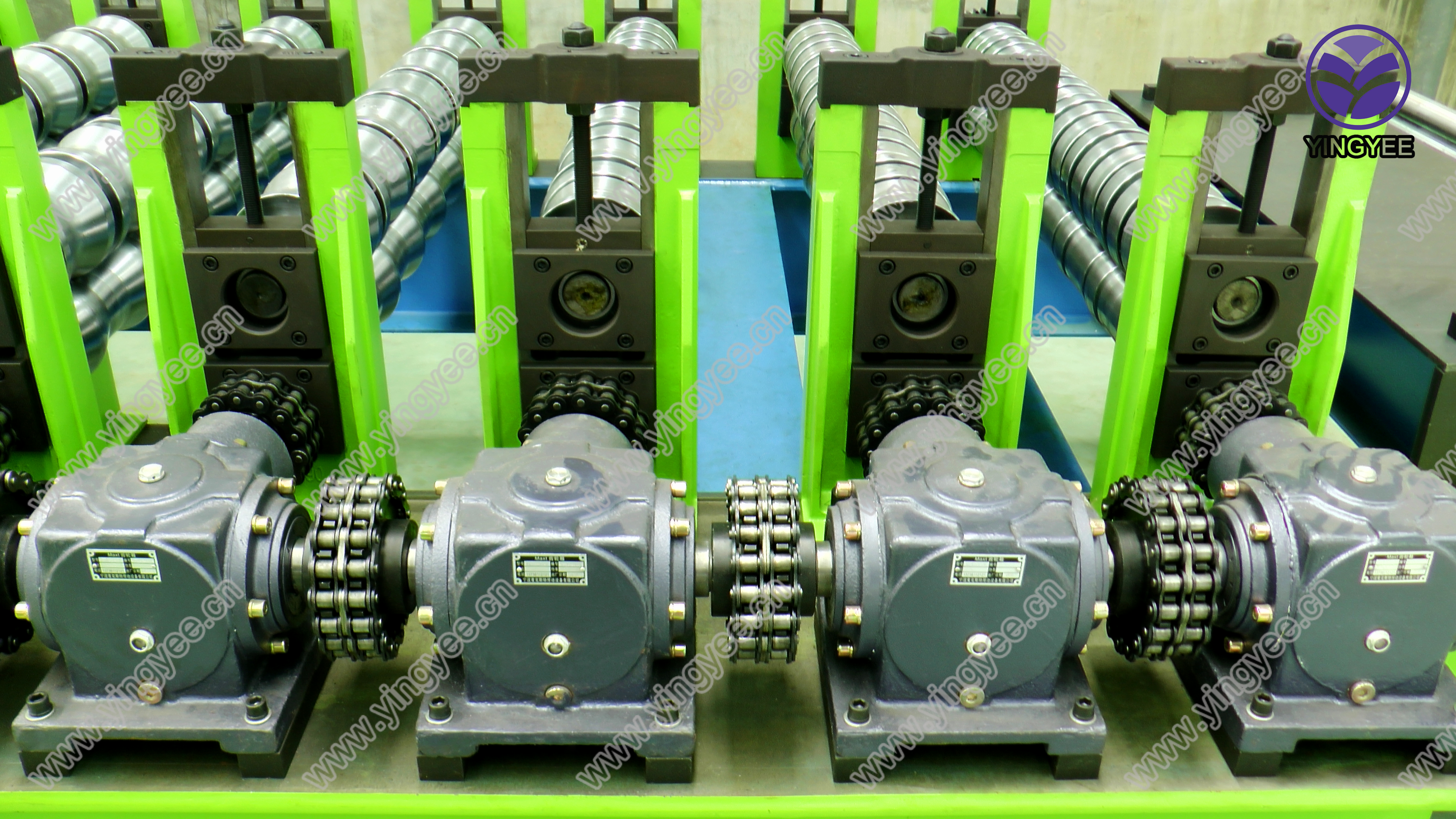

琉璃瓦成型机整机(左前面) 微信图片_202102241657172 琉璃瓦成型机整机(左前面带出料) 琉璃瓦成型机整机(右后面) 琉璃瓦成型机整机(前面斜上带出料)-1 琉璃瓦成型机细节(齿轮箱和牌坊的效果)
