automatic trapezoidal roofing sheet roll forming machine
Short Description:
Basic Info
Control System:PLC
Warranty:12 Months
Thickness:0.3-1mm
Using:Roof
Type:Roof Sheet Roll Forming Machine
Forming Speed:25-30m/min
Voltage:38oV/3Phase/50Hz Or At Customer’s Request
Material:GI, PPGI, Aluminum Coils
Cutting Mode:Hydraulic
Delivery:30 Days
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
IBR trapezoid Roof Sheet Roll Forming Machine
900mm IBR Corrugation Wave Metal Roof Sheet Roll Forming Machine, it is servo feeding to ensure the precision, hydraulic cutting, elegant appearance, fast speed
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw materials | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Forming speed | 10-15m/min |
| Rollers | 15 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of body | 400H steel |
| Wall panel | 20mm Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Main power | 5.5KW |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 4 tons |

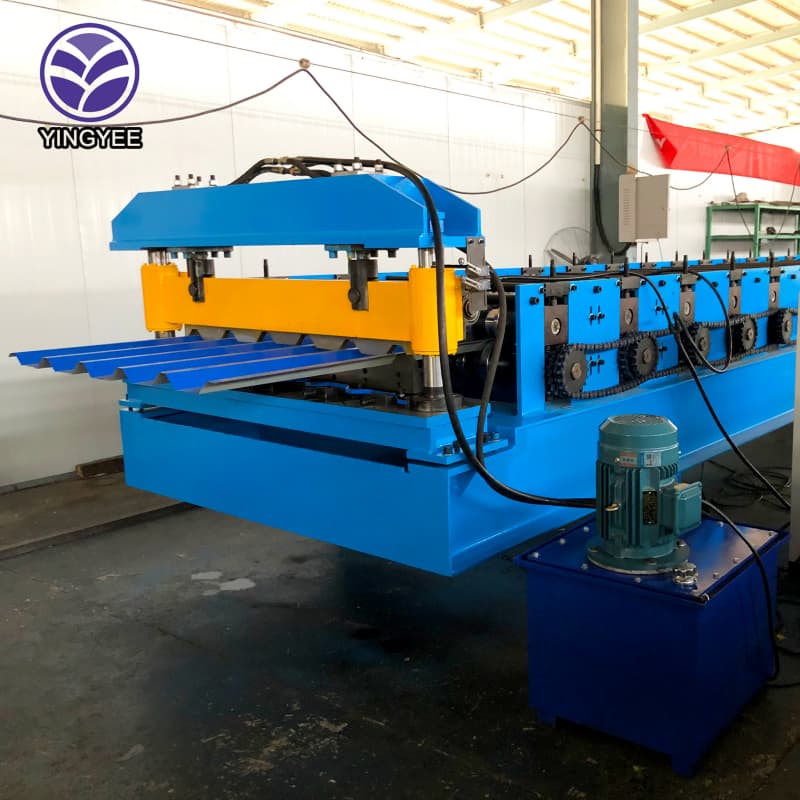

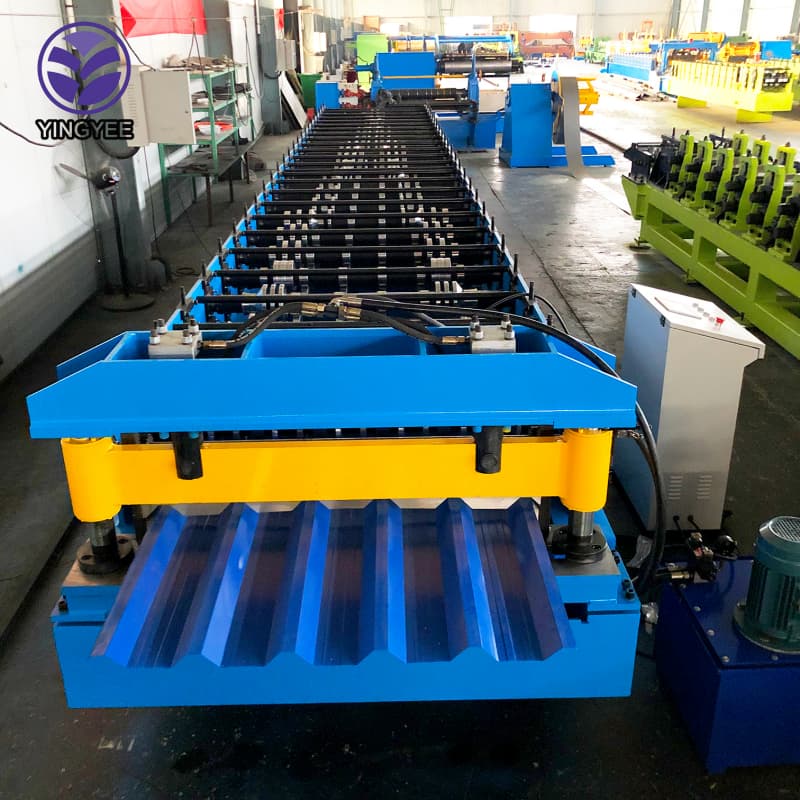

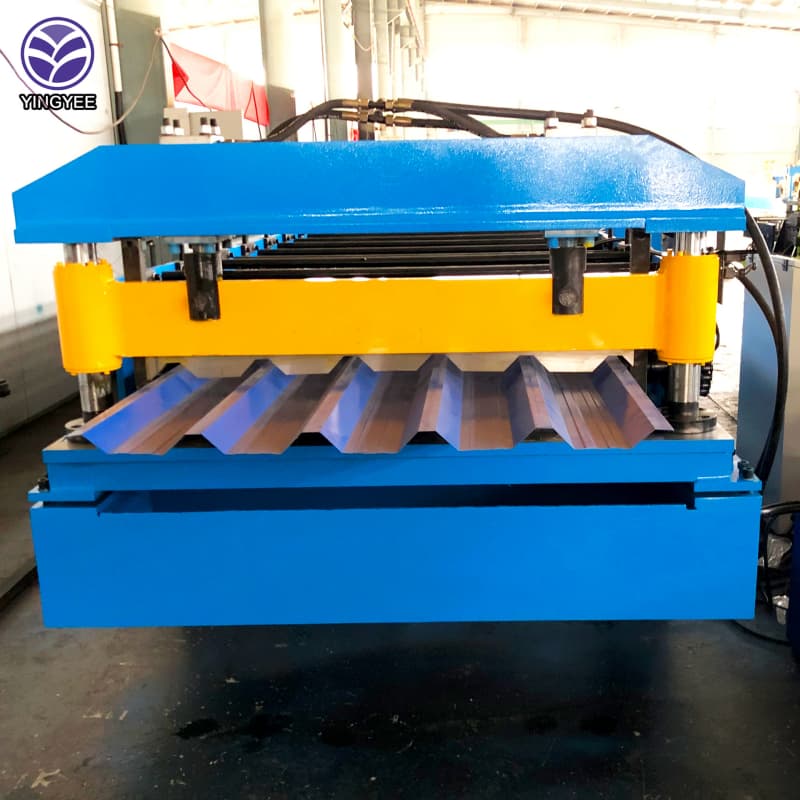

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
