Automatic CZ Purlin Roll Forming Machine
Short Description:
We manufacture the machines as per clients‘ specific needs and provide insights about the machine and its working process. We also apply a hydraulic transmission system to achieve a stable running or production state. We supply purlin roll forming machines at competitive prices compared to our counterparts throughout the world. We are honored to receive such great feedback from our previous customers and we further want to retain the quality for years to come.
Basic Info
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Type:Roof Sheet Roll Forming Machine
Cutting Mode:Hydraulic
Voltage:At Customer's Request
Way Of Driven:Chain Transmission
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:6-8m/min(including Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
Working Flow:

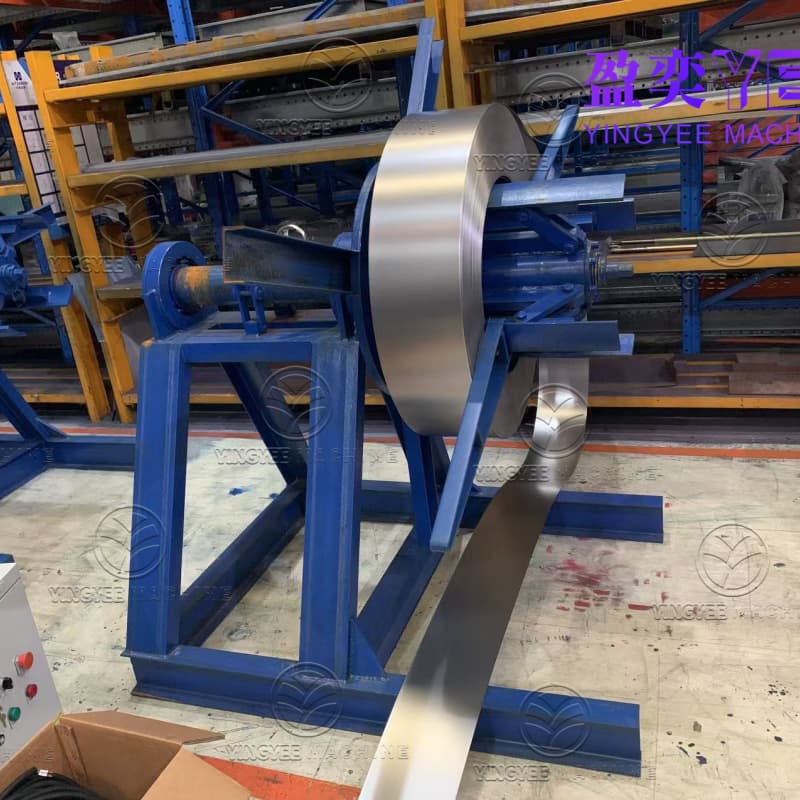

Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Punching- Hydraulic Cutting - Output Table
Technical parameters:
| Matching material | Steel coil, Galvanized, PPGI, Aluminum |
| Material thickness range | According to drawings |
| Main motor power | 15KW |
| Forming speed | 6-8m/min (include punching and cutting time) |
| Hydraulic power | 5.5KW |
| Quantity of rollers | About 18 |
| Shaft diameter and material | 70mm, material is 40Cr |
| Material of rollers | 45# steel with chromed |
| Way of driven | chain transmission |
| Controlling system | PLC |
| Voltage | 380V/30Phase/50Hz |
| Total weight | About 10 tons |
| Size of the machine | L*W*H 10m*1.2m*1.6m |

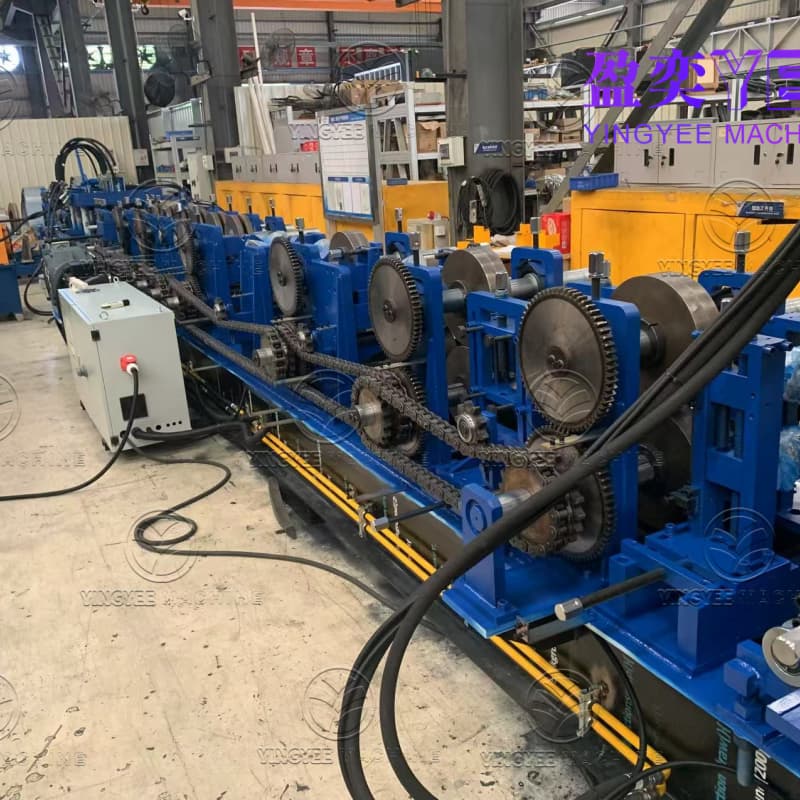

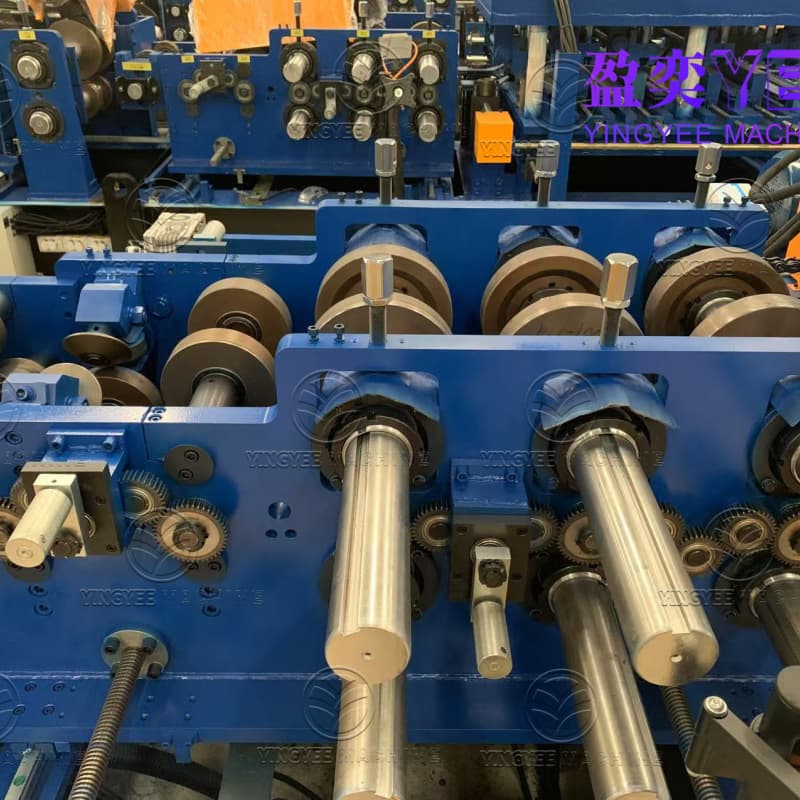

Pictures of the Machine:
Company Information
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO., LTD
YINGYEE is a manufacturer specializing in various cold-forming machinery and automatic production lines. We have a wonderful team with high technology and excellent sales, which offer professional products and related services. We paid attention to quantity and after-service, got great feedback, and honored the clients. We have a great team for after-service. We have sent several patches after the service team to overseas to finish the product installation and adjustment. Our products have been sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service locally at paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using the guide is optional if no visiting and no installation.
Certification and after-service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for an ideal Automatic C/Z/U Purlin Roll Forming Machine Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Switch Easily C/Z Purlin Forming Machines are quality guaranteed. We are a China Origin Factory of Cost Savings C/Z Purlin Making Machine. If you have any questions, please feel free to contact us.
Product Categories: C/Z/U Purlin Changeable Roll Forming Machine
