Automatic Angle Making Machines

Short Description:

Angle Machine, Angle Light Keel Roll Forming Machine Angle Roll Forming Machines This iron angle roll forming machine is used to produce steel angles. It includes the uncoiler, punching device, roll forming machine. We can design the machine according to your angle profile drawing.


Product Detail

FAQ

Product Tags

Basic Info

Model No.:YY-- ALK--002

Control System:PLC

Delivery Time:30 Days

Warranty:12 Months

Material Of Cutting Blade:Cr12

After Service:Engineers Available To Service Machinery Overseas

Voltage:380V/3Phase/50Hz Or At Your Request

Cutting Mode:Servo Tracking Cutting

Material Of Rollers:Cr12

Way Of Driven:Gear

Forming Speed:50-60m/min

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Product Description

Working process:

Working process

Decoiler - Feeding guide - Straightening - Main roll forming machine - PLC control system - Servo tracking cutting - Receiving table

Technical parameters:

Raw material PPGI, GI, Aluminum coils
Material thickness range 0.3-1mm
Forming speed 50-60m/min(without punching)
Rollers 10 rows
Material of forming rollers CR12
Shaft diameter and material 40mm, material is 40Cr
Controlling system PLC
Cutting mode Servo tracking cutting
Material of cutting blade Cr12 mould steel with quenched treatment
Voltage 380V/3Phase/50Hz or at your requirement
Main motor power 5.5KW
Hydraulic station power 3KW
Way of driven Gear

Pictures of the Machine:

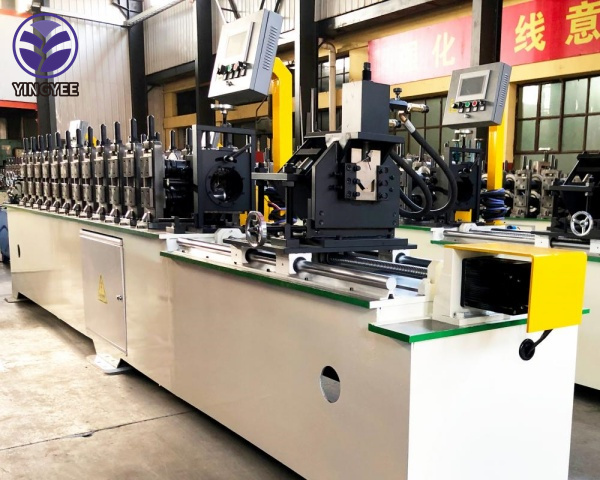

Automatic Angle Making Machines

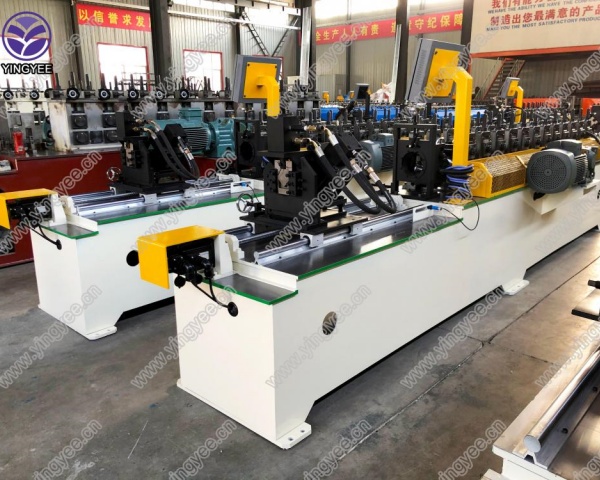

Automatic Angle Making Machines

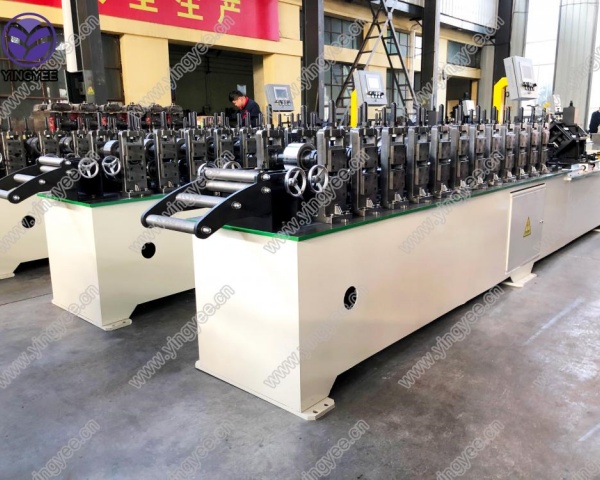

Automatic Angle Making Machines 2_副本
Automatic Angle Making Machines
Automatic Angle Making Machine
