Automatic Adjust C Z-Purlin Sizes Roll Forming Machine
Short Description:
The structural C and Z purlins are for industrial buildings, garages, verandahs, and carports; anywhere that strong reliable steel framing is required. Manufactured from quality galvanised steel, this is a fully integrated system allowing for flexible design options.
Our machine is the best choice in roll forming machines for the U-C-Channel, Lipped Channel, and Z-shaped profiles.
The machine adjusts the size of c/u/z by PLC automatic type, for c u to z change can be finished in two minutes.
Basic Info
Model No.:YY-CZ PULIN
Type:Roof Sheet Roll Forming Machine
Warranty:12 Months
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:10-18m/min(not Include Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Way Of Driven:Chain Transmission
Cutting Mode:Hydraulic
Material Of Cutting Blade:CR12 Mov
Voltage:At Customer's Request
Rollers Material:Gcr15 Or Cr12
Additional Info
Packaging:PLASTIC FILM, WOODEN CASE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean,Land,Air
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:TIANJIN,XIAMEN,SHANGHAI
Product Description
Working Flow:
Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Punching- Hydraulic Cutting - Output Table
Technical parameters:
| Matching material | Steel coil, Galvanized, PPGI, Aluminum |
| Material thickness range | According to drawings |
| Main motor power | 30W |
| Forming speed | 10-18min (not include punching and cutting time) |
| Hydraulic power | 7.5KW |
| Quantity of rollers | About 18 |
| Shaft diameter and material | 70mm, material is 45#steel |
| Material of rollers | Gcr15 or Cr12 with chromed |
| Way of driven | chain transmission |
| Controlling system | PLC |
| Voltage | 380V/30Phase/50Hz (as customer require) |
| Total weight | About 12 tons |
| Size of the machine | L*W*H 10m*1.2m*1.6m |

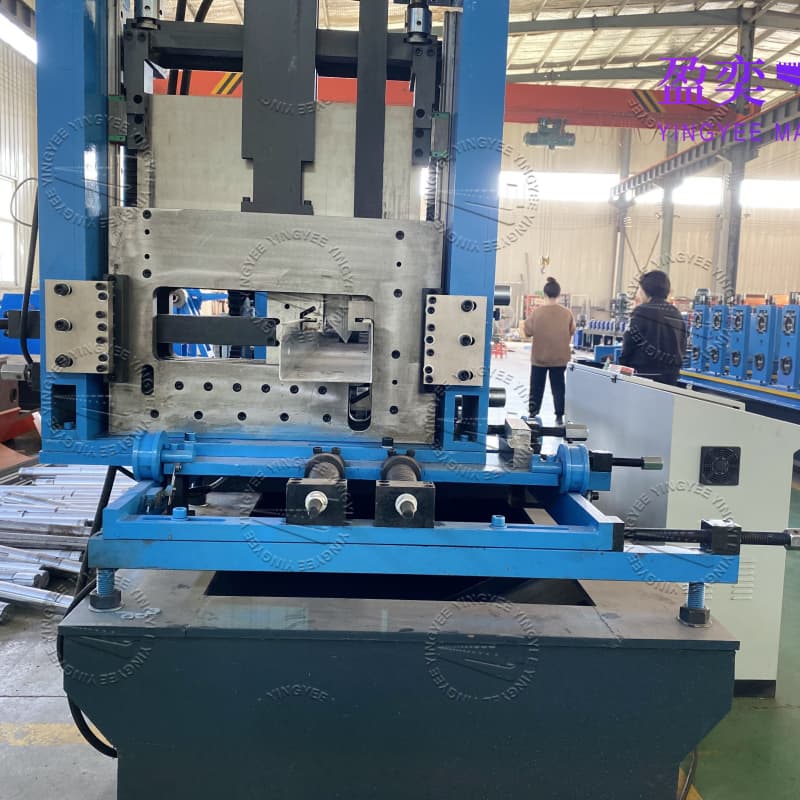

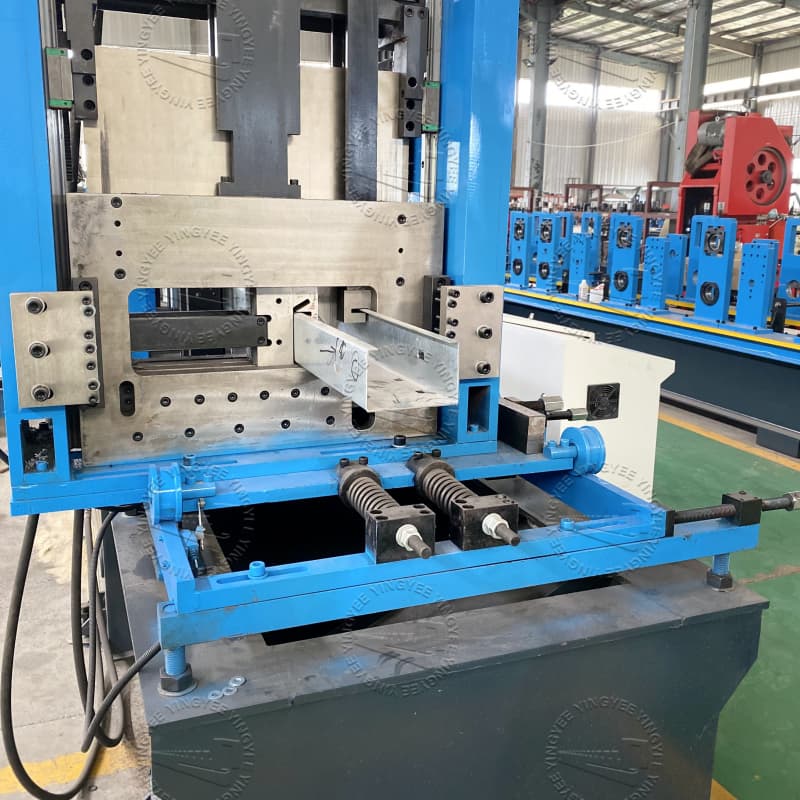

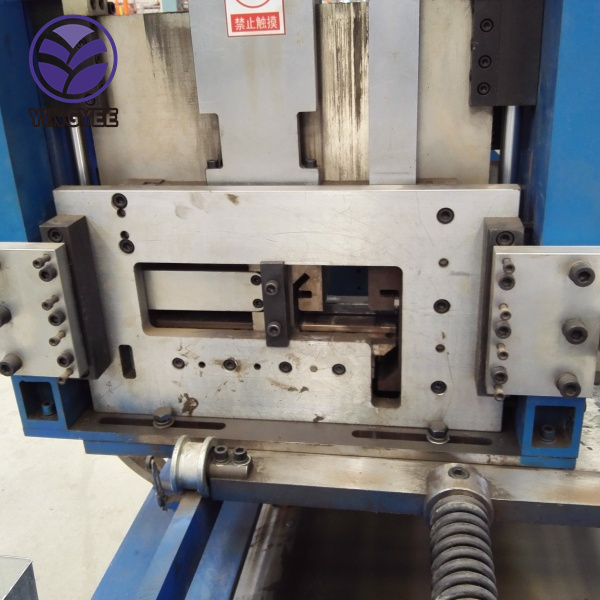

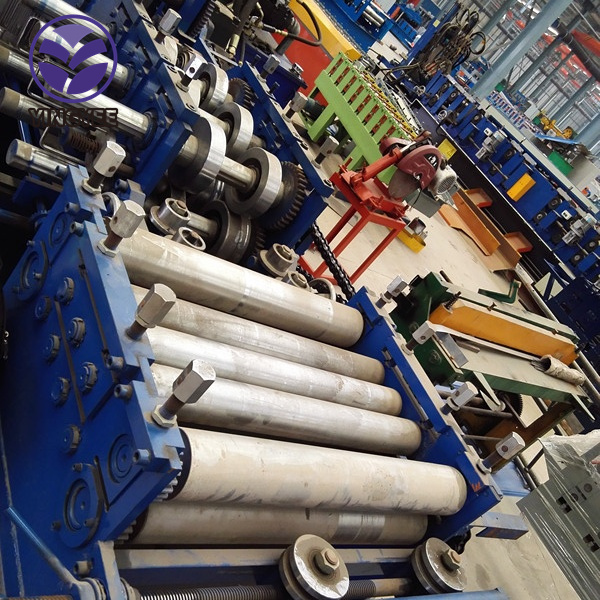

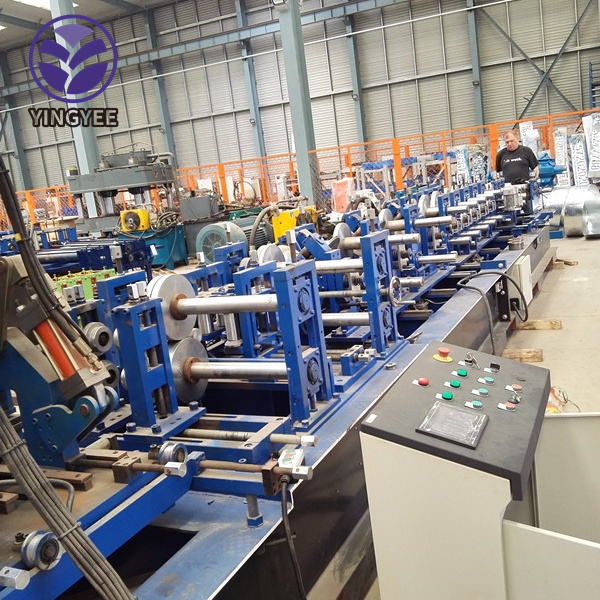

Pictures of the Machine:
Company Information
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is a manufacturer specializing in various cold-forming machinery and automatic production lines. We have a wonderful team with high technology and excellent sales, which offer professional products and related services. We paid attention to quantity and after-service, got great feedback, and honored the clients. We have a great team for after-service. We have sent several patches after the service team to overseas to finish the product installation and adjustment. Our products have been sold to more than 20 countries already. Also included the US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service locally at a paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using the guide is optional if no visiting and no installation.
Certification and after-service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized
Looking for an ideal Automatic C Z-purlin Machine Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the C Z Purlin Machines are quality guaranteed. We are China Origin Factory of PLC Adjust Size. If you have any questions, please feel free to contact us.
Product Categories: C/Z/U Purlin Changeable Roll Forming Machine
